5th Wheel Rear View System with 2 Backup Cameras and Clip On Mirror

  (4.6) Based on 52 reviews
SKU123537
Wired rv backup camera with ccd license plate camera and 7 inch mirror monitor
Wired rv backup camera with ccd license plate camera and 7 inch mirror monitor
Wired rv backup camera with ccd license plate camera and 7 inch mirror monitor
Frontal view of the standard license plate backup camera. Great for cars, trucks, RVs, trailers, campers, 5th wheels, and many more. SKU16139
7 Inch rear view mirror monitor frontal view SKU22503
Best selling RV backup camera replacement
Cameras can be mounted anywhere on your fifth wheel
Frontal view of the standard license plate backup camera. Great for cars, trucks, RVs, trailers, campers, 5th wheels, and many more. SKU16139
7 inch mirror Dimensions 4.3 inches by 9.4 inches by .25 inch
Comes standard with automatic military grade night vision LEDs. These infrared LEDs give you a clear picture even in total darkness!
7 Inch mirror has durable clips to hold on to any mirror
Best selling Backup Camera
License Plate Camera
Watch movies on the 7 inch mirror screen with DVD player
Adjustable sun shield helps you see better in bright sunny conditions, and prevents water drops from obscuring your view in inclement weather.
Dimensions for 120 degree birds-eye view RV backup camera: 3 in. L x 2.25 in. W x 2.5 in. H

Features

5th Wheel Rear View System with 2 Backup Cameras and Clip On Mirror - SKU123537
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark Clips over existing mirror
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Mounts on License Plate
  • Checkmark Reverse image (Mirrored Image)

About this Mirror Monitor


best Backup Camera System

Light weight design makes it easy to clip on to your mirror

The crystal clear 7” LCD Mirror Monitor is a perfect addition to any driver that needs assistance backing up. See the whole world behind you in rich colors. The Mirror doubles as a regular mirror, when the camera is off, and a monitor (7” viewable) when the camera is on. Remember, even when the camera is on you can still use the parts of the mirror section that remain a mirror. In addition, it has two video inputs so you can connect a camera and a game system or DVD player. This mirror monitor is compatible with all our cameras and any car; it connects to any power source or a cigarette lighter. This mirror mounts by clamping on your current mirror and the clamps are adjustable so it will fit all cars.

About these backup cameras




exclamation point iconPick Your Backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 2 cameras however, we have different styles for all kinds of uses. Change 1, both or none of the cameras in this system, the choice is yours. Please use this guide to help you select which camera is best for you.


Click here to see our BACKUP CAMERA GUIDE

aftermarket backup camera

You get both RV box and License plate cameras

License Plate Backup camera
The License Plate rear view camera is mounted by screwing your current license plate screws through its brackets; it’s a very simple installation. The camera can also be adjusted by angling the camera up or down so you can get the perfect view for your car. There is no need to drill any holes or install mounting brackets. The camera has a 120° angle which is best for Cars, SUVs, and Trucks. With 120° everything behind the vehicle can easily be seen, it is also color, waterproof and has military grade night vision. The camera and mount are made of steel for ultimate durability in the roughest weather conditions.

RV Box backup camera
The RV Box backup camera Has a 120° Degree viewable angle, its waterproof and has auto night vision. The camera is one of the most durable we have, with incredible adjustability and night vision clarity. The RV Box camera has a metal sun shield visor to protect you from glare and pebbles. This is by far our toughest built camera. It has been regularly used in cars, vans, buses and even industrial sized caterpillar trucks, operated in the harsh oil sand of Canada. This camera can take a direct hit from a rock and it will still work like new. It has also been very popular with RVs, because its housing allows you to install the cameras on multiple sides of your RV.

More you should know about Installation

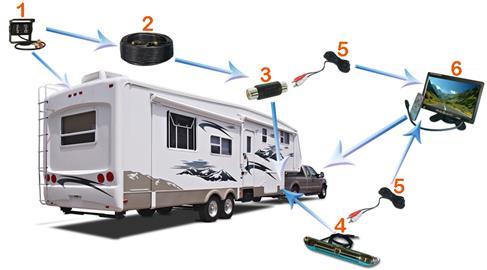

Back Up Camera installation diagram for 5th wheel

Mapped out parts

Photo Explanation
1. Box camera
2. 70ft Cable
3. Adapter
4. License Plate camera
5. 2 x 25ft Cable
6. 7" Color Mirror


System includes all parts necessary to connect a Two camera system to your Truck and 5th Wheel as well as a One camera System for your Truck(when you are not towing the 5th wheel). You connect two cameras, the first to the top part of your 5th wheel (Photo 1.) and the second to your license plate on your truck aimed at the hitch and rear of the vehicle (Photo 4.)

You then run the 70ft cable provided (Photo 2.) from the camera at the back of your 5th wheel to your hitch. At that point you connect the 70ft cable to a second 20ft cable (Photo 5.) with the adapter provided (Photo 3.) That 20ft cable connects to your monitor (Photo 6.) The other camera simply installs on your license plate of the truck (Photo 4.) and connects to the monitor with the 20ft cable provided (Photo 5.) The adapter allows you to disconnect the 5th wheel from the backup system (Photo 3.) so when the truck is operated on its own it has a license plate camera (Photo 4.)


The monitor provided allows you to switch between both cameras when needed. This allows you to EASILY backup the truck into the 5th wheel onto your hitch. Once its hitched you connect the adapter to the 70ft cable and you switch to the box camera at the back of the 5th wheel. Now you can see the whole world behind you!

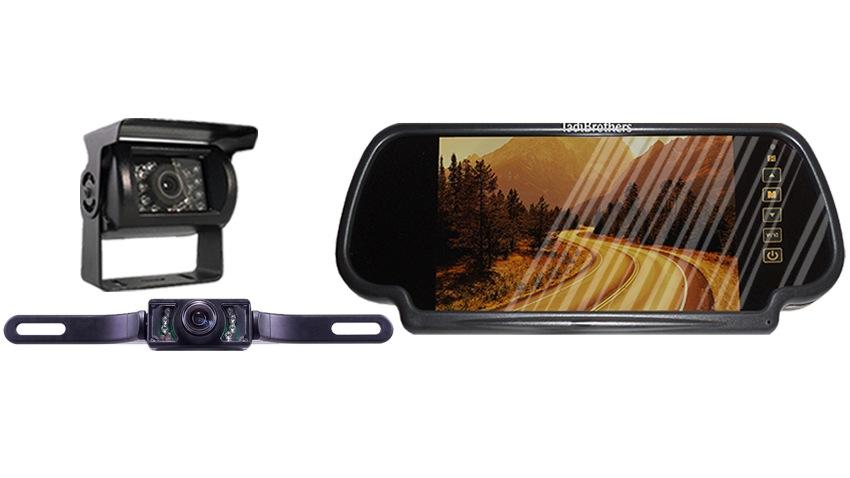

What's in the box

Top

Backup Cam

You get everything seen here

1. Standard quality 7-Inch LCD Mirror Monitor
2. Window and dash mount
3. RV Box (Birds eye) mounted camera
4. License plate camera
5. All cables needed are included in the package
6. Instruction Manual

The Tadibrothers HOLIDAY promise:
Any purchase made between November 1st and December 25th will be eligible for a 100% money back guarantee until January 31st.
This means that you could have up to 90 Days for a 100% full money back guarantee depending how early you make the purchase. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the Tadibrothers team won’t let you down

At Tadibrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

5th Wheel Rear View System with 2 Backup Cameras and Clip On Mirror - SKU123537
More Info
Weight (Lbs)
Cameras Included in the Package 2 Cameras
Dimensions
License Plate Backup Camera with night vision - SKU16139
More Info
Weight (Lbs) 1
AGC Automatic
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Integrated sun shield No
Backup camera connectivity Wired
Backup camera style License Plate
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1''
Dimensions 10"(W) X 0.5"(D) X 1"(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Internal Microphone No
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 25ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Installation Cables Included Yes
Material Hard Plastic
Operating temperature 0C to + 133C
Power Supply 12 Volt DC
Remote control Included No
Storage temperature -20C+65C
Split screen Compatibility Yes
7-Inch Rear View Clip On Mirror with Optional Backup Camera - SKU22503
More Info
Weight (Lbs)
AGC Automatic
Bluetooth No Bluetooth
Built-In Speakers Yes
Camera White Balance Automatic
Contrast Ratio 250:1
Designated Installation Clips on Mirror
Dimensions 9.4"(W) X 0.5"(D) X 4.3"(H)
Dual Backup camera compatible Yes
Electronic Shutter 1/60 ~ 1/10,000 Second
Installation Cables Included Yes
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Mirror
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Screen Size 7-Inch Screen
Split Screen No
Storage temperature -20C+65C
Type of Connection RCA
Type of screen LCD
Video game system Compatible Yes
RV Backup Camera (Birds Eye View) - SKU24374
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wired
Backup camera style Roof Angle (Birds eye view)
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Vertical Adjustability 180°
