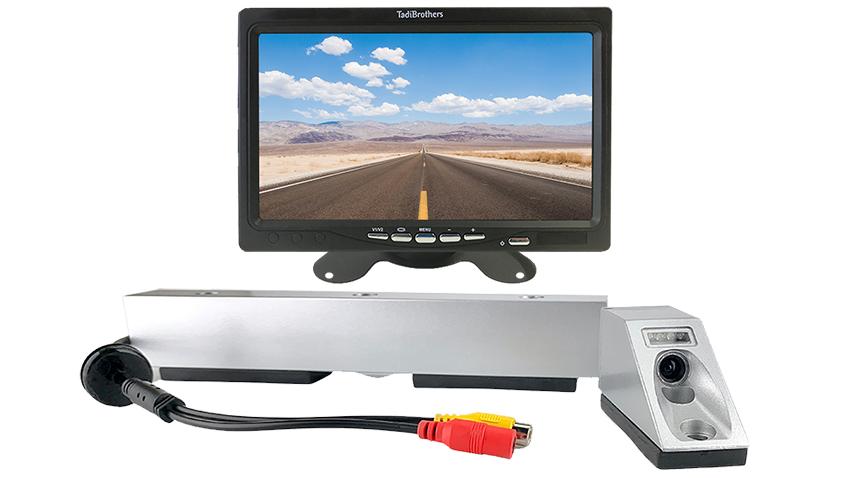

1080P AHD Fork Mounted Camera System with 7-Inch Monitor
SKU554646Features
This 1080P forklift system includes an AHD 7-inch screen that can accept 2 cameras. Included is 1080P a fork mounted camera with a magnet base. The 7-inch screen is full color and auto adjusts in low and bright light conditions. Easy to install and set up, this is the perfect solution for warehouse safety and efficiency . You can also add a 2nd camera and face it backwards. The system would auto toggle between the 2 depending on the direction of the forklift is moving in (this feature can be deactivated and controlled manually)

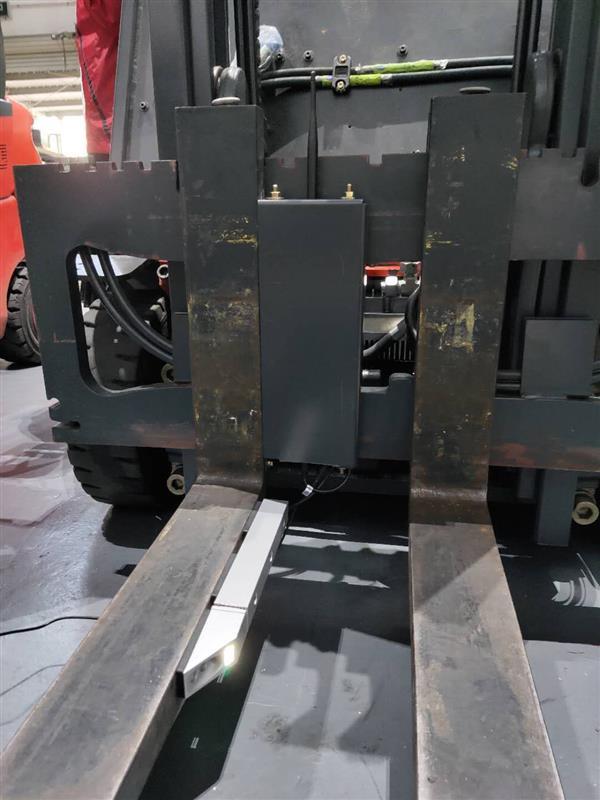

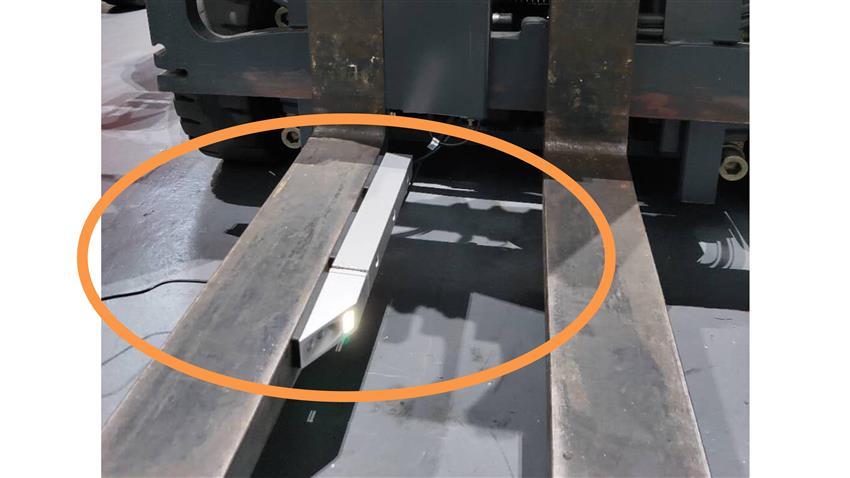

Magnetizes to the forks
This Fork mounted camera for any forklift is an excellent way to make your drivers more efficient while increasing safety in your warehouse.

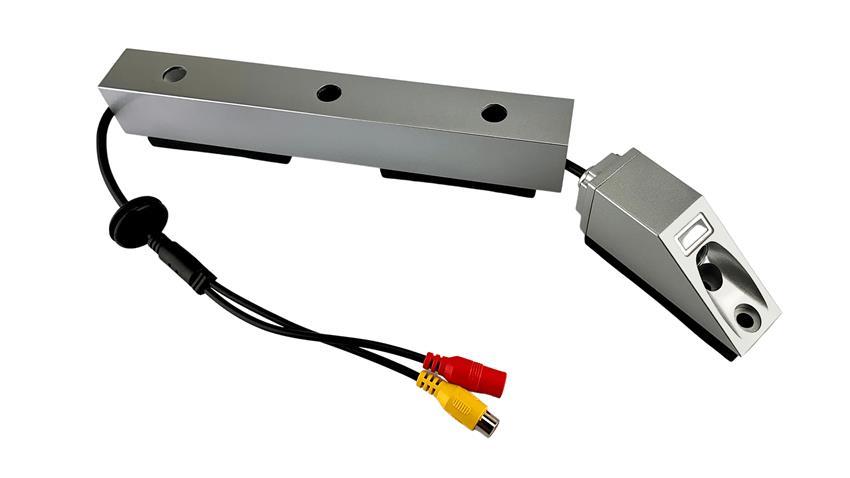

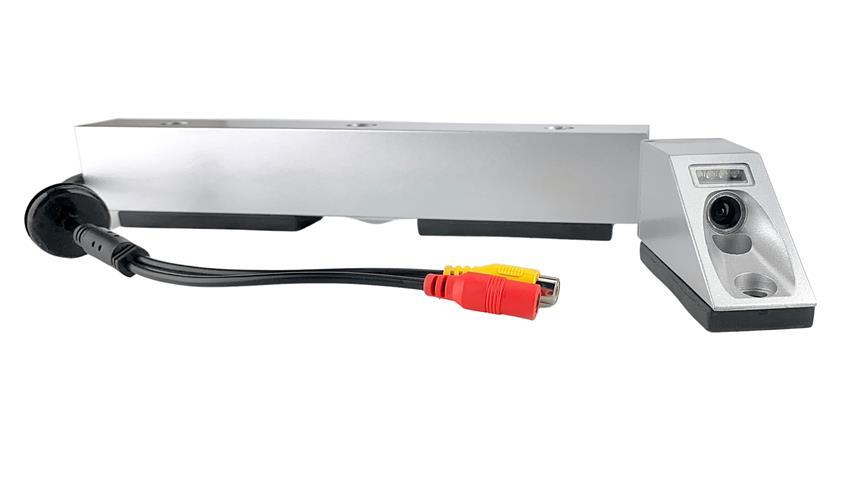

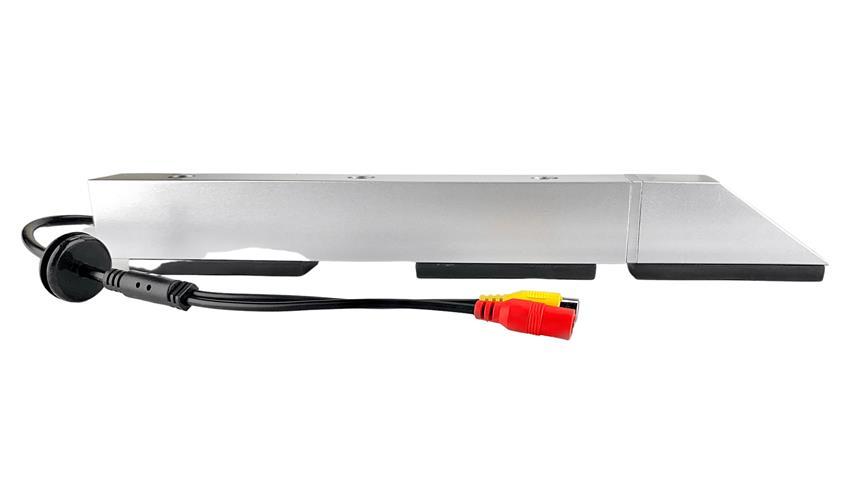

This heavy duty camera is meant to magnetize to any side of your forklift fork. Easy to set up with one cable feeding the image into the screen.

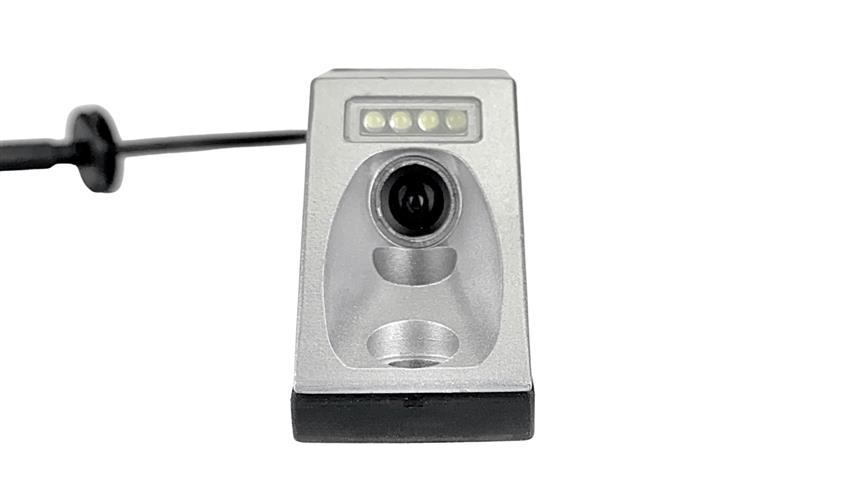

Day or night this camera will work flawlessly, with an extra bright flashlight integrated into the camera so the light will always be shining on where the fork is pointing.
If preferred, you can upgrade this camera to be wireless, you would just need 12-24v at the fork to power it up
Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.
Please note: If you are purchasing this AHD camera, it will only function with an AHD Monitor. If you mix AHD with CMOS you will not be able to see an image on this display
- Heavy Duty Construction

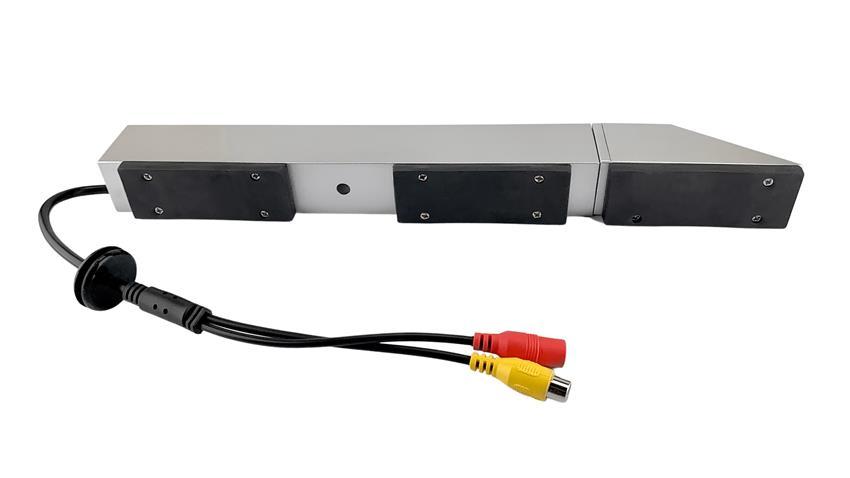

- Magnetic Base
- 100% Weatherproof
- Projects Light
- Full color & Night vision
Sleek Design
The AHD monitor included is 7-inch diagonal and can accept 2 cameras. You can toggle between the 2 with a tap of a button. It includes a butterfly mount so that you can mount it on your dash or hang it from your ceiling.
This Monitor features our AHD panel which is the highest possible resolution available for this type of wired screen.
This screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
If you intend to use this screen while you're driving down the road or changing lanes you can also use this backup monitor as an observation monitor and some have used it as a security screen to view their backup cameras while they're parked. As for the brightness, this rear-view monitor will deliver a perfect image even in direct sunlight but will auto dim at night for a softer more comfortable view.
Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.
- 1080P Resolution
- 2 Channels (Multiple Inputs)
- Full AHD Color LCD
- Thin and Flat Design
- Can be left active 24/7
Easy access to the harness
This AHD screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
The trim is designed to make the screen look stock in your vehicle and give you easy access to the harness if even needed. discreet and easy buttons on the trim make it easy to pop out the screen when needed.
The instruction included give you a step by step guide on how install and use all the features of this screen.
- Black trim
- Give easy access to harness
- Professional look
- Commercial grade material
- Magnet Based Forklift Camera
- 1pcs 2.1mm DC Barrel connectors
- 1pcs 15ft Cable
- 7-inch 2 Channel Monitor (1080P)
- Harness for Power & Video
- Trim for flush dash mount
- Butterfly Mount
- Double sided adhesive for mount
Specs
1080P AHD Fork Mounted Camera System with 7-Inch Monitor - SKU554646 | |
---|---|
Weight (Lbs) | |
Dimensions | |
More Info | |
Type Of Vehicle | Forklift |

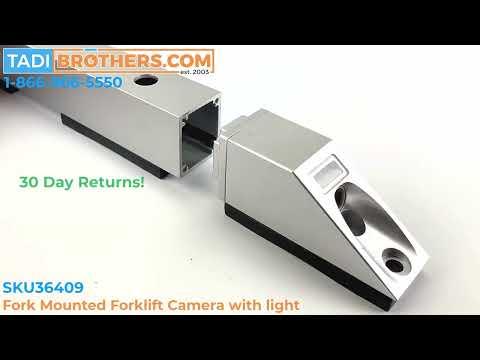

1080P Fork Mounted Forklift Camera with light (AHD) - SKU36409 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Backup camera connectivity | Wired 1080P (AHD) |
Backup camera style | Roof Angle (Birds eye view) |
Camera Resolution | 420 TV Lines |
Camera Water Resistant | Yes |
Camera White Balance | Automatic |
Cameras Viewable Angle | 120° |
Contrast Ratio | 250:1 |

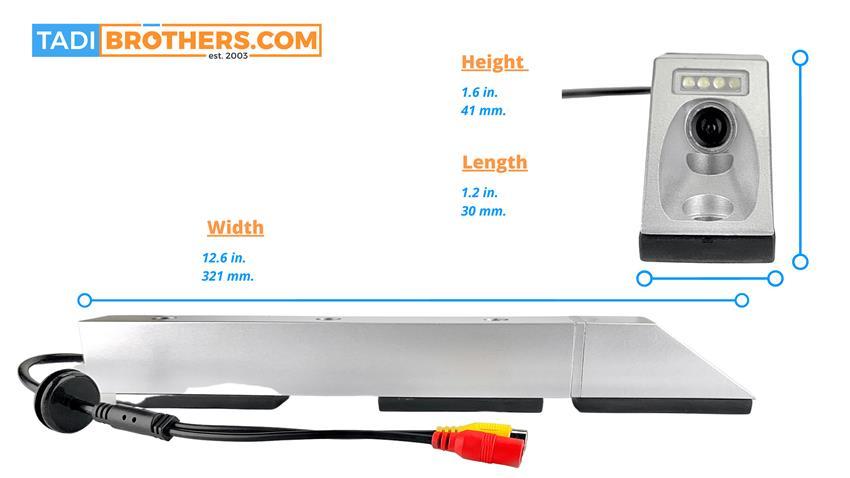

Dimensions | 3"(L) x 2.25"(W) x 2.5"(H) |
Installation Cables Included | Yes |
Integrated sun shield | Yes |
IP Rating | IP69K |
Minimum Illumination (LUX) | 0.2 |
Night Vision | Yes |
Operating temperature | -40C to + 133C |
Quantity of Infrared LED's for Night vision | 18 |
Rugged die cast aluminum housing | Yes |
Type of lense | AHD |
Weather Proof | Yes |
Weather Proof Insulated Cable | Yes |
7-Inch 1080P Hi-Def Rear View Monitor for AHD Backup Cameras Only - SKU24522 | |
---|---|
More Info | |
Weight (Lbs) | |
Backup Monitor connectivity | Wired 1080P (AHD) |
Bluetooth | No Bluetooth |
Built-In Speakers | Yes |
Camera Resolution | 1080 TV Lines |
Contrast Ratio | 250:1 |
Dimensions | 7.1"(W) X 0.5"(D) X 4.8" (H) |
Dual Backup camera compatible | Yes |
Installation Cables Included | Yes |
Length of Cable Included | 15ft |
Material | LCD |
Monitor Type | LCD Monitor |
Operating temperature | -40C to + 133C |
Performance sensors | High sensitivity |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Remote control Included | Yes |
Resolution | 1024X768 |
Screen Size | 7-Inch Screen |
Split Screen | No |
Storage temperature | -20C+65C |
Type of Connection | RCA |
Type of lense | AHD |
Type of screen | LCD |
Video game system Compatible | Yes |
