120° Heavy Duty Wireless RV Backup Camera (Birds Eye View)

Heavy duty bolts located on the side of the camera allow perfect and stable positioning Heavy duty bolts located on the side of the camera allow perfect and stable positioning
Regular Price: $249.99
Thursday Special: $ 184.99
You Save: $65.00 (26 %)
Availability: In Stock
  (4.6) Based on 11 reviews
Add To Cart
Total Price: $184.99

Click for larger image All Photos

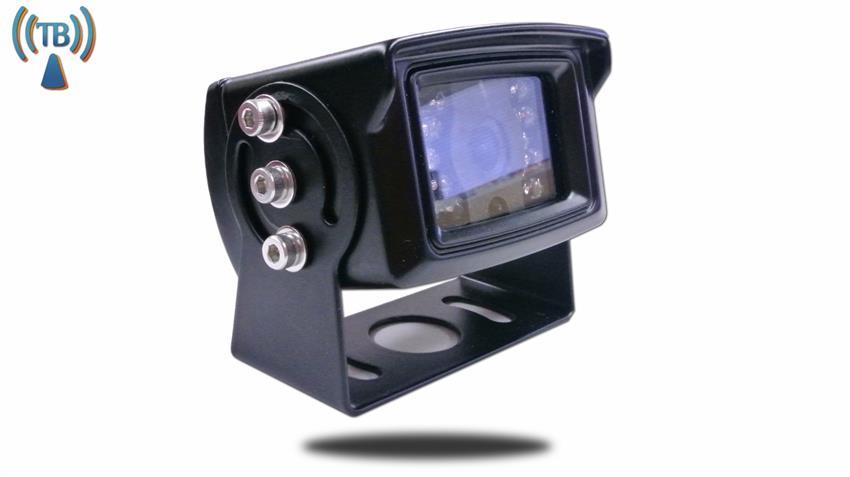

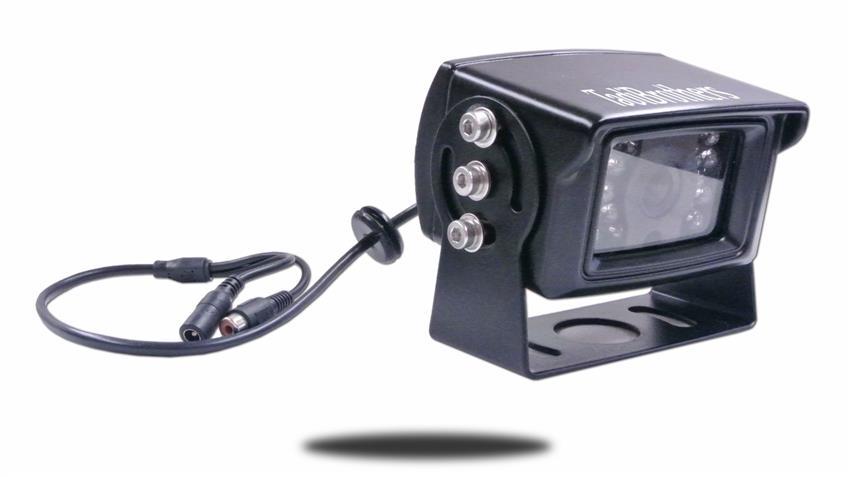

  • Heavy duty bolts located on the side of the camera allow perfect and stable positioning

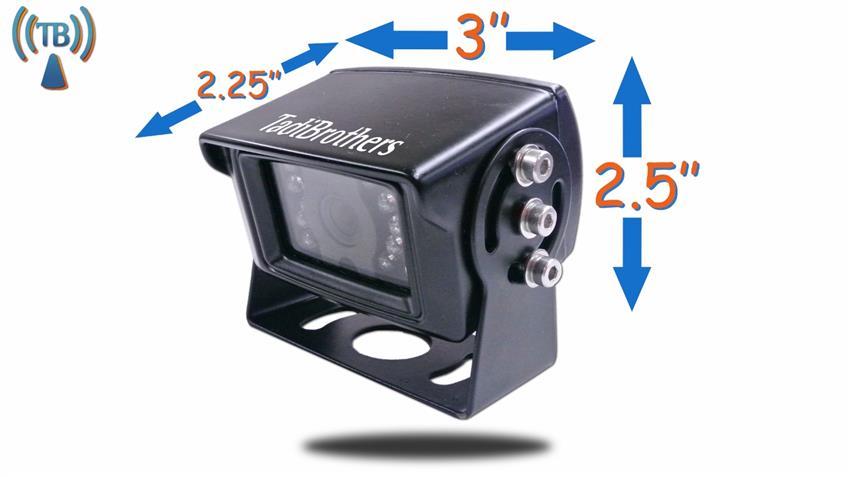

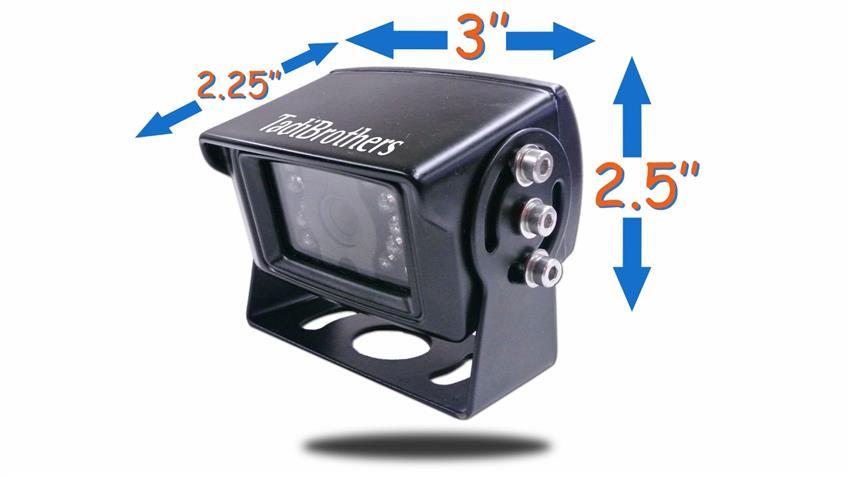

  • Wireless Backup camera  Dimensions 3 inches by 2.5 inches by 2.25 inch

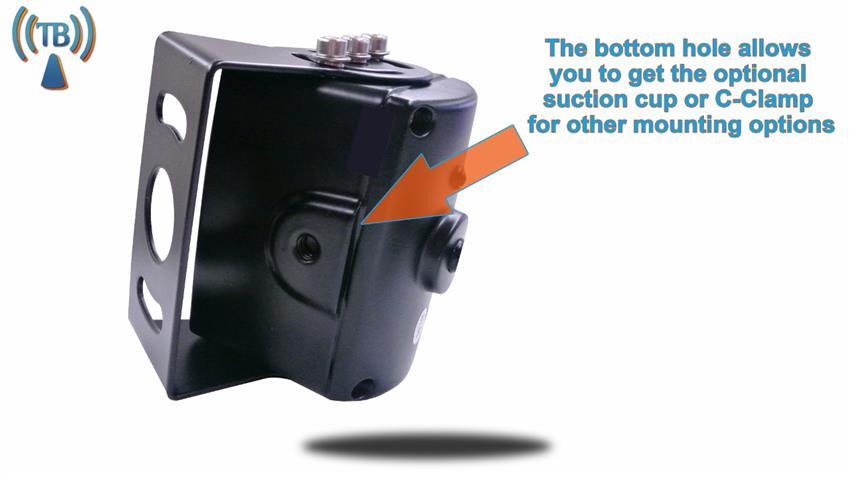

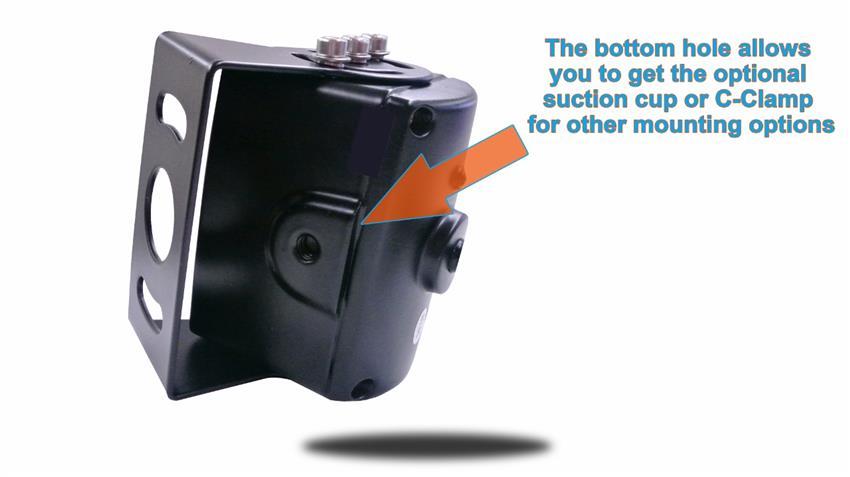

  • This Wireless heavy duty back up camera is also compatible with our C-clamp

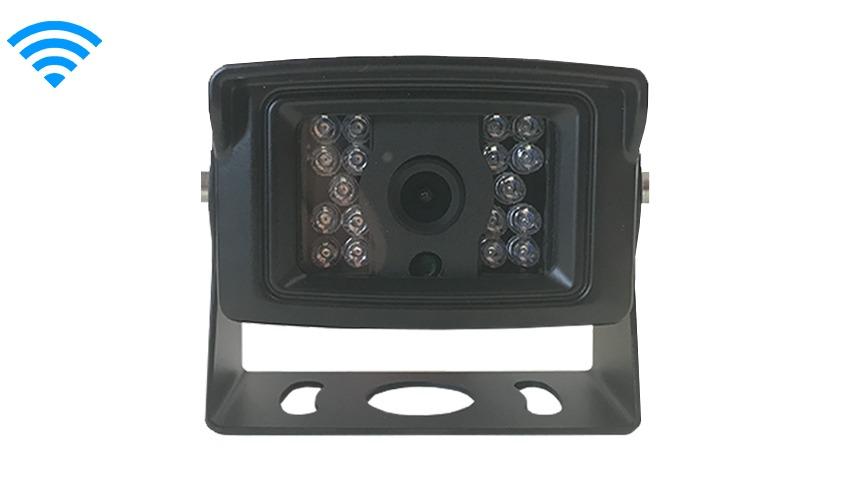

  • There are 20 LEDs for military grade night vision on the Wireless heavy duty back up camera.

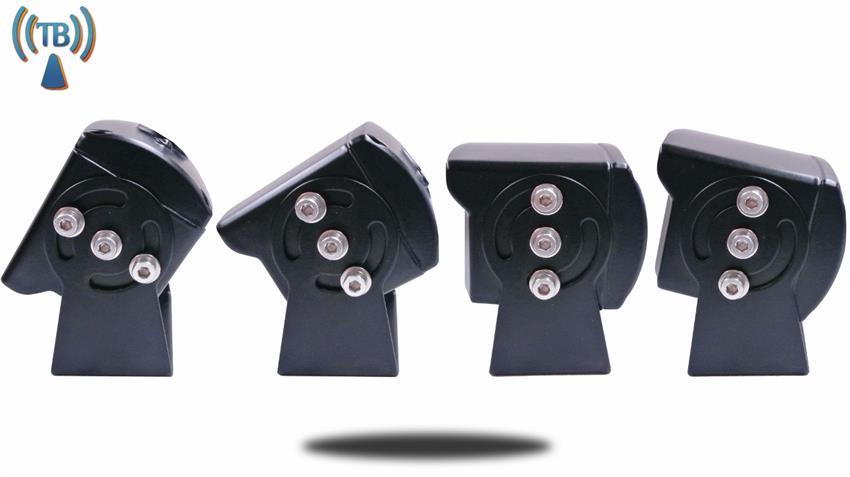

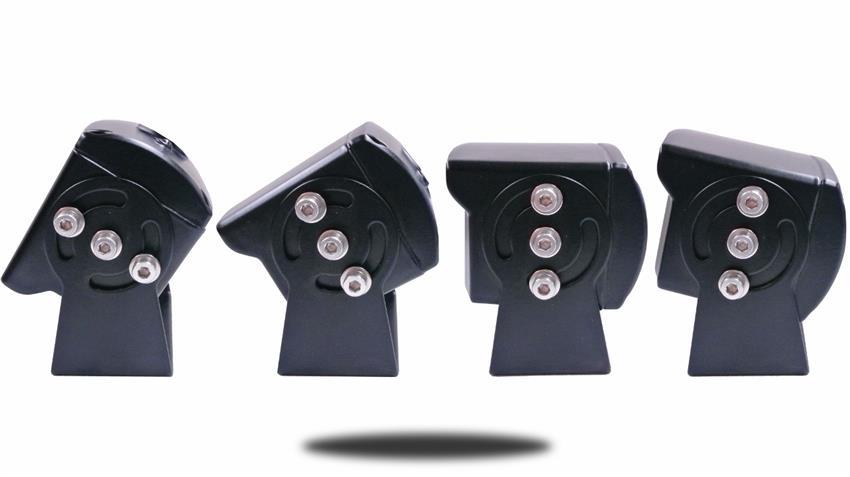

  • Multiple positions of the wireless rear view camera allow you to to view in a perfect angle.

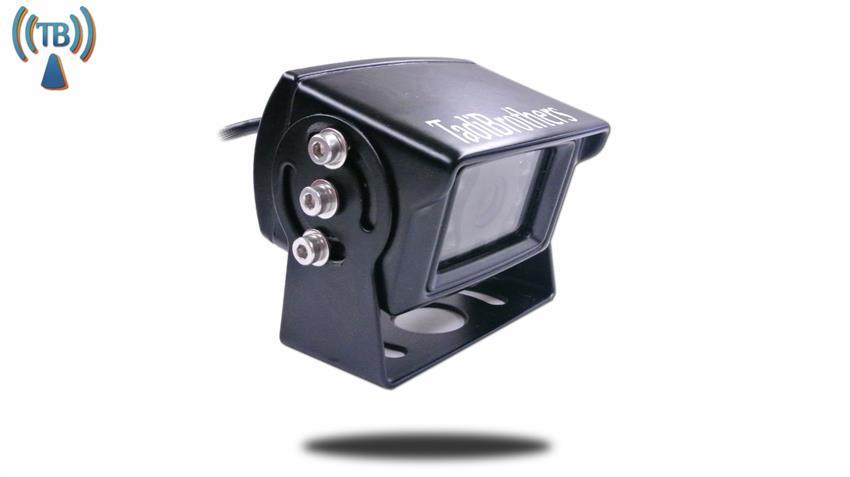

  • Wireless Heavy Duty Camera has bolts located on the side of the camera allow perfect and stable positioning.
  • The Wireless heavy duty backup camera has tempered glass to keep the camera working in any weather

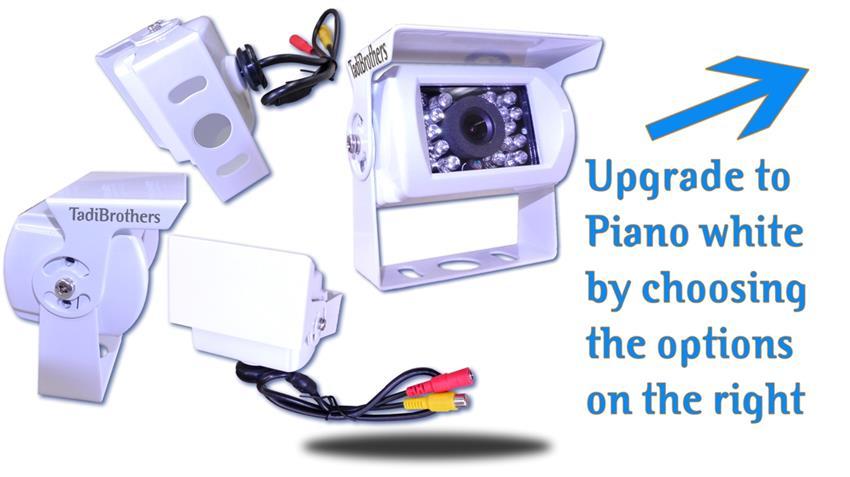

  • The Heavy Duty Backup Camera also comes in crisp Piano White.
< >
120° Heavy Duty Wireless RV Backup Camera (Birds Eye View)
  • Color
  • Wireless up to 70ft
  • Military Grade Night Vision
  • On while driving or in reverse
  • Mounts at top of RV
  • 100% Weatherproof
  • Reverse image (Mirrored Image)
  • Heavy Duty

About this Wireless heavy duty backup camera

wireless backup camera

Simple design makes it easy to install

As a driver, it is important for you to take necessary precautionary measures to protect yourself and others from accidents. The unfortunate reality is that so many accidents these days are avoidable. Many vehicles, especially large ones, have blind spots that can cause the driver to hit something, or worse, someone. Installing a 120° Heavy Duty RV Backup Wireless Camera is a simple, affordable and extremely effective way to ensure that an avoidable backup accident never happens to you.

The Most Durable Camera on the Market
At Tadi Brothers, you can expect to find the highest-quality backup cameras without having to pay the premium prices found elsewhere. We hold each and every one of our products up to the highest professional standards, so you can be sure that you will receive a product that will withstand the test of time. The 120° Heavy Duty RV Backup Wireless Camera is built to last, with a durable casing that will survive everything from a fender bender to a hit from a rock gone rogue.

100% Weatherproof
Of course, an outdoor camera needs to be able to withstand any kind of weather, and the 120° Heavy Duty RV Backup Wireless Camera certainly has no problem with that. Whether it is sunny and clear or hailing at night, this 100% weatherproof camera continues to perform. Reliability is an extremely important factor to consider when purchasing a backup camera, and we sell this particular camera because we know that it will not let our customers down.

More you should know

wireless rear-view camera

What do the angles mean?

Packed with the Latest Features
The 120° Heavy Duty RV Backup Wireless Camera is a cutting-edge piece of machinery that packs all the modern features and technology that you would expect from a Tadi Brothers product. This is not some outdated camera with grainy, indiscernible picture quality. The vivid color monitor makes sure that you can see exactly what is behind you in striking detail. The military-grade night vision makes backing up in the dark a breeze. This camera can even be wireless up to 70ft, or you can simply hook it up to your vehicle's power.

Design a Custom System
There are plenty of ways you can use this versatile camera. Of course, mounting one on the top of your RV will solve any backing up issues you might have. However, many RV owners prefer to buy multiple cameras so that they can see from all angles at all times. The convenient, minimal design makes it easy to install multiple cameras on the sides and back of your RV. All Tadi Brothers backup cameras, monitors and car DVD players are compatible, so building your own custom system is simple. Just give us a call and our friendly and knowledgeable staff will be happy to assist you.

What's in the wireless heavy duty backup camera box

wireless camera

You get everything you see here

1. Heavy Duty Standard quality RV Box backup camera
2. 120 degree waterproof backup camera (Simple install)
3. Wireless Transmitter and Receiver (for 70ft)
4. All cables needed are included in the package
5. Instruction Manual

Order Online from Tadi Brothers
Technology is changing the way that we live. Many people now spend a lot of time in their vehicle, so it simply makes sense to outfit yours with the latest safety technology. Having a quality backup camera can prevent unfortunate accidents, while also making your life easier. If you own a large vehicle like an RV, a backup camera is a critical upgrade that all responsible drivers should have. Purchase this quality unit today so that you can prevent needless accidents tomorrow. Call us or simply place your order online now.

120° Heavy Duty Wireless RV Backup Camera (Birds Eye View)-SKU98198

More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 380 TV Lines
Contrast Ratio 250:1
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wireless
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft

Wireless Transmitters for Backup Camera -SKU19408

More Info
Weight (Lbs)
Power 12V Power & Ground
Transmitter Included
Type Of Upgrade Camera Upgrade
Backup camera connectivity Wireless
Installation Cables Included Yes
Material Hard Plastic
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft

There are no questions for this product

Ask a question
Give us a call at 866-966-5550 we can help you with any other questions or concerns
First name:
Last name:
Signup for the latest news about TadiBrothers product and promotions.

Add a review
Tadibrothers Review: 8/1/2015 Fritz C.

Overall rating :
Features :
Performance :
Design :
Value :

"All my buddies were scared to go wireless but the agent at Tadibrothers assured me that I have nothing to fear. I have 8 Fedex trucks in my fleet and I we have been testing 2 system for 3 month when I decided to add 6 more, we we concerned about the wireless crossing over when the trucks enter our facilities but the Tadibrothers team actually kept a records of the frequencies they sent us and made sure that there would be no interference and so far we have not has 1 instance of static. My installation team love installing the systems because everything just plugs in with no wires to connect other than power and if we need to swap out parts they are easy to remove. which brings me to why I am writing this review, Last week on of my drivers back up into a low roof and smashed the camera and the wireless transmitters i call Tadibrothers and told them my rear view camera got crushed and they sent us a new one that same day and they didn't even charge us though we were way outside the 30 days. They sure do take pride on service and they have me for life. Good product and even better attitude, Thanks to all the crew at Tadiborthers "

Tadibrothers Review: 6/11/2015 David (Lewistown, PA )

Better than my previous unit
Overall rating :
Features :
Performance :
Design :
Value :

"Bought a camera on ebay then purchase these wireless transmitters and they seem to work fine. Unfortunately, my camera broke and then I purchase one from Tadibrothers. I have to say these wires transmitters could really make a 40ft setup easy."

Tadibrothers Review: 5/18/2015 Brandy (Baltimore, OH )

That was easy
Overall rating :
Features :
Performance :
Design :
Value :

"These were very simple to install! and the reception works great on my 40 foot motor home."

Tadibrothers Review: 5/3/2015 Sue W.

Great wireless
Overall rating :
Features :
Performance :
Design :
Value :

"This is the 3rd system i purchased from Tadibrothers and I am always satisfied with the wireless, i put them on vans and I purchase that same wireless system every time. its easy to install because it all plugs and the only bare wire connection it to the power but even for that I just added the cigarette adapter. I am satisfied with the wireless and would recommend people buy it with confidence. "

Tadibrothers Review: 2/7/2015 Barry G.

Worked "OK" but I have some static
Overall rating :
Features :
Performance :
Design :
Value :

"I put this on my 55ft RV and was expecting the picture to blow me away but i was not too happy with the result. the installation was easy and the but the image shakes when i drive and i see some static when I'm in a place with a lot of wireless cameras. I called tech support and they said they will send me out a new set because this one clearly has a problem. I just don't believe in this wireless and if it doesn't work ill just go with a wired system. I will update this review if it improves. Update: OK, now it works as promised, it turned out that I kinda broke it when I installed the transmitters and drove without fastening them to the vehicle. The Tadibrothers spport department agents were very helpful and I would like to thank Scotty for talking with me all those times. My rear view system now has a consistently spectacular image even while I'm driving down the high way."

Tadibrothers Review: 11/7/2014 Chris D.

4 wireless cameras
Overall rating :
Features :
Performance :
Design :
Value :

"Purchased a 4 camera, rear view system from Tadibrothers. I assumes the wireless would be "OK" but nothing spacial but I was very surprised how great it was. 1st of all the entire system worked the 1st time I powered it up. 2nd the installation was very simple, the cameras plugged in to the transmitters and the receivers plug in to the back of the split screen monitor, they even include the power plugs for every receiver in the back of the monitor. I was able to connect the entire system with all plugs other than the power for the monitor its self and that because i decided to hard wire it. 3rd, the is NO delay between the camera powering up and seeing a picture, that is something i have never seen before even with systems that cost 3 times as much. 4. Was able to watch my rear view cameras while i was driving down the road with not one shred of static. this is a wonderful easy to install and reliable product and i highly recommend everyone to try it."

Tadibrothers Review: 5/19/2014 Manny (Gilbert, SC )

Good instructions
Overall rating :
Features :
Performance :
Design :
Value :

"I just got my wireless transmitters yesterday and before opening i was a little nervous about installing it myself but the diagrams and step by step instruction were very colorful and easy to follow. They clearly put a lot of effort in making these instructions."

Tadibrothers Review: 5/18/2014 Sly (Cedar Rapids, IA )

65ft+ microwave approved
Overall rating :
Features :
Performance :
Design :
Value :

"I ordered the transmitters from Tadibros and i was expecting transmission issues but they actually worked 67ft. My second test (this might sound odd) was to see if the transmitters will work while i use the microwave in my RV and it did flawlessly. I am very happy with this product and i will be adding more wireless cameras as i need them"

Tadibrothers Review: 3/18/2014 Rodney D. (Lafayette, LA )

Perfect while drving...
Overall rating :
Features :
Performance :
Design :
Value :

"I wanted to be able to watch my wireless camera while driving with NO static, after trying a few "off brand" transmitters, i decided to go with the guys or "bros" that have been doing this for over 10 years, and once again i proved mama right, like most things in life "you get what you pay for". I have driven from coast to coast, rough roads and the picture looks so good people think its a wired system. (Until i show them the transmitters) Reliable product and worth every penny!"

Tadibrothers Review: 3/3/2014 Carson Wheeler

Overall rating :
Features :
Performance :
Design :
Value :

"I heard wireless is not reliable but but i was assured that it would work up to 65ft. My camper is 40ft with thick walls a wifi router and micro wave and it has worked perfectly every time i fired it up. Good product and works better than anticipated "

Tadibrothers Review: 5/21/2012 Kelly (Laurel, MD )

Works great
Overall rating :
Features :
Performance :
Design :
Value :

"I'm purchased this item and had it install in my MDX and the wireless transmitter work great! "

Heavy duty bolts located on the side of the camera allow perfect and stable positioningHeavy duty bolts located on the side of the camera allow perfect and stable positioning

Related images

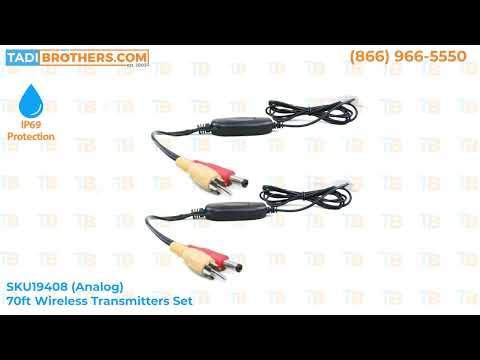

Wireless Transmitters for Backup Camera - SKU19408
We carry 3 varieties of wireless transmitters:

Our fixed frequency analog VHF transmitters are designed for use up to 70 feet.

For customers with larger RVs, trailers, or 5th wheels, we recommend upgrading to our adjustable frequency digital UHF transmitters. They feature a pairing button that allows you to change the frequency they operate on.

For customers who need the ultimate in reliability and range, our ultimate hulk transmitters are rated at 1000 feet of range. They feature heavy duty construction and automatically adjust frequency if any interference is detected. They are designed for construction equipment, and are great for large metal trailers that can interfere with other wireless systems.
Our wireless transmitters for backup camera systems are the perfect addition to your RV backup camera, license plate camera, bumper camera, and many other varieties. These are compatible with our systems for RVs, trailers, 5th wheels, campers, boats, semi trucks, construction equipment, farm equipment, and many other applications.

Included in every wireless transmitter kit are a matched pair of transmitter and receiver. The transmitter plugs into the camera, sending the video feed wirelessly to the receiver plugged into the monitor. This eliminates the hassle of installing a long wire the length of the vehicle to connect camera to monitor.

Installation Steps:

Plug the yellow RCA wire on the transmitter to the yellow RCA of the camera.

Plug the red DC power plug on the transmitter to the red DC power plug on the camera.

Connect the bare wires to a 12V power source. First the black negative ground, then the red positive 'hot' wire. Depending on your vehicle and preferences, this may be a constant power source, running light, or reverse light.

Plug the yellow RCA wire on the receiver to the yellow RCA video input on the monitor. (If your monitor has multiple yellow plugs, use the one marked 'AV1' or 'CH1')

Plug the red DC power plug on the receiver to the red DC power plug on the monitor.

Connect the black and red bare wires from the monitor to a 12V power source. This can be wired directly into a source inside the dash, or to our optional cigarette lighter adapter.

Alternatively, a 'pigtail' adapter is included, which has a DC power plug on on end and red/black bare wires on the other.
Tadibrothers includes a 1 Year Standard Warranty with any purchase on all items. Some products will have longer warranties which will be stated in the details of the product.

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the Tadibrothers team won’t let you down. All of our products come with
a 1 Year Standard Warranty.

At Tadibrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Any warranties from Tadibrothers will be honored by the Tadibrothers team. Return the item and it will be repaired or replaced. Items are usually returned to the customer within 5-10 business days. In some cases the customer may be liable for return shipping.

Please note some issues may be solved via email or telephone, call us 24/7 to solve
1 (866) 966-5550 or e-mail for more details
