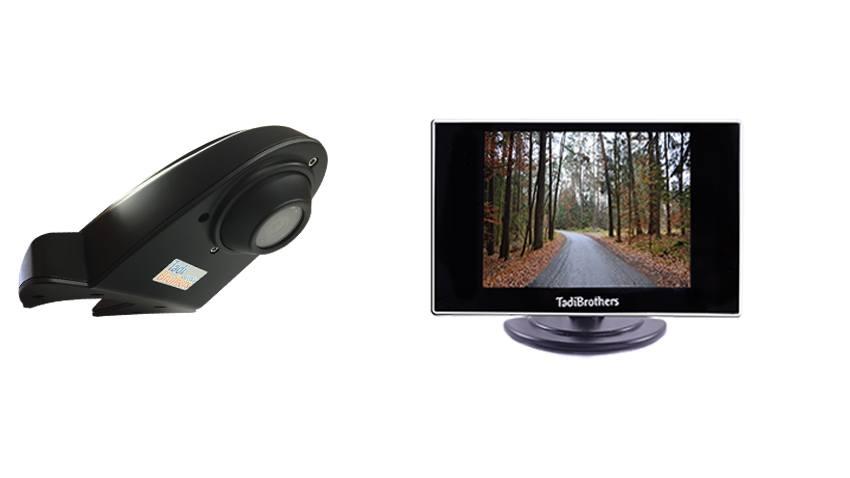

Overhang Bus Camera with Small Rear View Monitor

SKU85111

Color
Military Grade Night Vision
On while driving or in reverse
100% Weatherproof
Reverse image (Mirrored Image)
CCD (High Definition) Camera
Heavy Duty

About this Monitor

Comes with a dash mount

Viewing your surroundings when driving can be a daunting task, no matter what type of vehicle you drive. Increase your awareness and safety when driving with Tadi Brothers’ 3.5" Monitor and 120° CCD Overhang Roof Mounted Backup Camera.

Know Your Surroundings

If you are a driver who has difficulty backing up your vehicle, this camera system is the ideal solution for you. Simply mount the 100% weather-proof overhang roof-camera on the top of your car, plug the monitor into your lighter system (or other power source), and begin enjoying the advantage of improved overall vision.

The 3.5” monitor is mountable to your dashboard or windshield. It also features two video inputs so you can plug in a DVD player or gaming system. The light, thin design makes placement convenient and simple.

About this backup camera

Simply the best nightvision on the market

Increase Your Safety

The 3.5" Monitor and 120° CCD Overhang Roof Mounted Backup Camera is sure to improve your safety by aiding in recognition of the vehicle’s surroundings.

Gain a 120° field of vision with this sturdy camera, which was made to withstand the elements. Automatic, military-grade night vision and the ability to transmit data in real-time make this camera and monitor system and ideal upgrade for your vehicle.

An included 15-foot cable comes included with this system. For larger vehicles such as semis and buses, we suggest upgrading to one of our premium extension cables.

Gain a better view of your surroundings today with the 3.5" Monitor and 120° CCD Overhang Roof Mounted Backup Camera.

More you should know

Great for any vehicle that needs an overhang camera

This item includes a 15 Foot cable, if its going on an RV, BUS or any other vehicle longer than average SUV we recommend upgrading to our premium extension cables located on the top right of the page.

Also, This system, like most of our vehicular products that have an LCD screen, can be used for video gaming, Considering that a perk or bonus for purchasing our back up system (others block that feature).

Put any compatibility issues aside. With the TadiBrothers promise you have our 30 day guarantee to return the item for an exchange or a full refund. In addition, all our cameras monitor, and car DVD players purchased from TadiBrothers are always compatible with each other. So feel free to mix and match to create your own ultimate vehicular system. (Ask us about our 4-8 cameras split screen options for security, buses, or RVs)

What's in the box

Top

You get both items seen here

1. Standard quality 3.5'' LCD
2. Overhang Roof (Birds eye) mounted camera
3. 120 degree Hi-Res view (Simple install)
4. 15 foot cables needed for installation
5. All cables needed are included in the package
6. Instruction Manual

The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1 year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Overhang Bus Camera with Small Rear View Monitor-SKU85111

More Info
Weight (Lbs)
Backup camera style	Overhang Camera
Camera+Monitor+ Cables Included	Yes
Cameras Included in the Package	1
Dimensions

3.5-Inch Rear View Monitor for any Backup Camera-SKU24935

More Info
Weight (Lbs)
AGC	Automatic
Anodized black finish	Yes
Bluetooth	No Bluetooth
Contrast Ratio	250:1
Designated Installation	Dash and Window Mountable
Dimensions	3"(W) X 0.3"(D) X 2.9"(2.5"+0.4")(H)
Dual Backup camera compatible	No
Electronic Shutter	1/60 ~ 1/10,000 Second
Installation Cables Included	Yes
Material	Hard Plastic
Mirrored Image	Yes
Monitor Type	LCD Monitor
Operating temperature	-40C to + 133C
Power Supply	12 Volt DC
Quad Compatibility	Yes
Remote control Included	No
Resolution	640X480
Screen Size	3.5''
Split Screen	No
Storage temperature	-20C+65C
Type of Connection	RCA
Video game system Compatible	Yes

Overhang Roof Mounted Backup Camera-SKU46139

More Info
Weight (Lbs)
AGC	Automatic
Anodized black finish	Yes
Camera Resolution	420 TV Lines
Contrast Ratio	250:1
Electronic Shutter	1/60 ~ 1/10,000 Second
Integrated sun shield	Yes
Minimum Illumination (LUX)	0.2
Quantity of Infrared LED's for Night vision	18
Rugged die cast aluminum housing	Yes
Backup camera connectivity	Wired
Backup camera style	Overhang Camera
Cable Video Quality	HD
Camera Housing Color	Black
Camera Water Resistant	Yes
Camera White Balance	Automatic
Cameras Viewable Angle	120°
Circumference Camera	1.5''
Dimensions	2.6"(W) X 1"(D) X 3"(H)
Dual Backup camera compatible	Yes
Installation Cables Included	Yes
Mirrored Image	Yes
Night Vision	Yes
Night Vision Viewable Distance	60ft
Operating temperature	-40C to + 133C
Power Supply	12 Volt DC
Quad Compatibility	Yes
Storage temperature	-20C+65C
Type of Connection	RCA
Type of lense	CCD
Vertical Adjustability	180°

Videos

Review and unboxing of the 3rd brake light rear view camera systems for minivans and trucks with a short description of the Tadibrothers overhang backup camera. These 3rd brake light cameras here all have the same lens but we have made a mold that will fit your specific express van, sprinter or whatever vehicle you have.

All of the TadiBrothers 3rd brake light backup cameras come in standard definition but you can upgrade them to CCD hi definition, as well as upgrade to be wired or wireless and our most popular feature is the optional 170 degree lens upgrade, this will give you a wider range than the included 120 degrees.

These rear view backup cameras for Cargo vans are the most reliable camera and from our experience, they are more reliable than even what you get from the car maker.

We have had our system installed on civilian and government fleets and we stand by our products 100%.

Some of the vehicle brands we support are:
Chevrolet, GMC, Fiat, Nissan, Iveco, Dodge and much more.

We also carry a universal third brake light backup cameras that work with any other commercial vehicle, Travel trailers and long vehicles

The smallest monitors we carry are the 3.5" standard monitor and the 3.6" pop-up monitor. These are simple single input monitors that power up automatically when they are plugged into a camera and power source. Both monitors feature full color displays and a sticky adhesive mount for your dashboard.

The standard 3.5" comes with a suction cup mount if you prefer to attach it to your windshield instead of the dash. Optional handlebar mounts are available for bicycle, motorcycle, and wheelchair applications.

The pop-up monitor does just what it says: Press a button and the monitor flips up out of its protective housing! Simply push back the monitor and it locks into place when not needed.

These monitors are perfect for smaller cars, motorcycles, bicycles, motorized wheelchairs, and many other applications where a small footprint is critical.
