360 Degree Semi Truck Camera System for Surround View with DVR (4 Cameras)
Features

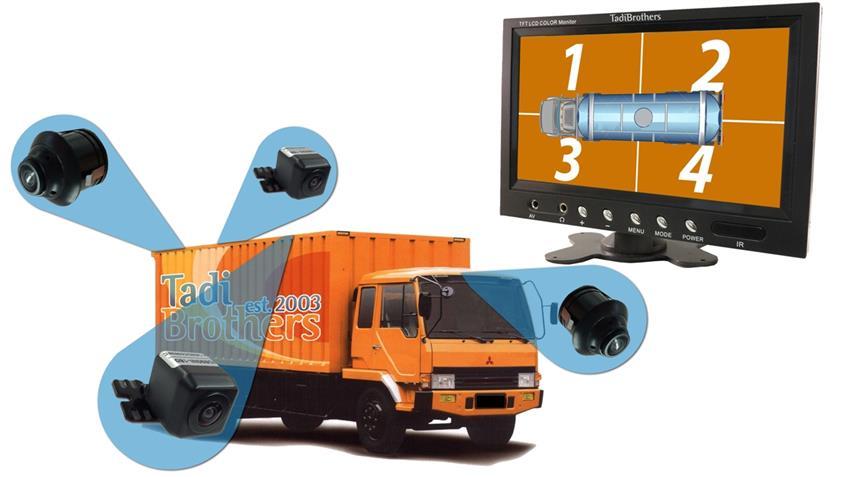

This is known as the overhead 360 view. Basically you see everything as though you were looking down on the vehicle from above
The camera image stitches into a full 360 view of the system. So you can see all sides in one large picture
3D View of the vehicle so you can see 3D perspectives of your vehicle from different angles and sides of the vehicle
The 7-inch screen includes a dash mount. Use the customize section on this page to change the size
The monitor can mount on the dash. You can also mount it using a suction cup on the windshield or mount it overhead
Switch between 2 cameras on the monitor. Choose whichever camera you want to see and switch over whenever you like
This system comes with 4 cameras
See the whole world in full color when reversing or driving down the road. Great for all weather conditions
This is a wired system. You simply connect the camera to the monitor using a cable
Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes
The video image on the screen will reversed. Just like the mirror in your car. Great for backing up or looking at the road behind you
100% Weatherproof. Works in all weather conditions. Rain or Snow or Sun you will be just fine using this system. Its meant to be out in the weather
For those who want the strongest parts you can get. Great for all conditions including harsh vibrations and industrial equipment
The DVR will record the cameras at all times. You can choose to record all cameras or just one. The DVR will loop automatically if you set it that way so you will never miss an important event
This system includes full 1080P Hi-Definition image quality This is a our 1080P commercial level 360 degree birds eye view camera system designed for semi trucks, trailer and even buses. Upgrade your current vehicle to the most requested safety feature in today vehicle market. This system includes a 7-inch screen and 4 heavy duty wide angle cameras that are easily places around the vehicle with a powerful mobile DVR brain that will stich all 4 cameras together to give you flawless image around your vehicle. The DVR stores all the data in a secured memory card with instant playback features available. The commercial 360 system includes everything you need for for a clean installation, featuring easy to follow instructions and diagrams.
Sleek Design
The monitor included is 7-inch diagonal and can accept 2 cameras. You can toggle between the 2 with a tap of a button. It includes a butterfly mount so that you can mount it on your dash or hang it from your ceiling.
This screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
If you intend to use this screen while you're driving down the road or changing lanes you can also use this backup monitor as an observation monitor and some have used it as a security screen to view their backup cameras while they're parked. As for the brightness, this rear-view monitor will deliver a perfect image even in direct sunlight but will auto dim at night for a softer more comfortable view.
- 2 Channels (Multiple Inputs)
- Full Color LCD
- Thin and Flat Design
- Can be left active 24/7
Easy access to the harness
This screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
The trim is designed to make the screen look stock in your vehicle and give you easy access to the harness if even needed. discreet and easy buttons on the trim make it easy to pop out the screen when needed.
The instruction included give you a step by step guide on how install and use all the features of this screen.
When you use the Trim, the outside dimensions are 5 1/3 Hight X 7 2/3 Width (These dimension include the lip of the trim)
- Black trim
- Give easy access to harness
- Professional look
- Commercial grade material

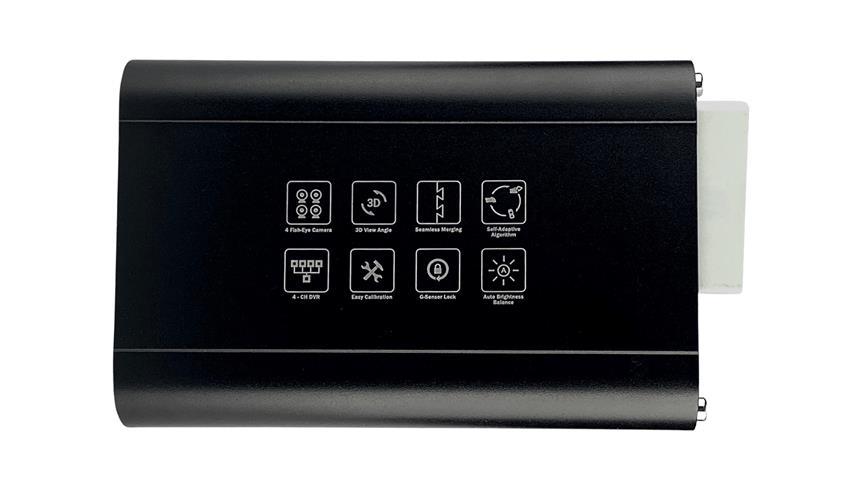

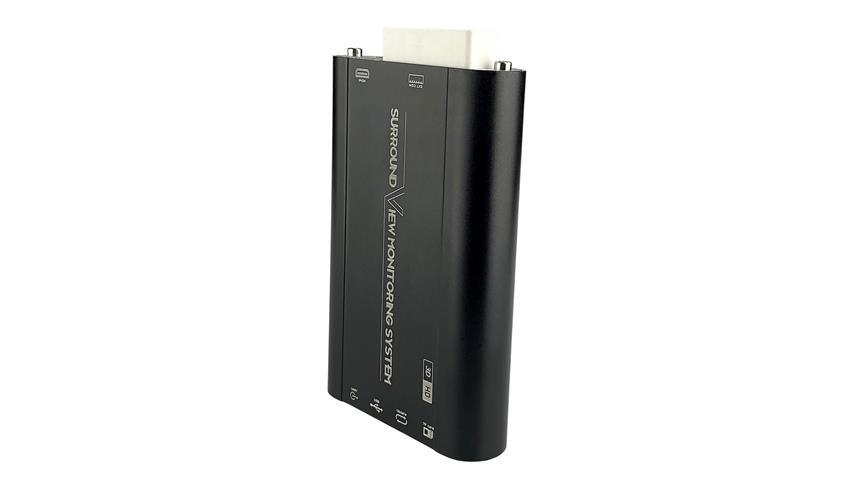

This brain makes the 3D image possible
This houses the the processors and 3D imaging technology that makes the system operate so seamlessly. This is also where you insert the SD card for the Mobile DVR which can record in 1080P
The system includes an integrated DVR which allows you to record 24/7. The recording will continue in a loop so if anything ever happens you will have a full recording of everything that takes place from on all sides of the vehicle. Everything can be operated from the remote control that comes with the system. This system is made specifically for RVs, Busses, Long Vans, and 5th Wheel trailers
This brain has a friendly interface designed in the USA, it that thoughtfulness that allows the quick view change and night vision that you can see in the demo video on this page.
You can also make this system activate when you use your blinkers, giving you the view you need when you need to see it. The views can also be changed using the included remote.
Length of Extensions Cables included: 3pcs Front/Sides (15m/50ft) 1pcs Rear(20m/65ft)
- Stays on continuously while driving
- Full color and night vision
- 3D Surround view image
This brain makes the 3D image possible
This system has the AI power to stitch the video image and create a 3D view. This feature makes it one of the most advanced systems on the market. Many of our customers purchase this to use as a security system for their vehicle as well.
The cameras can be viewed on the included screen. This monitor is perfect for backing up in a night or day time environment
For those who have an HD screen in their vehicle, the 360 Brain also includes an HDMI output that would take advantage of any size screen. We have seen this installed with a 75-inch flat screen and the image was immaculate.

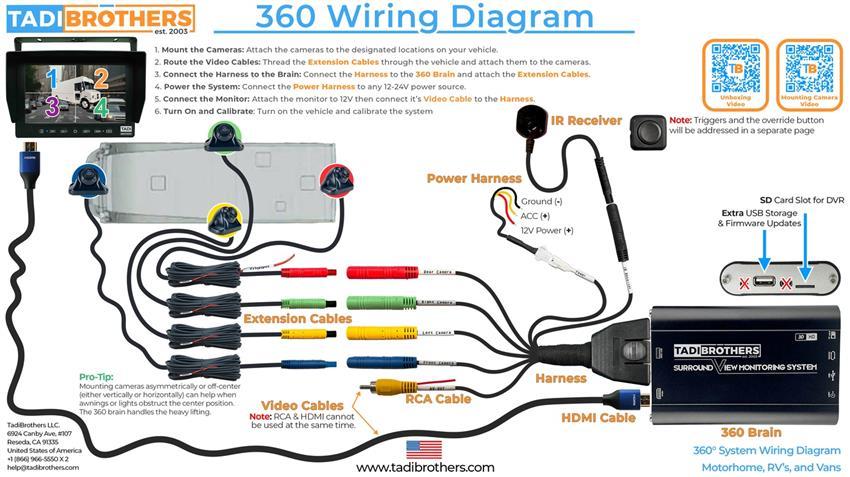

This system is very easy to install. It comes with all the instructions and diagrams needed for a quick and easy set up. Also, if you need a local installer we have pre-vetted installers around the country to set up the entire system for you (they will even give you a negotiated rate). Once you have this installed you will never know how you drove without it! Camera lenses are adjustable even after mounting to get that perfect view
- Camera mount with screws or double-sided adhesive
- 100% weather and waterproof
- Adjustable lens for easy calibration
You get everything seen here
This is the highest quality camera available for a surround video system
- Adjustable lens for the perfect view
- 7-inch 2 Channel Monitor
- Harness for Power & Video
- Trim for flush dash mount
- Butterfly Mount
- Double sided adhesive for mount
- 360 Degree Control unit (Brain)
- 1pcs Extensions Cable (20m/65ft)
- 3pcs Extensions Cable (15m/50ft)
Specs
| 360 Degree Semi Truck Camera System for Surround View with DVR (4 Cameras) - SKU55901 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| 360° System Type | Commercial Vehicles |
| Anodized black finish | Yes |
| Backup camera connectivity | Wired 1080P (AHD) |
| Cable Video Quality | HD |
| Camera Water Resistant | Yes |
| Camera White Balance | Automatic |
| Camera+Monitor+ Cables Included | Yes |
| Cameras Included in the Package | 4 Cameras |
| Circumference Camera | 1'' |
| Dimensions | |
| Direction of Sensors | Horizontal or Vertical |
| Display Type | LED Meter Display |
| Dual Meter Detection System | Yes |
| Installation Cables Included | Yes |
| Length of Cable Included | 15ft |
| Material | Hard Plastic |
| Monitor Type | LCD Monitor |
| Night Vision | Yes |
| Operating temperature | -40C to + 133C |
| Performance sensors | High sensitivity |
| Power Supply | 12 Volt DC |
| Quad Compatibility | Yes |
| Rugged die cast aluminum housing | Yes |
| Screen Size | 7-Inch Screen |
| Sensors Placement | Both Front and Rear Bumper |
| Storage temperature | -20C+65C |
| Storage Type | SD Card |
| Transport | Truck and Van,RV,5th Wheel,Campers and Trailers |
| Type of Connection | 5 Pin |
| Type of Vehicle | RV, Bus,Truck, Boat, Sedan, Minivan, SUV |
| Type Of Vehicle | FedEx Truck |
| Vertical Adjustability | 180° |
| Weather Proof | Yes |
| Weather Proof Insulated Cable | Yes |
| 7-Inch Rear View Monitor for any Backup Camera - SKU24122 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Backup camera connectivity | |
| Backup Monitor connectivity | Wired CMOS |
| Bluetooth | No Bluetooth |
| Built-In Speakers | Yes |
| Camera Resolution | 420 TV Lines |
| Contrast Ratio | 250:1 |
| Dimensions | 7.1"(W) X 0.5"(D) X 4.8" (H) |
| Dual Backup camera compatible | Yes |
| Installation Cables Included | Yes |
| Length of Cable Included | 15ft |
| Material | LCD |
| Monitor Type | LCD Monitor |
| Operating temperature | -40C to + 133C |
| Performance sensors | High sensitivity |
| Power Supply | 12 Volt DC |
| Quad Compatibility | Yes |
| Remote control Included | Yes |
| Resolution | 1024X768 |
| Screen Size | 7-Inch Screen |
| Split Screen | No |
| Storage temperature | -20C+65C |
| Type of Connection | RCA |
| Type of screen | LCD |
| Video game system Compatible | Yes |
| Brain for 360 3D Camera System for Semi Trailer Motorhome and RV - SKU55902N | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| 360° System Parts | Control Unit (Brain) |
| 360° System Type | Consumer Vehicles |
| Dimensions | |
| Type Of Upgrade | Other Upgrade |
| Weather Proof Insulated Cable | Yes |
| Power | 12V Power & Ground |
