5th Wheel Backup Camera System with RV Camera and Rear View Monitor

  (4.6) Based on 35 reviews
SKU29304
Wired 7 inch fifth wheel backup camera system with rv backup camera
Wired 7 inch fifth wheel backup camera system with rv backup camera
Wired 7 inch fifth wheel backup camera system with rv backup camera
7-Inch LCD Monitor for any Backup Camera | SKU24122
Best selling RV backup camera replacement
Helpful diagram
Upgrade to a DVR monitor for backup camera system
Comes standard with automatic military grade night vision LEDs. These infrared LEDs give you a clear picture even in total darkness!
Best selling Backup Camera
Rear view of the 7 inch monitor and the dash mount.
Adjustable sun shield helps you see better in bright sunny conditions, and prevents water drops from obscuring your view in inclement weather.
Dimensions for 120 degree birds-eye view RV backup camera: 3 in. L x 2.25 in. W x 2.5 in. H
Monitor dimensions

Features

5th Wheel Backup Camera System with RV Camera and Rear View Monitor - SKU29304
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark Toggle between 2 cameras
  • Checkmark Top rated product


About this 7-inch Monitor



Comes with a Dash and Window mount

The crystal clear 7” LCD Monitor is a perfect addition to any driver that needs assistance backing up. See the whole world behind you in rich colors. It is also an LCD monitor so it is very light as well as thin. In addition, it has two video inputs so you can connect a camera and a game system or DVD player. This monitor is compatible with all our cameras and any car; it connects to any power source or a cigarette lighter. It can mount on your windshield or dashboard (mount included). Super easy installation

About this 5th wheel camper camera



Rear view camera with Great Night vision

The RV Box camera Has a 120° Degree viewable angle, its waterproof and has auto night vision. The camera is one of the most durable we have, with incredible adjustability and night vision clarity. The RV Box rear view camera has a metal sun shield visor to protect you from glare and pebbles. This is by far our toughest built camera. It has been regularly used in trucks, vans, buses, RVs and even industrial sized caterpillar trucks, operated in the harsh oil sand of Canada. This camera can take a direct hit from a rock and it will still work like new. It has also been very popular with RVs, because its housing allows you to install the cameras on multiple sides of your RV.

More you should know about Installation of Fifth wheel backup camera system

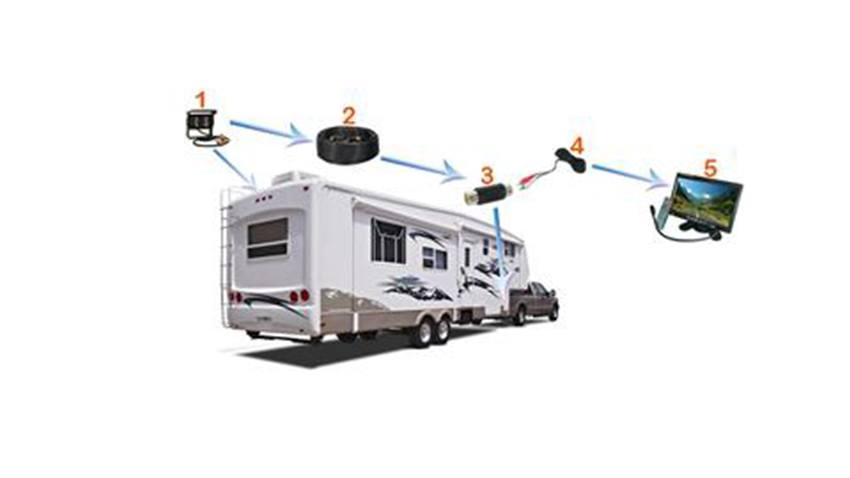

Mapped out parts for the Fifth wheel backup system

Photo Explanation
1. Box Camera
2. 70ft Cable

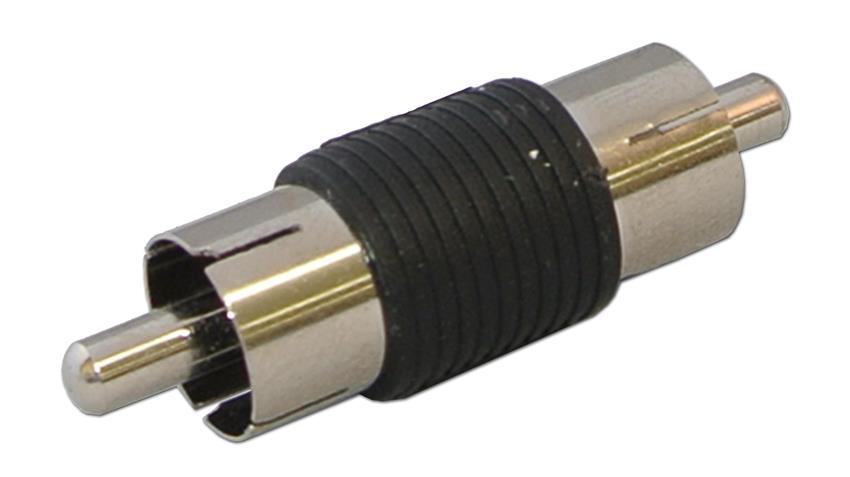

3. Adapter
4. 25ft Cable
5. 7" Color Monitor


The fifth wheel backup camera system includes all parts necessary to connect a One camera system to your Truck and 5th Wheel. You connect the box camera to the top part of your 5th wheel (Photo 1.) You then run the 70ft cable provided (Photo 2.) from the camera at the back of your 5th wheel to your hitch. At that point you connect the 70ft cable to a second 20ft cable (Photo 4.) with the adapter provided (Photo 3.) That 20ft cable connects to your monitor (Photo 5.) Now you can see the whole world behind you! The adapter allows you to disconnect the 5th wheel from the backup system (Photo 3.) when you are not towing it.

What's in the Fifth wheel camper kit

Top

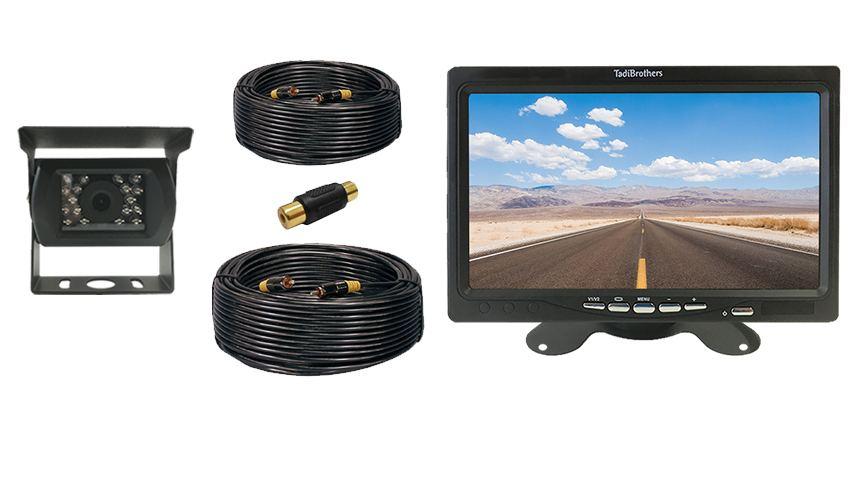

You get everything seen here

1. Standard quality 7'' LCD Monitor
2. Window and dash mount
3. RV Box (Birds eye) mounted backup camera
4. All cables needed are included in the package
5. Instruction Manual

The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1 year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

5th Wheel Backup Camera System with RV Camera and Rear View Monitor - SKU29304
More Info
Weight (Lbs)
Camera+Monitor+ Cables Included Yes
Dimensions
7-Inch Rear View Monitor for any Backup Camera - SKU24122
More Info
Weight (Lbs)
Bluetooth No Bluetooth
Built-In Speakers Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 7.1"(W) X 0.5"(D) X 4.8" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Length of Cable Included 15ft
Material LCD
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7''
Split Screen No
Storage temperature -20C+65C
Type of Connection RCA
Type of screen LCD
Video game system Compatible Yes
RV Backup Camera (Birds Eye View) - SKU24374
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 380 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wired
Backup camera style Roof Angle (Birds eye view)
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Vertical Adjustability 180°
