Heavy Duty Quick Disconnect with Rearview Monitor and 2 Observation Cameras for Hitching

SKU99608
Wired RV backup cameras with 7
Wired RV backup cameras with 7" monitor
Wired RV backup cameras with 7

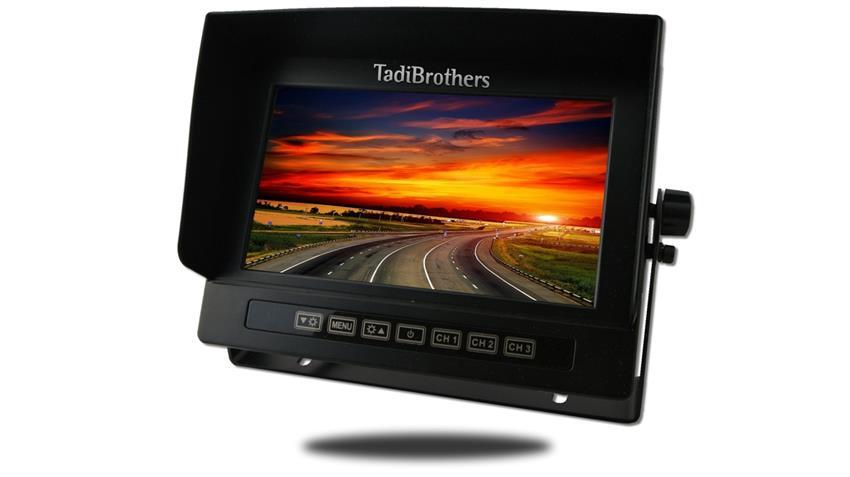

7-Inch Heavy Duty LCD Monitor for any Backup Camera | SKU186899

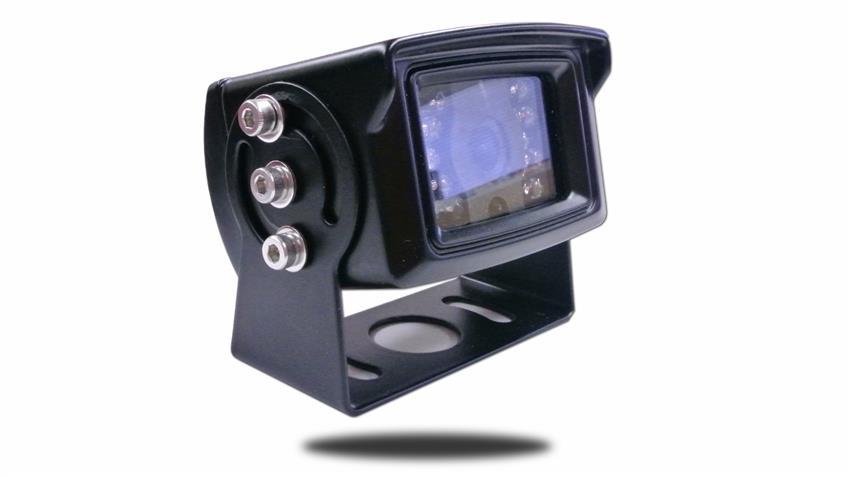

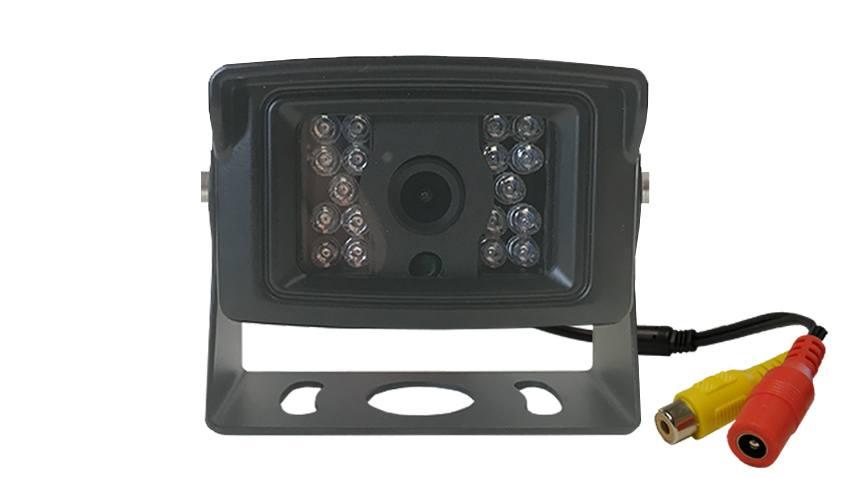

The heavy duty 120 degree hi-res CCD RV backup camera has a rugged housing built to survive the worst weather conditions!

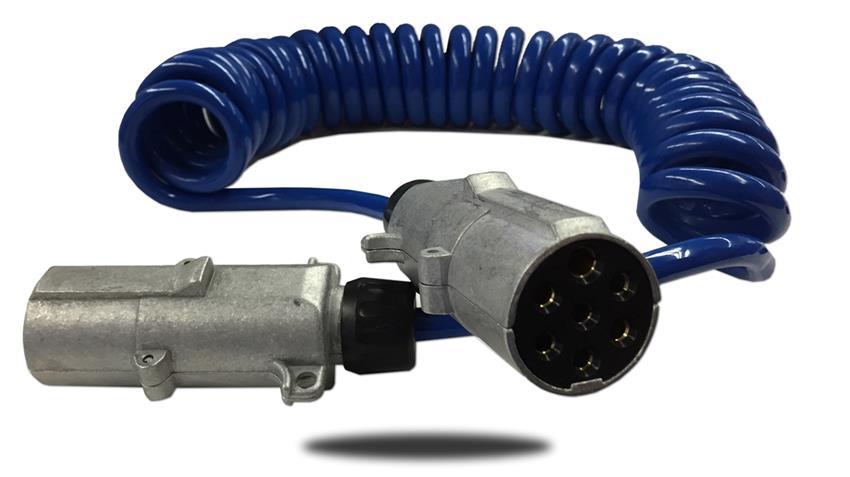

The industrial trailer tow quick disconnect is the most rugged slinky cable we carry.

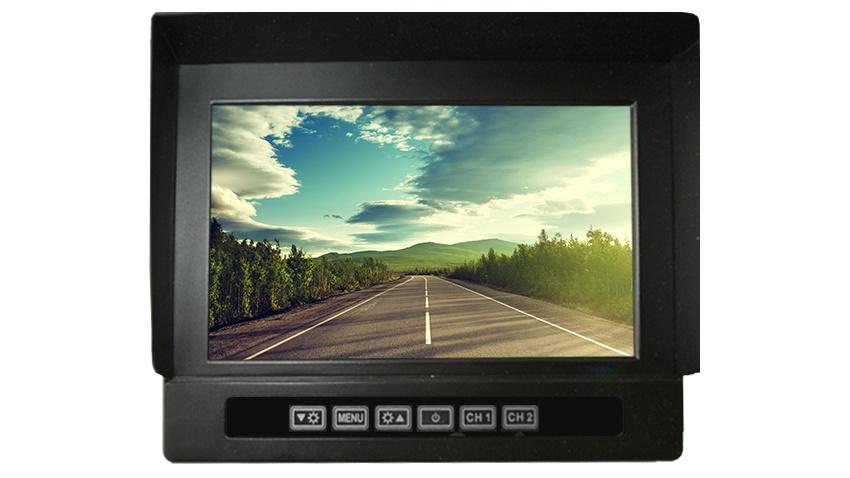

7-Inch Heavy Duty LCD Monitor for any Backup Camera | SKU186899

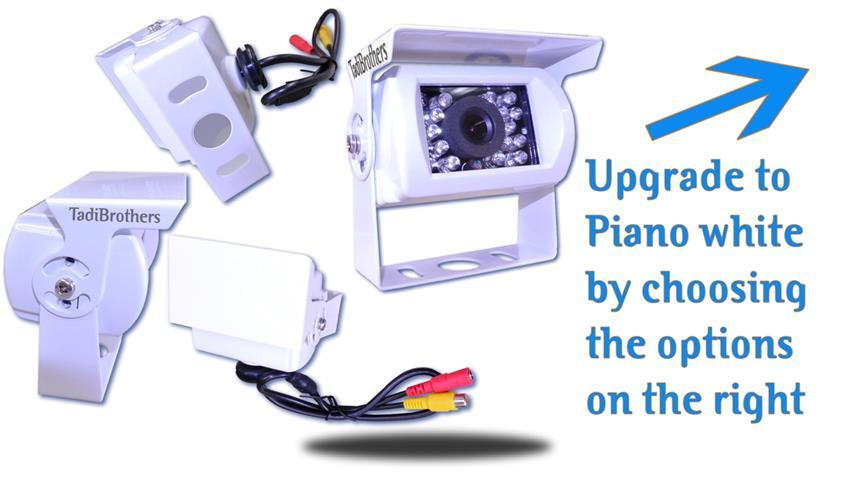

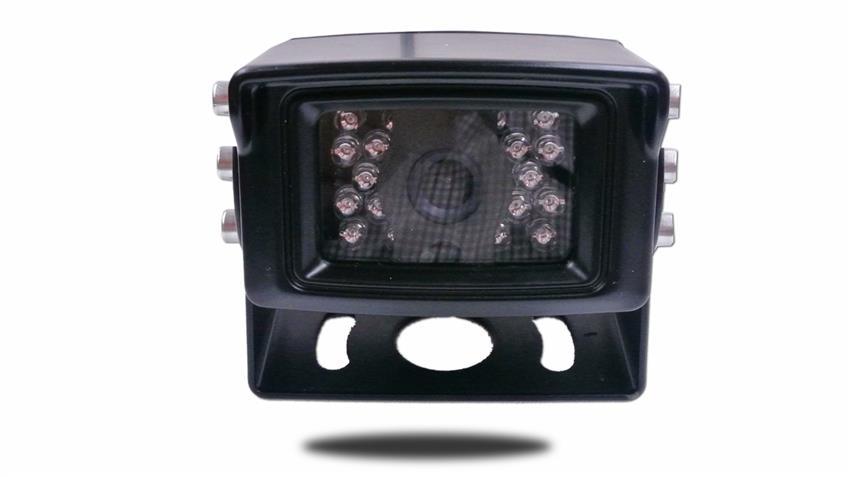

The heavy duty 120 degree hi-res CCD RV backup camera is also available with a metallic piano white colored housing.
Installation example on a 5th wheel camper/trailer. The industrial trailer tow quick disconnect makes hard wired camera systems a snap!

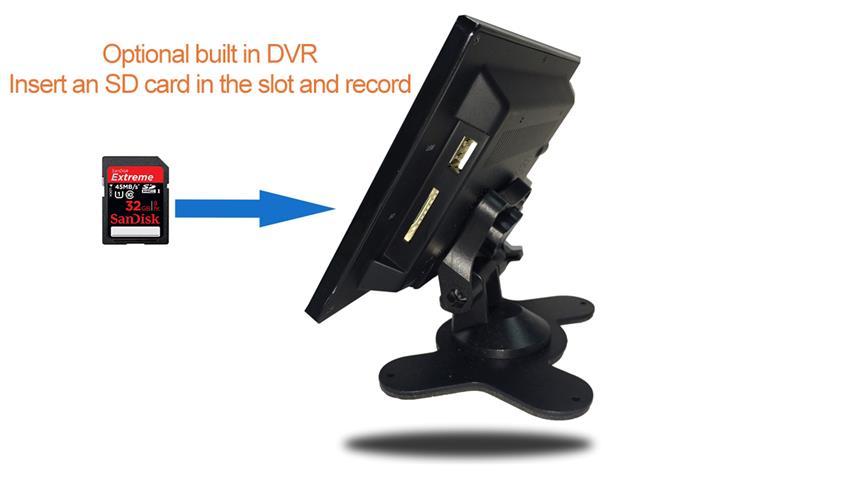

You can also select the optional DVR upgrade to record video to an SD card.
The heavy duty 120 degree hi-res CCD RV backup camera is designed for off-road, wet/humid environments, and marine/salt corrosion conditions.

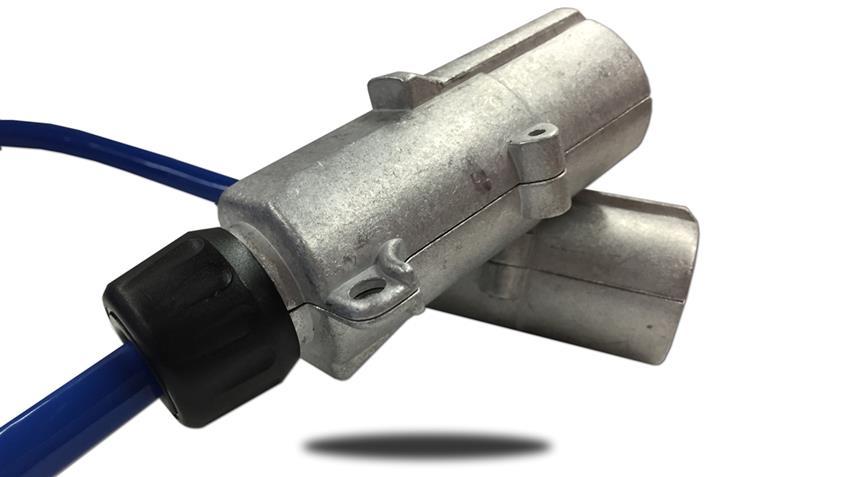

The industrial trailer tow quick disconnect features top quality plugs and sockets designed to last a lifetime!

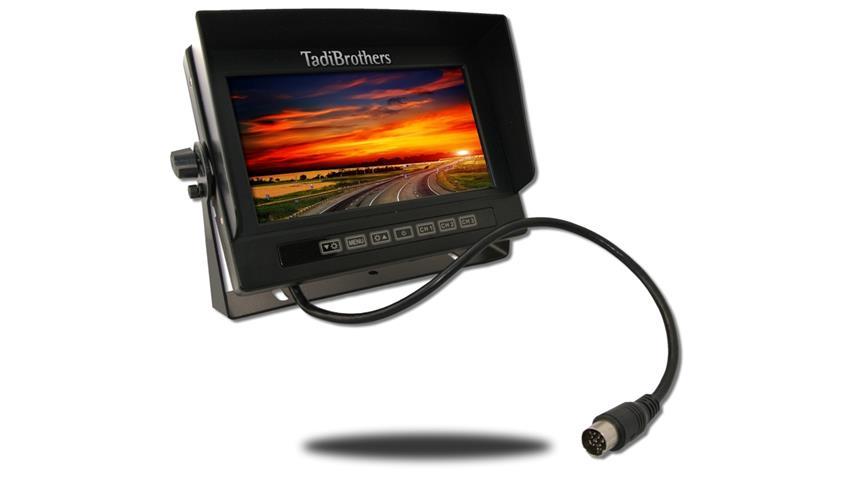

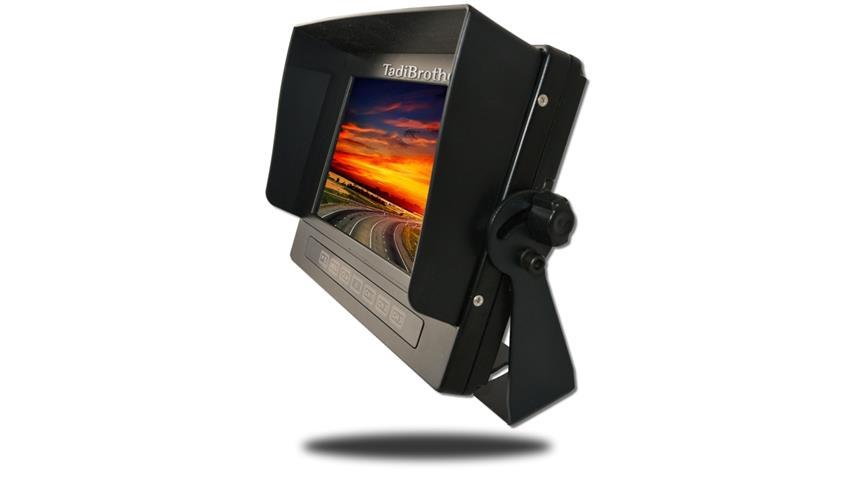

Angled front view of the 7 inch Heavy Duty Monitor.

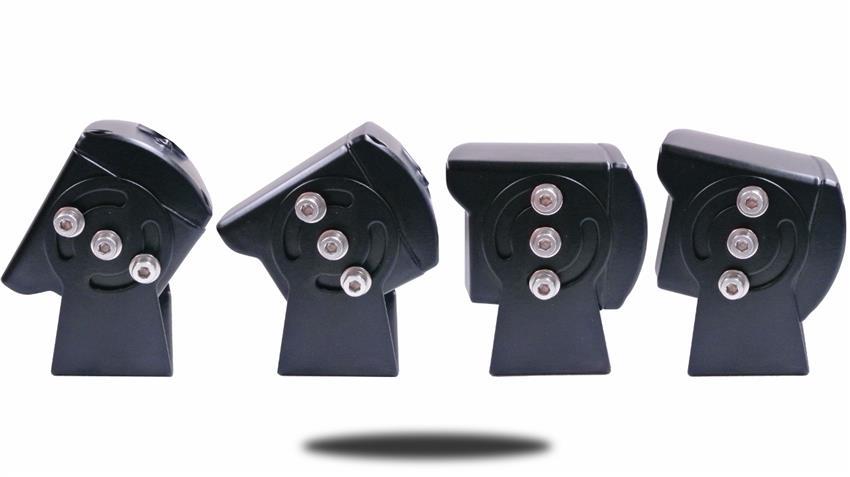

The bracket allows for near 180 degrees of adjustment, so you can point the camera exactly where you want.

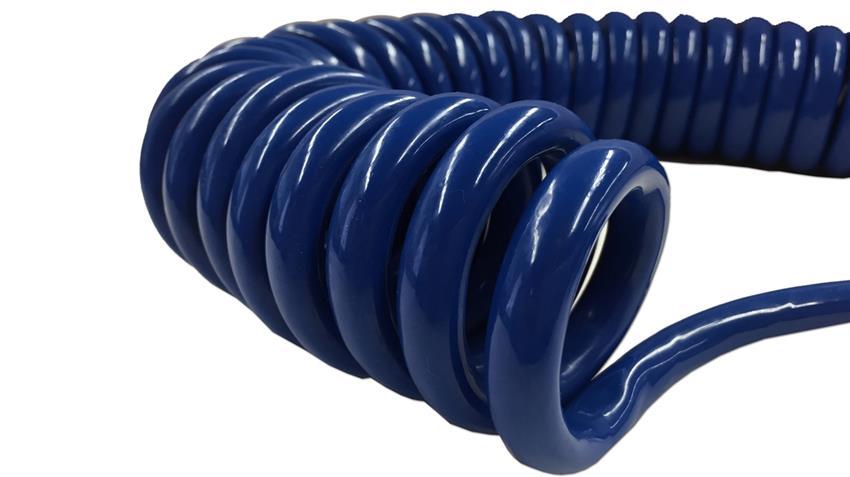

Closeup of the industrial trailer tow quick disconnect slinky cable.
Side view showing the depth of the sun shield and slimness of the 7 inch heavy duty monitor
Comes standard with automatic military grade night-vision infrared LEDs. Optional 170 degree wide angle lens available.

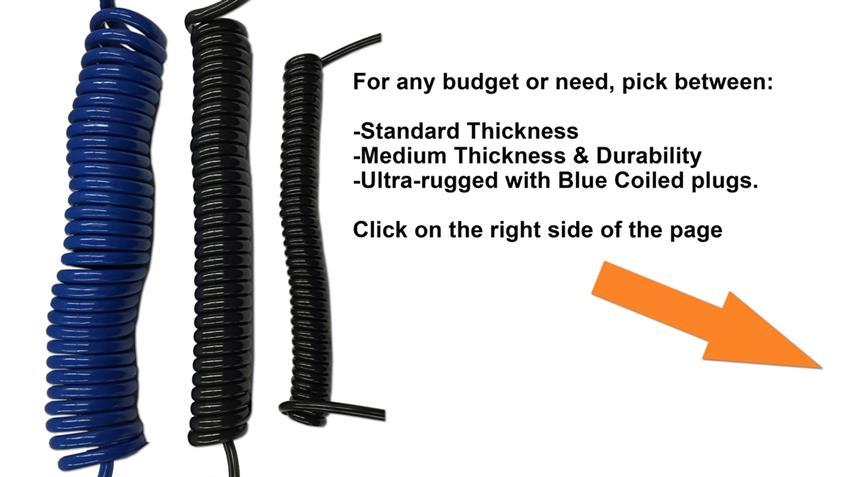

The trailer tow quick disconnect is available in standard, heavy duty, and industrial strength.

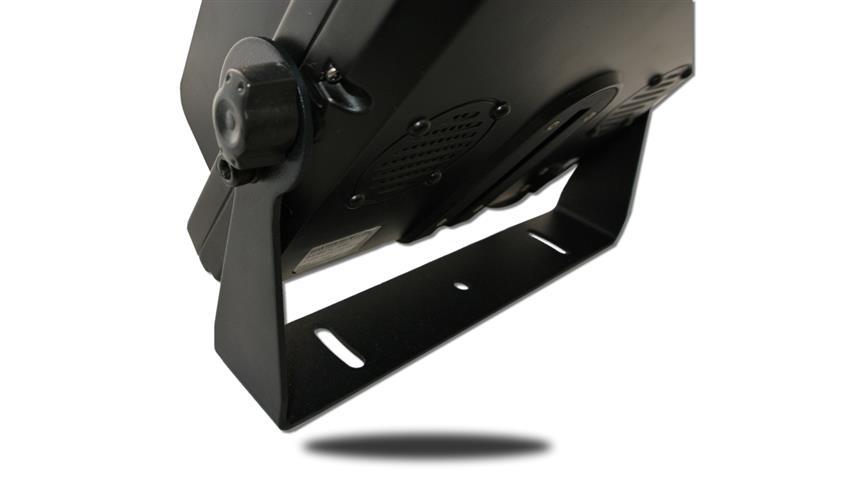

A view of the U-bracket dash mount included with the 7 inch Heavy Duty Monitor.

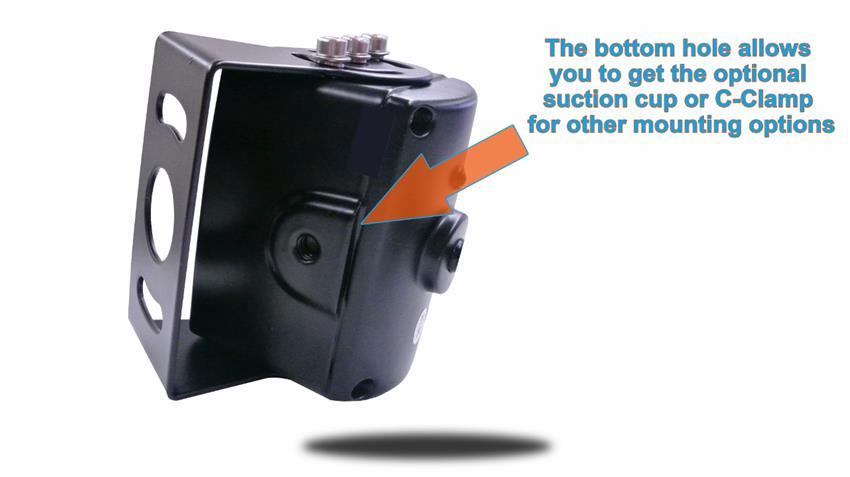

Includes lower mounting point for optional C-clamp or suction cup attachments.

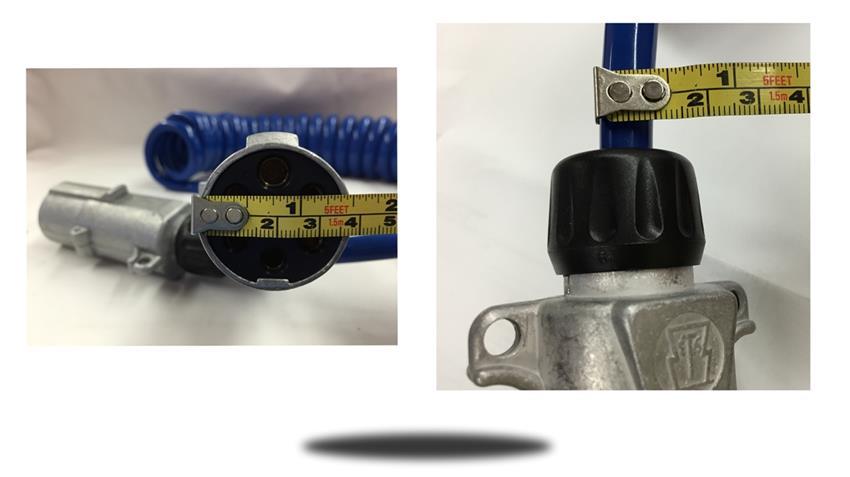

The industrial trailer tow quick disconnect's plugs are approximately 1.5 in., while the cable itself is .5 in. in diameter.

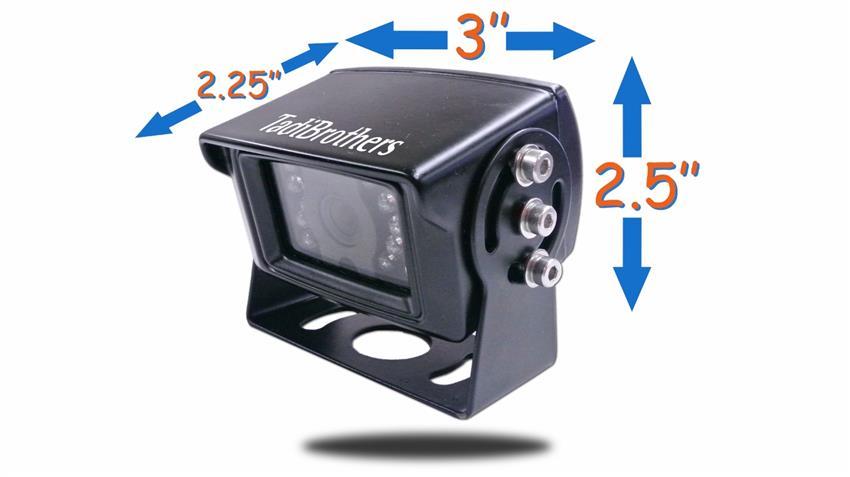

Heavy duty 120 degree hi-res CCD RV backup camera dimensions: 2.25

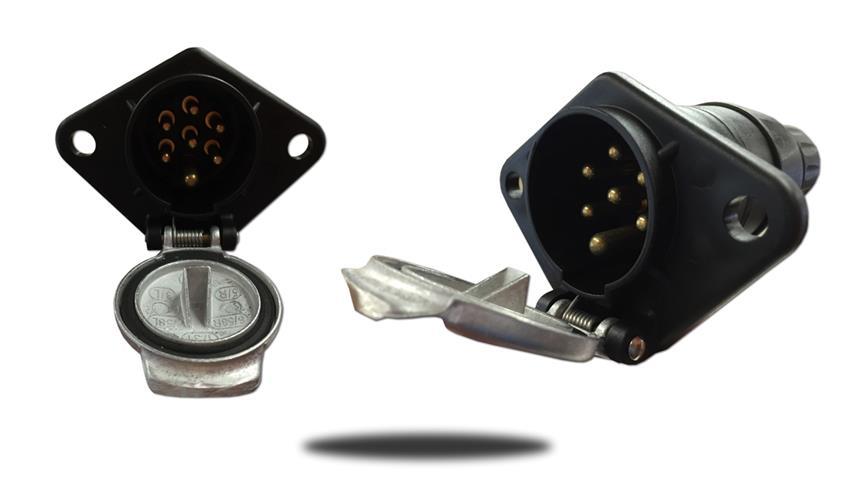

The industrial trailer tow quick disconnect has spring loaded caps that protect the plugs from moisture and debris.

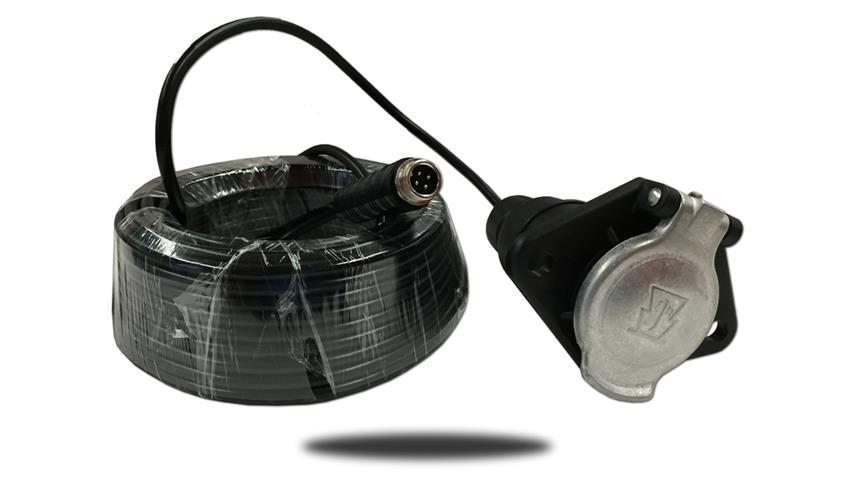

The industrial trailer tow quick disconnect comes with mounting brackets and hardware for a professional quality installation.

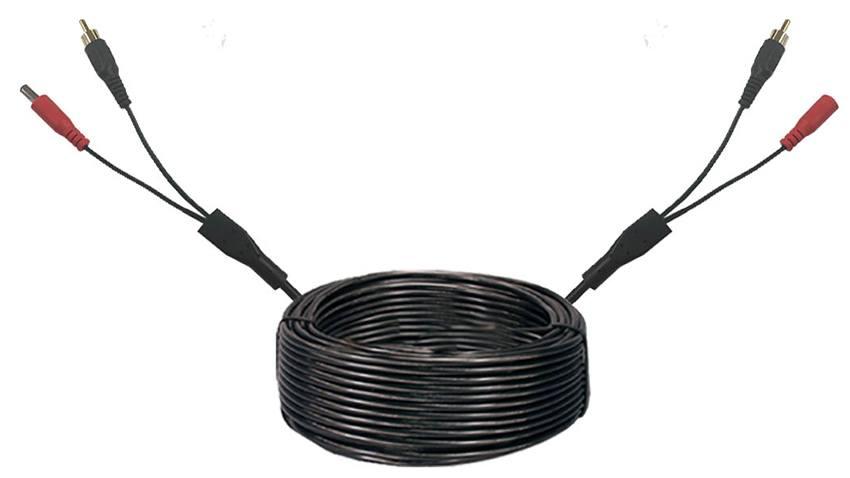

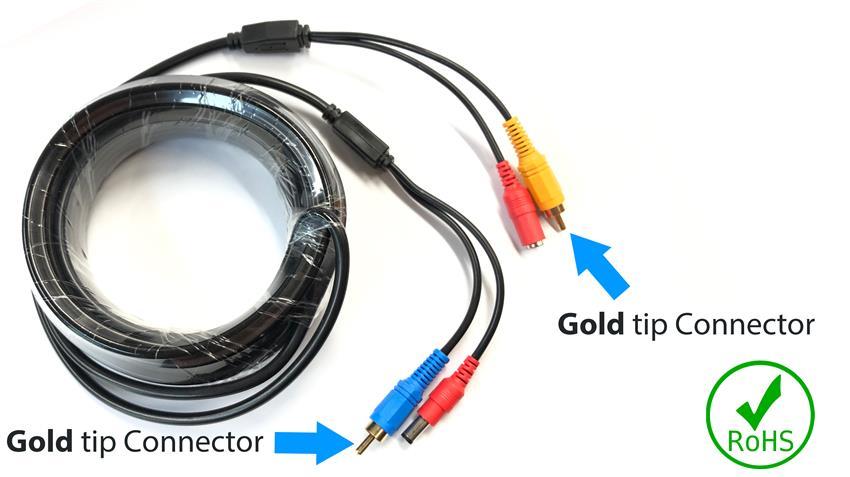

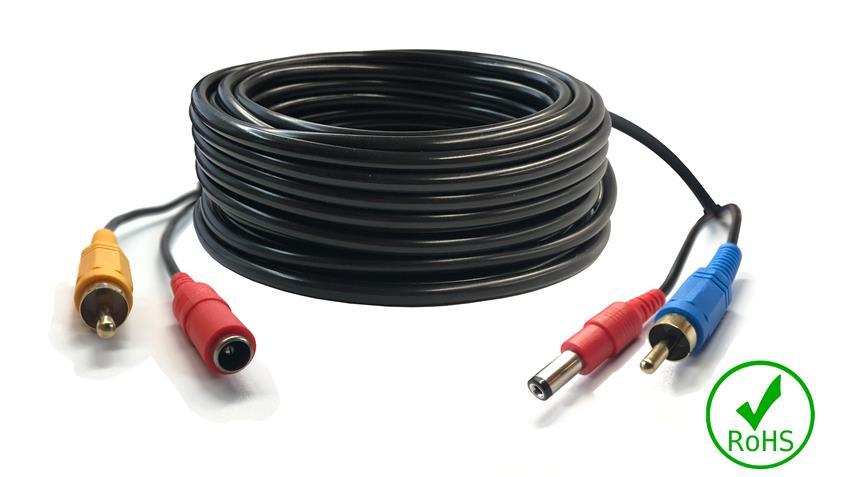

The industrial trailer tow quick disconnect includes all adapters needed to connect to our premium RCA/DC cables.
The industrial trailer tow quick disconnect's plugs and sockets are incredibly durable, and can withstand any weather condition.

Features

Heavy Duty Quick Disconnect with Rearview Monitor and 2 Observation Cameras for Hitching - SKU99608
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark CCD (High Definition) Camera
  • Checkmark Heavy Duty
  • Checkmark Toggle between 2 cameras
  • Checkmark IP Rating 69K


About this Monitor



Comes with a dash mount



The crystal clear 7” Heavy Duty LCD Monitor is a perfect addition to any driver that needs assistance backing up. See the whole world behind you in rich colors. It is also an LCD monitor so it is very light as well as thin. In addition, it has two video inputs so you can connect a camera and a game system or DVD player. This monitor is compatible with all our cameras and any car; it connects to any power source or a cigarette lighter. It can mount on your windshield or dashboard (mount included). Super easy installation

About this backup camera




exclamation point iconPick Your Backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 2 cameras however, we have different styles for all kinds of uses. Change 1, both or none of the cameras in this system, the choice is yours. Please use this guide to help you select which camera is best for you.


Click here to see our BACKUP CAMERA GUIDE

Simple design makes it easy to install



Exceptional Build Quality
This heavy duty backup camera is the toughest one we sell. Constructed from rugged metal, this camera can take a hit from a stray rock and continue working just fine. It can be mounted on top of a vehicle for a full 120° range of vision, or you can use multiple compatible cameras for both sides. If you are looking for a durable camera that is going to last, this is the one to choose. It is completely weatherproof, so feel free to use it anytime whether rain or shine.

Premium Features
This heavy duty backup camera meets even the most rigid performance expectations. The military grade night vision makes it possible to navigate treacherous dark roads with ease.
You have the option to set it up for continuous useor only when the vehicle shifts into reverse. The CCD lens is the best on the market providing crystal-clear clarity.
The HD picture is in full color so you know you are getting an accurate portrayal of what is behind you.
Installing this heavy duty backup camera is simple and intuitive, and everything you need is included in the box. Just choose the monitor that fits your needs and you are ready to go.



More you should know

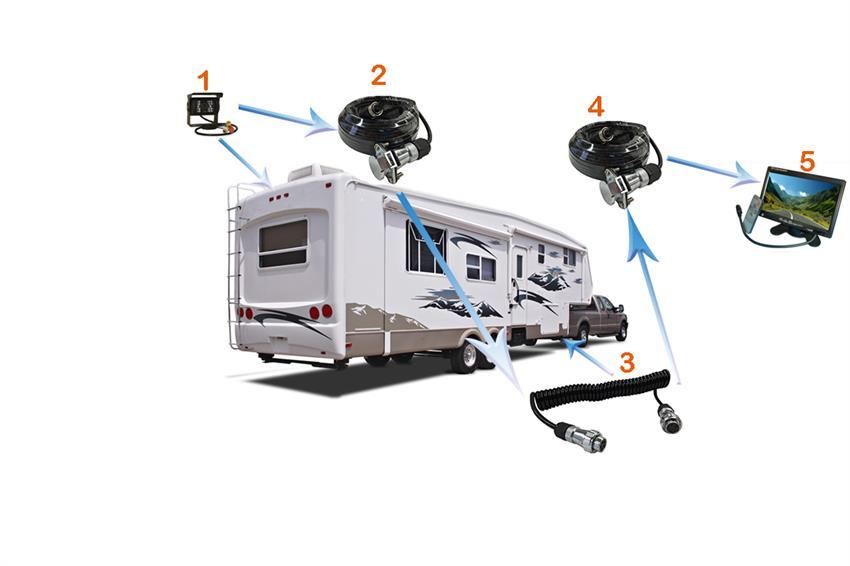

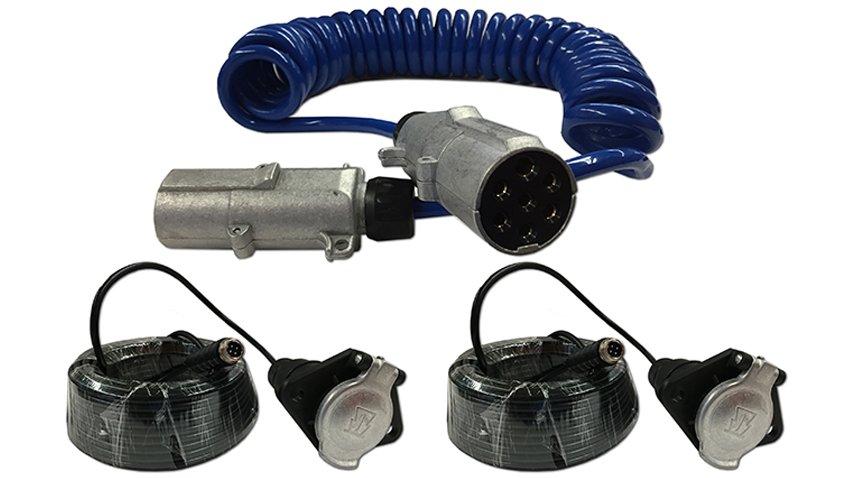

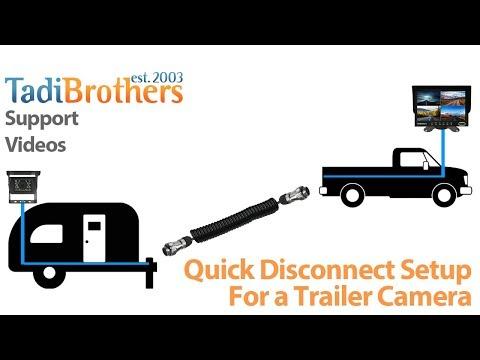

Quick Disconnect for Hitching guide

Example of how the system can be connected

Photo Explanation
1. Heavy Duty Box Camera x 2

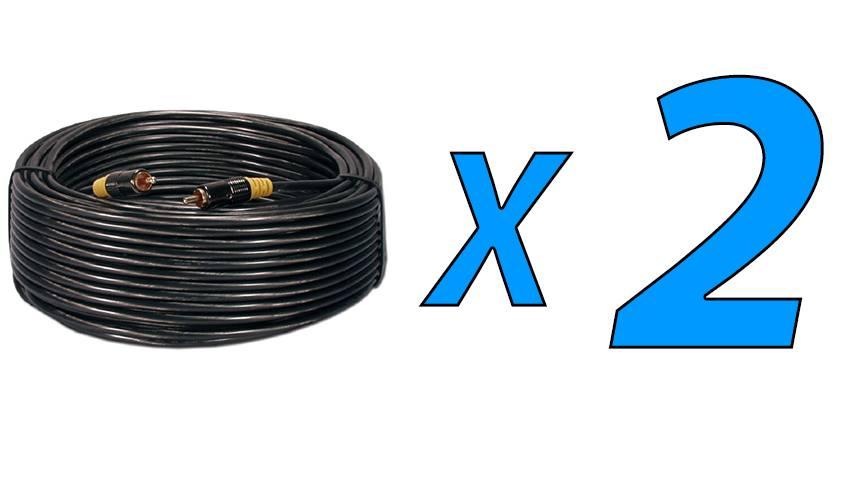

2. 70ft Cable
3. Industrial Quick Disconnect Slinky

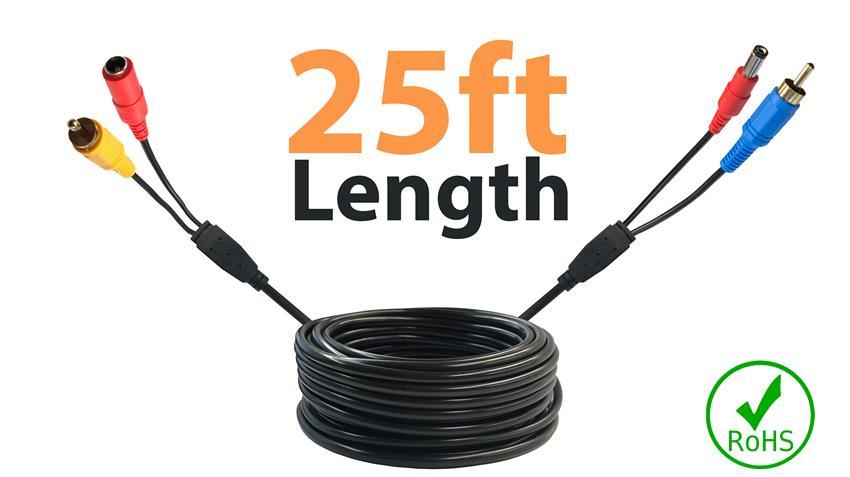

4. 25ft Cable
5. 7" Color Monitor



The system includes all parts necessary to connect a One camera system to your Truck and 5th Wheel. You connect the box camera to the top part of your 5th wheel. The 2 Box Cameras can be connected at different places on the vehicle (Photo 1.) You then run the 70ft cable provided (Photo 2.) from the camera at the back of your 5th wheel to your hitch. At that point, you connect the 70ft cable to a second 20ft cable (Photo 4.) with the Quick Disconnect provided  (Photo 3.) That 25ft cable connects to your monitor (Photo 5.) Now you can see the whole world behind you! The adapter allows you to disconnect the 5th wheel from the backup system (Photo 3.) when you are not towing it.

TadiBrothers offers 3 different types of Quick Disconnects, Standard, Heavy Duty, and Industrial. This system includes the Industrial Quick Disconnect which is the strongest most rugged type of Disconnect we sell. If you want the biggest and best disconnect on the market, this is it.


Put any compatibility issues aside. With the TadiBrothers promise you have our 30 day guarantee to return the item for an exchange or a full refund. In addition, all our cameras monitor, and car DVD players purchased from TadiBrothers are always compatible with each other. So feel free to mix and match to create your own ultimate vehicular system. (Ask us about our 4-8 cameras split screen options for security, buses, or RVs)

What's in the box

Top

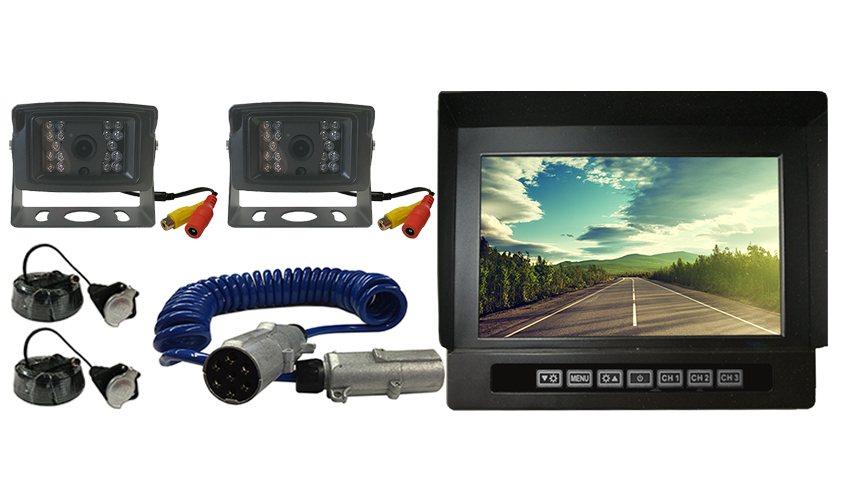

Backup Camera system and Quick Disconnect for Hitching

You get both items seen here

1. Heavy Duty quality 7'' LCD
2. Window and dash mount
3. 2 x Heavy Duty  RV Box (Birds eye) mounted camera
4. 120 degree Hi-Res view (Simple install)
5. All cables including Industrial Quick Disconnect Included
6. Instruction Manual


The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1 year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

Heavy Duty Quick Disconnect with Rearview Monitor and 2 Observation Cameras for Hitching - SKU99608
Weight (Lbs)
Camera+Monitor+ Cables Included Yes
Dimensions
More Info
Cameras Included in the Package 2 Cameras
7-Inch Heavy Duty Rear View Monitor for any Backup Camera - SKU186899
More Info
Weight (Lbs)
Bluetooth No Bluetooth
Built-In Speakers Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions
Dual Backup camera compatible Yes
Installation Cables Included Yes
Length of Cable Included 15ft
Material LCD
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen No
Storage temperature -20C+65C
Type of Connection RCA
Type of screen LCD
Video game system Compatible Yes
Heavy Duty RV Backup Camera (Rugged Build) - SKU24379
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wired
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense CCD
Vertical Adjustability 180°
Trailer Tow Cable Quick Slinky Disconnect (Industrial) - SKU25034
More Info
Weight (Lbs)
Length of Cable Included Quick Disconnect
Type Of Upgrade Cable Upgrade
Backup camera connectivity Quick Disconnect
Cable Video Quality HD
Dimensions
Installation Cables Included Yes
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Weather Proof Insulated Cable Yes
