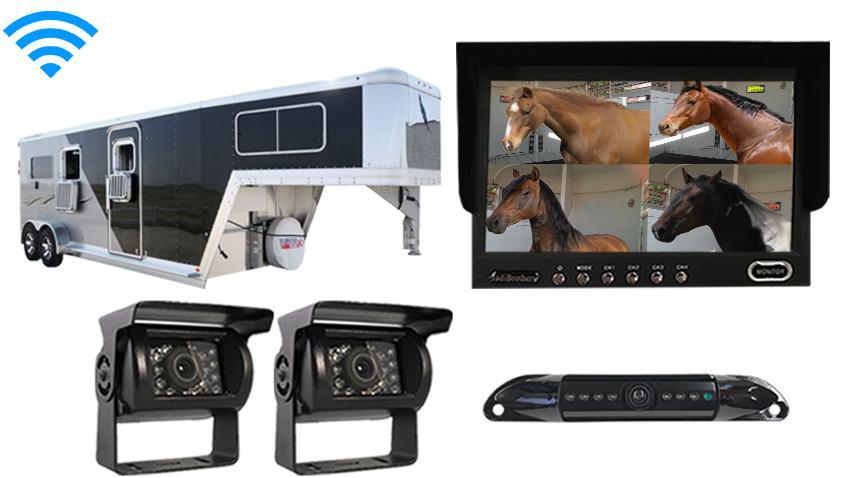

Horse Trailer Backup System with 3 Wireless Cameras and Rear View Monitor

  (4.6) Based on 49 reviews
SKU25568
7 Inch Horse Trailer 3 Camera Wireless System with Two 120° Birds Eye View and 1 Rear Truck Camera
7 Inch Horse Trailer 3 Camera Wireless System with Two 120° Birds Eye View and 1 Rear Truck Camera
7 Inch Horse Trailer 3 Camera Wireless System with Two 120° Birds Eye View and 1 Rear Truck Camera
7-Inch Split Screen Monitor for up to 4 Backup Cameras | SKU34288
120° Degree Silver License Plate Car Camera (Hi-Res Wireless CCD) | SKU93098
120° Degree RV Backup Wireless Camera (Birds Eye View) with adjustable sun shield | SKU93100
For 3 Cameras
7 Inch Horse Trailer 3 Camera Wireless System with Two 120° Birds Eye View and 1 Rear Truck Camera
You can split the screen into an array of different views.
Aftermarket Backup Camera will fit on any license plate
Furrion Mount
Furrion Mount
Buttons for all 4 channels of the 7 inch split screen
Add backup camera to car | Best rated backup camera
Wireless RV Back up camera 18 LED light give you military grade night vision.
Includes a frame for flush clean look
120° Silver CCD License Plate Backup Camera Dimensions 7.5inches by 1.25 inches by 1 inch
Wireless RV Back up camera 18 LED light give you military grade night vision.
7 Inch split screen monitor upgrade options
This Wireless RV Back up camera includes a sun shiled that protects from glare and pebbles.
7 Inch split screen monitor dimensions
Wireless RV backup camera dimensions
Dash mount for rear view monitor
Back of the 7 inch split screen monitor
Rear view of 9 inch split screen with rubber coating.

Features

Horse Trailer Backup System with 3 Wireless Cameras and Rear View Monitor - SKU25568
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Mounts on License Plate
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark CCD (High Definition) Camera
  • Checkmark Watch 1 camera or 4


About this Monitor



Comes with a dash mount

The crystal clear 7” LCD Split Screen Monitor is a perfect addition to any Horse Trailer owner/driver that needs assistance backing up. See the whole world behind you in rich colors. It is also an LCD monitor so it is very light as well as thin. In addition, it has two video inputs so you can connect a 2nd camera to have a view inside the horse trailer. This monitor is compatible with all our cameras and any car; it connects to any power source or a cigarette lighter. It can mount on your windshield or dashboard (mount included). Super easy installation.



For more information about our monitors, please read our MONITOR GUIDE

About the backup cameras




exclamation point iconPick Your backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 3-5 cameras however, we have different styles for all kinds of uses. Choose which configuration best fits your budget.


Click here to see our BACKUP CAMERA GUIDE

The adjustable CCD camera on your car will help connect your hitch and add safety



The WIreless RV Box rear view camera Has a 120° Degree viewable angle, its waterproof and has auto night vision (perfect to see the horses inside your trailer in pitch dark).
The camera is one of the most durable we have, with incredible adjustability and night vision clarity.
The wireless will work up to 70ft on these cameras.
The RV Box camera has a metal sun shield visor to protect you from glare and pebbles. This is by far our toughest built camera.
It has been regularly used in cars, vans, buses and even industrial sized caterpillar trucks, operated in the harsh oil sand of Canada.
This camera can take a direct hit from a rock and it will still work like new. It has also been very popular with RVs, because its housing allows you to install the cameras on multiple sides of your RV.

You can also mount this camera INSIDE your horse trailer and see your horse while driving down the road! We also have a C Clamp toclamp down the camera instead of bolting it, you can also use our battery packs and then its truly wireless and movable.

The wireless CCD Silver License Plate Camera is mounted by screwing your current license plate screws through its brackets; it’s a very simple installation. The camera can also be adjusted by angling the camera up or down so you can get the perfect view for your car.
The wireless will work up to 70ft on these cameras The CCD lens is the clearest and highest quality camera TadiBrothers sells. There is no need to drill any holes or install mounting brackets. The camera has a 120° angle which is best for Cars, SUVs, and Trucks. With 120° everything behind the vehicle can easily be seen, it is also color, waterproof and has military grade night vision. The camera and mount are made of steel for ultimate durability in the roughest weather conditions.

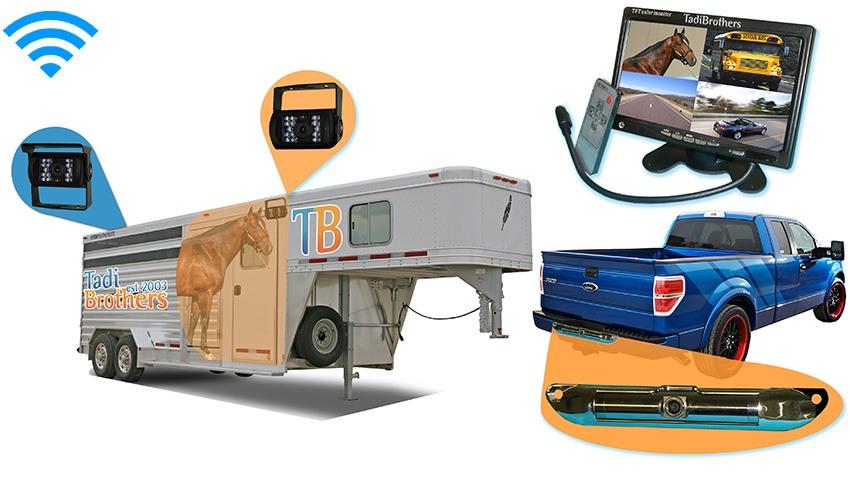

More you should know about this wireless horse trailer backup system



You can see how your horse is doing!

You can see the inside of your trailer and watch your horse and its environment while driving. You can use the other camera for either your hitch or as a camera. If you use it as a camera you can also use it to change lanes safely

This item includes a 15 Foot cable, if its going on an RV, BUS or any other vehicle longer than average SUV we recommend upgrading to our premium extension cables located on the top left of the page.

This system, like most of our vehicular products that have an LCD screen, can be used for video gaming, Considering that a perk or bonus for purchasing our back up system (others block that feature).

Put any compatibility issues aside. With the TadiBrothers promise you have our 30 day guarantee to return the item for an exchange or a full refund. In addition, all our cameras monitor, and car DVD players purchased from TadiBrothers are always compatible with each other. So feel free to mix and match to create your own ultimate vehicular system. (Ask us about our 4-8 cameras split screen options for security, buses, or RVs)

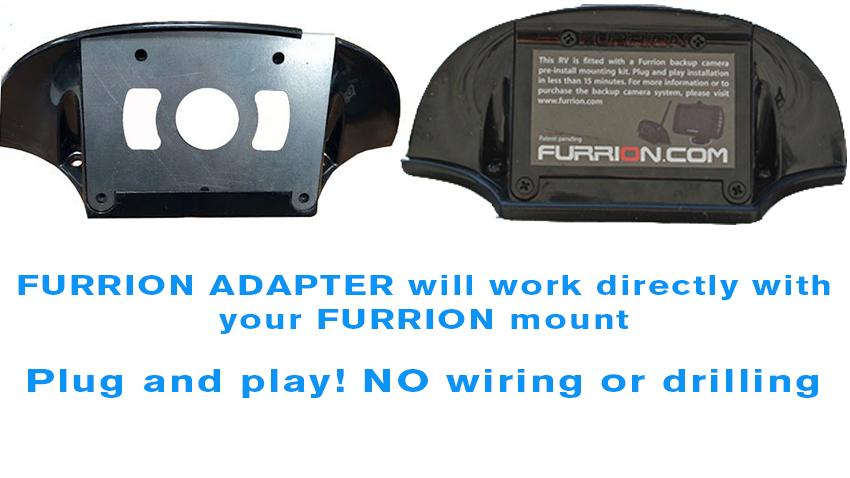

If you have a pre-installed Furrion housing on your Trailer or RV, we have a bracket adapter to make our camera plug and play.

What's in the 3 cameras wireless horse trailer system box

Top


You get 3 cameras and a split screen monitor

1. Standard quality 7'' LCD split screen monitor
2. Window and dash mount
3.  2 WIreless RV Box (Birds eye) mounted camera (Up to 70ft)
4. Wireless 120 Deg CCD License plate camera ( up to 70ft)
5. All cables needed are included in the package
6. Instruction Manual (Simple install)


The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1 year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

Horse Trailer Backup System with 3 Wireless Cameras and Rear View Monitor - SKU25568
More Info
Weight (Lbs)
Cameras Included in the Package 3
Dimensions
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Bluetooth No Bluetooth
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7''
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
Wireless Silver High Definition License Plate Camera - SKU93098
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish No
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Gold Tip Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Backup camera connectivity Wireless
Backup camera style License Plate
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1''
Dimensions 7.5"(W) X 0.5"(D) X 1"(H)
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense CCD
Vertical Adjustability 60°
Weather Proof Yes
Wireless Range 70ft
Wireless RV Backup Camera (Birds Eye View) - SKU93100
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 380 TV Lines
Contrast Ratio 250:1
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wireless
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Transmitters for Backup Camera (3 Pack) - SKU19410
More Info
Weight (Lbs)
Backup camera connectivity Wireless
Dimensions
Installation Cables Included Yes
Material Hard Plastic
Type Of Upgrade Wireless Options
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft
Power 12V Power & Ground
Transmitter Included
