Parking Sensor Backup Camera Combo with Rear View Monitor

  (4.6) Based on 12 reviews
SKU17066
Backup Camera System with Built-in Sensors | SKU17066
Backup Camera System with Built-in Sensors | SKU17066
Backup Camera System with Built-in Sensors | SKU17066
7-Inch LCD Monitor for any Backup Camera | SKU24122

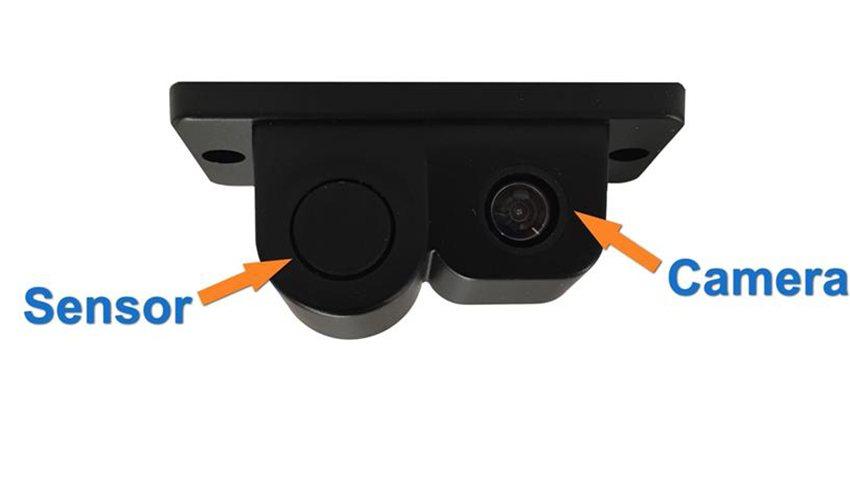

The backup camera and sensor combo features a proximity sensor and backup camera integrated into the same housing.
Upgrade to a DVR monitor for backup camera system

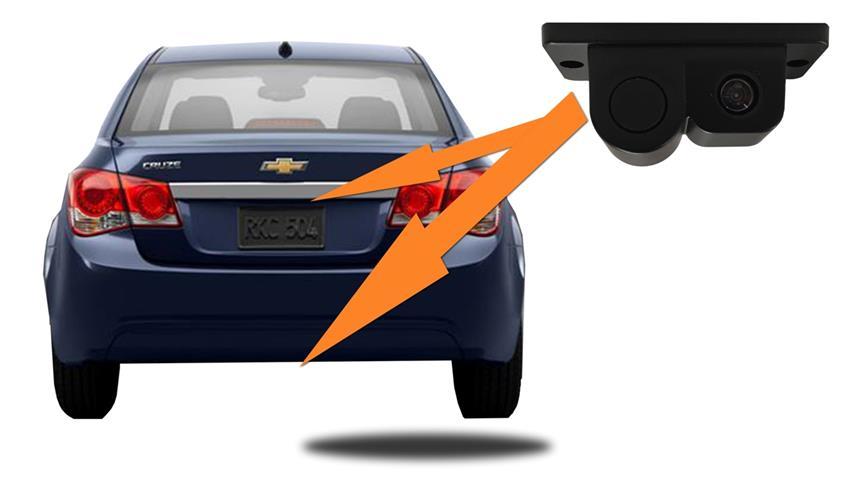

The backup camera andsensor combo can be installed above the license plate or under the bumper.

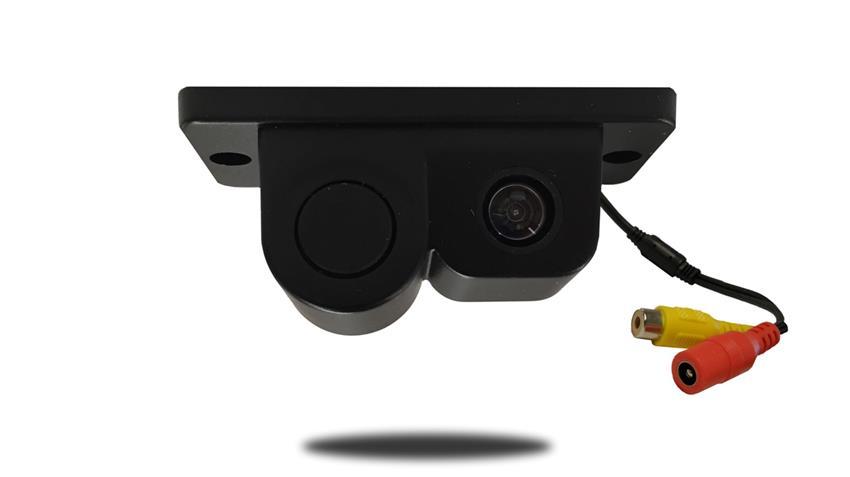

The backup camera and sensor combo includes a yellow RCA and red DC power plug.
Rear view of the 7 inch monitor and the dash mount.

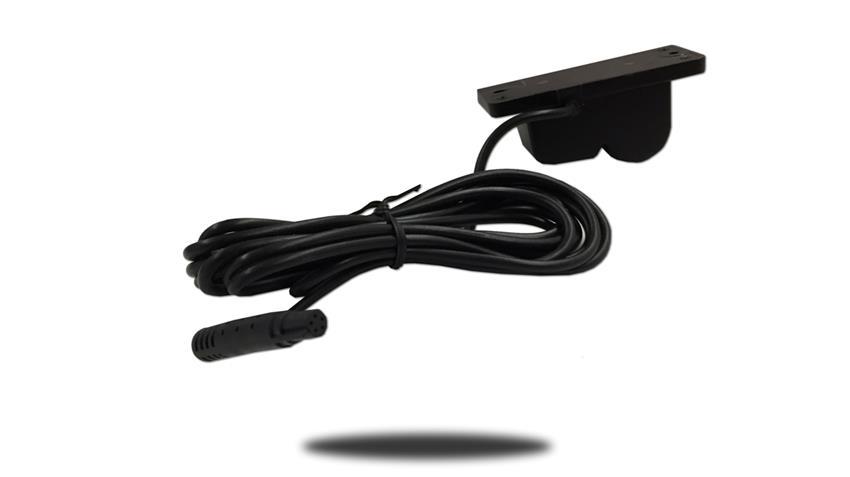

Backup Camera and Sensor Combo

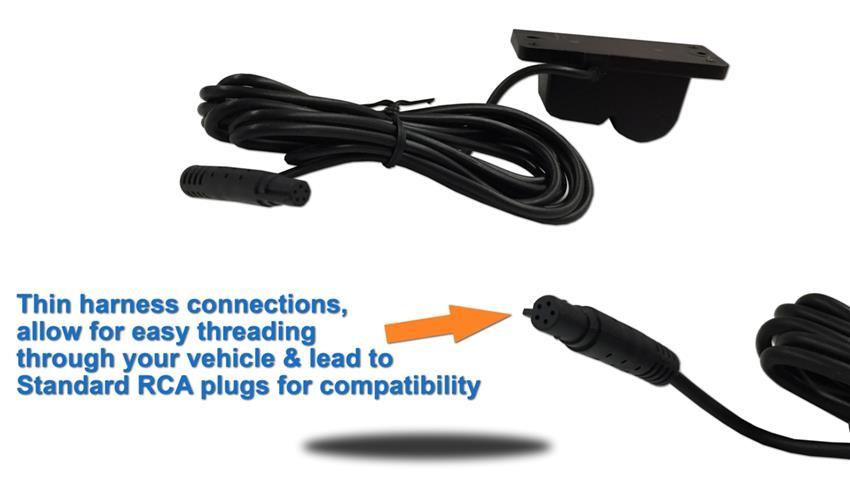

The small plug on this adapter cable allows for easy threading through your vehicle, connecting to standard RCA plugs.
Monitor dimensions

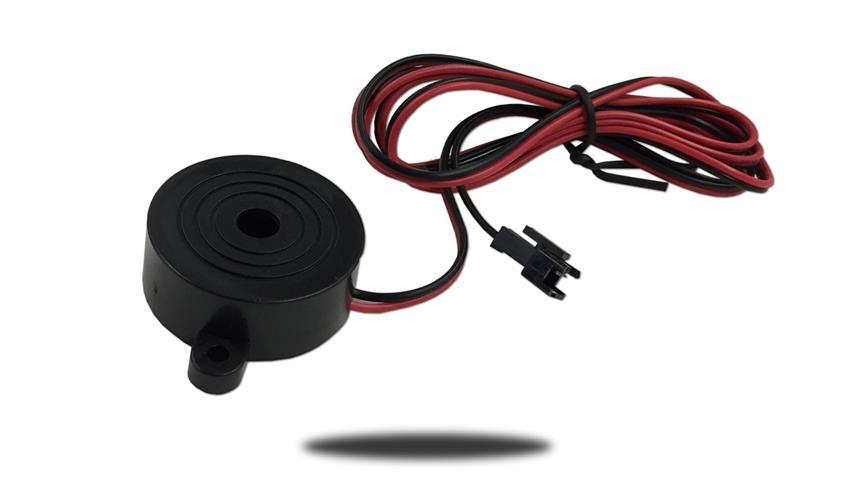

The sensor speaker has a long wire allowing you to place it wherever you prefer.

Features

Parking Sensor Backup Camera Combo with Rear View Monitor - SKU17066
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark Toggle between 2 cameras
  • Checkmark Top rated product

About this Monitor


back up camera system

Comes with a dash mount



The crystal clear 7” LCD Monitor is a perfect addition to any driver that needs assistance backing up. See the whole world behind you in rich colors. It is also an LCD monitor so it is very light as well as thin. In addition, it has two video inputs so you can connect a camera and a game system or DVD player. This monitor is compatible with all our cameras and any car; it connects to any power source or a cigarette lighter. It can mount on your windshield or dashboard (mount included). Super easy installation

About this backup camera and parking sensor


backup cam

This Speaker will BEEP as you approach an obstacle

This is the perfect system if you want a Camera and a Sensor all built into one. (Visual and Audible Alert) Simply install this on your vehicle and you will be able to see the whole world behind you in full color. However, you will also have the security and safety of a Parking Sensor built onto the same housing. This means that as your reverse the sensor will active along side the camera. When the car approaches too close to an object in the detection zone, an alarm sounds, increasing the intensity in proportion to distance from the object. There are also SIX stages to the alarm as you near an object. The system begins to emit audio at 8 feet.


The Camera has a High Definition lens which offers unrivaled picture quality, and the military-grade night vision makes seeing in the dark a breeze. It comes standard with reverse (mirrored) imaging, and you can set it to activate when you are in reverse or just leave it on all of the time.

More you should know


backup camera

This system has both Camera AND Sensor built into it

This item includes a 15 Foot cable, if its going on an RV, BUS or any other vehicle longer than average SUV we recommend upgrading to our premium extension cables located on the top right of the page.

Also, This system, like most of our vehicular products that have an LCD screen, can be used for video gaming, consider that a perk or bonus for purchasing our back up system (others block that feature).

All our cameras, monitor, and car DVD players purchased from TadiBrothers are always compatible with each other. So feel free to mix and match to create your own ultimate vehicular system. (Ask us about our 4-8 cameras split screen options for security, buses, or RVs)

What's in the box

Top

backup cam

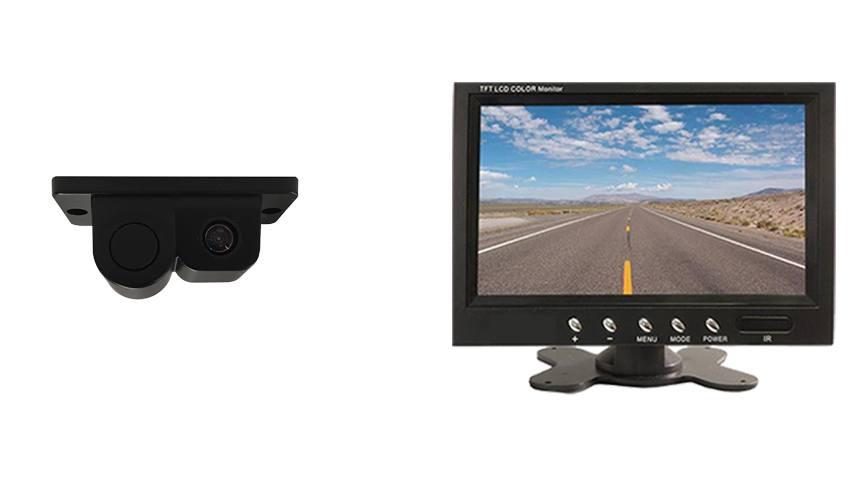

You get everything seen here

1. Standard quality 7'' LCD
2. Hi-Res quality Camera and Sensor
3. Speaker for Sensor System
4. 15 foot cables needed for installation
5. All cables needed are included in the package
6. Instruction Manual

The Tadibrothers HOLIDAY promise:
Any purchase made between November 1st and December 25th will be eligible for a 100% money back guarantee until January 31st.
This means that you could have up to 90 Days for a 100% full money back guarantee depending how early you make the purchase. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the Tadibrothers team won’t let you down

At Tadibrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

Parking Sensor Backup Camera Combo with Rear View Monitor - SKU17066
More Info
Weight (Lbs)
Backup camera style Camera with Parking Sensor
Camera+Monitor+ Cables Included Yes
Cameras Included in the Package 1 Camera
Dimensions
Display Type LCD Monitor Display
7-Inch Rear View Monitor for any Backup Camera - SKU24122
More Info
Weight (Lbs)
Bluetooth No Bluetooth
Built-In Speakers Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 7.1"(W) X 0.5"(D) X 4.8" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Length of Cable Included 15ft
Material LCD
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen No
Storage temperature -20C+65C
Type of Connection RCA
Type of screen LCD
Video game system Compatible Yes
Camera with Built In Parking Backup Sensor (Hi-Res) - SKU59949
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Backup camera connectivity Wired
Backup camera style Camera with Parking Sensor
Cable Video Quality HD
Camera Housing Color Black
Camera Resolution 420 TV Lines
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Contrast Ratio 250:1
Dimensions 7.5"(W) X .5(D) X 1"(H)
Display Type LCD Monitor Display
Dual Backup camera compatible Yes
Electronic Shutter 1/60 ~ 1/10,000 Second
How many sensors Up to 4 Sensors
Installation Cables Included Yes
Integrated sun shield No
Minimum Illumination (LUX) 0.2
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Quantity of Infrared LED's for Night vision 9
Sensor and Camera Combo Yes
Sensors Placement Rear Bumper Only
Storage temperature -20C+65C
Type of Connection RCA
Type of lense CCD
Vehicle Type Cars & Trucks
Vertical Adjustability 60°
