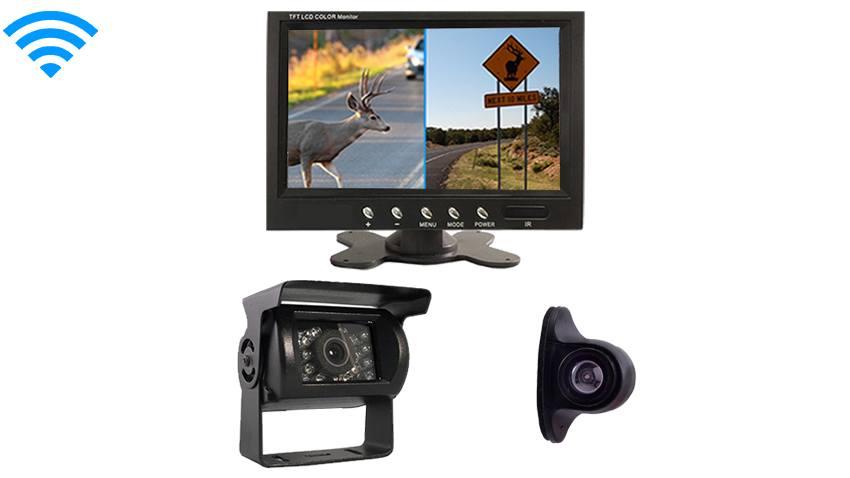

Wireless RV Backup Camera with side camera and a split screen rear view monitor

  (4.6) Based on 49 reviews
SKU4185412
7 Inch Monitor with Wireless RV Box Camera and Side Camera
7 Inch Monitor with Wireless RV Box Camera and Side Camera
7 Inch Monitor with Wireless RV Box Camera and Side Camera
7-Inch Split Screen Monitor for up to 4 Backup Cameras | SKU34288
120° Degree RV Backup Wireless Camera (Birds Eye View) with adjustable sun shield | SKU93100
Wireless Side RV Backup Camera | SKU15151
For 2 Cameras
Furrion Mount
You can split the screen into an array of different views.
Furrion Mount

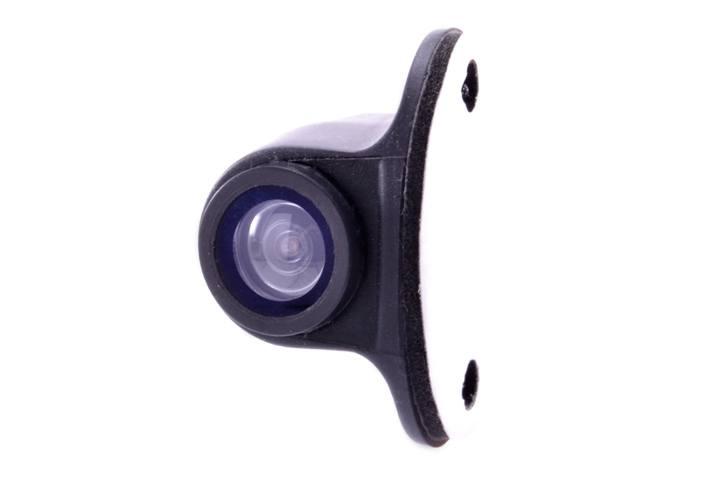

Wireless Side RV Backup Camera easy installation
Buttons for all 4 channels of the 7 inch split screen
Wireless RV Back up camera 18 LED light give you military grade night vision.

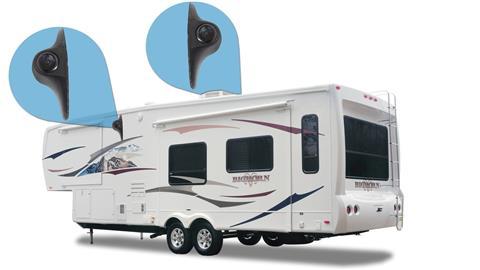

The RV aftermarket backup camera come for the driver and passenger side for your vehicle
Includes a frame for flush clean look
Wireless RV Back up camera 18 LED light give you military grade night vision.

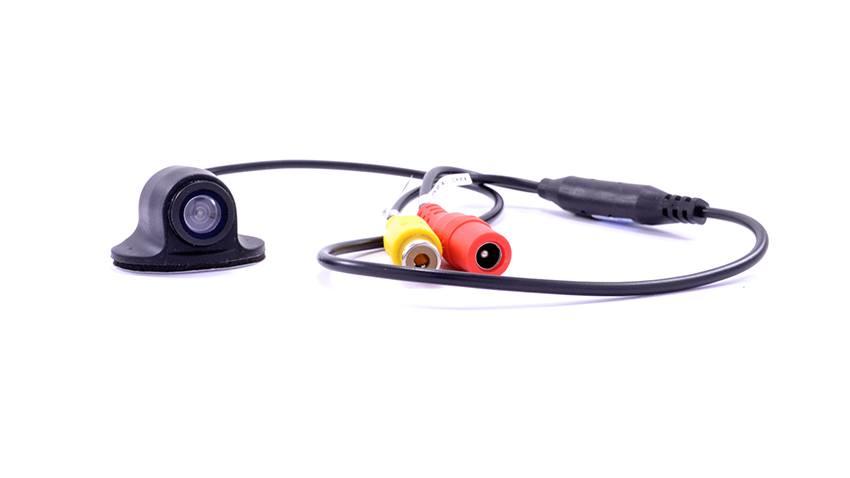

side rearview camera
7 Inch split screen monitor upgrade options
This Wireless RV Back up camera includes a sun shiled that protects from glare and pebbles.

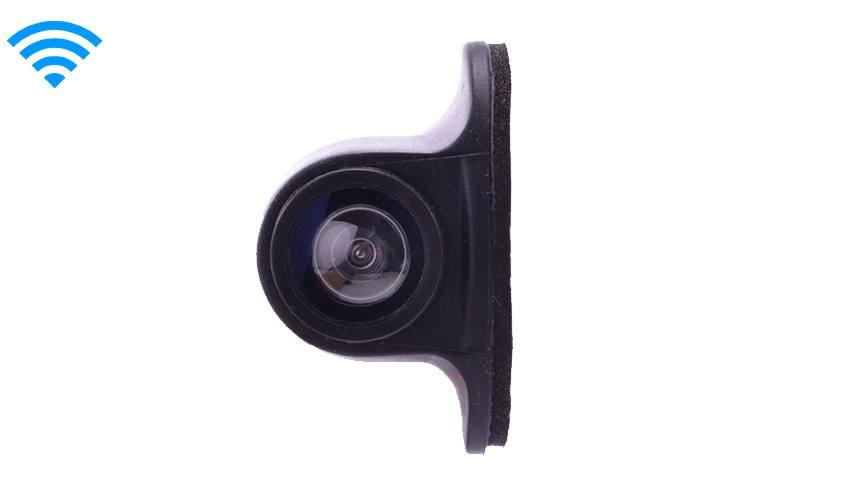

Side RV wireless rear view camera can be placed anywhere up to 65 feet away from the monitor
7 Inch split screen monitor dimensions
Wireless RV backup camera dimensions

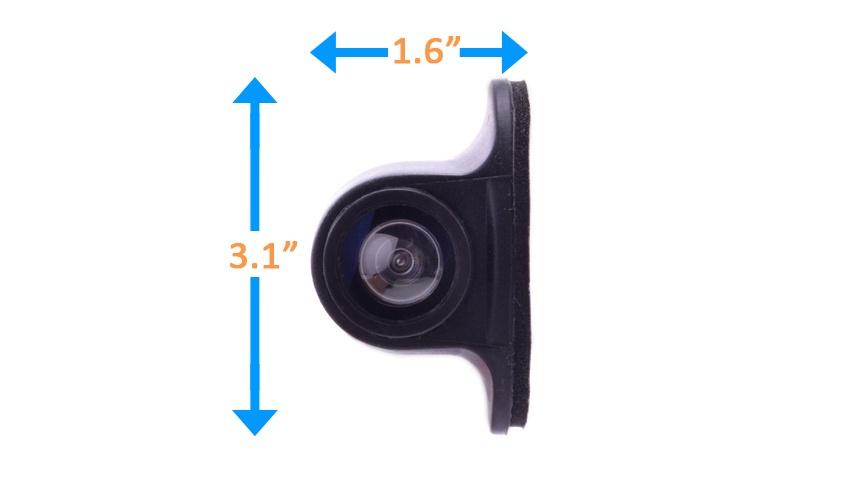

Wireless Side view Backup Camera dimensions
Dash mount for rear view monitor
Back of the 7 inch split screen monitor
Rear view of 9 inch split screen with rubber coating.

Features

Wireless RV Backup Camera with side camera and a split screen rear view monitor - SKU4185412
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark Watch 1 camera or 4
>

About this Monitor



About this Monitor





The crystal clear 7” LCD split screen Monitor is a perfect addition to any driver that needs assistance backing up. See the whole world behind you in rich colors. It is also an LCD monitor so it is very light as well as thin. In addition, it has four video inputs so you can connect multiple cameras, game system or a DVD player. When the screen is powered on you have the option to either viewing one camera or all four in a split screen. This versatile monitor is compatible with all our cameras and any car; it connects to any power source or a cigarette lighter. It can mount on your windshield or dashboard (mount included). Super easy installation.

• Connect up to 4 cameras
• Easy to change between cameras
• Video input :4 video input
• Video system: NTSC/PAL
• Works with all our cameras and monitors

About this Camera




exclamation point iconPick Your Backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 2 cameras however, we have different styles for all kinds of uses. Change 1, both or none of the cameras in this system, choice is yours. Please use this guide to help you select which camera is best for you.


Click here to see our BACKUP CAMERA GUIDE

Easy mounting options



The side camera has a 120° Degree viewable angle, its waterproof and has auto night vision. The side camera is perfect for any long RV or Bus. You can mount it on the side facing front or back any see everything in crystal clear quality. You need help parking? This is for you! You need help changing lanes on the freeway? This is a must! Unlike many other side cameras ours are also a compact size so you will not knock them off your RV in really tight spots FOR THOSE OF YOU WHO WANT MORE! You can also add a FRONTALcamera and a rear camera to make it a 4 camera system!

This camera is also a wireless camera so there is no need to run cables through your Car or RV. TadiBrothers only sells one type of wireless camera because its the ONLY one on the market that is reliable

More you should know



Simple design makes it easy to install




The Heavy Duty Wireless RV Box backup camera Has a 120° Degree viewable angle, its waterproof and has auto night vision. The backup camera is one of the most durable we have, with incredible adjustability and night vision clarity. The RV Box backup camera has a metal sun shield visor to protect you from glare and pebbles. This is by far our toughest built backup camera, It has been regularly used in cars, vans, buses and even industrial sized caterpillar trucks, operated in the harsh oil sand of Canada. This backup camera can take a direct hit from a rock and it will still work like new. It has also been very popular with RVs, because its housing allows you to install the backup cameras on multiple sides of your RV.

This backup camera is also a wireless backup camera so there is no need to run cables through your Car or RV. TadiBrothers only sells one type of wireless backup camera because its the ONLY one on the market that is reliable.This wireless camera has a 70ft range that can go through any vehicle.

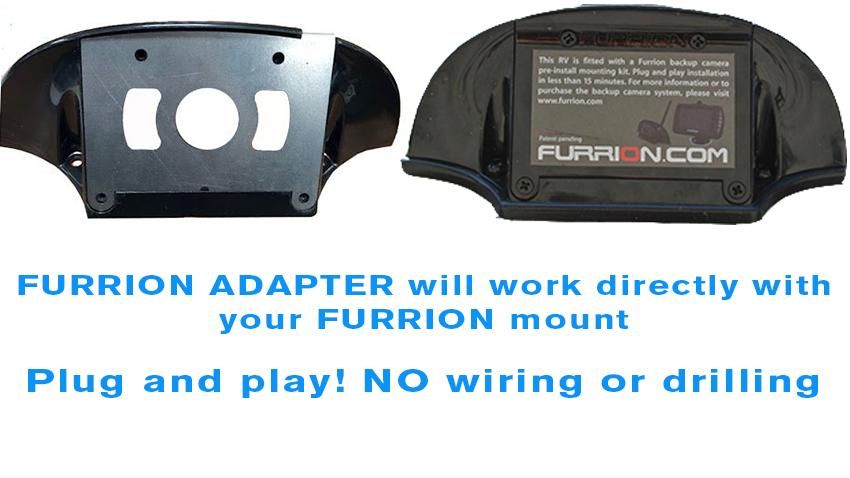

If you have a pre-installed Furrion housing on your Trailer or RV, we have a bracket adapter to make our camera plug and play.

What's in the box

Top


You get everything seen here



1. 7'' Split screen with internal Quad Box
2. Side camera
3. Box Camera
4. Wireless Transmitter and Receiver
5. All cables needed are included in the package
6. Instruction Manual

Specs

Wireless RV Backup Camera with side camera and a split screen rear view monitor - SKU4185412
More Info
Weight (Lbs)
Cameras Included in the Package 2 Cameras
Dimensions
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Bluetooth No Bluetooth
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
Wireless RV Backup Camera (Birds Eye View) - SKU93100
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wireless
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Side RV Backup Camera - SKU15151
More Info
Weight (Lbs)
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 9
Backup camera connectivity Wireless
Backup camera style Side View
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Transmitters for Backup Camera (2 Pack) - SKU19409
More Info
Weight (Lbs)
Backup camera connectivity Wireless
Dimensions
Installation Cables Included Yes
Material Hard Plastic
Type Of Upgrade Wireless Options
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft
Power 12V Power & Ground
Transmitter Included
