Horse Trailer Surveillance System with 2 Roof Cameras 2 Side Cameras and a Monitor

  (4.6) Based on 42 reviews
SKU912393
Horse Trailer Backup Camera Surveillance Kit | SKU912393
Horse Trailer Backup Camera Surveillance Kit | SKU912393
Horse Trailer Backup Camera Surveillance Kit | SKU912393
Best selling RV backup camera replacement
7-Inch Split Screen Monitor for up to 4 Backup Cameras | SKU34288
Side view Mini RV backup camera with rubber coating SKU15152
You can see what's going on inside your trailer as well as outside the trailer
Comes standard with automatic military grade night vision LEDs. These infrared LEDs give you a clear picture even in total darkness!
You can split the screen into an array of different views.
Side view Mini RV backup camera dimensions
Wired surveillance horse trailer system with one internal camera one rv backup camera, two side cameras and a split screen
Best selling Backup Camera
Buttons for all 4 channels of the 7 inch split screen
Aftermarket Side view Mini RV backup camera
Adjustable sun shield helps you see better in bright sunny conditions, and prevents water drops from obscuring your view in inclement weather.
Includes a frame for flush clean look
Included with the low-profile RV side camera is an adhesive attachment, yellow RCA video plug, red DC power plug, and a 15 foot RCA cable.
Dimensions for 120 degree birds-eye view RV backup camera: 3 in. L x 2.25 in. W x 2.5 in. H
7 Inch split screen monitor upgrade options
The RV side camera is made of a high grade rubber coating to allow operation in inclement weather conditions.
7 Inch split screen monitor dimensions
Side view Mini RV backup camera with rubber coating SKU15152
Dash mount for rear view monitor
2 Side view Mini RV backup camera
Back of the 7 inch split screen monitor
Rear view of 9 inch split screen with rubber coating.

Features

Horse Trailer Surveillance System with 2 Roof Cameras 2 Side Cameras and a Monitor - SKU912393
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark Watch 1 camera or 4


About this Monitor System



See all the cameras on this screen

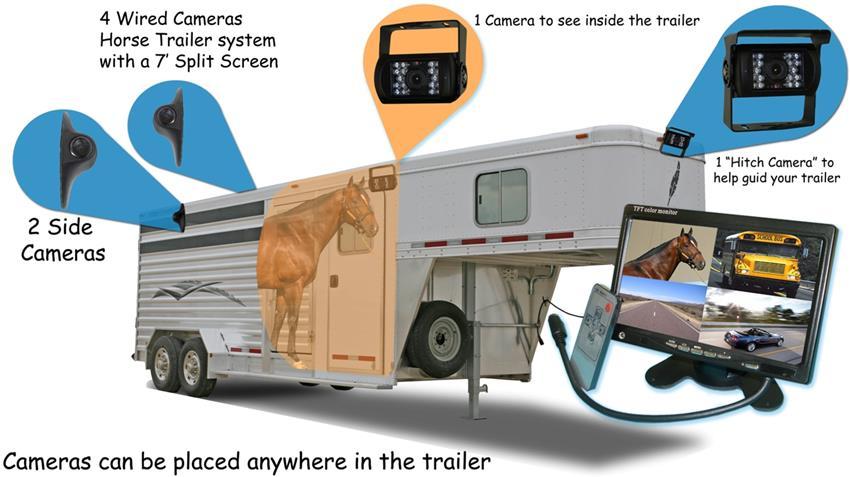

The Tadi Brothers 7" Ultimate Horse Trailer Backup Camera Surveillance System offers a specially designed four-camera set-up to provide the ultimate system for safely transporting your horse. One internal camera, one backup and two side cameras enable you to directly monitor the horse and surroundings.

With the internal camera, you’ll be able to see right inside the trailer and get a close-up view of your horse for total peace of mind. A second camera can be used as a hitch or a camera, allowing you to back up and navigate with confidence.

All four cameras offer a panoramic 120° viewing angle, are completely waterproof, and adjust automatically for highest resolution night viewing. You can mount the side cameras in the direction you choose to provide the maximum in secure navigation. And the unique compact size of our side cameras ensures that they won’t get knocked off when you have to drive through those really tight spots.

System Features

• Connect up to 4 cameras
• Easy to change between cameras
• Video input :4 video input
• Video system: NTSC/PAL
• Works with all our cameras and monitors

More you should know




exclamation point iconPick Your backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 3-5 cameras however, we have different styles for all kinds of uses. Choose which configuration best fits your budget.


Click here to see our BACKUP CAMERA GUIDE

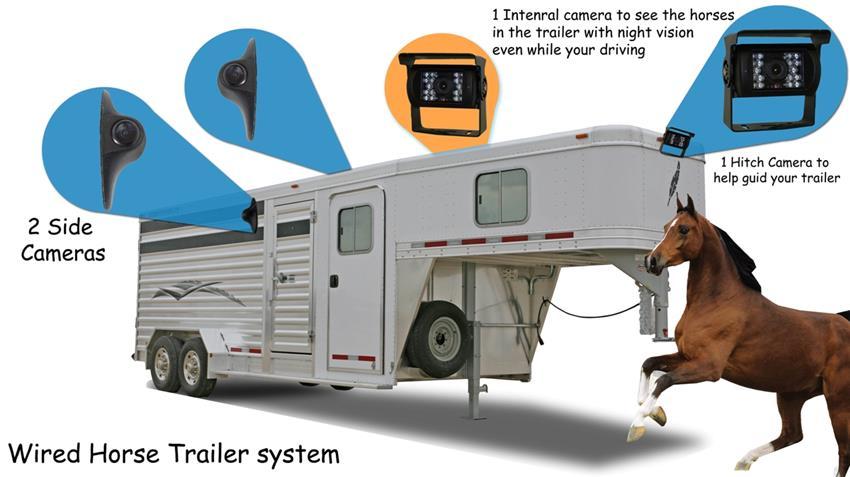

Two cameras on the sides and one in the back

Premium Features Safeguard your Horse and Vehicle

When it comes to durability, adjustability and night vision clarity, TadiBrothers cameras are unsurpassed. Harsh sun glare and pebbles are no problems for the RV Box Camera, which is protected by a metal sun shield visor. Our most durable camera, this model has been regularly used on industrial-sized caterpillar trucks that are able to withstand the harsh oil sand of Canada. It even holds up and goes on working after a direct hit from a rock!

The camera’s housing allows for installation on multiples sides of the vehicle. An optional C-clamp (included) allows you to mouth without bolting, so the camera can be easily moved as desired

A Versatile Monitor Provides Split-Screen Viewing and More

All cameras connect to a 7” monitor to provide a broad, full color view from each camera. The lightweight, high-resolution monitor contains four video inputs so you can connect multiple cameras, or even a DVD player or game system. Take your choice of viewing one camera, or all four on the crystal clear monitor with split screen capability. You can switch by simply touching a button, or use the convenient remote control. Mount it on your windshield or dashboard (mount included) and power it up easily by connecting to a cigarette lighter or any power source.

FOR THOSE OF YOU WHO WANT MORE!
You can also add a FRONTAL camera and make it a 4 camera system!

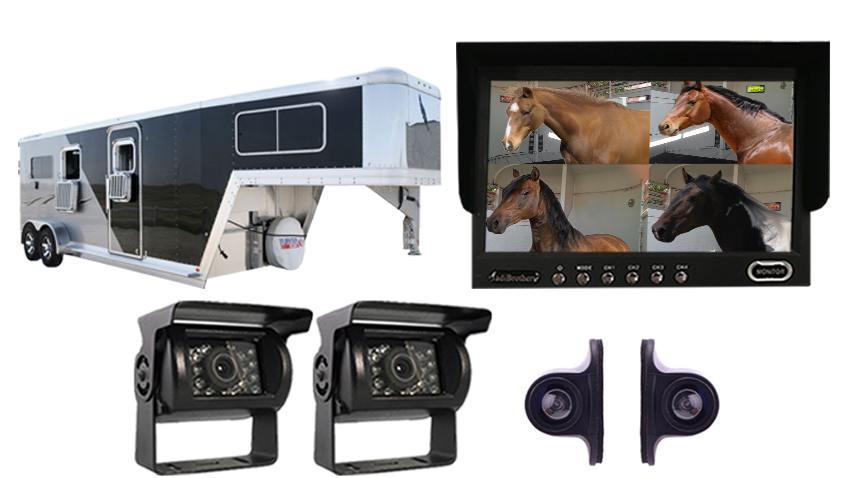

What's in the box

Top


You get everything seen here

1. 7'' Split screen with internal Quad Box
2. 2 x Standard quality RV Box Camera
3. 2 x Side cameras
4. 15 foot cables needed for installation
5. 50 foot cable for box camera
6. All cables needed are included in the package
7. Instruction Manual


Order Today

With the Tadi Brothers promise, you always have our 30-day guarantee to return the item for an exchange or a full refund. Buy with confidence. Our tech team is available 24/7 and we stand by our products 100%.Order your 7" Ultimate Horse Trailer Backup Camera Surveillance System today.

Specs

Horse Trailer Surveillance System with 2 Roof Cameras 2 Side Cameras and a Monitor - SKU912393
More Info
Weight (Lbs)
Cameras Included in the Package 4 Cameras
Dimensions
RV Backup Camera (Birds Eye View) - SKU24374
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wired
Backup camera style Roof Angle (Birds eye view)
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Vertical Adjustability 180°
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Bluetooth No Bluetooth
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
Side RV Camera - SKU15152
More Info
Weight (Lbs)
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 9
Backup camera connectivity Wired
Backup camera style Side View
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Type of Connection RCA
Type of lense Cmos
4pcs 50ft RCA Premium Cable for Backup Camera - SKU24265
More Info
Weight (Lbs)
Length of Cable Included 50ft
Type Of Upgrade Cable Upgrade
Dimensions
Weather Proof Insulated Cable Yes
