Rear-View System for RVs with 3 Cameras and Backup Monitor

SKU1276301 - In Stock

$499.99

+ FREE SHIPPING
Add To Cart
  • Features
  • Specs
  • Questions
  • Reviews
Back To Top

Rear-View System for RVs with 3 Cameras and Backup Monitor

  4.6 Based on 46 reviews
SKU1276301
Backup Camera | Two Side view Cameras | 7-Inch Split Screen
Backup Camera | Two Side view Cameras | 7-Inch Split Screen
Backup Camera | Two Side view Cameras | 7-Inch Split Screen
Best selling RV backup camera replacement
7-Inch Split Screen Monitor for up to 4 Backup Cameras | SKU34288
Side view Mini RV backup camera with rubber coating SKU15152
Install backup cameras on both sides and the back of your Trailer
Comes standard with automatic military grade night vision LEDs. These infrared LEDs give you a clear picture even in total darkness!
You can split the screen into an array of different views.

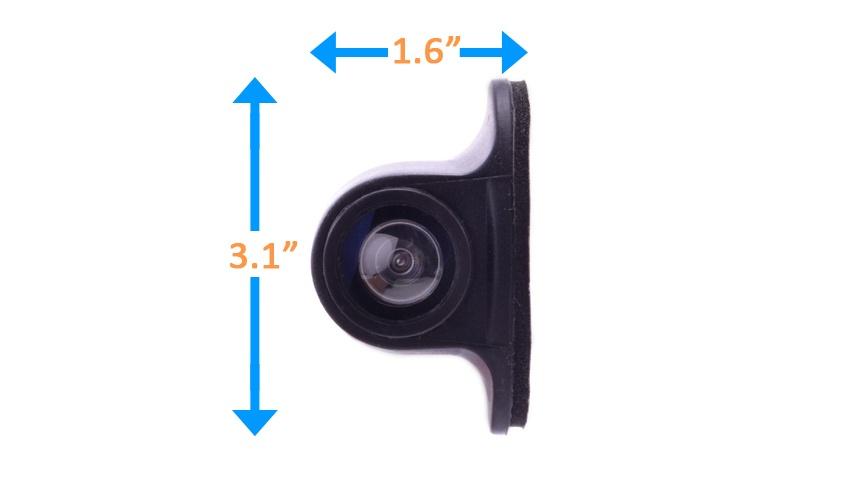

Side view Mini RV backup camera dimensions
Best selling Backup Camera
Buttons for all 4 channels of the 7 inch split screen

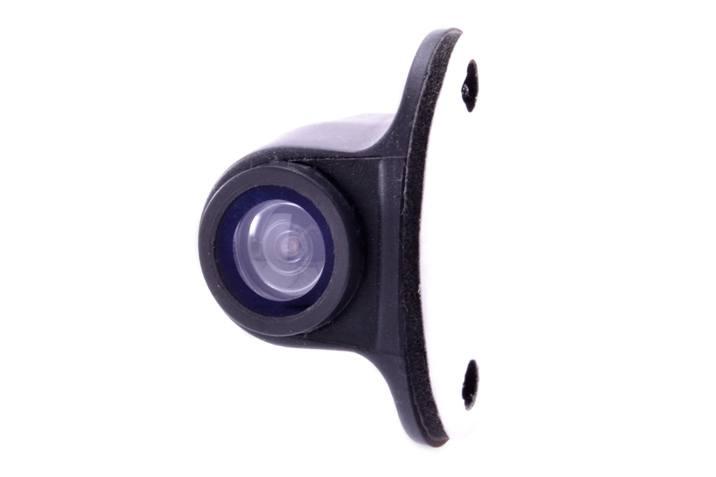

Aftermarket Side view Mini RV backup camera
Adjustable sun shield helps you see better in bright sunny conditions, and prevents water drops from obscuring your view in inclement weather.
Includes a frame for flush clean look

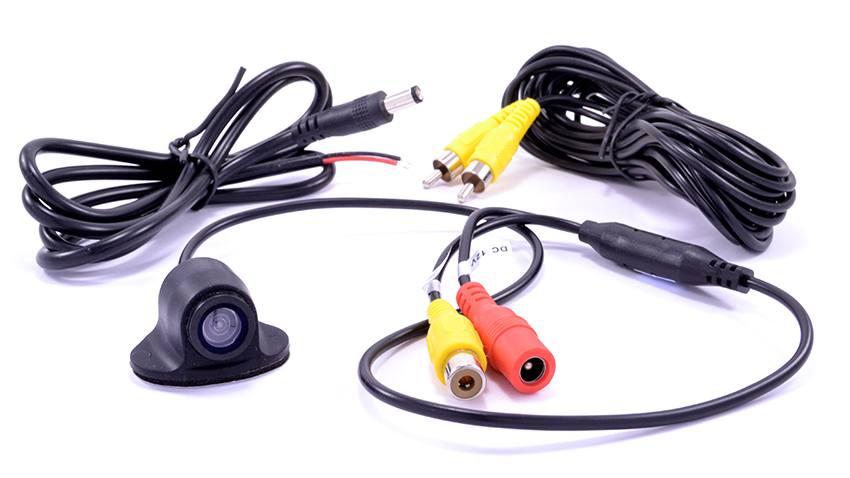

Included with the low-profile RV side camera is an adhesive attachment, yellow RCA video plug, red DC power plug, and a 15 foot RCA cable.
Dimensions for 120 degree birds-eye view RV backup camera: 3 in. L x 2.25 in. W x 2.5 in. H
7 Inch split screen monitor upgrade options
The RV side camera is made of a high grade rubber coating to allow operation in inclement weather conditions.
7 Inch split screen monitor dimensions

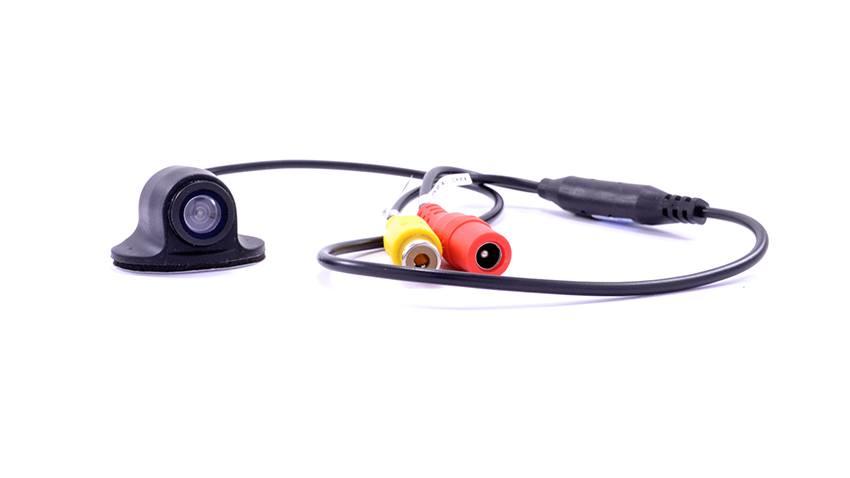

Side view Mini RV backup camera with rubber coating SKU15152
Dash mount for rear view monitor

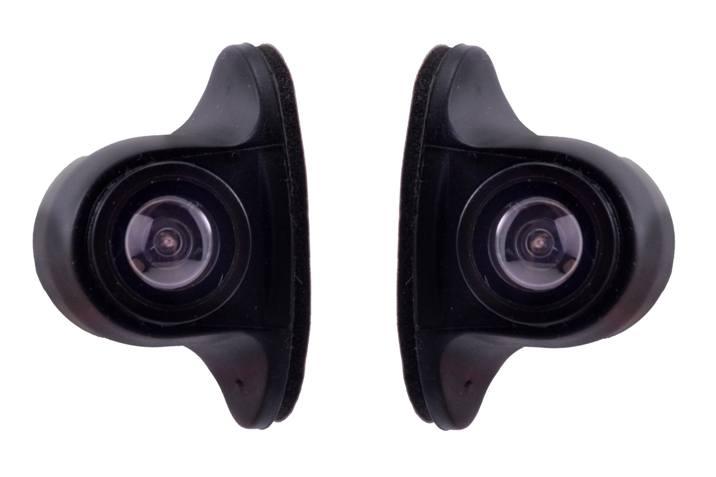

2 Side view Mini RV backup camera
Back of the 7 inch split screen monitor
Rear view of 9 inch split screen with rubber coating.

Features

Rear-View System for RVs with 3 Cameras and Backup Monitor - SKU1276301
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark Watch 1 camera or 4


About this 7 Inch Split Screen Monitor


7-Inch Split Screen

See all the cameras on this screen

At Tadi Brothers, we know that moving a large RV can be a stressful job. With trees, bikes, and other obstacles that may stand in your way, we offer the assistance you need to safely reverse, park, and drive your large vehicle with the 7” Ultimate RV Backup Camera System (3 Cameras).

Overall Coverage

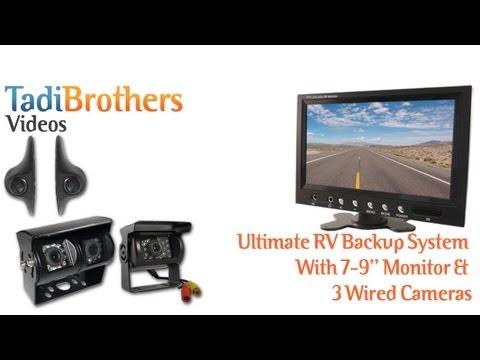

Tadi Brothers’ 7" Ultimate RV Backup Camera System (3 Cameras) takes the stress out of driving your RV. This three-camera system easily mounts on top of your RV, helping you to reverse, park and drive your supersized vehicle without a hitch. This comprehensive system allows you to see everything around you at a 120° angle view, including two side cameras and one RV box camera that monitors the back of the vehicle. Each camera also features military-grade night vision, reverse imaging and a metal sun shield visor to minimize glare.

Take the guesswork out of changing lanes on the freeway and the hassle out of spending a ton of time trying to park your RV by taking advantage of the 120° angle view each of these cameras produces. Enjoy the other added features such as military grade night vision, reverse imaging, and a metal sun shield visor to reduce sun glare.

LCD split screen Monitor


This Rear View System includes an LCD split screen monitor that brings you images in bright, vivid colors. The sleek, lightweight design easily attaches to your dashboard or windshield and connects to any power source, such as a cigarette lighter. Plus, the monitor features four video inputs allowing you to connect multiple cameras or even a DVD player or video game console — perfect for entertaining the kids!


Tadi Brothers is pleased to bring you high-quality backup cameras that allow you to drive your RV with ease. Purchase the 7" Ultimate RV Backup Camera System (3 Cameras) today and make your drive much more enjoyable!

About Backup cameras




exclamation point iconPick Your backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 3-5 cameras however, we have different styles for all kinds of uses. Choose which configuration best fits your budget.


Click here to see our BACKUP CAMERA GUIDE

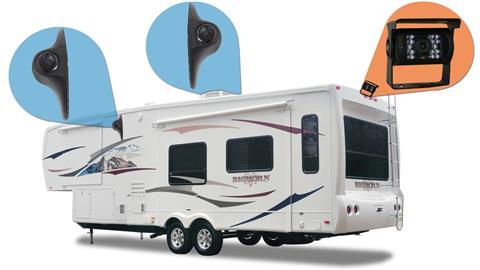

backup camera installation diagram

Two cameras on the sides and one in the back

Side camera

The side camera has a 120° Degree viewable angle, its waterproof and has auto night vision. The side camera is perfect for any long RV or Bus. You can mount it on the side facing front or back any see everything in crystal clear quality. You need help parking? This is for you! You need help changing lanes on the freeway? This is a must!

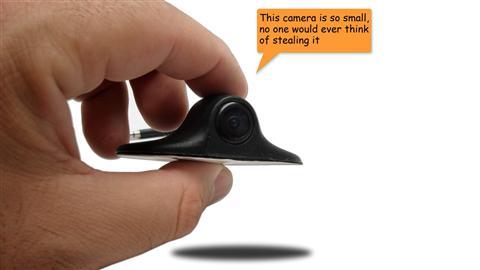

Unlike many other side cameras ours are also a compact size so you will not knock them off your RV in really tight spots.



RV Box camera

The RV Box camera Has a 120° Degree viewable angle, its waterproof and has auto night vision. The camera is one of the most durable we have, with incredible adjustability and night vision clarity. The RV Box camera has a metal sun shield visor to protect you from glare and pebbles. This is by far our toughest built camera. It has been regularly used in cars, vans, buses and even industrial sized caterpillar trucks, operated in the harsh oil sand of Canada. This camera can take a direct hit from a rock and it will still work like new. It has also been very popular with RVs, because its housing allows you to install the cameras on multiple sides of your RV.

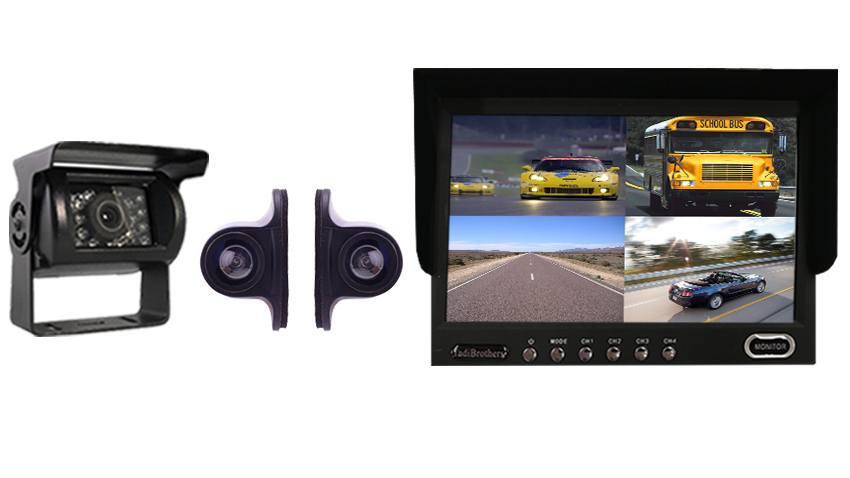

Backup Camera | Two Side view Cameras | 7-Inch Split Screen

You get everything seen here

1. 7'' Split screen with internal Quad Box
2. Standard Quality RV Box Camera
3. 2 x Side cameras
4. 15 foot cables needed for installation
5. 50 foot cable for box camera
6. All cables needed are included in the package
7. Instruction Manual


The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1 year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

Rear-View System for RVs with 3 Cameras and Backup Monitor - SKU1276301
More Info
Weight (Lbs)
Cameras Included in the Package 3 Cameras
Dimensions
Operating temperature -40C to + 133C
RV Backup Camera (Birds Eye View) - SKU24374
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wired
Backup camera style Roof Angle (Birds eye view)
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Vertical Adjustability 180°
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Bluetooth No Bluetooth
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
Side RV Camera - SKU15152
More Info
Weight (Lbs)
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 9
Backup camera connectivity Wired
Backup camera style Side View
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Type of Connection RCA
Type of lense Cmos
3pcs 50ft RCA Premium Cable for Backup Camera - SKU24264
More Info
Weight (Lbs)
Length of Cable Included 50ft
Type Of Upgrade Cable Upgrade
Dimensions
Weather Proof Insulated Cable Yes
