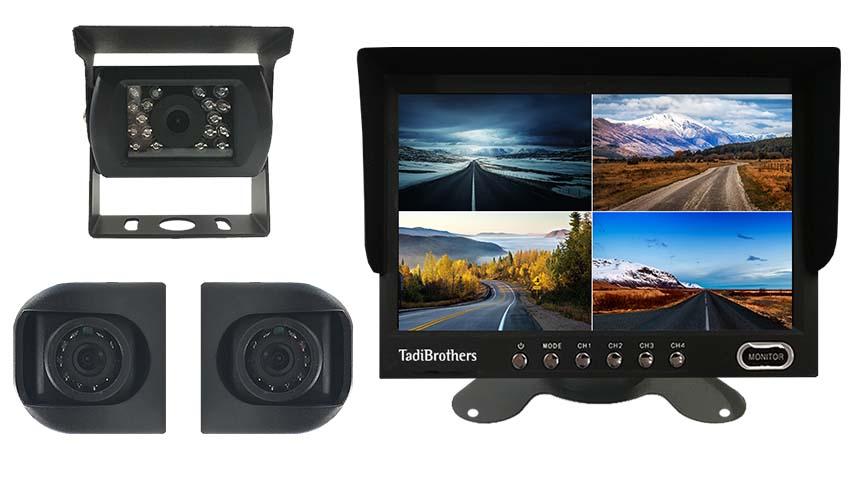

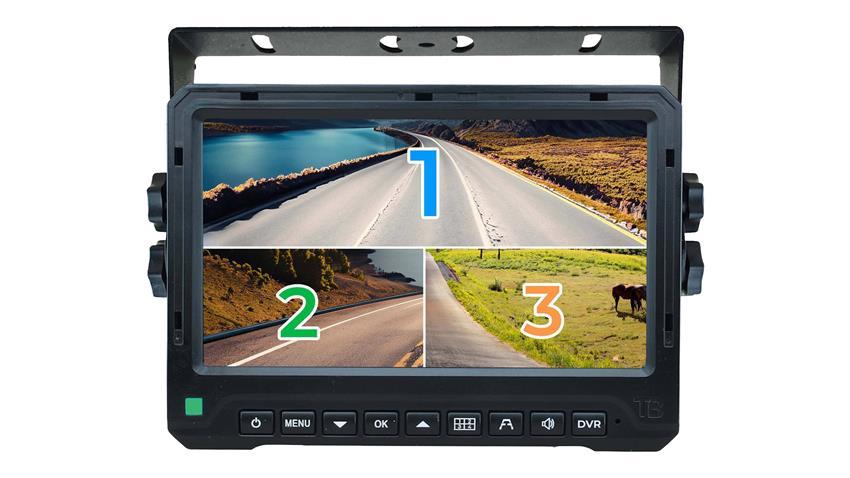

1080P Rear-View System for RVs with 3 AHD Cameras and Backup Monitor

SKU85840 - In Stock

$899.99

+ FREE SHIPPING
Add To Cart
  • Features
  • Specs
  • Questions
  • Reviews
Back To Top

1080P Rear-View System for RVs with 3 AHD Cameras and Backup Monitor

  4.3 Based on 3 reviews
SKU85840

Features

SKU85840 Features (Click On Icons For More Info)
    Grid Lines This item includes the gridlines upgrade

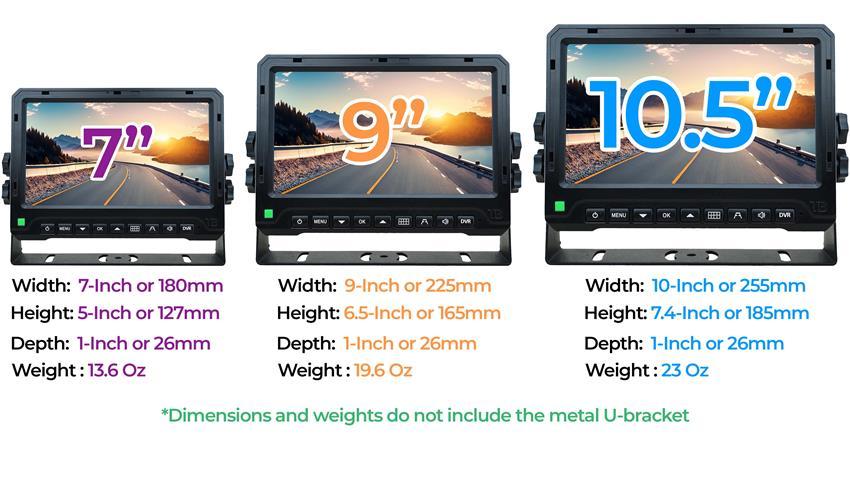

    7 inch Monitor Size The 7-inch screen includes a dash mount. Use the customize section on this page to change the size
    Monitor Mounts on Dash The monitor can mount on the dash. You can also mount it using a suction cup on the windshield or mount it overhead

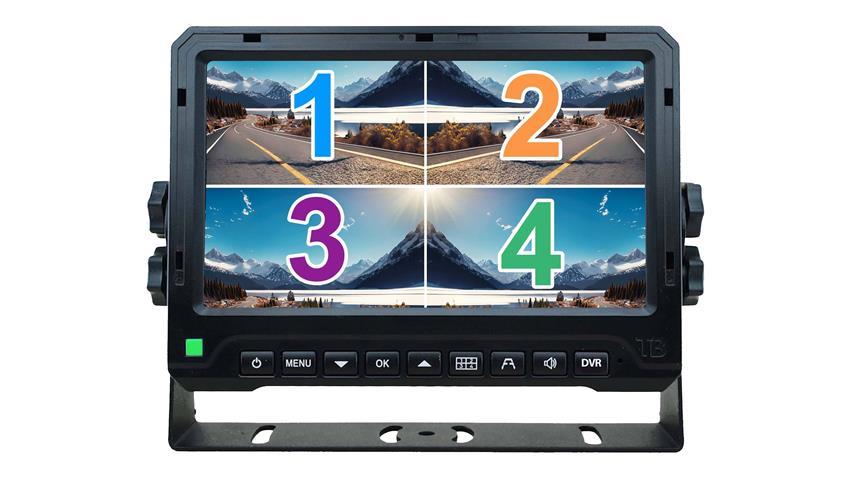

    Split screen Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    Watch 1 camera or 4 Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    3 Cameras This system comes with 3 cameras. Keep in mind you can add up to 4 cameras to the system
    Color See the whole world in full color when reversing or driving down the road. Great for all weather conditions
    Wired System This is a wired system. You simply connect the camera to the monitor using a cable
    Mounts at top of RV Mount up top and point it down at the road. This is a great camera for that bird eye view that will show you everything you need to see
    Military Grade Night Vision Driving at night? No problem! See everything behind you in full nightvision
    On while driving or in reverse Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes

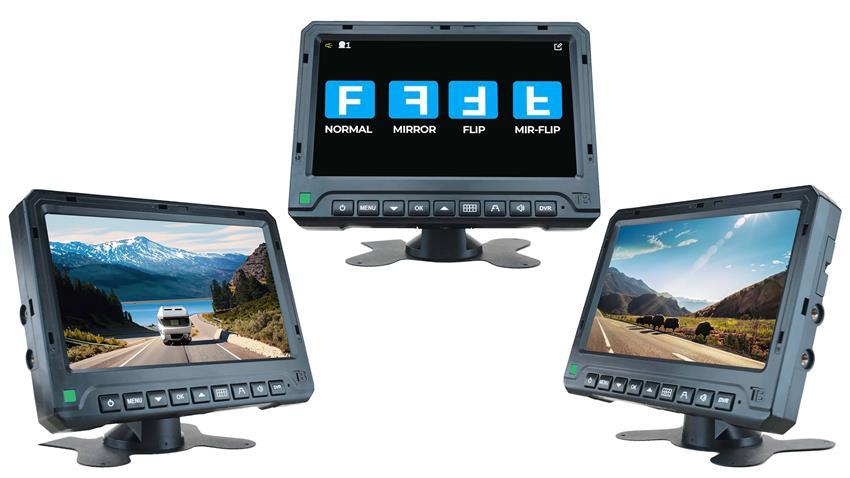

    Reverse image (Mirrored Image) The video image on the screen will reversed. Just like the mirror in your car. Great for backing up or looking at the road behind you
    100% Weatherproof 100% Weatherproof. Works in all weather conditions. Rain or Snow or Sun you will be just fine using this system. Its meant to be out in the weather
    Heavy Duty For those who want the strongest parts you can get. Great for all conditions including harsh vibrations and industrial equipment
    Best seller Sold the most among all our systems and one of the most popular across the board
    30 days money back guarantee Send it back for a refund no matter what the reason
    IP Rating 69
    1080 Full HD This system includes full 1080P Hi-Definition image quality
About the system SKU85840

This 1080P wired 3 camera RV Trailer system comes with an AHD 7-inch split screen monitor that works perfectly if you are looking for something that allows you to see everything behind and around you continuously while you driving or when parked. The 7-inch split screen monitor has different viewing modes and is compatible with our TadiBrothers cameras wired or wireless. This bundle includes the screen, 1 1080P RV Camera, and 2 1080P Side Cameras. This RV system includes everything you need for for a clean installation, featuring easy to follow instructions and diagrams.

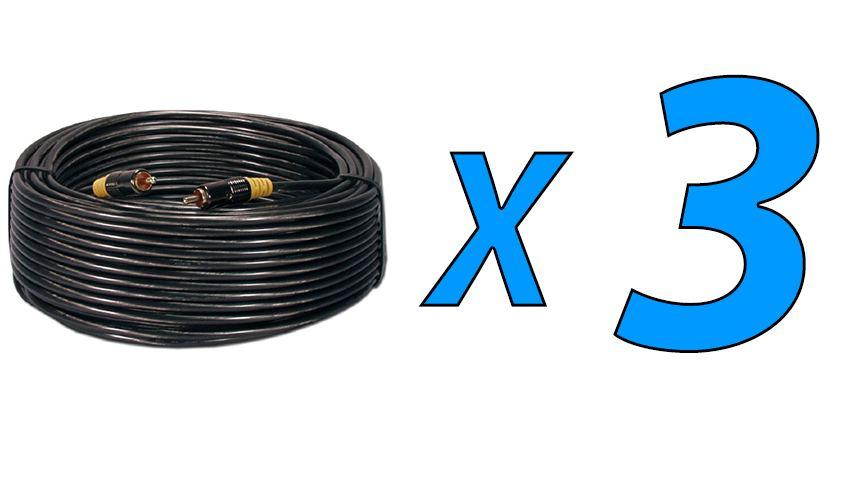

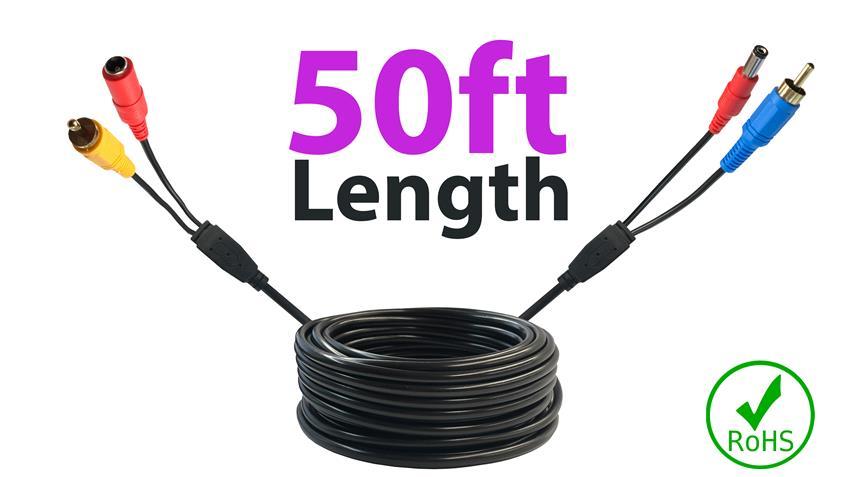

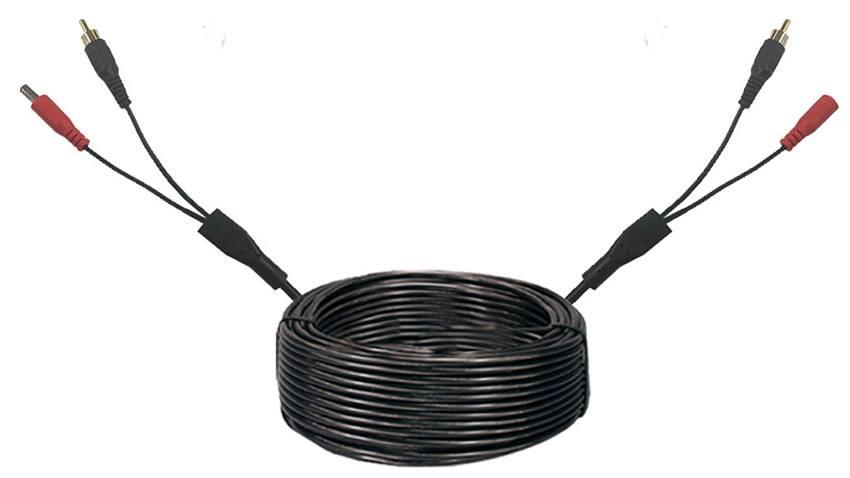

About this 3 Pack of 50ft Cables SKU24264
...
Mouse Over To Zoom

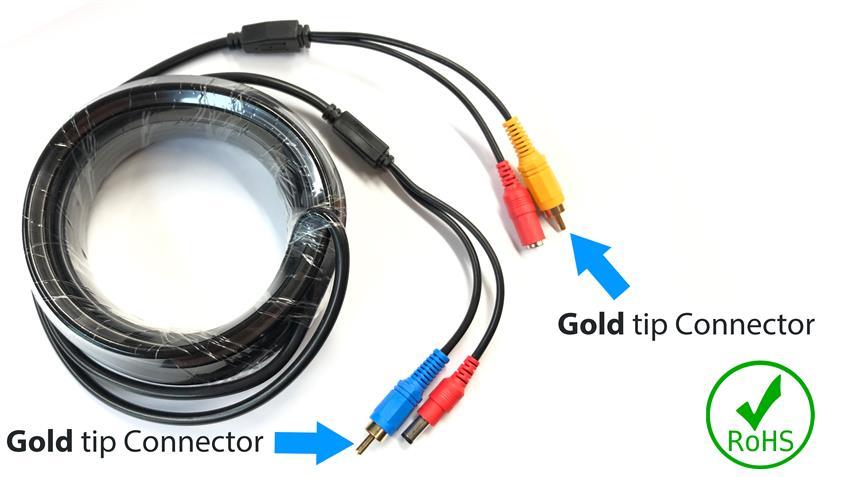

High Quality Gold Tip Cables

This 3 pack of our heavy duty Hi-Def 50ft cable is the perfect addition to your observation system. These cables will take you one step closer to the perfect viewing experience. If you’re connecting multiple monitors or backup cameras in your vehicle, these cables will do the trick. The thick exterior gives it durability for all weather conditions and the gold tip RCA connectors promise you the highest quality, so you won’t lose picture integrity even up to 150 feet. If you plan to power your camera or screen from a single source don't forget to add the power upgrade which will add a 2nd inline cable with DC plugs on the ends.


  • Includes 3 Premium 50ft Cables
  • Gold tip for high quality video
  • 100% Weather and waterproof
  • Durable shielding for extra protection

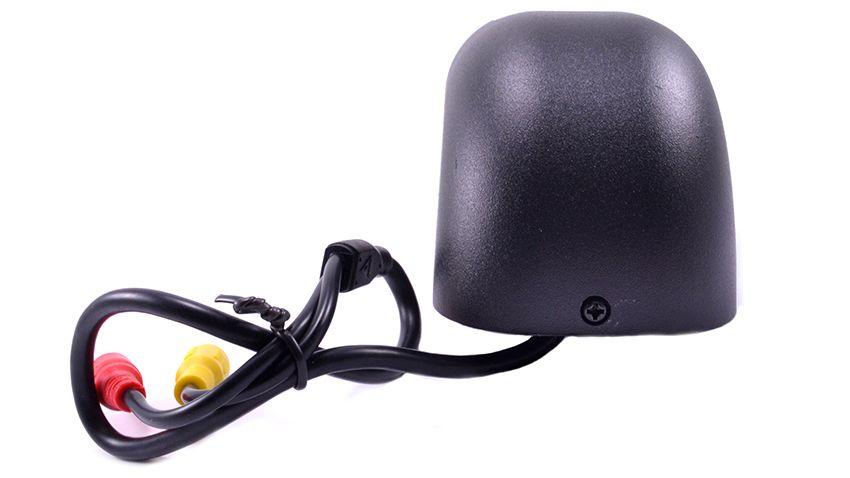

About this 1080P AHD RV Camera (Black) SKU24274
...
Mouse Over To Zoom

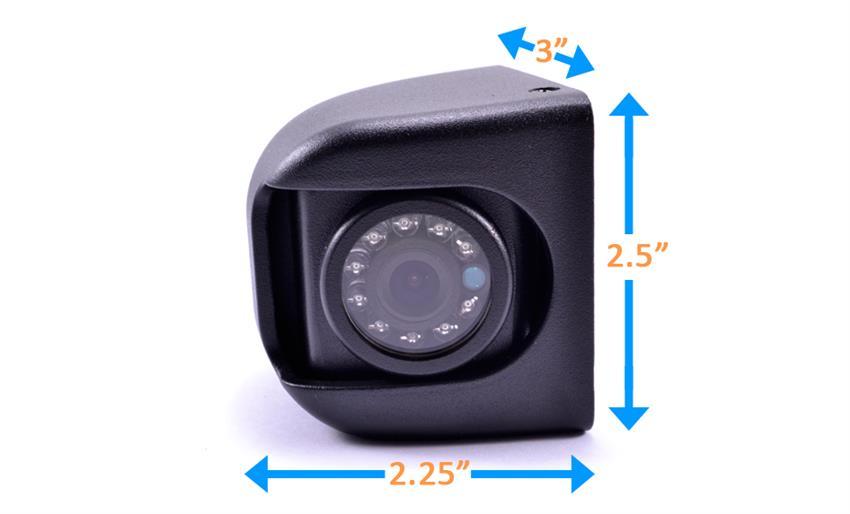

Dimensions of the Camera

This AHD RV camera has been designed from the ground up to give you the perfect image day or night. the lens has a viewable angle of 120° which will allow you to see 3 lanes behind you. This camera features our AHD lens which is the highest possible resolution available for this type of wired camera.

It also features incredible color and military grade night vision that can be left on continuously while your driving down the road or pop on automatically when you go in reverse. Many of our customer have mounted this camera over their RV entrance door to be used as a sort of door bell camera.

The automatic night vision is the best industry because its progressive nature, this means that the darker it gets outside the more the night vision is active. The durable construction of this RV camera is meant to operate in all weather condition, it is 100% water and weather proof and is relied on for commercial fleets around the country.

Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.


  • 1080P AHD Hi-Definition
  • Stays on while driving
  • Full Color
  • Progressive Night Vision
  • IP69 Weatherproof

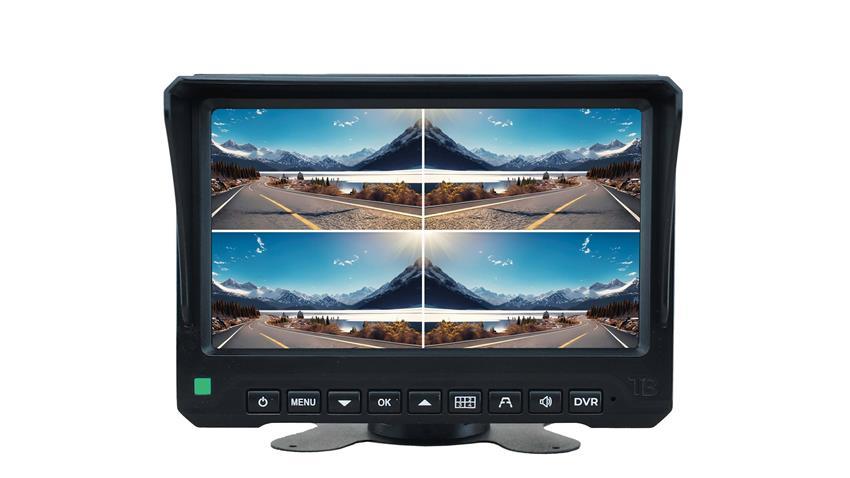

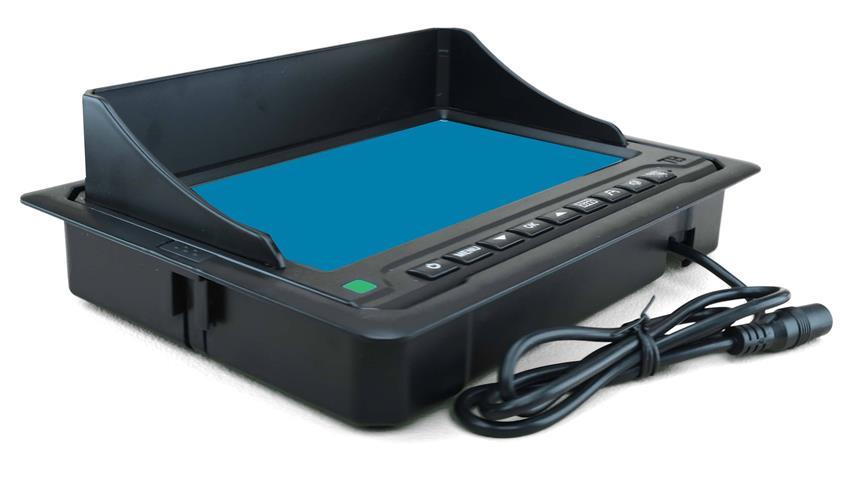

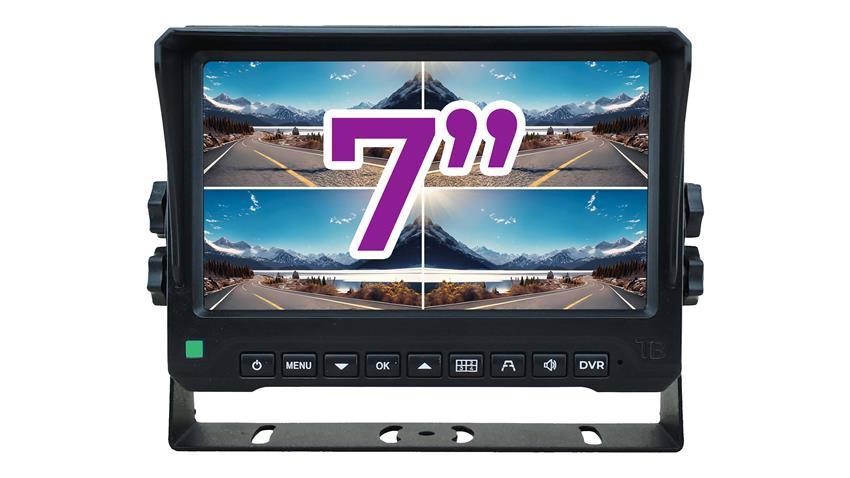

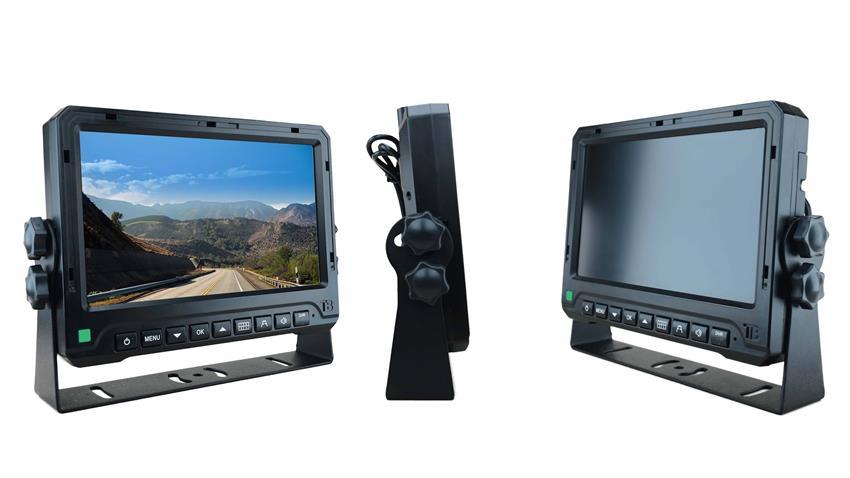

About this 1080P 7-inch monitor SKU32335
...
Mouse Over To Zoom

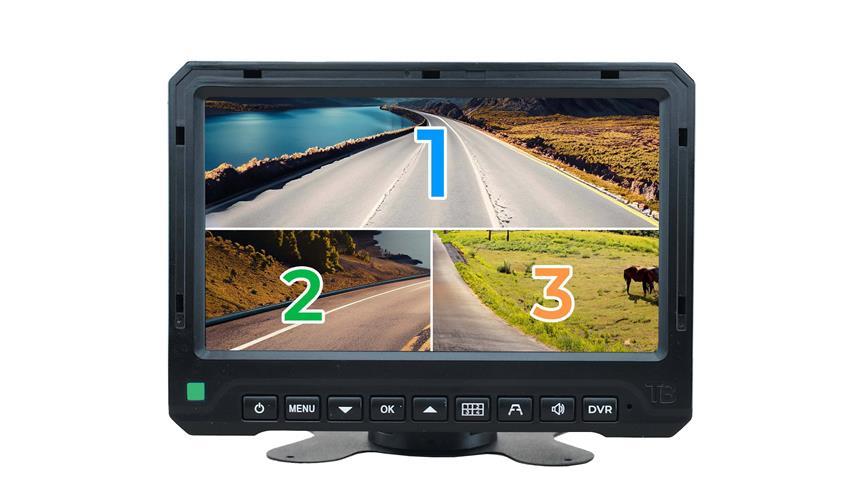

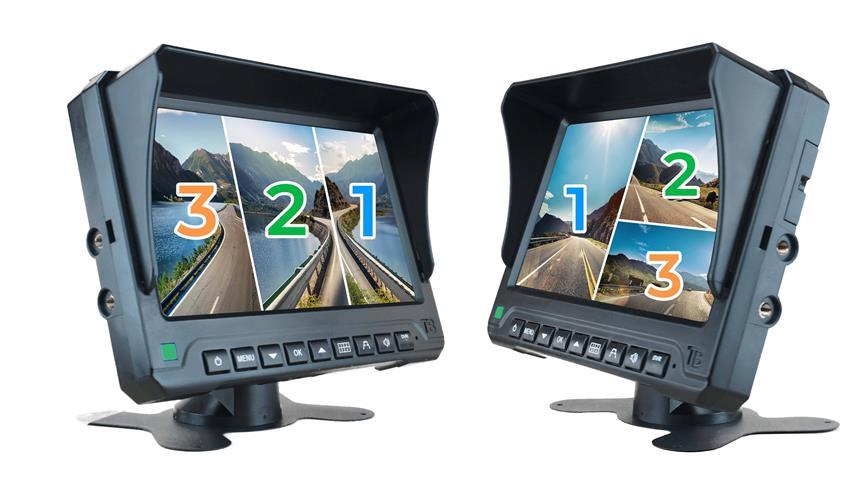

Many viewing modes included

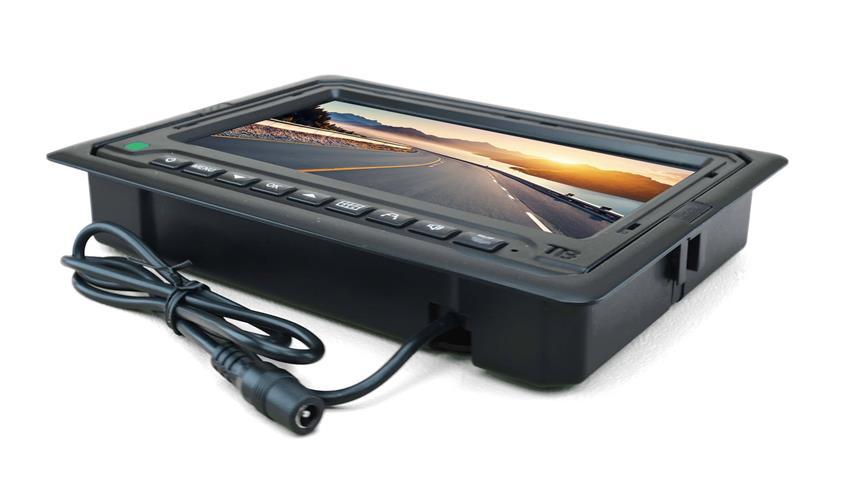

The 7-inch Split screen observation 1080P monitor is the perfect screen if you want a multi camera backup system for your vehicle. This monitor is full color and is compatible with the TadiBrothers industry leading night vision technology.

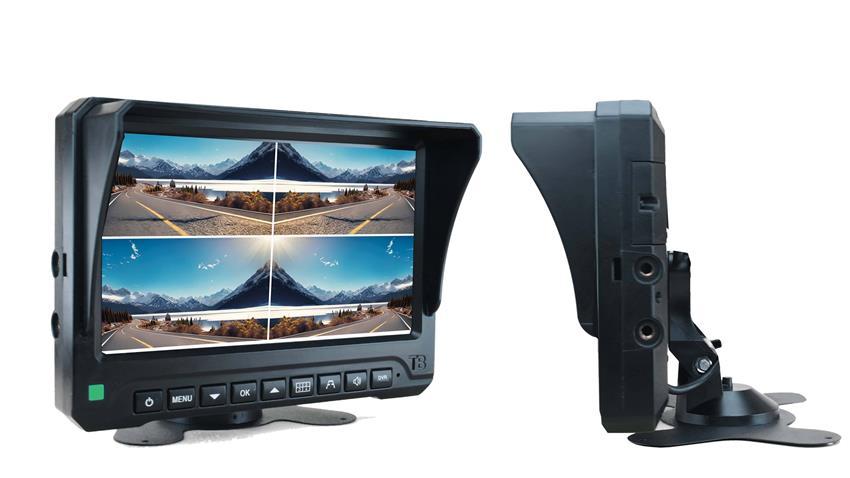

The metal encased monitor comes with a remote and a dash mount that can be screwed or velcroed to your dash. Some resourceful customers have even hung the screen from the ceiling to give it a more intuitive backup mirror feel.

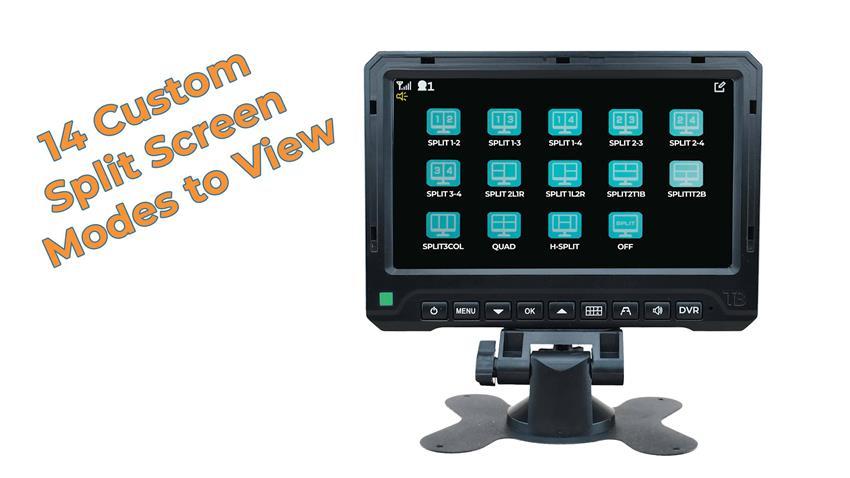

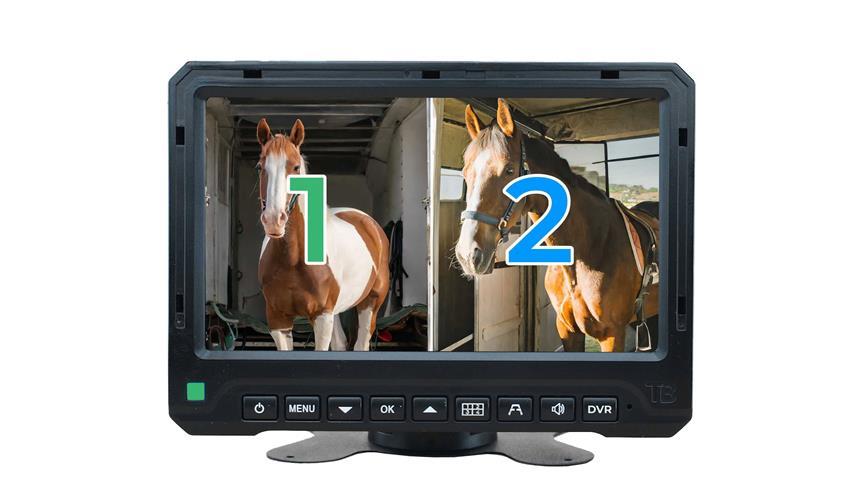

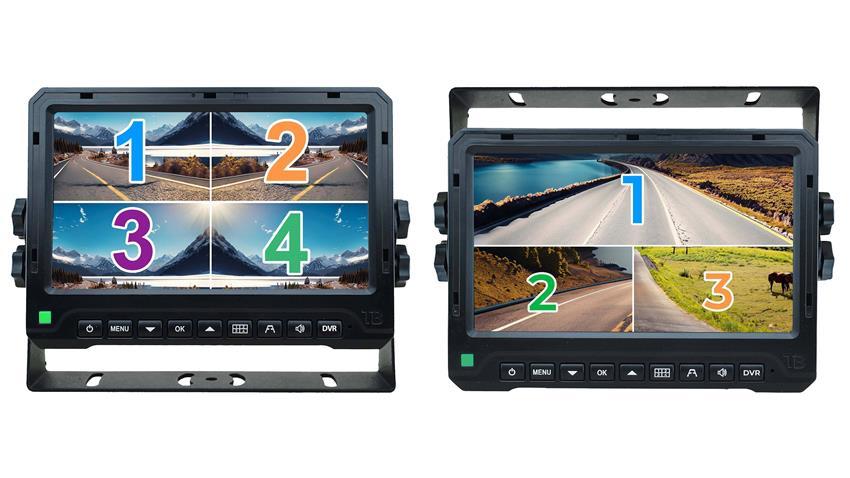

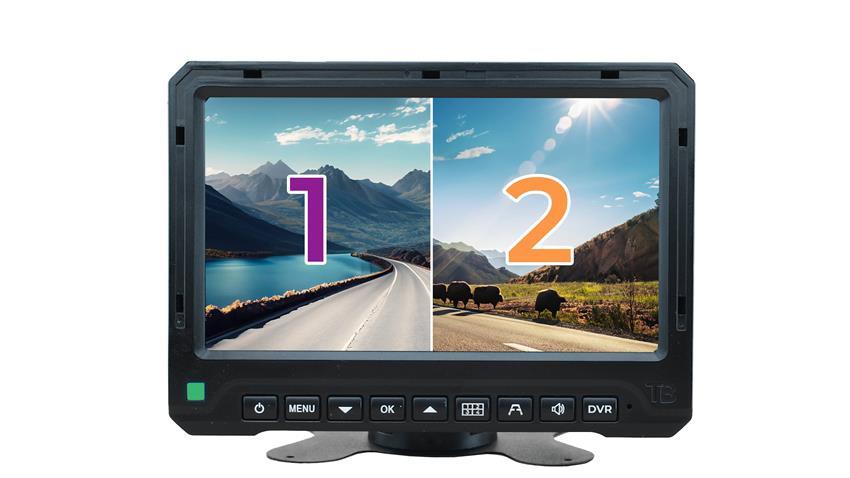

The software in the monitor allows for many different viewing configurations, you can see 1 camera at a time up to 4 cameras and even when viewing multiple cameras at once it has different configurations for that.

If you intend to use this screen while you’re driving down the road or changing lanes you can also use this split screen monitor as an observation screen or connect it to the trigger wires and see the specific camera you want to see, when you need to see it.

As for the brightness, this monitor will deliver a perfect image even in direct sunlight and auto dim at night for a softer more comfortable view.

This monitor includes everything you need for installation including a dash mount that can be screwed or velcroed to the dash as well as a wiring harness that end with 2 pigtails for 12-24 volts, for those who want to simplify their installation we do offer to a cigarette adapter and a suction cup for your convenience.

Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.


  • Full Color 1080P Screen
  • Stays on while driving
  • Can be triggered by the blinkers
  • Accepts up to 4 AHD cameras
  • Auto brightness for nighttime viewing

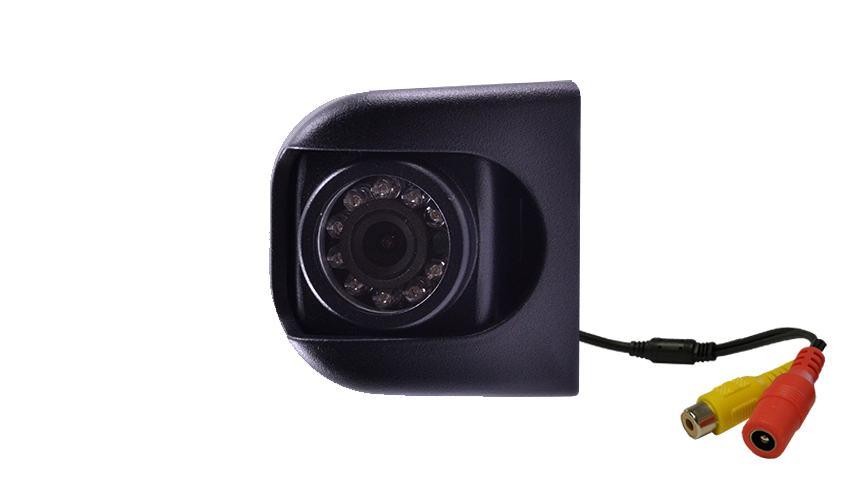

About this 2 Pack of 1080P Side Cameras SKU97133
...
Mouse Over To Zoom

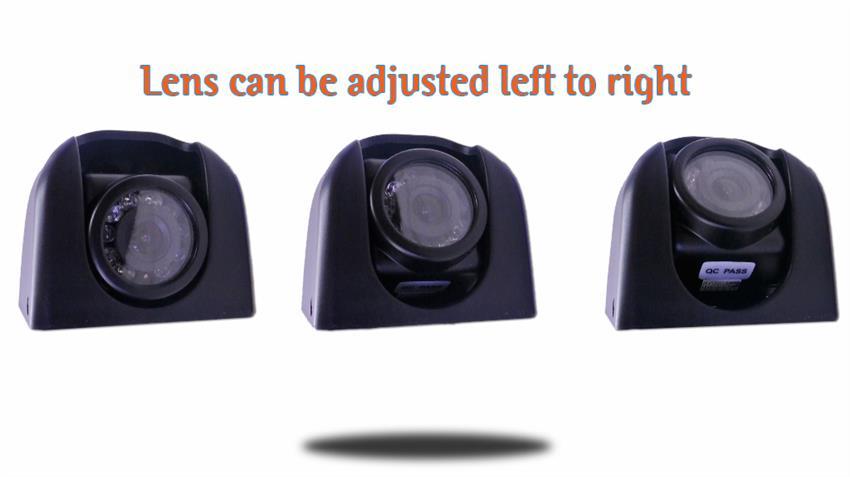

Adjustable Lenses

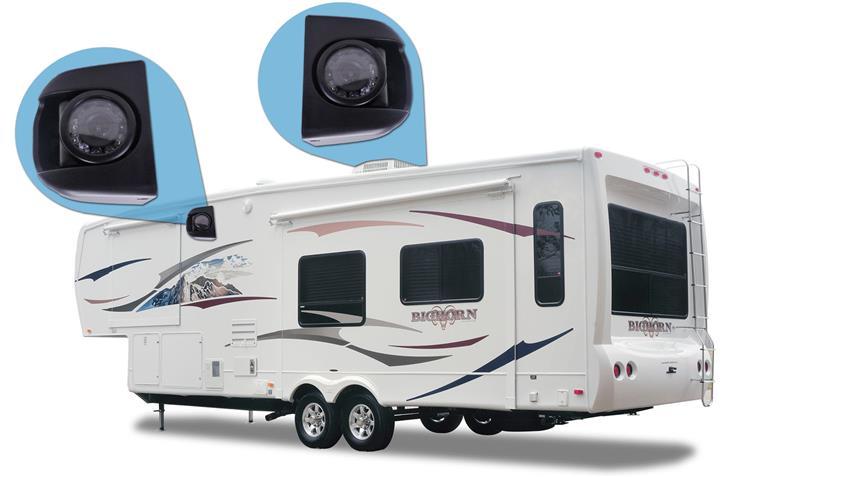

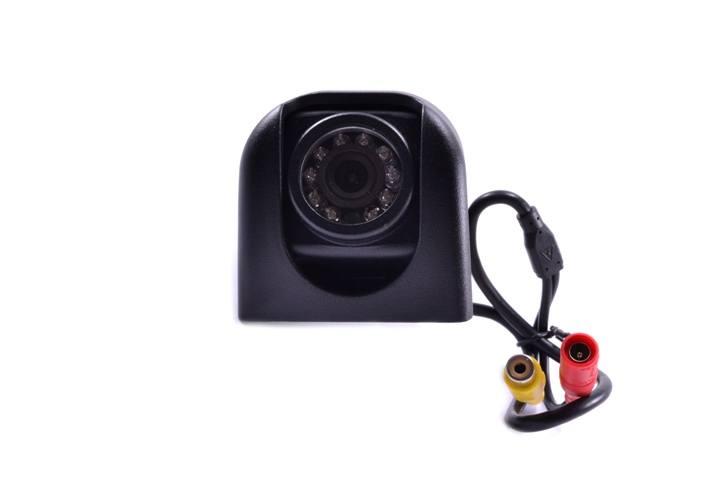

This Pair of passenger and driver side cameras eliminate blind spots with their AHD 1080P High resolution lenses. The housing is constructed of heavy duty metal design for commercial use with an adjustable internal lens that will ensure the perfect viewing experience even after you permanently mount it.

The lens is full color with automatic night vision which will activate as it gets darker outside. This camera is IP69 rated for any outdoor environment and will give you a consistent image even while you're driving down the road.

You can even connect it to your blinker light to have it trigger when you change lanes. The included lens is 120 degrees but can be upgraded to 170 degrees for maximum lane viewing.

Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.

Please note: If you are purchasing this AHD camera, it will only function with an AHD Monitor. If you mix AHD with CMOS you will not be able to see an image on this display.


  • 1080P High Definition Cameras (AHD)
  • Full Color & Night Vision
  • 100% Weatherproof
  • Premium construction for durability
  • Passenger & Driver side cameras

What's In The Box SKU85840

  • 3pcs 50ft RCA Premium Cables
  • 1pcs of 1080P Wired Birds Eye View Camera

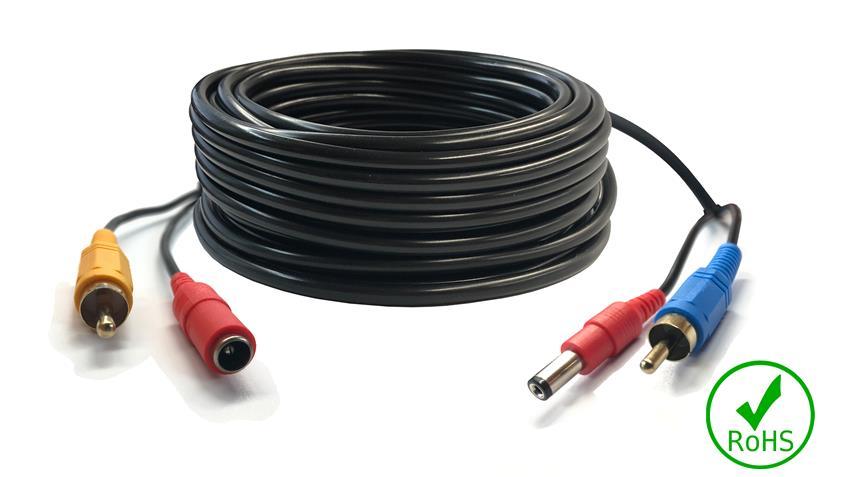

  • 1pcs 15ft Video Cable
  • 1pcs 2.1mm DC Power Cables
  • 7-Inch AHD Split Screen Monitor (4 Channels)
  • 1pcs Harness for Power & Video
  • 1pcs Butterfly Mount
  • 1pcs Double sided adhesive for mount
  • 2pcs 1080P premium side cameras (Passenger & Driver)
  • 2pcs 2.1mm DC Barrel connectors
  • 2pcs 15ft Cable

Specs

1080P Rear-View System for RVs with 3 AHD Cameras and Backup Monitor - SKU85840
Weight (Lbs)
Dimensions
Operating temperature -40C to + 133C
More Info
Cameras Included in the Package 3 Cameras
Transport RV,5th Wheel,Campers and Trailers
3pcs 50ft RCA Premium Cable for Backup Camera - SKU24264
More Info
Weight (Lbs)
Length of Cable Included 50ft
Type Of Upgrade Cable Upgrade
Dimensions
Weather Proof Insulated Cable Yes
RV Backup Camera 1080P Hi-Def AHD - SKU24274
More Info
Weight (Lbs)
Anodized black finish Yes
Backup camera connectivity Wired 1080P (AHD)
Backup camera style Roof Angle (Birds eye view)
Camera Housing Color Black
Camera Resolution 1080 TV Lines
Camera Water Resistant Yes
Cameras Viewable Angle 120°
Dimensions
Length of Cable Included 15ft
Mirrored Image Yes
Rugged die cast aluminum housing Yes
Type of lense AHD
Weather Proof Yes
7-Inch AHD 1080P Split Screen Monitor for up to 4 Backup Cameras - SKU32335
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Backup camera connectivity Wired 1080P (AHD)
Backup Monitor connectivity Wired 1080P (AHD)
Bluetooth No Bluetooth
Camera Resolution 1080 TV Lines
Contrast Ratio 250:1

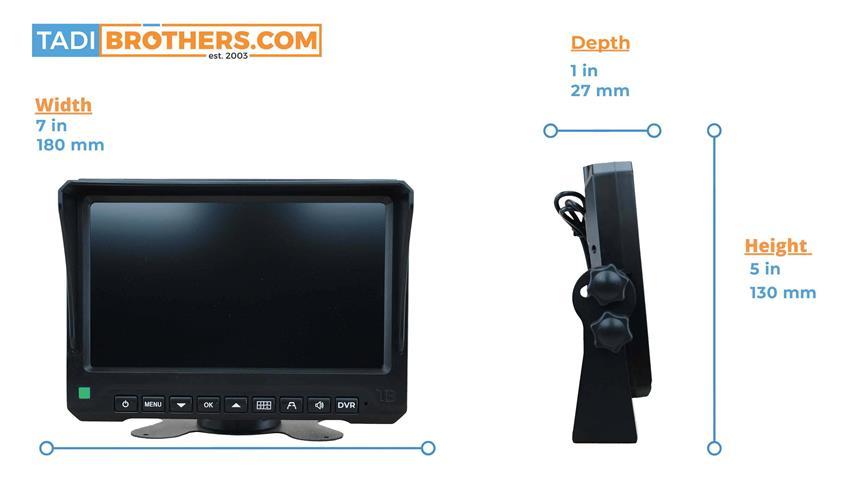

Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1920×1080
Screen Size 7-Inch Screen
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense AHD
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
2 Premium 1080P Side Mounted RV Cameras AHD - SKU97133
More Info
Weight (Lbs)
Anodized black finish Yes
Backup camera connectivity Wired 1080P (AHD)
Camera Housing Color Black
Camera Resolution 1080 TV Lines
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Contrast Ratio 250:1
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Quantity of Infrared LED's for Night vision 9
Type of Connection RCA
Type of lense AHD
Type of part Cameras
Type of system Replacement Parts
