RV or Trailer Rear View System with 4 Wireless Backup Cameras and Monitor
Features














This is a 4 Camera system for any RV or Trailer, with an assortment of wireless cameras and is perfect for providing you with a ton of coverage for you rig. The 7-inch split screen monitor has different viewing modes and is compatible with our TadiBrothers cameras wired or wireless. This bundle includes the screen, 1 RV Camera, 1 License plate camera, and 2 Side Cameras that all have a 70ft wireless range. This 4 camera system includes everything you need for for a clean installation, including easy to follow instructions and diagrams.

Simple design makes it easy to install
This license plate camera is a durable yet elegant solution for vehicles that want a camera for their car but keep the original aesthetics. This camera features a CCD lens with automatic night vision. It can be mounted on the top or bottom of your license plate depending on your requirements.
Like all of our cameras, this one can be left operational while you're driving down the road or pop on automatically when you go in reverse.
Regarding the nightvision, this camera offers an automatic and progressive nightvision which means that the darker it gets outside the more the night vision is active. Also the LEDs you see on the camera do not project light, rather they soak in the light so as to not blind those behind you.
There are 2 optional upgrades specific to this camera which are the wider angle view which can go up to 170 degrees, this will allow you to see more lanes behind you but with no fisheye effect. The 2nd upgrade is the gridlines which gives you a better perspective when you go in reverse. The gridlines can be turned off when not needed.
- Can be mounted on top or bottom of your license plate
- Stays Active while driving or pops on when you go in reverse
- Full color and night vision
- 100% Waterproof and weatherproof
- Heavy duty metal casing
- IP69 Water resistance

Many viewing modes included
The 7-inch Split screen observation monitor is the perfect monitor if you want a multi camera backup system for your vehicle. This monitor is full color and is compatible with the TadiBrothers industry leading night vision technology. Whether you want a wired or wireless camera system this split screen is fully compatible with every camera we sell.
The monitor comes with a remote and a dash mount that can be screwed or velcroed to your dash. Some resourceful customers have even hung the screen from the ceiling to give it a more intuitive backup mirror feel.
The software in the monitor allows for many different viewing configurations, you can see 1 camera at a time up to 4 cameras and even when viewing multiple cameras at once it has different configurations for that.
If you intend to use this screen while you’re driving down the road or changing lanes you can also use this split screen monitor as an observation screen or connect it to the trigger wires and see the specific camera you want to see, when you need to see it.
As for the brightness, this monitor will deliver a perfect image even in direct sunlight and auto dim at night for a softer more comfortable view.
This monitor includes everything you need for installation including a dash mount that can be screwed or velcroed to the dash as well as a wiring harness that end with 2 pigtails for 12-24 volts, for those who want to simplify their installation we do offer to a cigarette adapter and a suction cup for your convenience.
- Full Color LCD Screen
- Stays on while driving
- Can be triggered by the blinkers
- Accepts up to 4 cameras
- Auto brightness for nighttime viewing

Camera fits in any housing
The birds eye view cameras boast our military grade progressive night vision with 120 Degree viewable angle which will have vivid colors during the day and progressive night vision for low light conditions. This means that the night vision progressively activates as it gets darker outside, in fact you could be driving for hours in the pitch dark and not notice that you have transitioned to complete night vision mode.
When upgrading the night vision we took into consideration that many of our customers use the cameras even when they are parked for security, this night vision fully supports that. In recent years many of our loyal customers have purchased a 2nd camera to place above their door and to use it as a type of “Ring doorbell” to see who is knocking on their door.
The analog transmitters included with this camera have a range of at least 70ft and have the added ability to be viewed on multiple screens.
- 70ft Wireless Range
- Full color and nigh vision
- 100% Water and Weatherproof
- Stays on while driving

Tiny design can be tucked away anywhere
This pair of wireless Transmitter have a flawless range of 70ft. In the bundle you get 4 complete sets or Transmitters and Receivers, enough for 4 separate cameras that have RCA plugs (This can be added to any wired TadiBrothers cameras and monitor).
They are 100% water/weatherproof and this updated version will also power the camera, which means you only need 1 power source for each camera. If you don't want the transmitter on the outside many of our customer hide the transmitter in a closet or behind the back wall.
When designing these transmitters we assumed they will stay operational continuously 24/7 for those customers that want to use them as a live security system when they are parked.
- 4 Sets of Transmitters & Receivers (for 4 Cameras)
- Wireless range of 70ft+
- 100% Water and Weather proof
- Easy Setup and installation

Very Small and Discrete
This pair of wireless rubber coated side view camera are small and aerodynamic, which makes them almost invisible. The lens is full color with night vision. Like all of our backup cameras these camera double as observation camera which permits you to leave the cameras active continuously while you are driving down the road.
Each camera includes its own pair of 70ft wireless transmitters that are 100% water and weather proof . They are small enough to leave them outside or hide them somewhere in your vehicle.
The rubber housing makes the camera 100% water/weather proof and can operate in the harshest of environments. The camera includes all cables and parts needed for a clean and easy installation.
- Full color and Night Vision
- Stays on while Driving
- 100% Weatherproof and waterproof
- Rubber coated for extra durability
- 2 Wireless Cameras Included
- Passenger and Driver side

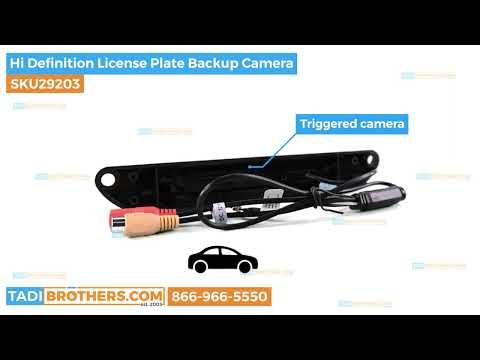

- HD License Plate Backup Camera (Black)
- 1pcs 15ft Cable
- 1pcs 2.1mm DC Barrel connectors
- 7-Inch Split Screen Monitor (4 Channels)
- 1pcs Harness for Power & Video
- 1pcs Butterfly Mount
- 1pcs Double sided adhesive for mount
- Wireless RV Backup Camera (70ft Range)
- 1pcs 2.1mm DC Barrel connectors (for Camera)
- 4 Sets of Transmitters & Receivers (for 4 Cameras)
- 4pcs 2.1mm DC Barrel connectors
- 4pcs Velcro for Transmitters
Specs
RV or Trailer Rear View System with 4 Wireless Backup Cameras and Monitor - SKU127525 | |
---|---|
More Info | |
Weight (Lbs) | |
Backup camera connectivity | Analog Wireless |
Cameras Included in the Package | 4 Cameras |
Dimensions | |
Operating temperature | -40C to + 133C |
Transport | Truck and Van,RV,5th Wheel,Campers and Trailers |
Designated Installation | In-Dash and Ceiling Mount Combo |
Black High Definition License Plate Backup Camera - SKU29203 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Camera Resolution | 420 TV Lines |
Contrast Ratio | 250:1 |
Electronic Shutter | 1/60 ~ 1/10,000 Second |
Integrated sun shield | No |
Minimum Illumination (LUX) | 0.2 |
Quantity of Infrared LED's for Night vision | 9 |
Backup camera connectivity | Wired CMOS |
Backup camera style | License Plate |
Cable Video Quality | HD |
Camera Housing Color | Black |
Camera Water Resistant | Yes |
Camera White Balance | Automatic |
Cameras Viewable Angle | 120° |
Circumference Camera | 1.5'' |
Dimensions | 7.5"(W) X .5(D) X 1"(H) |
Dual Backup camera compatible | Yes |
Installation Cables Included | Yes |
Mirrored Image | Yes |
Night Vision | Yes |
Night Vision Viewable Distance | 60ft |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Storage temperature | -20C+65C |
Type of Connection | RCA |
Type of lense | CCD |
Vertical Adjustability | 60° |
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Backup camera connectivity | |
Backup Monitor connectivity | Wired CMOS |
Bluetooth | No Bluetooth |
Contrast Ratio | 250:1 |
Dimensions | 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H) |
Dual Backup camera compatible | Yes |
Installation Cables Included | Yes |
Integrated sun shield | Yes |
Length of Cable Included | 15ft |
Material | Hard Plastic |
Mirrored Image | Yes |
Monitor Type | LCD Monitor |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Remote control Included | Yes |
Resolution | 1024X768 |
Screen Size | 7-Inch Screen |
Split Screen | Yes |
Storage temperature | -20C+65C |
Type of Connection | RCA |
Type of Vehicle | RV,Bus,Truck, Boat |
Video game system Compatible | Yes |
Wireless RV Backup Camera (Birds Eye View) - SKU93100 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Camera Resolution | 420 TV Lines |
Contrast Ratio | 250:1 |
Integrated sun shield | Yes |
Minimum Illumination (LUX) | 0.2 |
Quantity of Infrared LED's for Night vision | 18 |
Rugged die cast aluminum housing | Yes |
Backup camera connectivity | Analog Wireless |
Backup camera style | Roof Angle (Birds eye view) |
Cable Video Quality | HD |
Camera Housing Color | Black |
Camera Water Resistant | Yes |
Camera White Balance | Automatic |
Cameras Viewable Angle | 120° |
Circumference Camera | 1.5'' |
Dimensions | 2.6"(W) X 1"(D) X 3"(H) |
Night Vision | Yes |
Night Vision Viewable Distance | 60ft |
Operating temperature | -40C to + 133C |
Performance sensors | High sensitivity |
Power Supply | 12 Volt DC |
Resolution | 800X600 |
Storage temperature | -20C+65C |
Type of Connection | RCA |
Type of lense | Cmos |
Weather Proof | Yes |
Wireless Range | 70ft |
Wireless Transmitters for Backup Camera (4 Pack) - SKU19411 | |
---|---|
More Info | |
Weight (Lbs) | |
Backup camera connectivity | Analog Wireless |
Dimensions | |
Installation Cables Included | Yes |
Material | Hard Plastic |
Type Of Upgrade | Wireless Options |
Type of Vehicle | RV, Bus,Truck, Boat, Sedan, Minivan, SUV |
Weather Proof | Yes |
Wireless Range | 70ft |
Power | 12V Power & Ground |
Transmitter | Included |
Wireless 2 Side RV Cameras (Passenger and Driver Side Bundle) - SKU87951 | |
---|---|
More Info | |
Weight (Lbs) | |
Anodized black finish | Yes |
Backup camera connectivity | Analog Wireless |
Backup camera style | Side View |
Camera Housing Color | Black |
Camera Resolution | 420 TV Lines |
Camera Water Resistant | Yes |
Camera White Balance | Automatic |
Cameras Viewable Angle | 120° |
Circumference Camera | 1.5'' |
Contrast Ratio | 250:1 |
Dimensions | 3.1" (L) X 1.5" (W) X 1.6" (H) |
Dual Backup camera compatible | Yes |
Electronic Shutter | 1/60 ~ 1/10,000 Second |
Length of Cable Included | 15ft |
Minimum Illumination (LUX) | 0.2 |
Night Vision | Yes |
Night Vision Viewable Distance | 60ft |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Quantity of Infrared LED's for Night vision | 9 |
Type of Connection | RCA |
Type of lense | Cmos |
Wireless Range | 75ft |
