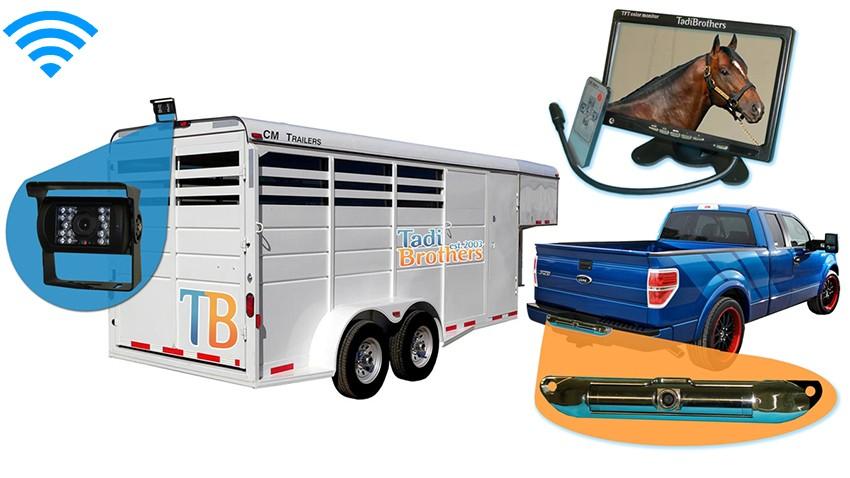

Wireless Horse Trailer Rear View System including 1 trailer and 1 truck camera with Monitor

SKU82480 - In Stock

$349.99

+ FREE SHIPPING
Add To Cart
  • Features
  • Specs
  • Questions
  • Reviews
Back To Top

Wireless Horse Trailer Rear View System including 1 trailer and 1 truck camera with Monitor

  4.6 Based on 41 reviews
SKU82480

Features

SKU82480 Features (Click On Icons For More Info)
    7 inch Monitor Size The 7-inch screen includes a dash mount. Use the customize section on this page to change the size
    Monitor Mounts on Dash The monitor can mount on the dash. You can also mount it using a suction cup on the windshield or mount it overhead
    Toggle between 2 cameras Switch between 2 cameras on the monitor. Choose whichever camera you want to see and switch over whenever you like
    2 Cameras This system comes with 2 cameras. Keep in mind you can add up to 4 cameras to the system
    Color See the whole world in full color when reversing or driving down the road. Great for all weather conditions
    Wireless up to 70ft Excellent wireless signal for up to 70ft. The signal will transmit without issues and does not need line of sight
    Mounts at top of RV Mount up top and point it down at the road. This is a great camera for that bird eye view that will show you everything you need to see
    Mounts on License Plate Simple install onto the License plate screws. Just screw the license plate camera in and you are done
    CCD (High Definition) Camera Ultra quality and crystal clear image with CCD which is the top definition you can have
    Military Grade Night Vision Driving at night? No problem! See everything behind you in full nightvision
    On while driving or in reverse Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes
    Reverse image (Mirrored Image) The video image on the screen will reversed. Just like the mirror in your car. Great for backing up or looking at the road behind you
    100% Weatherproof 100% Weatherproof. Works in all weather conditions. Rain or Snow or Sun you will be just fine using this system. Its meant to be out in the weather



About this Monitor



Comes with a dash mount

The monitor included in this horse trailer observation system is built to operate continuously while you’re driving down the road, the LED Screens we use are meant to show full color even in direct sunlight but will have a softer brightness that is very easy on the eyes while viewing at night.

Though this system comes pre-configured with a 7-inch monitor you have the option of upgrading up to a 12-inch screen, make it a split screen or even add a mobile DVR. These option can be found at the “customize and upgrade” section at the top right of the page


For more information about our monitors, please read our MONITOR GUIDE

About this backup camera




exclamation point iconPick Your Backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 2 cameras however, we have different styles for all kinds of uses. Change 1, both or none of the cameras in this system, choice is yours. Please use this guide to help you select which camera is best for you.


Both backup cameras in this system can be used as observation cameras that are continuously active even while you’re driving down the road. Whether you want to see the road behind you, change lanes or observe your prize horses in the trailer this system does it all. All backup camera sold by TadiBrothers come equipped with night vision, for those who want more detail in lower light, such as the inside of a horse trailer at night, we suggest upgrading to our CCD Hi-Def option at the top right of the page. This will provide enhanced night vision clarity with detail you will come rely on.

Additional camera upgrades available are; changing the viewable angle from 120 degrees up to even 180 degrees, gridlines for perspective, or adding more cameras can be found at the top right of the page.



The adjustable CCD camera on your car will help connect your hitch and add saftey

The Wireless RV Box camera

The camera for inside the horse trailer included in this system features120 Degree viewable angle, its waterproof and has auto night vison. The camera is one of the most durable we have, with incredible adjustability and night vision clarity. The Horse trailer observation camera has a removable metal sun shield visor to protect you from glare and pebbles.

It is usually mounted inside the trailer so you can observe your horses cautiously while you’re driving down the road day or night. Please note; we have C Clamp for the camera instead of bolting it, you can also use our battery packs and then it’s truly wireless and portable.

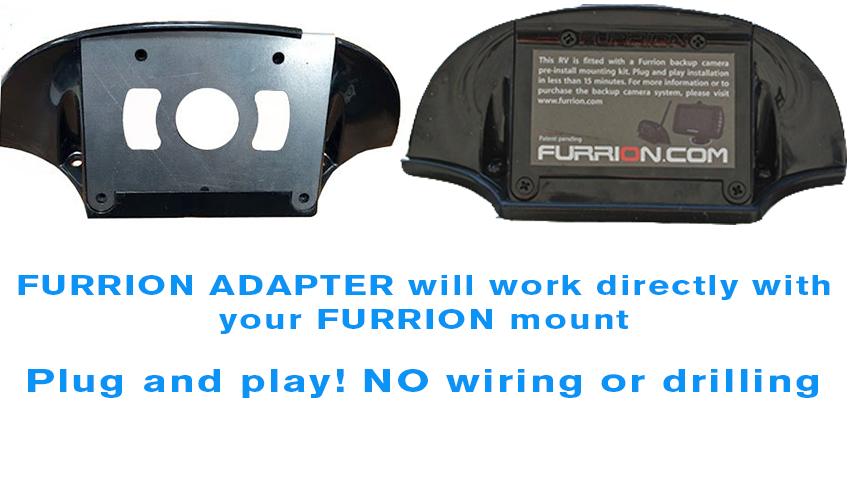

If you have a pre-installed Furrion housing on your Trailer or RV, we have a bracket adapter to make our camera plug and play.


The Wireless License Plate Camera



The camera is encased in hardened metal to make it very durable and long lasting, The wireless horse trailer camera in this system is just as reliable as the wired version but with an easier installation.


Click here to see our BACKUP CAMERA GUIDE

About the wireless transmitters



What do the angles mean?

This horse trailer observation system comes with our standard 70ft wireless transmitters, they work very well in all types of vehicles from Sedans, trucks to RV and motors homes, they are 100% water proof and are very easy to install.

For those want a longer range (up to 225ft) or you prefer the reliability of digital transition we suggest you upgrade the transmitters at the top right of the page, if you have an aluminum trailer we find that the digital upgrades always deliverers a better image.


For more information about the different types of transmitters, we have please read our Transmitter guide

What's in the box

Top


You get all items seen here

1. Standard quality 7-inch LCD Monitor
2. Dash mount (Optional Suction Cup)
3. Wireless RV Box mounted camera (Birds eye)
4. 120 Degree CCD Wireless License plate camera
5. All cables needed are included in the package
6. Instruction Manual (Simple install)


The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1-year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

Wireless Horse Trailer Rear View System including 1 trailer and 1 truck camera with Monitor - SKU82480
More Info
Weight (Lbs)
Cameras Included in the Package 2 Cameras
Dimensions
Transport Truck and Van,5th Wheel,Campers and Trailers
7-Inch Rear View Monitor for any Backup Camera - SKU24122
More Info
Weight (Lbs)
Bluetooth No Bluetooth
Built-In Speakers Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 7.1"(W) X 0.5"(D) X 4.8" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Length of Cable Included 15ft
Material LCD
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen No
Storage temperature -20C+65C
Type of Connection RCA
Type of screen LCD
Video game system Compatible Yes
Silver High Definition License Plate Backup Camera - SKU29203S
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Minimum Illumination (LUX) 1.2
Quantity of Infrared LED's for Night vision 9
Backup camera connectivity Wired CMOS
Backup camera style License Plate
Cable Video Quality HD
Camera Housing Color Silver
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 7.5"(W) X 0.5"(D) X 1"(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Power Supply 12 Volt DC
Quad Compatibility Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of lense CCD
Vertical Adjustability 60°
Wireless RV Backup Camera (Birds Eye View) - SKU93100
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Analog Wireless
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Transmitters for Backup Camera (2 Pack) - SKU19409
More Info
Weight (Lbs)
Backup camera connectivity Analog Wireless
Dimensions
Installation Cables Included Yes
Material Hard Plastic
Type Of Upgrade Wireless Options
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft
Power 12V Power & Ground
Transmitter Included
