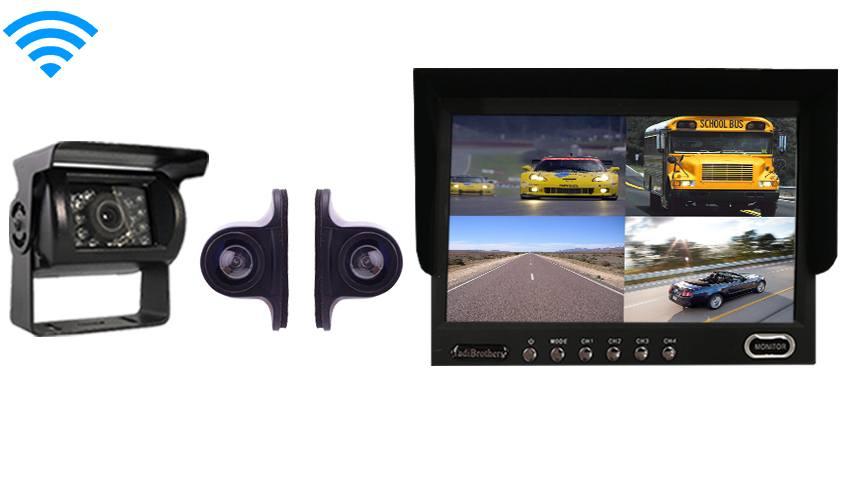

Wireless Rear-View System for RVs with 3 Cameras and Split Screen Monitor

  (4.6) Based on 50 reviews
SKU123376
Wireless Trailer Backup Camera kit | 3 rearview cameras | Split screen monitor
Wireless Trailer Backup Camera kit | 3 rearview cameras | Split screen monitor
Wireless Trailer Backup Camera kit | 3 rearview cameras | Split screen monitor

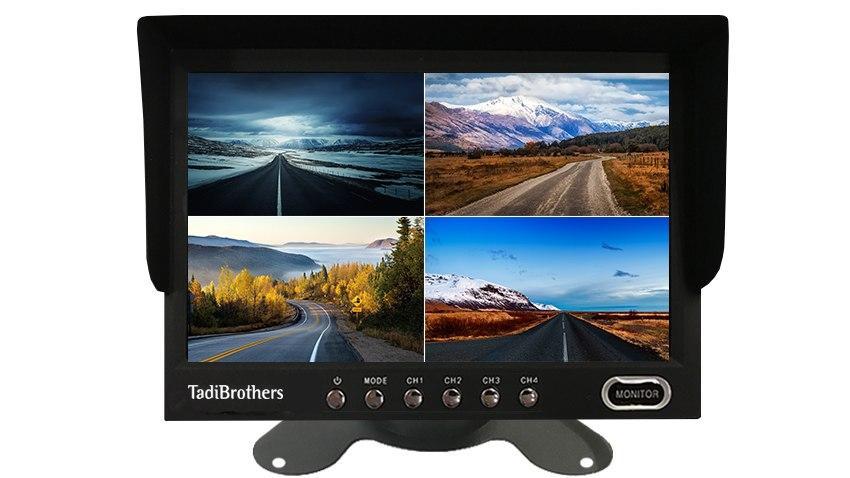

7-Inch Split Screen Monitor for up to 4 Backup Cameras | SKU34288
120° Degree RV Backup Wireless Camera (Birds Eye View) with adjustable sun shield | SKU93100
Wireless Side RV Backup Camera | SKU15151
For 3 Cameras
2 small size side view cameras and a heavy duty box camera with night vision

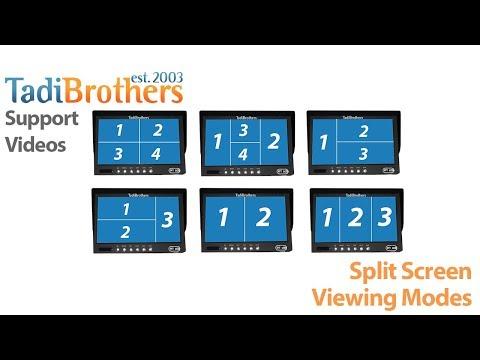

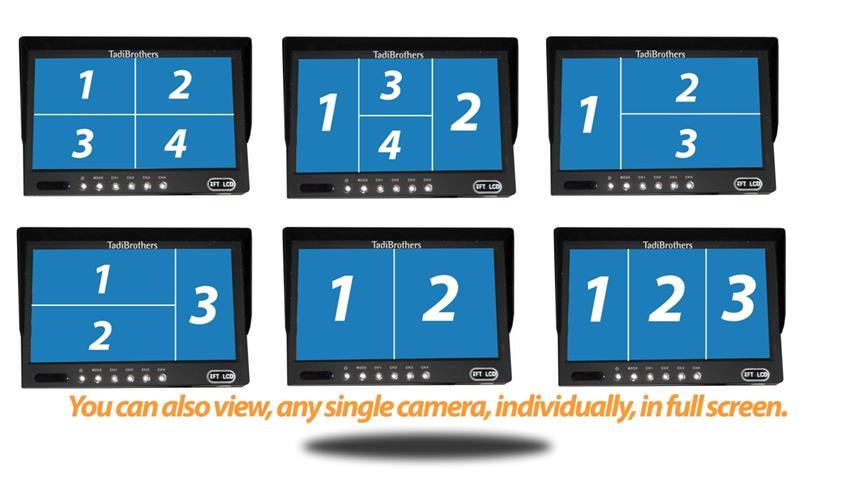

You can split the screen into an array of different views.
Furrion Mount
Wireless Side RV Backup Camera easy installation
Furrion Mount
Buttons for all 4 channels of the 7 inch split screen

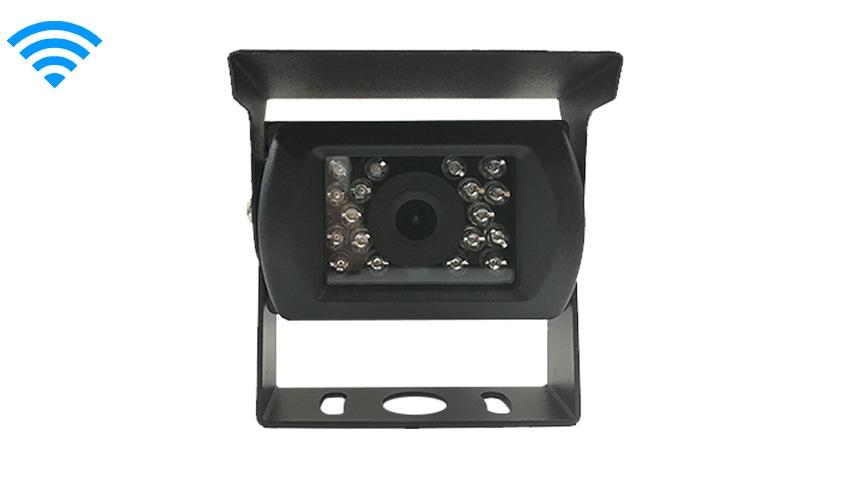

Wireless RV Back up camera 18 LED light give you military grade night vision.
The RV aftermarket backup camera come for the driver and passenger side for your vehicle

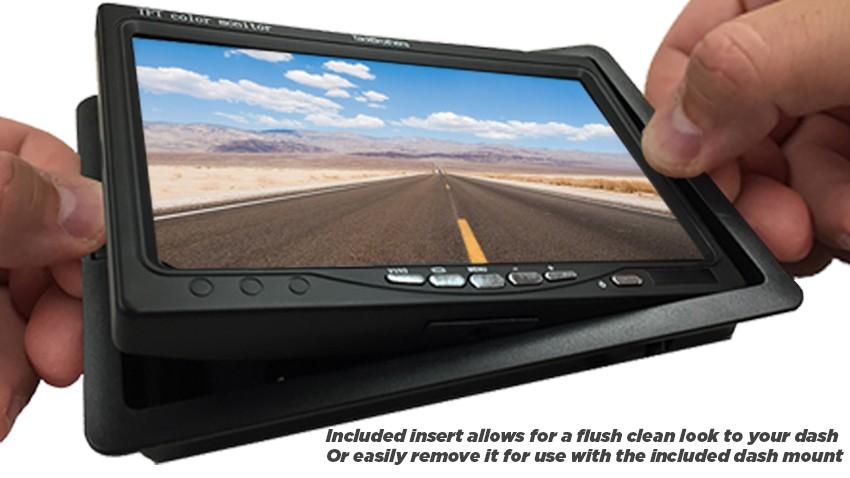

Includes a frame for flush clean look
Wireless RV Back up camera 18 LED light give you military grade night vision.
side rearview camera

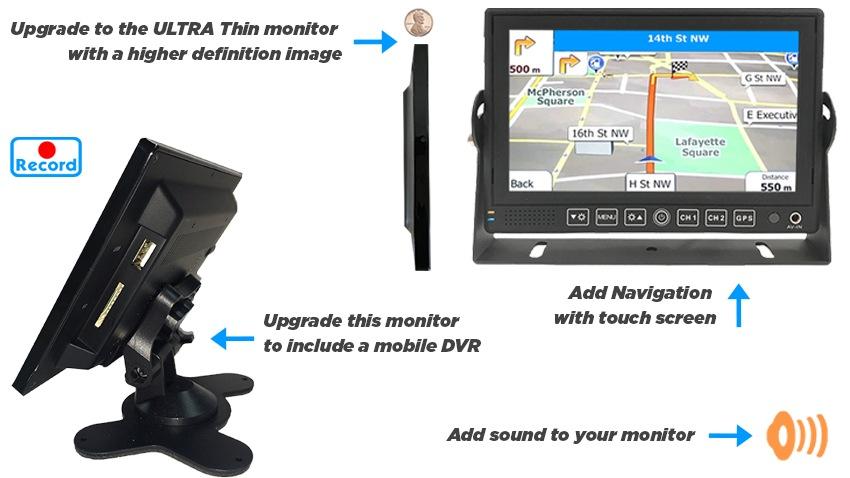

7 Inch split screen monitor upgrade options
This Wireless RV Back up camera includes a sun shiled that protects from glare and pebbles.
Side RV wireless rear view camera can be placed anywhere up to 65 feet away from the monitor

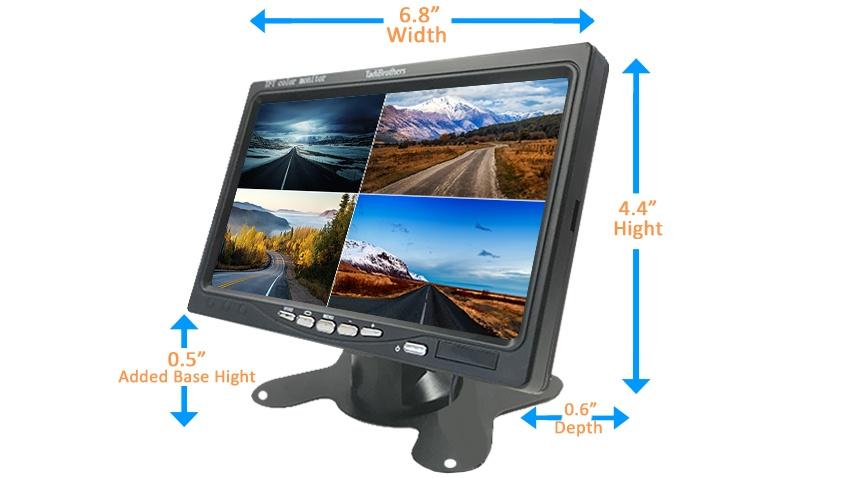

7 Inch split screen monitor dimensions
Wireless RV backup camera dimensions
Wireless Side view Backup Camera dimensions

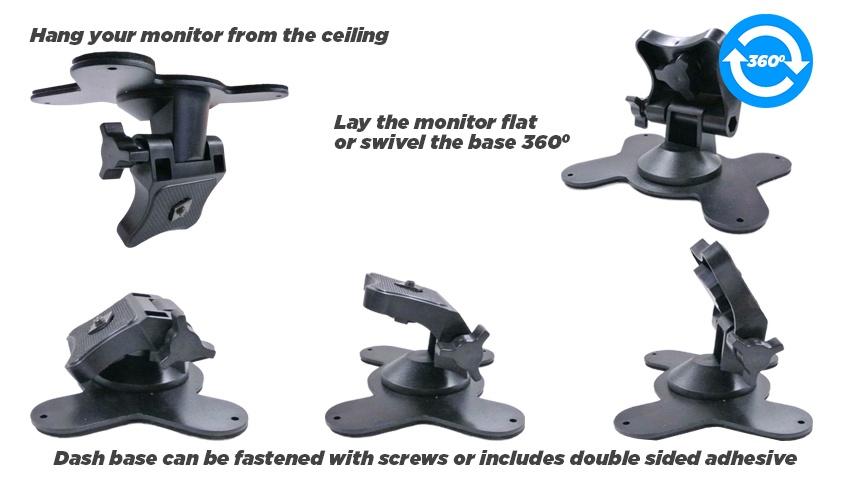

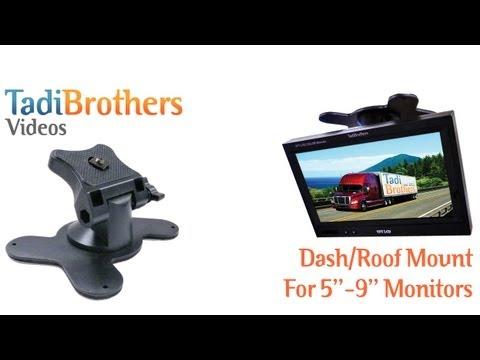

Dash mount for rear view monitor

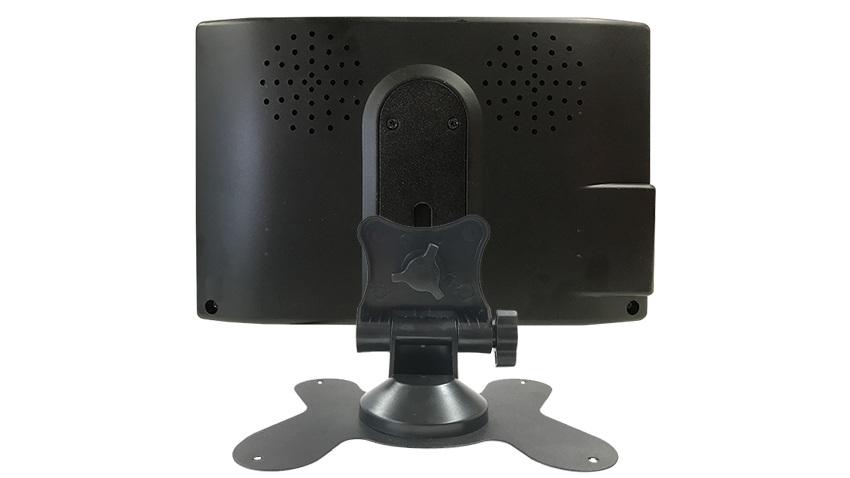

Back of the 7 inch split screen monitor
Rear view of 9 inch split screen with rubber coating.

Features

Wireless Rear-View System for RVs with 3 Cameras and Split Screen Monitor - SKU123376
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark Watch 1 camera or 4


About this Multi Camera RV Backup System


split screen monitor for travel trailers

See all the cameras on this screen

This Wireless Multi-Camera RV system is pre-configured with our 4 Chanel 7-inch split screen monitor. Only TadiBrothers includes 6 unique split screen modes for you to choose i.e. viewing 1,2,3 or 4 cameras at a time and in different block configurations (You can see examples above).

The monitor includes a dash mount that can be screwed, glued to the dash board, the monitor stand also has adhesive tape. Some of our customers have even hung it from the ceiling to give it a rear-view mirror feel.

For those who are replacing an existing system and don’t want to remove their existing monitor we suggest velcroing the monitor over the old screen so the placement will look perfect. This split screen monitor has excellent color and clarity we have engineered it to have a perfect picture in direct sunlight but auto dim when it becomes dark, this way you won’t ever have to strain your eyes.

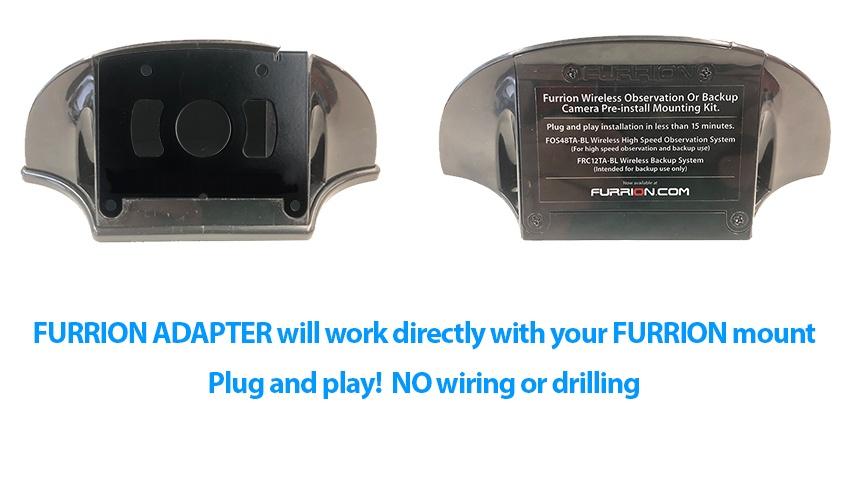

If you have a pre-installed Furrion housing on your Trailer or RV, we have a bracket adapter to make our camera plug and play.


All these features would also be included if you upgraded to a larger screen size, we have rear view split screen monitors ranging from 7-12-inches for the dash mounted version and we have clip on mirrors that range from 7-10.5 inch as well (all sizes diagonal).


In recent years a very popular upgrade with our RVrs is adding a SD card style mobile DVR to the monitor itself. The monitor can record continuously while you’re driving and even double as a surveillance camera system when you are parked. We also have fancier mobile DVR’s that you can lock and hide in the vehicle if you desire.

You can choose any of these options by using the “Customize and Upgrade” section at the top right of the page.

For more information about our different types of monitors
Click here to see our REAR VIEW MONITOR GUIDE

Note: if you have a system made by Furrion, Weldex, Voyager, Clarion, Sony, etc. that system can be adapted to work with your existing wiring or fit in your existing housing with our universal adapters. After you put your system in the cart, search the name of the manufacturer (i.e. Furrion) in our search bar and then add those adapters to your cart (usually the camera and monitor each require an adapter), if you need help or advice don’t hesitate to call us.

About the Wireless RV Cameras
With this rear view system, you get 3 wireless standard resolution cameras that are full color, have night vision and are 100% water proof. Though these cameras are used for parking we have designed all our backup cameras to double as observation cameras. This means that if you choose, you can leave them on continually while you’re driving. This particularly comes in handy when you're changing lanes. Finally, all 3 of the camera are wireless with a 70ft range. To install, all they need is a 12-volt power source and you are all set up. The package includes very easy to follow instructions and diagrams explaining how to mount the system and different places where you can pull power from.

All TadiBrothers Backup cameras features our progressive night vision technology. As it gets darker outside the lens will automatically use more and more of the infrared
 night vision, by doing this you enjoy a gradual progression into the night time view and you won’t ever have to fumble around looking for a night mode button.

The types of back up cameras included:

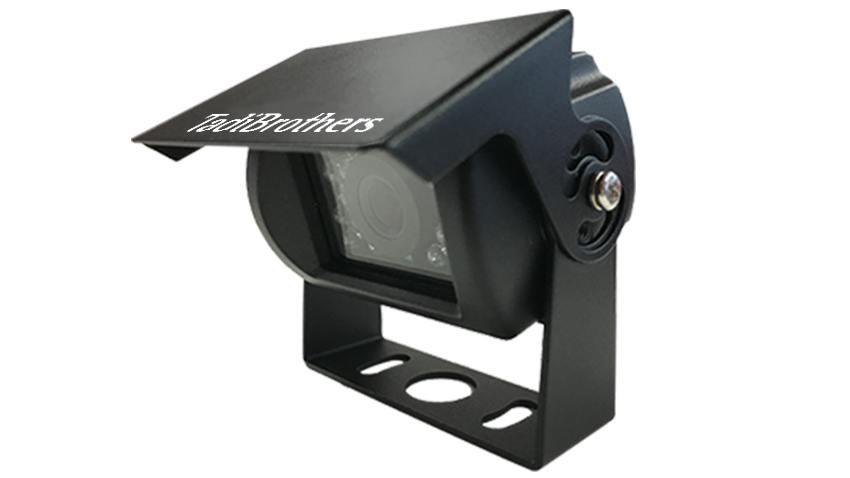

1 Wireless RV Backup camera with a 70ft range with viewable angle of 120 degrees but can be upgraded to 180, other popular upgrades are the CCD Hi-definition which in addition to making the image sharper with better colors it alsofeatures our enhanced night vision for an even crisper look in the darkest of environments.  If you want a better perspective when backing up we always suggest adding our grid lines, this will make backing up even easier and if you don’t want to see the lines you can always choose to deactivate them.

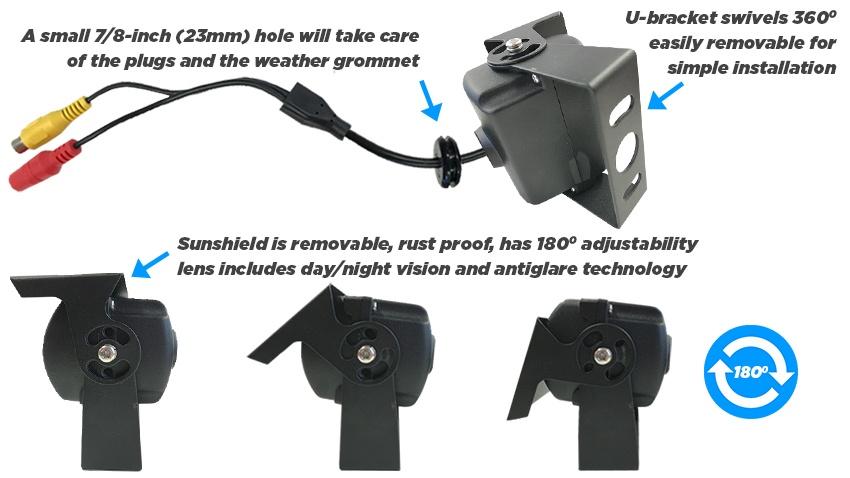

The RV Camera sits on a u-bracket the pivots to give you the perfect view every time.

2 Standard rubber coated side cameras (1 for the driver and 1 for the passenger side)
This is a very small camera that is meant to be mounted vertically on the side for your vehicle this will show you what is happening on bothside of your vehicle while you’re driving, there are the best cameras for changing lanes because they are on the side.

The 3 cameras above are a reliable solution for an entry level system, we have many configurations with higher quality cameras to choose from, to make it easy for you to choose we have laid out the most popular ones above in the "customize and upgrade" section of the page.

For more information about the types of backup cameras you can choose from,
click here to see our BACKUP CAMERA GUIDE.

We know that these upgrades can sometimes get pricey, we prefer to show you all the options so that you can make an informed decision. We believe, you don’t buy this every day, so when you do, get the best.

About the Multi Camera Wireless Transmitters

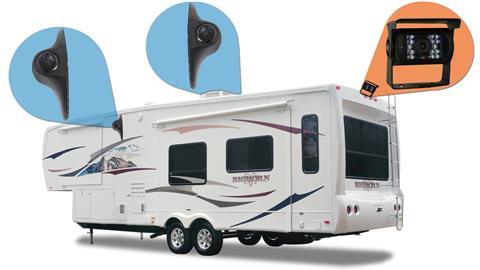

trailer backup camera

Two cameras on the sides and one in the back

This Multi Camera RV Backup system includes 4 sets of our standard 70ft wireless transmitters. They were designed to work with any RV, 5th wheel, or motor home in any environment, we have even tested them against microwaves and other wireless signals and the video stayed static free.

The transmitters are 100% water proof and are very easy to install. The basic idea of installation is that you connect the camera side to 12 volts then the monitor side to 12 volts, fire it up and you’re good to go. We also include very easy to follow mounting guide explaining how to install the system.


For those who want a longer range or prefer the reliability and security of a digital signal we suggest you upgrade at the top right of the page to our higher range transmitters for those with an aluminum trailer, we find that the digital upgrades always deliverers a crisper image.

if you have 3-4 cameras. You can upgrade our transmitters to have a flawless digital range of up to 225ft depending on what you choose.

For more information about the different types of transmitters,
please read our
TRANSMITTER GUIDE




What's in the RV and trailer backup camera kit

Top

travel trailer backup camera

You get everything seen here

1. 7-inch Split screen with built in multiplexer
2. Standard quality RV Backup camera
3. 2 x Side view cameras
4. 3 Sets or Wireless Transmitter/ Receiver (70ft Ranger unless upgraded)
5. All cables needed are included in the package
6. Instruction Manual


The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1 year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.

Specs

Wireless Rear-View System for RVs with 3 Cameras and Split Screen Monitor - SKU123376
More Info
Weight (Lbs)
Backup camera connectivity Wireless
Cameras Included in the Package 3 Cameras
Dimensions
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Bluetooth No Bluetooth
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
Wireless RV Backup Camera (Birds Eye View) - SKU93100
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wireless
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Side RV Backup Camera - SKU15151
More Info
Weight (Lbs)
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 9
Backup camera connectivity Wireless
Backup camera style Side View
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Transmitters for Backup Camera (3 Pack) - SKU19410
More Info
Weight (Lbs)
Backup camera connectivity Wireless
Dimensions
Installation Cables Included Yes
Material Hard Plastic
Type Of Upgrade Wireless Options
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft
Power 12V Power & Ground
Transmitter Included
