 | Chevrolet Express Van 3rd Brake Light Backup Camera System SKU896876 - In Stock | $299.99 + FREE SHIPPING | Add To Cart |
- Features
- Specs
- Questions
- Reviews
Features
The 7-inch screen includes a dash mount. Use the customize section on this page to change the size
The monitor can mount on the dash. You can also mount it using a suction cup on the windshield or mount it overhead
Switch between 2 cameras on the monitor. Choose whichever camera you want to see and switch over whenever you like
This system comes with 1 camera. Keep in mind you can add up to 4 cameras to the system
See the whole world in full color when reversing or driving down the road. Great for all weather conditions
This is a wired system. You simply connect the camera to the monitor using a cable
Driving at night? No problem! See everything behind you in full nightvision
Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes
The video image on the screen will reversed. Just like the mirror in your car. Great for backing up or looking at the road behind you
100% Weatherproof. Works in all weather conditions. Rain or Snow or Sun you will be just fine using this system. Its meant to be out in the weather This Chevrolet Express Van 3rd brake light camera system comes equipped with a 7-inch 2 channel screen that can be left on while your driving down the road or auto activate when you go in reverse. The camera is full color with world class night vision and looks stock in the rear of you van. This 3rd brake light system is designed to make a watertight seal where your previous light was and will function as a traditional 3rd brake light as well. The system includes everything you need for for a clean installation, featuring easy to follow instructions and diagrams.

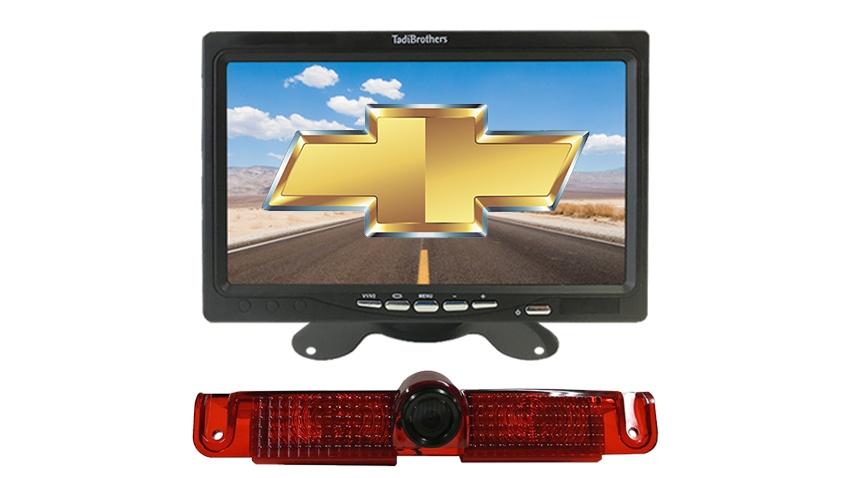

Sleek Design
The monitor included is 7-inch diagonal and can accept 2 cameras. You can toggle between the 2 with a tap of a button. It includes a butterfly mount so that you can mount it on your dash or hang it from your ceiling.
This screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
If you intend to use this screen while you're driving down the road or changing lanes you can also use this backup monitor as an observation monitor and some have used it as a security screen to view their backup cameras while they're parked. As for the brightness, this rear-view monitor will deliver a perfect image even in direct sunlight but will auto dim at night for a softer more comfortable view.
- 2 Channels (Multiple Inputs)
- Full Color LCD
- Thin and Flat Design
- Can be left active 24/7
Easy access to the harness
This screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
The trim is designed to make the screen look stock in your vehicle and give you easy access to the harness if even needed. discreet and easy buttons on the trim make it easy to pop out the screen when needed.
The instruction included give you a step by step guide on how install and use all the features of this screen.
When you use the Trim, the outside dimensions are 5 1/3 Hight X 7 2/3 Width (These dimension include the lip of the trim)
- Black trim
- Give easy access to harness
- Professional look
- Commercial grade material

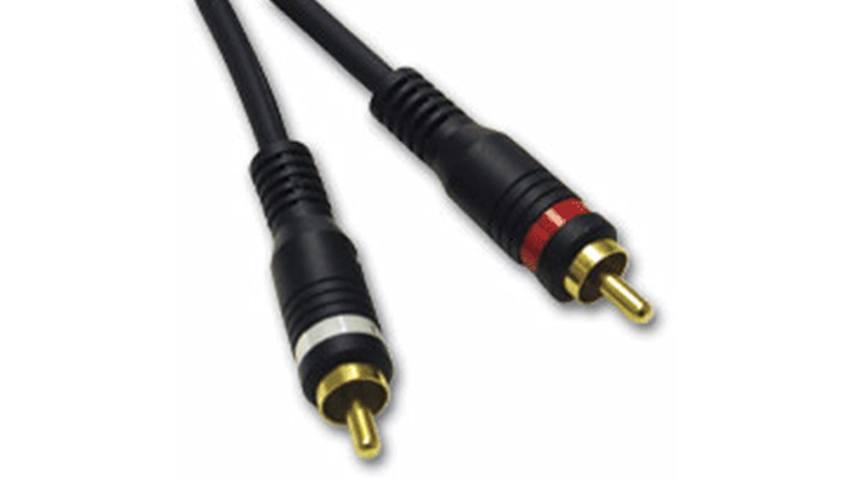

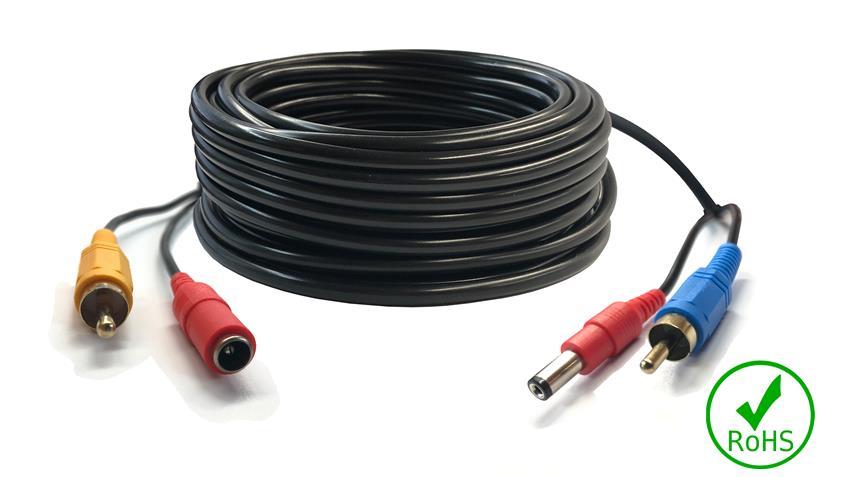

High Quality Gold Tip Cables

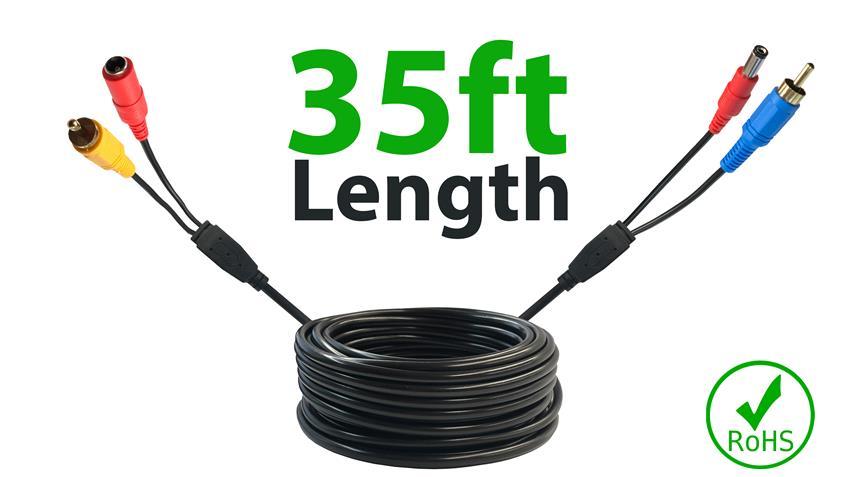

This 35ft heavy duty Hi-Def RCA cable is the perfect addition to your observation system. The cable will take you one step closer to the perfect viewing experience.
If you’re connecting multiple monitors or backup cameras in your vehicle, this cable will do the trick. The thick exterior gives it durability for all weather conditions and the gold tip RCA connectors promise you the highest quality, so you won’t lose picture integrity even up to 150 feet.
If you plan to power your camera or screen from a single source don't forget to add the power upgrade which will add a 2nd inline cable with DC plugs on the ends.
- 1 Premium 35ft RCA Cables

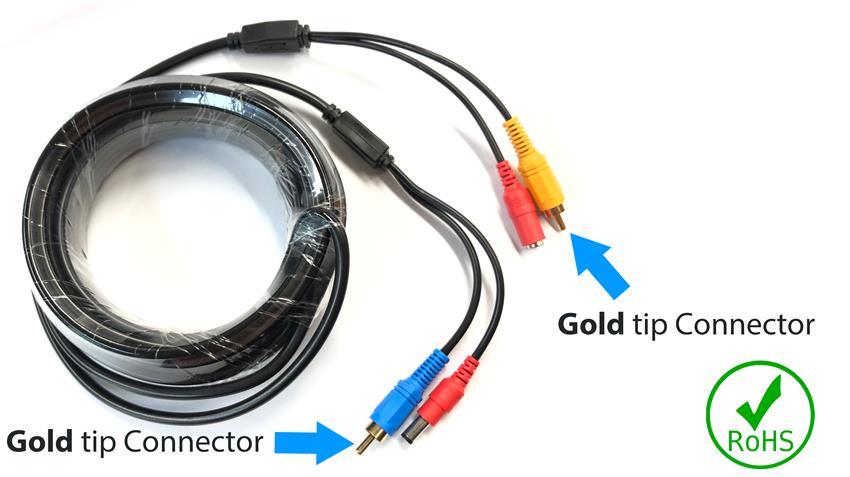

- Gold tip for high quality video
- 100% Weather and waterproof
- Durable shielding for extra protection

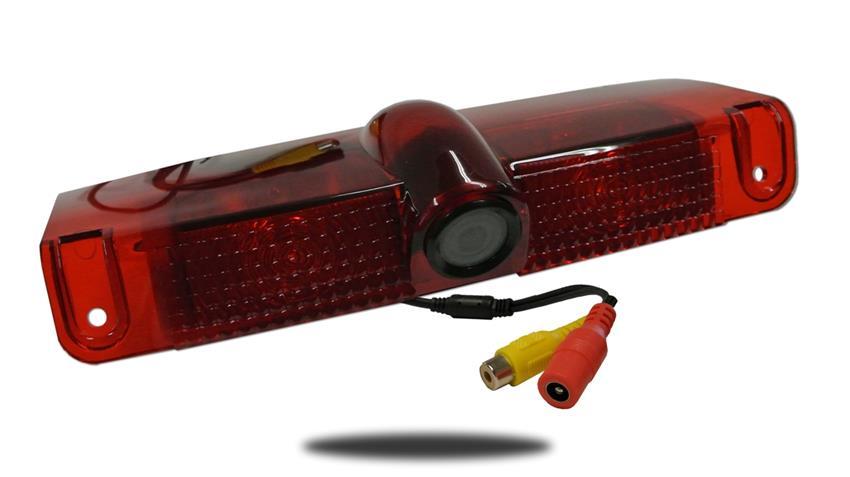

Excellent Night Vision

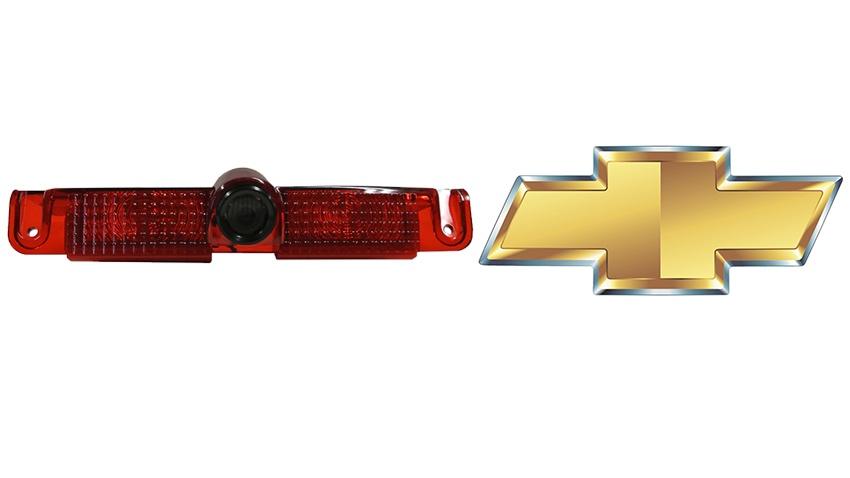

This Aftermarket Chevrolet Van 3rd Break light Camera is designed to replace your existing third brake light. The lens has 120° Degree viewable angle, its waterproof and has auto night vision.
The camera perfect daytime colors and excellent night vision clarity. once installed this camera us basically hidden in plain sight and looks completely stock.
For added protection, This 3rd Break light also include a commercial grade rubber membrane to give you a water tight seal, better than what was stock in the vehicle.
This camera also boast our progressive night vision technology that will auto activate while your driving down the road this mean, you wont have to fumble around looking for buttons when it get dark outside.
The transition between daytime and night mode is seamless, this also makes the camera perfect touse when you parked for security.
Like all TadiBrothers camera, this too can stay active while your driving down the road or instantly pop on when you go in reverse, it does both.
- Stays on while driving
- 120° Degree viewable angle
- 100% Water & weatherproof
- 7-inch 2 Channel Monitor
- Harness for Power & Video
- Trim for flush dash mount
- Butterfly Mount
- Double sided adhesive for mount
- 1pcs 35ft RCA Premium Cables
- Chevrolet Van 3rd Brake Light Camera
- 1pcs 2.1mm DC Barrel connectors
- Rubber membrane base
- 1pcs 15ft Cable (Unless upgraded)
Specs
| Chevrolet Express Van 3rd Brake Light Backup Camera System - SKU896876 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| 3rd Brake Light | Chevrolet |
| Brand | Chevrolet |
| Camera+Monitor+ Cables Included | Yes |
| Cameras Included in the Package | 1 Camera |
| Dimensions | |
| Transport | Truck and Van |
| Type Of Vehicle | Chevrolet Express Van |
| 7-Inch Rear View Monitor for any Backup Camera - SKU24122 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Backup camera connectivity | |
| Backup Monitor connectivity | Wired CMOS |
| Bluetooth | No Bluetooth |
| Built-In Speakers | Yes |
| Camera Resolution | 420 TV Lines |
| Contrast Ratio | 250:1 |
| Dimensions | 7.1"(W) X 0.5"(D) X 4.8" (H) |
| Dual Backup camera compatible | Yes |
| Installation Cables Included | Yes |
| Length of Cable Included | 15ft |
| Material | LCD |
| Monitor Type | LCD Monitor |
| Operating temperature | -40C to + 133C |
| Performance sensors | High sensitivity |
| Power Supply | 12 Volt DC |
| Quad Compatibility | Yes |
| Remote control Included | Yes |
| Resolution | 1024X768 |
| Screen Size | 7-Inch Screen |
| Split Screen | No |
| Storage temperature | -20C+65C |
| Type of Connection | RCA |
| Type of screen | LCD |
| Video game system Compatible | Yes |
| 35ft RCA Premium Cable for Backup Camera - SKU26031 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Length of Cable Included | 35ft |
| Type Of Upgrade | Cable Upgrade |
| Cable Video Quality | HD |
| Dimensions | |
| Weather Proof Insulated Cable | Yes |
| Chevrolet Van 3rd Brake Light Backup Camera (Birds Eye View) - SKU24395 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| AGC | Automatic |
| Anodized black finish | Yes |
| Backup camera connectivity | Wired CMOS |
| Backup camera style | 3rd Brake Light |
| Brand | Chevrolet |
| Camera Housing Color | Black |
| Camera Resolution | 420 TV Lines |
| Camera Water Resistant | Yes |
| Camera White Balance | Automatic |
| Cameras Viewable Angle | 120° |
| Circumference Camera | 1.5'' |
| Contrast Ratio | 250:1 |
| Dimensions | 6"(W) X 1"(D) X 3"(H) |
| Dual Backup camera compatible | Yes |
| Electronic Shutter | 1/60 ~ 1/10,000 Second |
| Installation Cables Included | Yes |
| Integrated sun shield | Yes |
| Minimum Illumination (LUX) | 0.2 |
| Mirrored Image | Yes |
| Night Vision | Yes |
| Night Vision Viewable Distance | 60ft |
| Operating temperature | -40C to + 133C |
| Power Supply | 12 Volt DC |
| Quad Compatibility | Yes |
| Quantity of Infrared LED's for Night vision | 18 |
| Rugged die cast aluminum housing | Yes |
| Storage temperature | -20C+65C |
| Type of Connection | RCA |
| Type of lense | CCD |
| Vertical Adjustability | 180° |
