Delivery Truck Backup Camera (7-Inch Monitor with 1080P AHD Backup Camera)

SKU494640 - In Stock

$499.99

+ FREE SHIPPING
Add To Cart
  • Features
  • Specs
  • Questions
  • Reviews
Back To Top

Delivery Truck Backup Camera (7-Inch Monitor with 1080P AHD Backup Camera)

SKU494640

Features

SKU494640 Features (Click On Icons For More Info)
    Grid Lines This item includes the gridlines upgrade

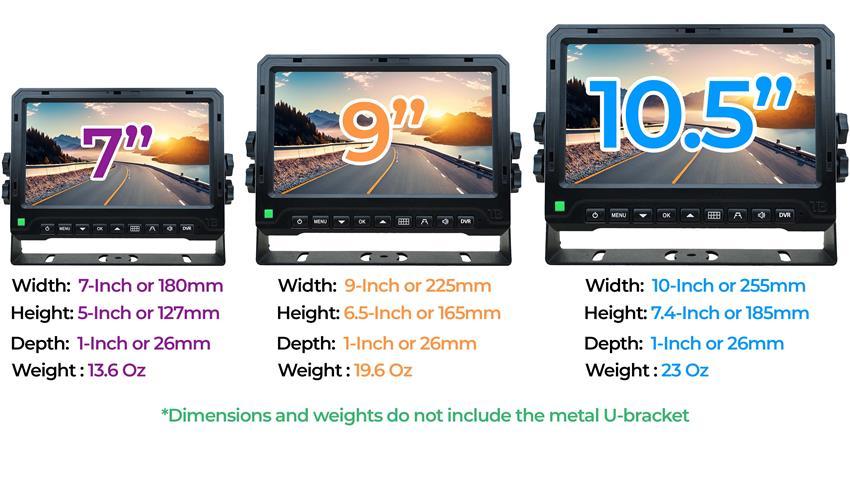

    7 inch Monitor Size The 7-inch screen includes a dash mount. Use the customize section on this page to change the size
    Monitor Mounts on Dash The monitor can mount on the dash. You can also mount it using a suction cup on the windshield or mount it overhead
    Color See the whole world in full color when reversing or driving down the road. Great for all weather conditions
    Wired System This is a wired system. You simply connect the camera to the monitor using a cable
    Mounts at top of RV Mount up top and point it down at the road. This is a great camera for that bird eye view that will show you everything you need to see
    Built in Transmitters License Camera Built in transmitters means no extra parts. Just an antenna coming off the camera
    Military Grade Night Vision Driving at night? No problem! See everything behind you in full nightvision
    On while driving or in reverse Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes
    Reverse image (Mirrored Image) The video image on the screen will reversed. Just like the mirror in your car. Great for backing up or looking at the road behind you
100% Weatherproof 100% Weatherproof. Works in all weather conditions. Rain or Snow or Sun you will be just fine using this system. Its meant to be out in the weather
Heavy Duty For those who want the strongest parts you can get. Great for all conditions including harsh vibrations and industrial equipment
30 days money back guarantee Send it back for a refund no matter what the reason
IP Rating 69
1080 Full HD This system includes full 1080P Hi-Definition image quality
About the system SKU494640

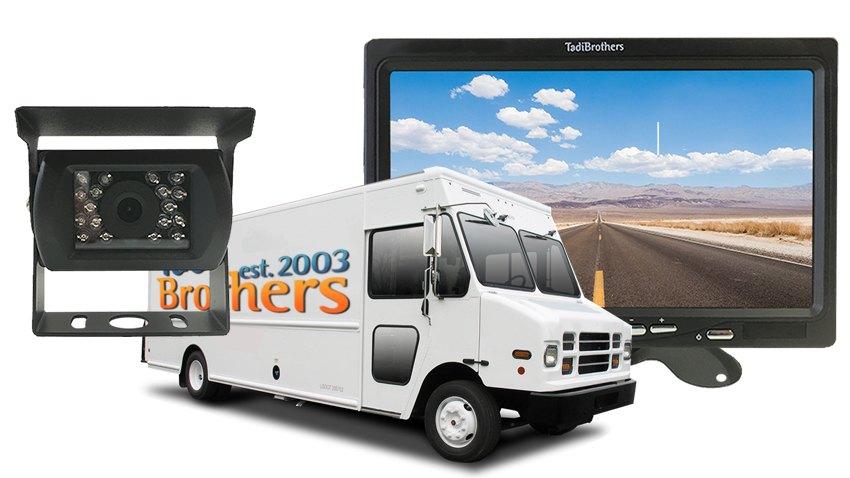

This is a wired 1080P AHD backup camera system compatible with any delivery truck. Whether you have one or a fleet of 100, this is the solution for you. Have the cameras turn on when you go and reverse or feel free to leave it on continuously while you're driving down the road. Included is a 7 inch monitor that has automatic dimming for night vision and is compatible with up to 2 cameras. This delivery truck rear view system comes with a 35ft premium cable. Included is everything you need for installation and comes with a very easy to follow instructions and diagrams.

About this 50ft Gold tip RCA Cables SKU24259
...
Mouse Over To Zoom

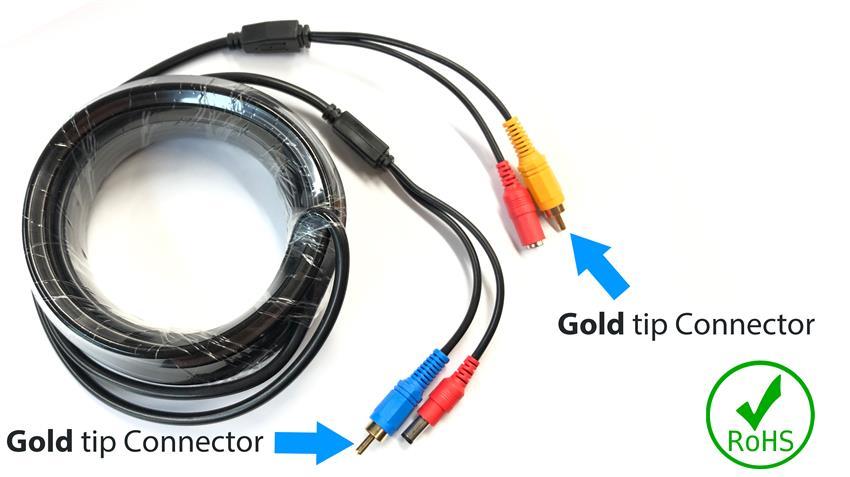

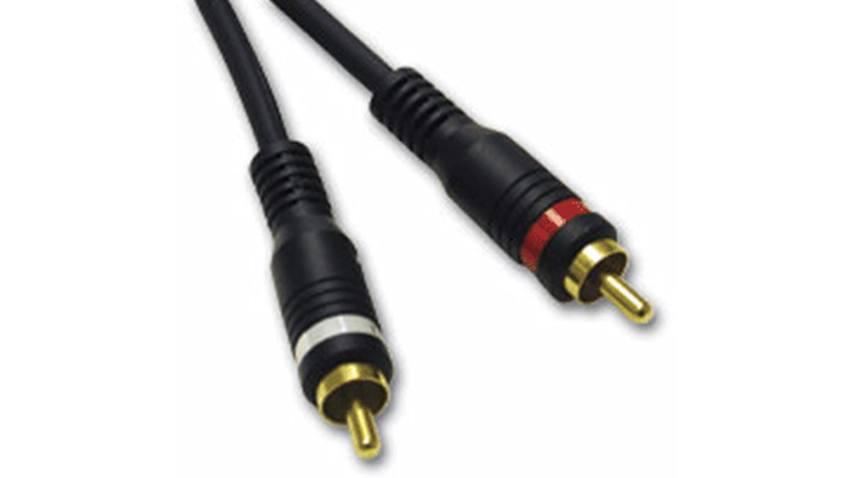

High Quality Gold Tip Cables

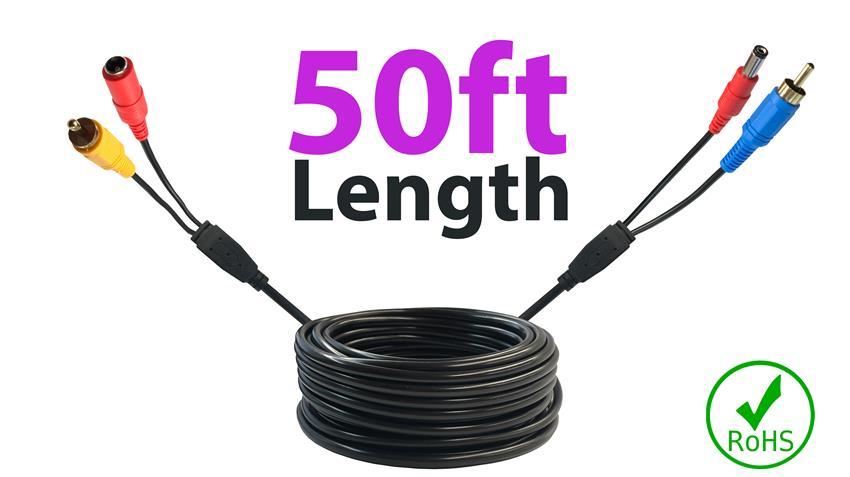

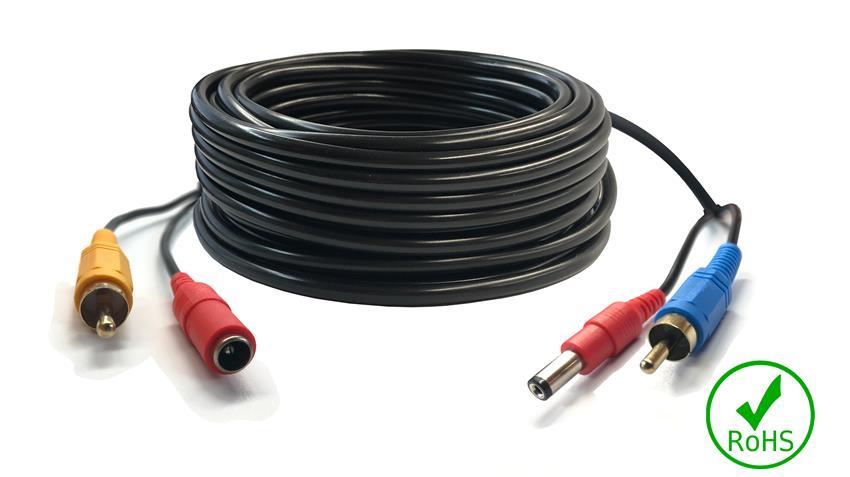

This 50ft heavy duty Hi-Def RCA cable is the perfect addition to your observation system. The cable will take you one step closer to the perfect viewing experience.

If you’re connecting multiple monitors or backup cameras in your vehicle, this cable will do the trick. The thick exterior gives it durability for all weather conditions and the gold tip RCA connectors promise you the highest quality, so you won’t lose picture integrity even up to 150 feet.

If you plan to power your camera or screen from a single source don't forget to add the power upgrade which will add a 2nd inline cable with DC plugs on the ends.


  • 1 Premium 50ft RCA Cables
  • Gold tip for high quality video
  • 100% Weather and waterproof
  • Durable shielding for extra protection

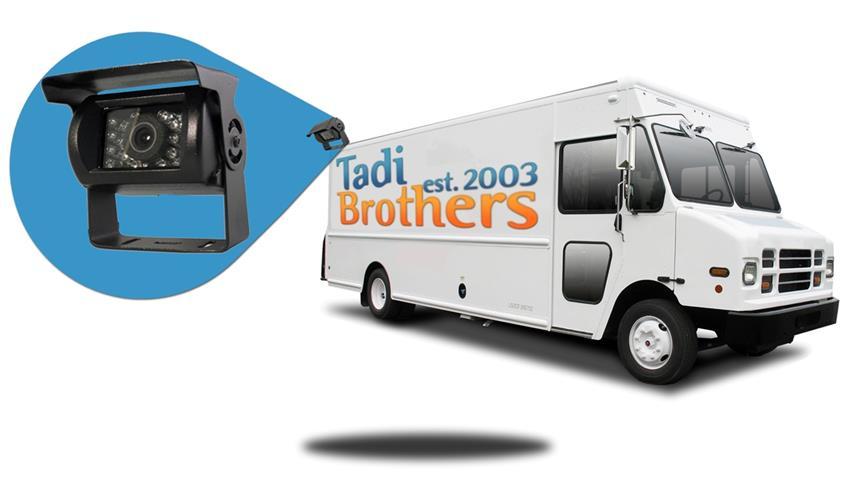

About this 1080P AHD RV Camera (Black) SKU24274
...
Mouse Over To Zoom
Dimensions of the Camera

This AHD RV camera has been designed from the ground up to give you the perfect image day or night. the lens has a viewable angle of 120° which will allow you to see 3 lanes behind you. This camera features our AHD lens which is the highest possible resolution available for this type of wired camera.

It also features incredible color and military grade night vision that can be left on continuously while your driving down the road or pop on automatically when you go in reverse. Many of our customer have mounted this camera over their RV entrance door to be used as a sort of door bell camera.

The automatic night vision is the best industry because its progressive nature, this means that the darker it gets outside the more the night vision is active. The durable construction of this RV camera is meant to operate in all weather condition, it is 100% water and weather proof and is relied on for commercial fleets around the country.

Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.


  • 1080P AHD Hi-Definition
  • Stays on while driving
  • Full Color
  • Progressive Night Vision
  • IP69 Weatherproof

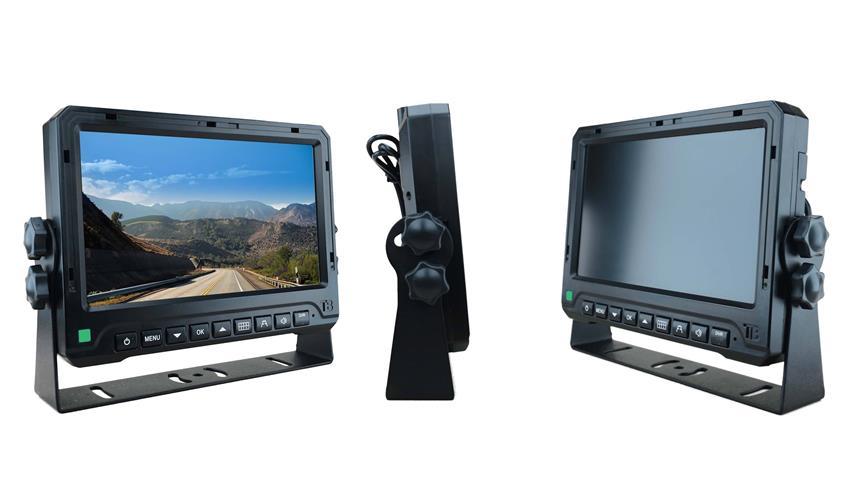

About this 7-Inch 1080P Rear View Monitor for any AHD Camera SKU24522
...
Mouse Over To Zoom
Sleek Design

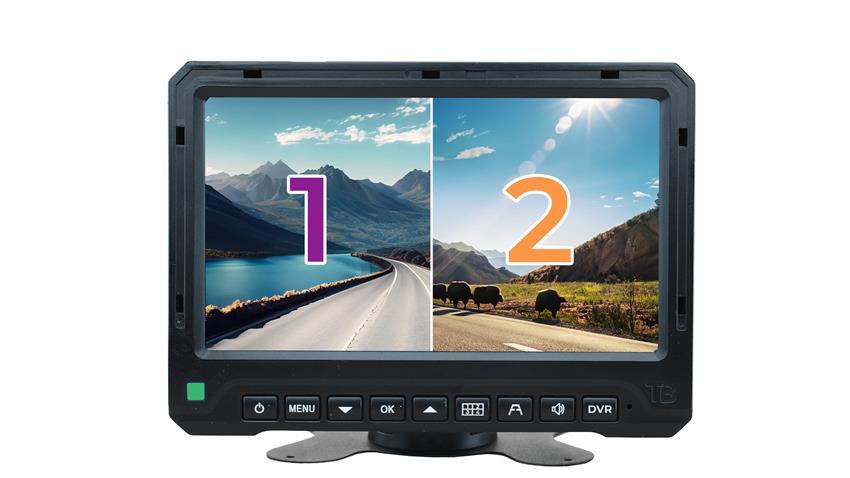

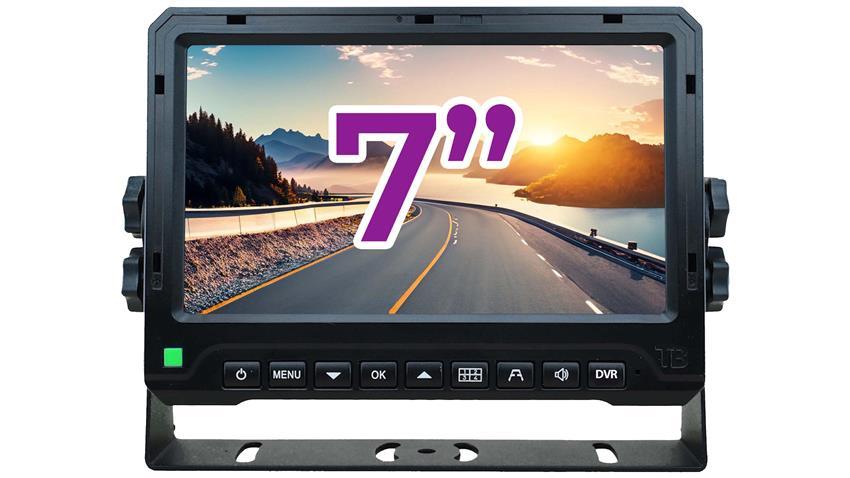

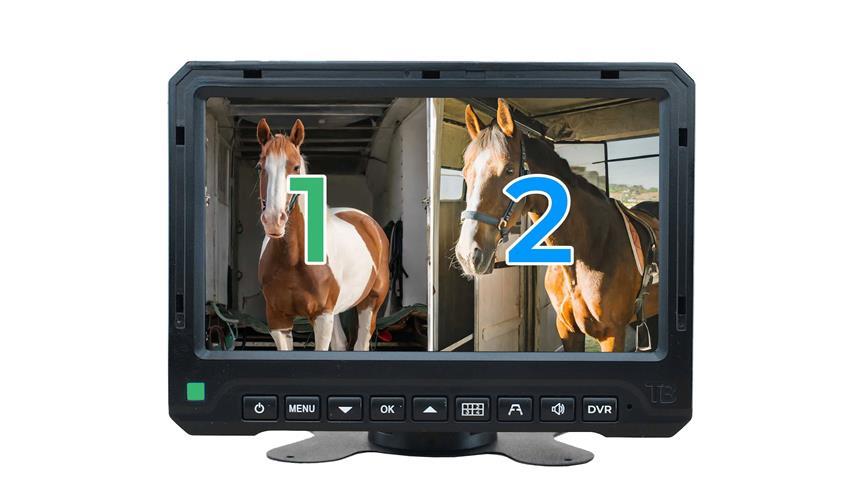

The AHD monitor included is 7-inch diagonal and can accept 2 cameras. You can toggle between the 2 with a tap of a button. It includes a butterfly mount so that you can mount it on your dash or hang it from your ceiling.

This Monitor features our AHD panel which is the highest possible resolution available for this type of wired screen.

This screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.

If you intend to use this screen while you're driving down the road or changing lanes you can also use this backup monitor as an observation monitor and some have used it as a security screen to view their backup cameras while they're parked. As for the brightness, this rear-view monitor will deliver a perfect image even in direct sunlight but will auto dim at night for a softer more comfortable view.

Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.


  • 1080P Resolution
  • 2 Channels (Multiple Inputs)
  • Full AHD Color LCD
  • Thin and Flat Design
  • Can be left active 24/7

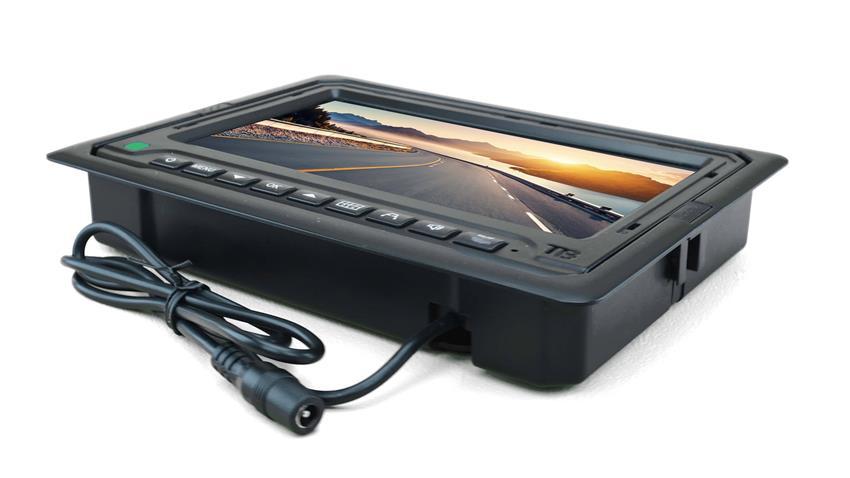

About the flush mounted trim SKU24522
...
Mouse Over To Zoom
Easy access to the harness

This AHD screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.

The trim is designed to make the screen look stock in your vehicle and give you easy access to the harness if even needed. discreet and easy buttons on the trim make it easy to pop out the screen when needed.

The instruction included give you a step by step guide on how install and use all the features of this screen.


  • Black trim
  • Give easy access to harness
  • Professional look
  • Commercial grade material

What's In The Box SKU494640

  • 1 50ft RCA Premium Cables
  • 1pcs of 1080P Wired Birds Eye View Camera
  • 1pcs 15ft Video Cable
  • 1pcs 2.1mm DC Power Cables
  • 7-inch 2 Channel Monitor (1080P)
  • Harness for Power & Video
  • Trim for flush dash mount
  • Butterfly Mount
  • Double sided adhesive for mount

Specs

Delivery Truck Backup Camera (7-Inch Monitor with 1080P AHD Backup Camera) - SKU494640
More Info
Weight (Lbs)
Type Of Vehicle Delivery Truck
Camera+Monitor+ Cables Included Yes
Dimensions
50ft RCA Regular Cable for Backup Camera - SKU24259
More Info
Weight (Lbs)
Length of Cable Included 50ft
Type Of Upgrade Cable Upgrade
Cable Video Quality Standard
Dimensions
Weather Proof Insulated Cable Yes
RV Backup Camera 1080P Hi-Def AHD - SKU24274
More Info
Weight (Lbs)
Anodized black finish Yes
Backup camera connectivity Wired 1080P (AHD)
Backup camera style Roof Angle (Birds eye view)
Camera Housing Color Black
Camera Resolution 1080 TV Lines
Camera Water Resistant Yes
Cameras Viewable Angle 120°
Dimensions
Length of Cable Included 15ft
Mirrored Image Yes
Rugged die cast aluminum housing Yes
Type of lense AHD
Weather Proof Yes
7-Inch 1080P Hi-Def Rear View Monitor for AHD Backup Cameras Only - SKU24522
More Info
Weight (Lbs)
Backup Monitor connectivity Wired 1080P (AHD)
Bluetooth No Bluetooth
Built-In Speakers Yes
Camera Resolution 1080 TV Lines
Contrast Ratio 250:1

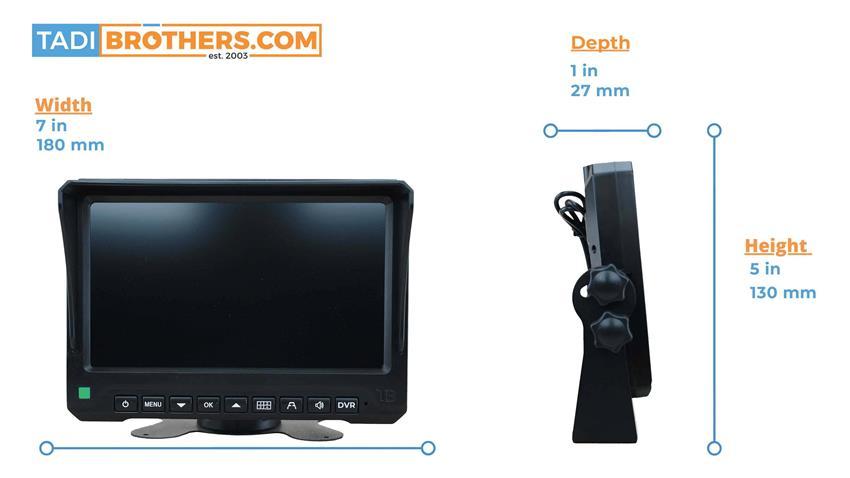

Dimensions 7.1"(W) X 0.5"(D) X 4.8" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Length of Cable Included 15ft
Material LCD
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen No
Storage temperature -20C+65C
Type of Connection RCA
Type of lense AHD
Type of screen LCD
Video game system Compatible Yes
