![]() | Digital Wireless 5th Wheel Backup Camera System with Mirror SKU52463 - In Stock | $549.99 + FREE SHIPPING | Add To Cart |
- Features
- Specs
- Questions
- Reviews
Features









About the Digital Wireless Rear VIew Mirror for our 5th wheel system

Full rich colors and easy install

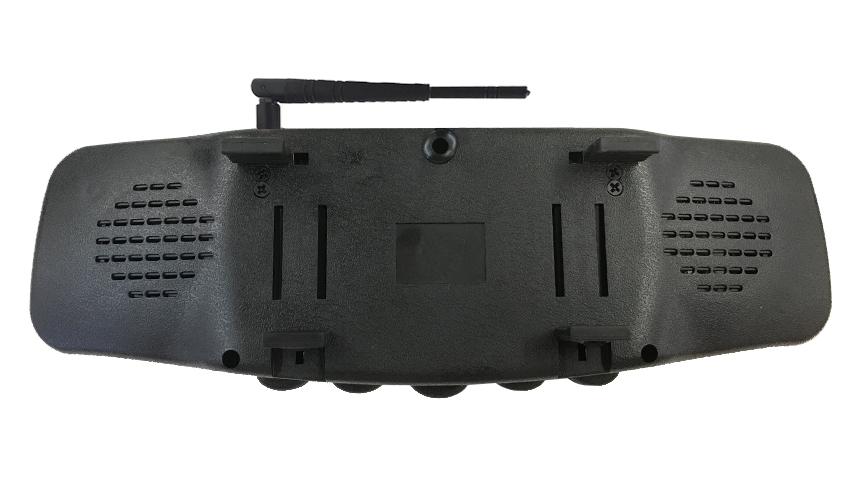

This Aftermarket Digital wireless backup camera system comes pre-configured with our 7-inch clip-on mirror monitor it has a minimum wireless range of 125ft. The rear view monitor features 4 digital input channels that will allow you toggle between the truck camera and the trailer camera and even add side cameras if you desire.
Also, the mirro is bright enough for full color daytime image even in direct sunlight but auto dims when it gets darker for a comfortable view night time image.
Keep in mind that this 5th wheel backup camera system has the transmitters and receivers intergated into the digital monitor and both digital cameras, that means the other than 12 volts there are no wires for you to connect.
For more details about our different rear view monitors feel free to read our Rearview Monitor Guide
About the backup cameras for 5th wheel trailer
Pick Your Backup Camera
By using the “CUSTOMIZE AND UPGRADE” section at the top right of the page, you can choose which style of backup camera fits your needs and budget. Thissystem comes preconfigured with 2 cameras however, we have different styles for all kinds of uses. Change 1, both or none of the cameras in this system, the choice is yours. Please use this guide to help you select which camera is best for you.
Click here to see our BACKUP CAMERA GUIDE

You get both cameras, License plate camera, and an RV box camera
The aftermarket Digital License Plate rearview camera is mounted by screwing your current license plate screws through its brackets; it’s a very simple installation. The camera can also be adjusted by angling the camera up or down so you can get the perfect view of your car. There is no need to drill any holes or install mounting brackets.
This reverse camera has a 120° viewable angle which provides a great view Trucks backing or hitching. The license plate backup camera it is full color, waterproof and has military grade automatic night vision. The camera and mount are constructed of steel for extreme durability in the roughest weather conditions.

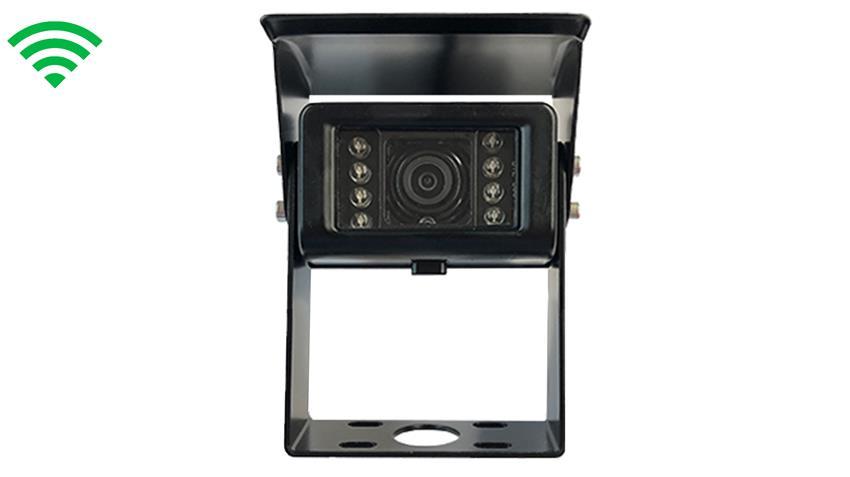

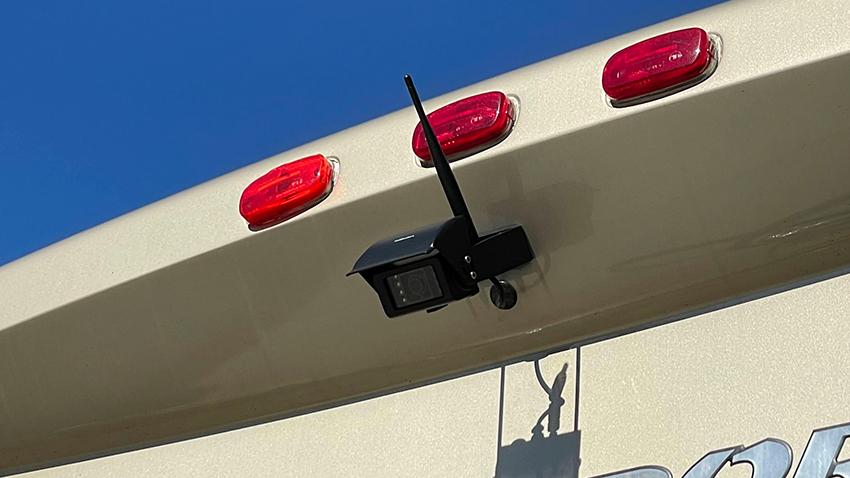

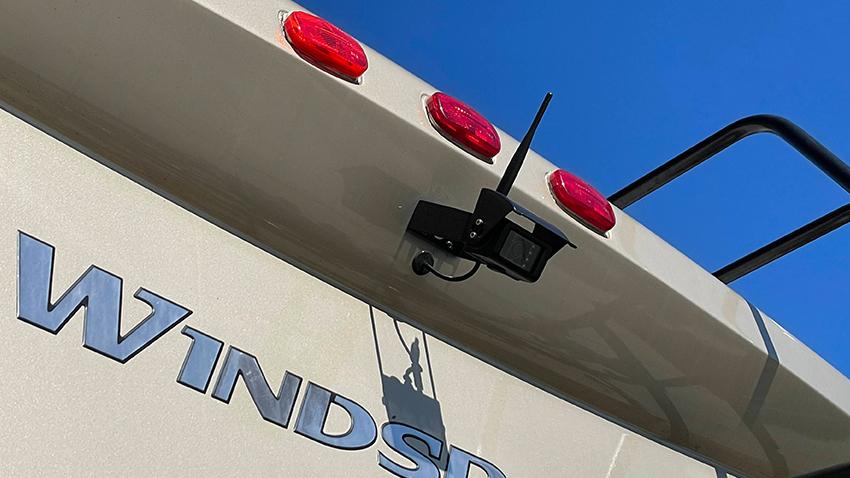

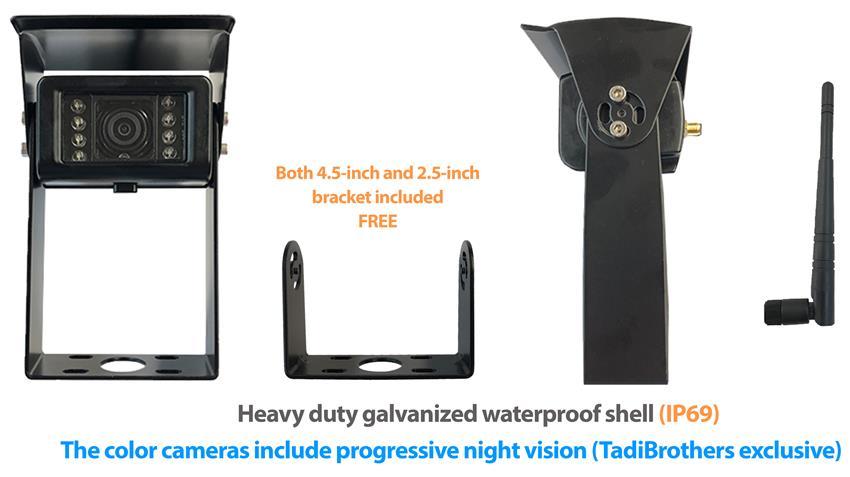

The wireless Birds Eye View Digital RV Box backup camera Has a 120° Degree viewable angle, its waterproof and has auto night vision. The camera is one of the most durable we have, with incredible adjustability and night vision clarity.

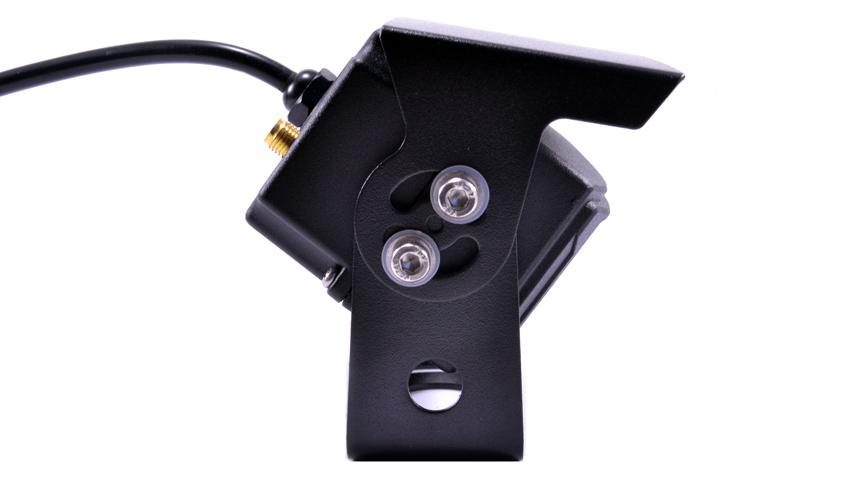

The RV Box camera has a removable and adjustable metal sun shield to protect you from glare and pebbles. It was designed for campers and RVs and has severed well on hundreds of fleets nationwide
Both cameras have the added feature of doubling as observation rear view camera which means you can leave 1 or both camera on continuously while you driving down the road, this comes in handy when you changing lanes and we also have a lot of customers who leave the cameras active while their parked so that they can see their surrounding 25/7.
Some popular upgrades for this system are the high definition lenses and audio which can dramatically improve the quality and enjoyment in using this system. These changes and more can be made by using the customize and upgrade menu at the top of the page.
If you have a pre-installed Furrion housing on your Trailer or RV, we have a bracket adapter to make our camera plug and play.
More you should know about the Installation

5th wheel backup system Mapped out parts
Photo Explanation
1. Digital Wireless Box camera
2. 125ft Digital Built transmission
3. Digital WIreless License plate camera
4. 7-inch Digital Rear VIew Mirror Monitor
The included cameras are both wireless camera so there is no need to run cables through your truck or camper. This makes the installation of the entire system very quick and easy.
The system includes all parts needed to cleanly connect both cameras and monitor wirelessly to your Truck and 5th Wheel.

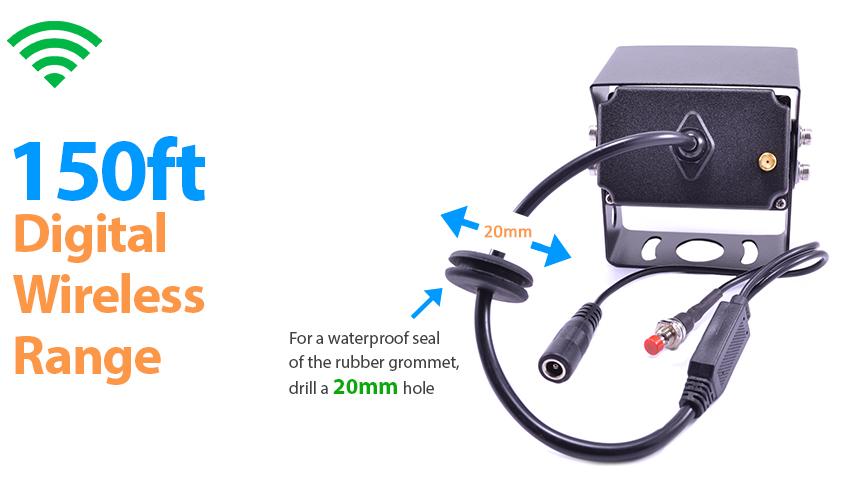

Keep in mind that this digital wireless system has a 125ft range for both cameras, it can go through any wall in any vehicle.
What's in the Digital 5th wheel backup camera system
Top

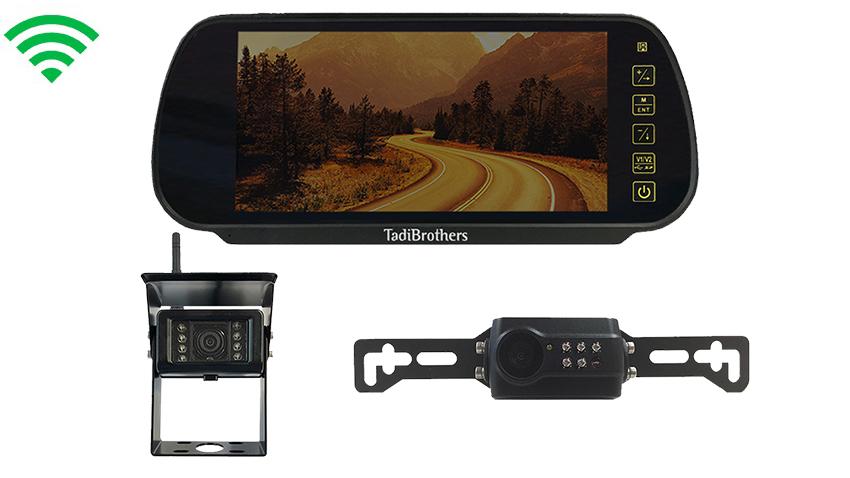

You get everything seen here
1. Digital quality 7-Inch Rear View Mirror
2. Dash mount
3. Wireless Digital RV Box (Birds eye) mounted backup camera
4. Wireless Digital quality License plate rear/front view camera
5. All cables needed are included in the package
6. Instruction Manual
The TadiBrothers promise:
30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.
All of our products come with a Standard 1-year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.
Specs
Digital Wireless 5th Wheel Backup Camera System with Mirror - SKU52463 | |
---|---|
More Info | |
Weight (Lbs) | |
Cameras Included in the Package | 2 Cameras |
Dimensions | |
Transport | RV,5th Wheel,Campers and Trailers |
Digital Wireless RV Backup Camera for Digital Monitor (STN) - SKU44902 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Backup camera connectivity | Digital |
Backup camera style | Roof Angle (Birds eye view) |
Cable Video Quality | HD |
Camera Housing Color | Black |
Camera Resolution | 720 TV Lines |
Camera Water Resistant | Yes |
Camera White Balance | Automatic |
Cameras Viewable Angle | 120° |
Contrast Ratio | 250:1 |
Dimensions | 2.6"(W) X 1"(D) X 3"(H) |
Dual Backup camera compatible | Yes |
Electronic Shutter | 1/60 ~ 1/10,000 Second |
Integrated sun shield | Yes |
Minimum Illumination (LUX) | 0.2 |
Mirrored Image | Yes |
Night Vision Viewable Distance | 60ft |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Quantity of Infrared LED's for Night vision | 18 |
Resolution | 1024X768 |
Rugged die cast aluminum housing | Yes |
Storage temperature | -20C+65C |
Type of Connection | RCA |
Type of lense | CCD |
Type of Vehicle | RV, Bus,Truck, Boat, Sedan, Minivan, SUV |
Vertical Adjustability | 180° |
Wireless Range | 150ft |
Digital Wireless Backup Camera for the License Plate (STN) - SKU93453 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Backup camera connectivity | Digital |
Backup camera style | License Plate |
Camera Housing Color | Black |
Camera Resolution | 420 TV Lines |
Camera Water Resistant | Yes |
Camera White Balance | Automatic |
Cameras Viewable Angle | 120° |
Circumference Camera | 1.5'' |
Contrast Ratio | 250:1 |
Dimensions | |
Dual Backup camera compatible | Yes |
Electronic Shutter | 1/60 ~ 1/10,000 Second |
Installation Cables Included | Yes |
Minimum Illumination (LUX) | 1.2 |
Mirrored Image | Yes |
Night Vision | Yes |
Night Vision Viewable Distance | 25ft |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Quantity of Infrared LED's for Night vision | 18 |
Storage temperature | -20C+65C |
Type of Connection | |
Type of lense | Cmos |
Vertical Adjustability | 60° |
Wireless Range | 100ft |
7-Inch Digital Mirror Monitor for any Digital Wireless Backup Camera (STN) - SKU24337 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Backup camera connectivity | Digital |
Bluetooth | No Bluetooth |
Built-In Speakers | Yes |
Camera White Balance | Automatic |
Contrast Ratio | 250:1 |
Dimensions | 9.4"(W) X 0.5"(D) X 4.3"(H) |
Dual Backup camera compatible | Yes |
Electronic Shutter | 1/60 ~ 1/10,000 Second |
Installation Cables Included | Yes |
Internal Microphone | Yes |
Ipod connection | Yes |
Material | Hard Plastic |
Mirrored Image | Yes |
Monitor Type | LCD Mirror |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Remote control Included | Yes |
Screen Size | 7-Inch Screen |
Split Screen | No |
Storage temperature | -20C+65C |
Touch screen | Yes |
Type of Connection | RCA |
Type of screen | LCD |
Video game system Compatible | Yes |
Wireless Range | 150ft |
