3 Camera RV Trailer Backup Camera System Control Box Multiplexer

SKU123378 - In Stock

$574.99

+ FREE SHIPPING
Add To Cart
  • Features
  • Specs
  • Questions
  • Reviews
Back To Top

3 Camera RV Trailer Backup Camera System Control Box Multiplexer

  4.7 Based on 27 reviews
SKU123378

Features

SKU123378 Features (Click On Icons For More Info)
    Split screen Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    Watch 1 camera or 4 Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    3 Cameras This system comes with 3 cameras. Keep in mind you can add up to 4 cameras to the system
    Color See the whole world in full color when reversing or driving down the road. Great for all weather conditions
    Wireless up to 70ft Excellent wireless signal for up to 70ft. The signal will transmit without issues and does not need line of sight
    Mounts at top of RV Mount up top and point it down at the road. This is a great camera for that bird eye view that will show you everything you need to see
    Military Grade Night Vision Driving at night? No problem! See everything behind you in full nightvision
    On while driving or in reverse Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes
    Reverse image (Mirrored Image) The video image on the screen will reversed. Just like the mirror in your car. Great for backing up or looking at the road behind you
    100% Weatherproof 100% Weatherproof. Works in all weather conditions. Rain or Snow or Sun you will be just fine using this system. Its meant to be out in the weather
    Heavy Duty For those who want the strongest parts you can get. Great for all conditions including harsh vibrations and industrial equipment

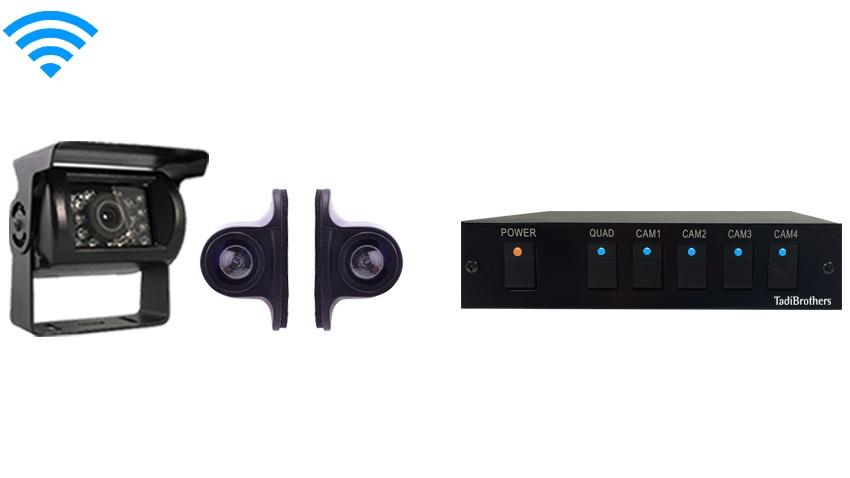

About the system SKU123378

This wireless 3 camera RV system with a multiplexer allows you to convert any existing screen into a 4 camera split screen system. The Multiplexer has different viewing modes and is compatible with all TadiBrothers cameras wired or wireless. This bundle includes the multiplexer 1 wireless RV Camera and 2 wireless side cameras, all cameras have a 70ft wireless range. This RV system includes everything you need for for a clean installation, featuring easy to follow instructions and diagrams.

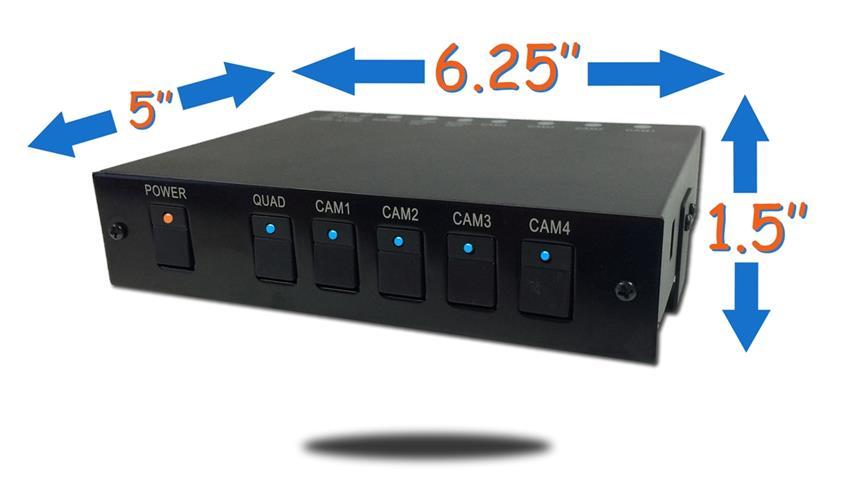

Split Screen Multiplexer Control Box for up to 4 Backup Cameras SKU34148
...
Mouse Over To Zoom
Heavy Duty Construction

This heavy duty multiplexer allows you to connect up to 4 cameras to any monitor. The control box has 4 inputs and can be seen 1 at a time or 4 at a time among many other modes, preset into the brain of the system.

This was constructed with heavy use in mind, you can mount the control box in many ways, either from the ceiling on any flat surface. If you want a better rear view or your concerned about security around your vehicle this box will do the trick.

Feel free to mix and match between wired and wireless camera to achieve the combination that fits your needs,.

If you don't need to see all 4 screen at once you have the option to change that as well with the use of the included wired remote, the remote also has LED indicators to show you which cameras are currently active.


  • Connect up to 4 cameras
  • Easy to change between cameras
  • Video input :4 video input
  • Video system: NTSC/PAL

About this Wireless Birds Eye View Camera SKU93100
...
Mouse Over To Zoom
Camera fits in any housing

The birds eye view cameras boast our military grade progressive night vision with 120 Degree viewable angle which will have vivid colors during the day and progressive night vision for low light conditions. This means that the night vision progressively activates as it gets darker outside, in fact you could be driving for hours in the pitch dark and not notice that you have transitioned to complete night vision mode.

When upgrading the night vision we took into consideration that many of our customers use the cameras even when they are parked for security, this night vision fully supports that. In recent years many of our loyal customers have purchased a 2nd camera to place above their door and to use it as a type of “Ring doorbell” to see who is knocking on their door.

The analog transmitters included with this camera have a range of at least 70ft and have the added ability to be viewed on multiple screens.


  • 70ft Wireless Range
  • Full color and nigh vision
  • 100% Water and Weatherproof
  • Stays on while driving

About this 3 Pack of Analog Wireless Transmitters with 70ft Range SKU20405
...
Mouse Over To Zoom
Tiny design can be tucked away anywhere

This 3 pack of wireless Transmitter have a flawless range of 70ft. In the bundle you get 3 complete sets, enough for 3 separate cameras that have RCA plugs (This can be added to any Wired TadiBrothers cameras).

They are 100% water/weatherproof and this updated version will also power the camera, which means you only need 1 power source for each camera. If you don't want the transmitter on the outside many of our customer hide the transmitter in a closet or behind the back wall.

When designing these transmitters we assumed they will stay operational continuously 24/7 for those customers that want to use them as a live security system when they are parked.

For those that want to use the same trailer for different pickup trucks, this system will allow that as well, you would just need to purchase a extra receivers..


  • 3 Sets of Transmitters (for 3 Cameras)
  • Wireless range of 70ft+
  • 100% Water and Weather proof
  • Can stay active 24/7
  • Easy Setup and installation

About this pair of wireless passenger and driver side cameras SKU87951
...
Mouse Over To Zoom
Very Small and Discrete

This pair of wireless rubber coated side view camera are small and aerodynamic, which makes them almost invisible. The lens is full color with night vision. Like all of our backup cameras these camera double as observation camera which permits you to leave the cameras active continuously while you are driving down the road.

Each camera includes its own pair of 70ft wireless transmitters that are 100% water and weather proof . They are small enough to leave them outside or hide them somewhere in your vehicle.

The rubber housing makes the camera 100% water/weather proof and can operate in the harshest of environments. The camera includes all cables and parts needed for a clean and easy installation.


  • Full color and Night Vision
  • Stays on while Driving
  • 100% Weatherproof and waterproof
  • Rubber coated for extra durability
  • 2 Wireless Cameras Included
  • Passenger and Driver side

What's In The Box SKU123378

  • 4 Channel Multiplexer (Heavy Duty)
  • Power harness for video and power
  • Wireless RV Backup Camera (70ft Range)
  • 1pcs 2.1mm DC Barrel connectors (for Camera)
  • 3 Sets of Transmitters (for 3 Cameras)
  • 3pcs 2.1mm DC Barrel connectors
  • 3pcs Velcro for Transmitter

Specs

3 Camera RV Trailer Backup Camera System Control Box Multiplexer - SKU123378
More Info
Weight (Lbs)
Backup camera connectivity Analog Wireless
Cameras Included in the Package 3 Cameras
Dimensions
Transport RV,5th Wheel,Campers and Trailers
Split Screen Multiplexer Control Box for up to 4 Backup Cameras - SKU34148
More Info
Weight (Lbs)
AGC Automatic
Backup camera connectivity
Backup Monitor connectivity Wired CMOS
Bluetooth No Bluetooth
Built-In Speakers No
Contrast Ratio 250:1
Dimensions
Dual Backup camera compatible Yes
Installation Cables Included Yes
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Rugged die cast aluminum housing Yes
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type Of Upgrade Monitor Upgrade
Video game system Compatible Yes
Wireless RV Backup Camera (Birds Eye View) - SKU93100
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Analog Wireless
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Transmitters for Backup Camera (3 Pack) - SKU20405
More Info
Weight (Lbs)
Backup camera connectivity Analog Wireless
Dimensions
Installation Cables Included Yes
Material Hard Plastic
Type Of Upgrade Wireless Options
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft
Power 12V Power & Ground
Transmitter Included
Wireless 2 Side RV Cameras (Passenger and Driver Side Bundle) - SKU87951
More Info
Weight (Lbs)
Anodized black finish Yes
Backup camera connectivity Analog Wireless
Backup camera style Side View
Camera Housing Color Black
Camera Resolution 420 TV Lines
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Contrast Ratio 250:1
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Quantity of Infrared LED's for Night vision 9
Type of Connection RCA
Type of lense Cmos
Wireless Range 75ft

Questions

There are no questions for this product

ASK A QUESTION
Give us a call at (866) 966-5550 we can help you with any other questions or concerns

Reviews

My head

"I cant turn my head well (surgery) so I got this. Good for driving with a head straight. I added side cams too eventually. Fast shipping!"

Reviewed By:

Leonard (Norwich, ND ) - 4/22/2023
Overall rating:
Features:
Performance:
Design:
Value:
Thanks guys!!

"I love the nightvision. I was having trouble with my previous camera system and I'm happy with the new camera system TadiBrothers and sent me"

Reviewed By:

Jim (Colchester, VT ) - 4/11/2023
Overall rating:
Features:
Performance:
Design:
Value:
Split Screen Adaptor

"Shipped quickly. Keep adding cameras to my RV,, was anxious to receive. Using my monitor now that we play DVDs on for all cameras. Had a few questions, and the person i called was able to walk me through. thanks!"

Reviewed By:

Gabriel Brooks (Chatom, AL ) - 4/1/2023
Overall rating:
Features:
Performance:
Design:
Value:
Love it!!

"Bought this with a 12" monitor for my RV and had it installed. The first one went bad and TadiBrothers replaced it right away. It so easy to use! Thanks guys!!"

Reviewed By:

Rey (Dickinson, ND ) - 9/12/2022
Overall rating:
Features:
Performance:
Design:
Value:
Load More

LOAD MORE REVIEWS

ADD A REVIEW
