Split Screen Multiplexer Control Box with Wired Remote for up to 4 Backup Cameras

SKU34149 - In Stock

$189.99

+ FREE SHIPPING
Add To Cart
  • Features
  • Specs
  • Questions
  • Reviews
Back To Top

Split Screen Multiplexer Control Box with Wired Remote for up to 4 Backup Cameras

  4.6 Based on 7 reviews
SKU34149

Features

SKU34149 Features (Click On Icons For More Info)

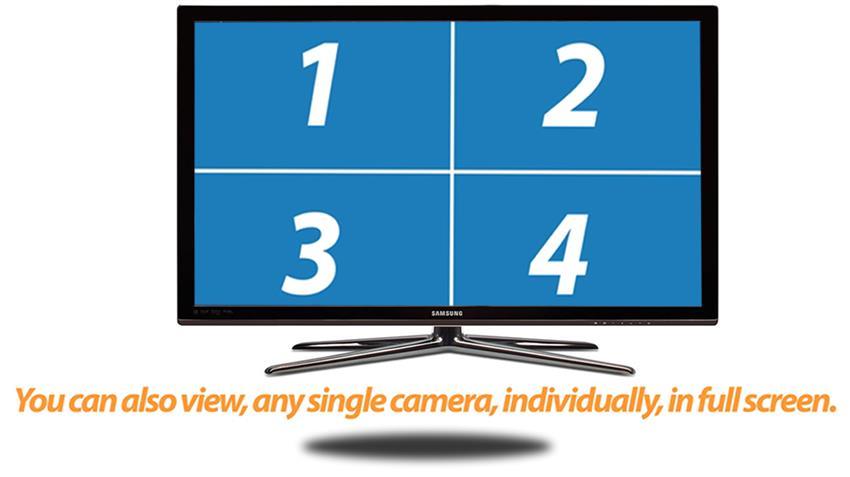

    Split screen Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    Watch 1 camera or 4 Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    On while driving or in reverse Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes
    Heavy Duty For those who want the strongest parts you can get. Great for all conditions including harsh vibrations and industrial equipment

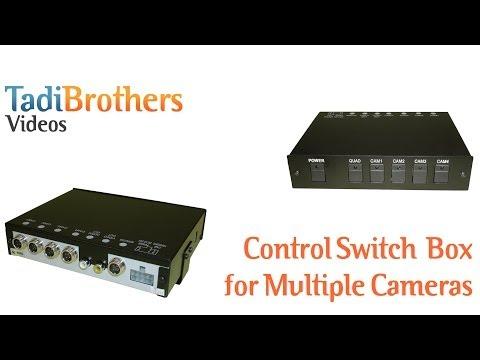

About the Split Screen Multiplexer Control Box with Wired Remote SKU34149
...
Mouse Over To Zoom

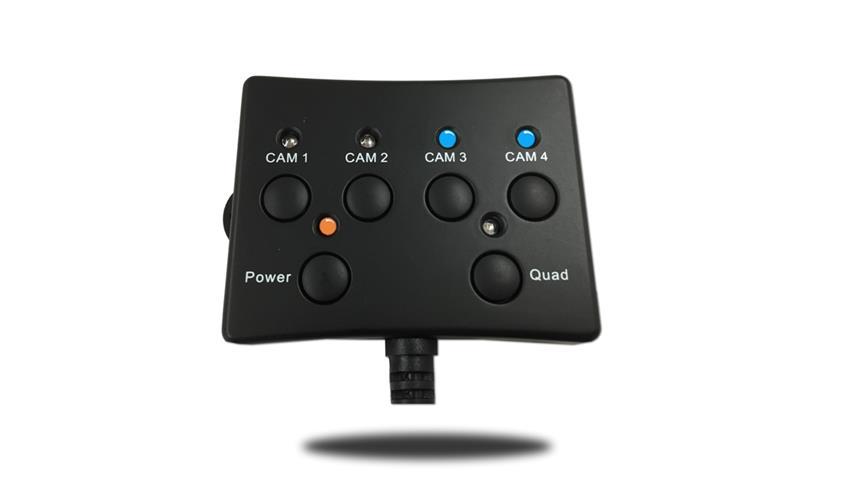

Use the remote to control the cameras

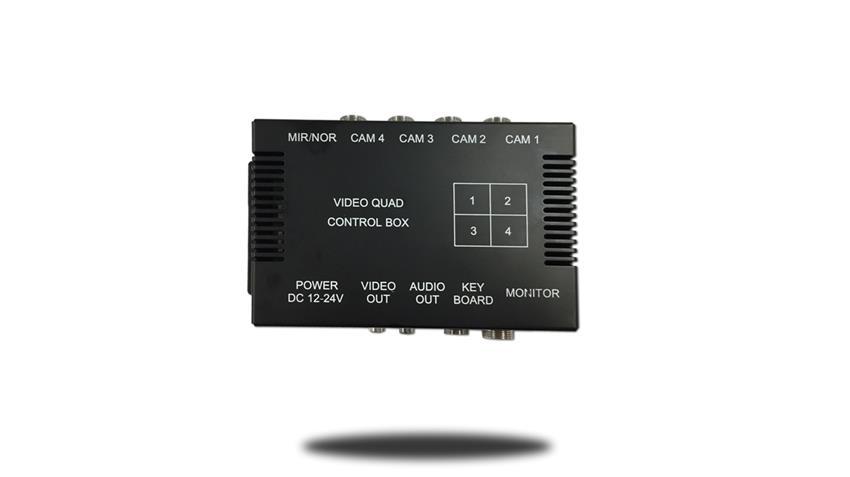

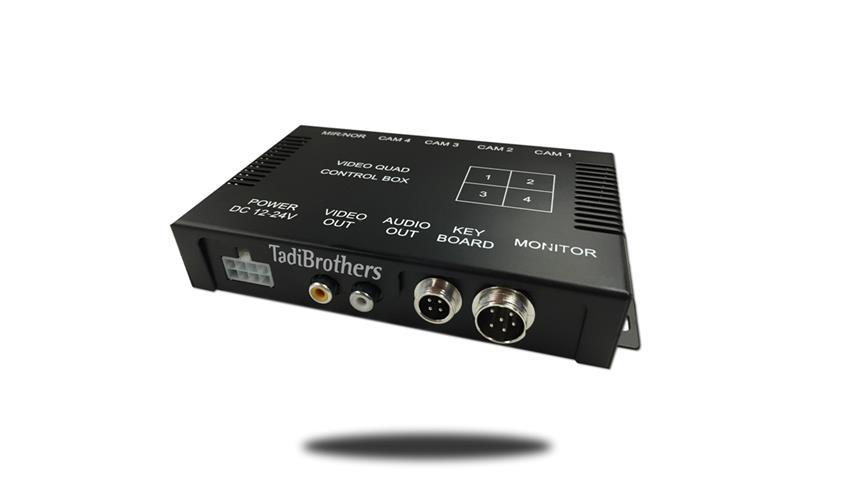

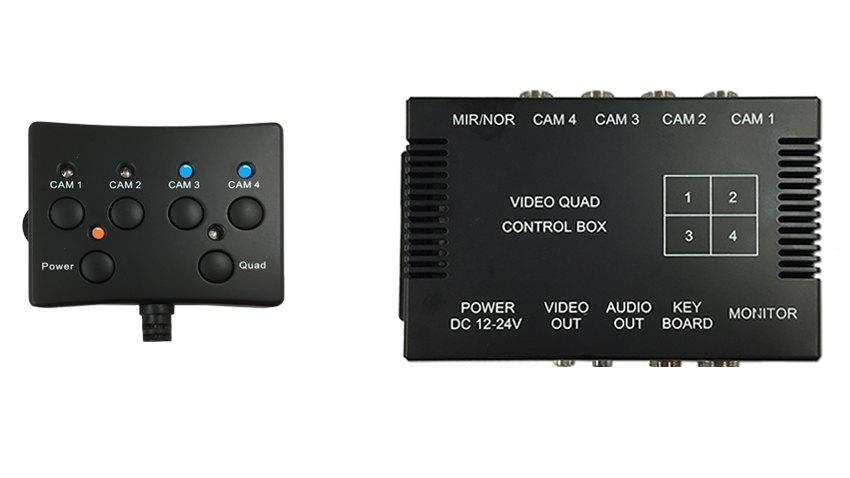

This multiplexer allows you to connect up to 4 cameras to to any monitor. The control box has 4 inputs and can be seen 1 at a time or 4 at a time among many other modes, preset into the brain of the system.

If you want a better rear view or your concerned about security around your vehicle this box will do the trick.

Feel free to mix and match between wired and wireless camera to achieve the combination that fits your needs,.

If you don't need to see all 4 screen at once you have the option to change that as well with the use of the included wired remote, the remote also has LED indicators to show you which cameras are currently active.


  • Connect up to 4 cameras
  • Easy to change between cameras
  • Video input :4 video input
  • Video system: NTSC/PAL

Split Screen Multiplexer Control Box for up to 4 Backup Cameras SKU34148
...
Mouse Over To Zoom
Heavy Duty Construction

This heavy duty multiplexer allows you to connect up to 4 cameras to any monitor. The control box has 4 inputs and can be seen 1 at a time or 4 at a time among many other modes, preset into the brain of the system.

This was constructed with heavy use in mind, you can mount the control box in many ways, either from the ceiling on any flat surface. If you want a better rear view or your concerned about security around your vehicle this box will do the trick.

Feel free to mix and match between wired and wireless camera to achieve the combination that fits your needs,.

If you don't need to see all 4 screen at once you have the option to change that as well with the use of the included wired remote, the remote also has LED indicators to show you which cameras are currently active.


  • Connect up to 4 cameras
  • Easy to change between cameras
  • Video input :4 video input
  • Video system: NTSC/PAL

About the 4pin Female to RCA Connector (4 Pack) SKU5036700
...
Mouse Over To Zoom
Watertight design 4 Pack Female

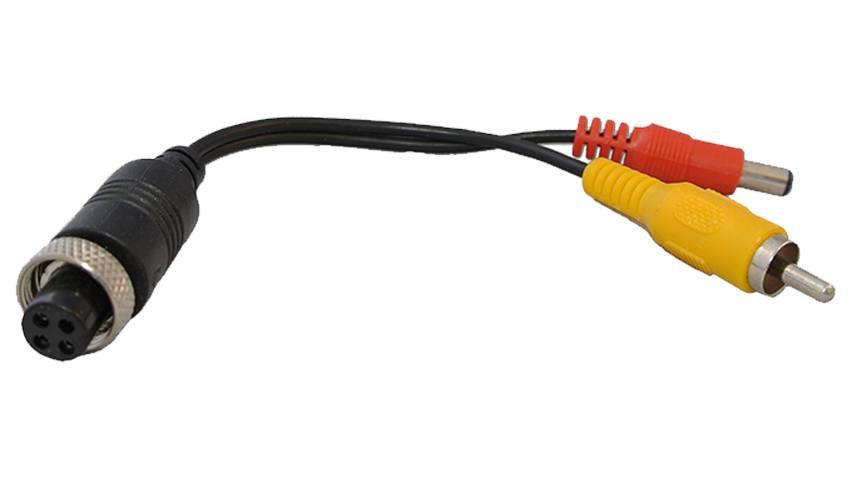

This a Female 4 Pin adapter that will convert your 4 Pin device to RCA. The 4 Pin portion of the cable has a metal lock that can connect the adapter to your device in a water tight seal.

The RCA portion is Male and so is the DC 12V Barrel connector (2.1mm)

If you need the RCA or DC side to Female, we do sell couplers or they can also be purchased on Amazon.


  • Converts 4 Pin to RCA
  • 4 Pin locks to Male 4 Pin Device

What's In The Box SKU34149

  • 4 Channel Multiplexer
  • Power harness for video and power
  • 4 Channel Multiplexer (Heavy Duty)
  • Power harness for video and power
  • 4pcs 4 Pin Female to RCA Connectors

Specs

Split Screen Multiplexer Control Box with Wired Remote for up to 4 Backup Cameras - SKU34149
More Info
Weight (Lbs)
AGC Automatic
Backup camera connectivity
Backup Monitor connectivity Wired CMOS
Bluetooth No Bluetooth
Built-In Speakers No
Contrast Ratio 250:1
Dimensions
Dual Backup camera compatible Yes
Installation Cables Included Yes
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Rugged die cast aluminum housing Yes
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type Of Upgrade Monitor Upgrade
Video game system Compatible Yes
Split Screen Multiplexer Control Box for up to 4 Backup Cameras - SKU34148
More Info
Weight (Lbs)
AGC Automatic
Backup camera connectivity
Backup Monitor connectivity Wired CMOS
Bluetooth No Bluetooth
Built-In Speakers No
Contrast Ratio 250:1
Dimensions
Dual Backup camera compatible Yes
Installation Cables Included Yes
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Rugged die cast aluminum housing Yes
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type Of Upgrade Monitor Upgrade
Video game system Compatible Yes
4pin Female to RCA Connector (4 Pack) - SKU5036700
More Info
Weight (Lbs)
Gold Tip Yes
Type Of Upgrade Adaptor Upgrade
Dimensions
Type of Connection RCA

Questions

There are no questions for this product

ASK A QUESTION
Give us a call at (866) 966-5550 we can help you with any other questions or concerns

Reviews

Split Screen Adaptor

"Shipped quickly. Keep adding cameras to my RV,, was anxious to receive. Using my monitor now that we play DVDs on for all cameras. Had a few questions, and the person i called was able to walk me through. thanks!"

Reviewed By:

Gabriel Brooks (Chatom, AL ) - 4/1/2023
Overall rating:
Features:
Performance:
Design:
Value:
Love it!!

"Bought this with a 12" monitor for my RV and had it installed. The first one went bad and TadiBrothers replaced it right away. It so easy to use! Thanks guys!!"

Reviewed By:

Rey (Dickinson, ND ) - 9/12/2022
Overall rating:
Features:
Performance:
Design:
Value:
Works exactly as described

"It took me a while to find a split box that would have all the features I wanted, I called TadiBrothers 8 times with questions and they even had me talk with their customer service department to see if they can answer all my particular requests andtheir service dept could not have been nicer. when i got the split box it worked exactly as advertised and i highly recommend this system."

Reviewed By:

Mark G. (Homestead, FL ) - 9/4/2022
Overall rating:
Features:
Performance:
Design:
Value:
Easy setup

"I needed to convert my flat screen in my camper to a split screen and this was exactly was we needed. i already had all the camera leads by my flat screen so when the split box arrived i had everything working in 20 minutes"

Reviewed By:

Kevin S. (Utica, NY ) - 8/5/2022
Overall rating:
Features:
Performance:
Design:
Value:
