Voyager Replacement RV Backup Camera with Rear View Monitor (1080P AHD)
SKU34464V
Features
This system comes with 1 camera. Keep in mind you can add up to 4 cameras to the system
This is a wired system. You simply connect the camera to the monitor using a cable
Sold the most among all our systems and one of the most popular across the board
Compatible to replace older Voyager Systems This complete 1080P Voyager backup camera Replacement system, it is the best solution for those that have an old black and white system that is either towards the end of its life or simply want the latest and the greatest without having to rewire their RV. Weather you have 4 Pin or 6 Pin, Square or Round plugs, this bundle comes with all Voyager adapter to have our latest generation observation camera take advantage of your legacy wires. You can set up the camera to turn on when you go in reverse or you can leave it on continuously while you're driving down the road. Included is a 7 inch monitor with a trim to fit your old screens footprint. It will also have automatic dimming for night vision and is compatible with up to 2 cameras. This Heavy Duty rear view system comes with every adapter you can need to make it work with in minutes. Included is everything you need for a quick installation and it comes with a very easy to follow instructions and diagrams.

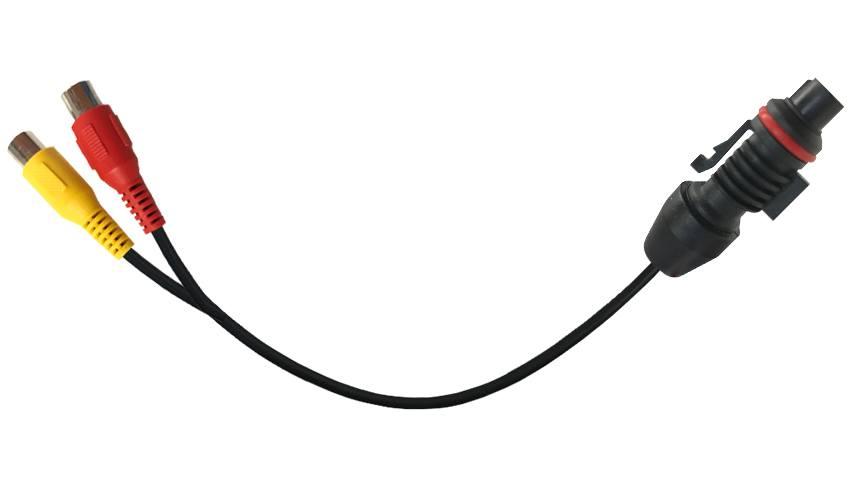

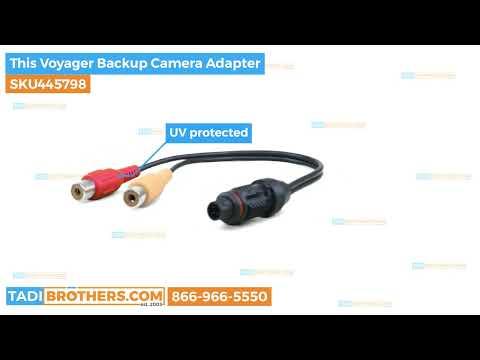

Adapter for your old Voyager Camera
This will adapt an old voyager camera to the newer RCA based TadiBrothers system. it will allow you to use you existing wiring for the newest system by TadiBrothers.
Get the benefits of using your existing wiring but with new modern technology
This Cable will use the existing cable to transmit the video and power to your camera.
- Adapts your voyager camera to an RCA Socket

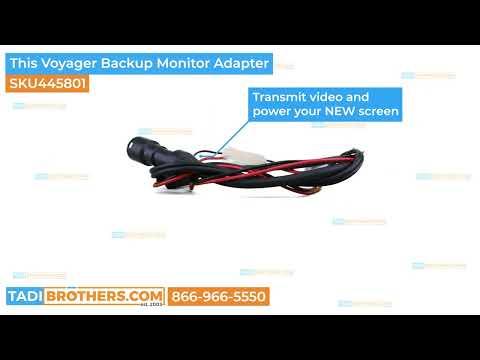

Adapter for your old Voyager Screen
This will adapt an old voyager screen to the newer RCA based TadiBrothers system. it will allow you to use you existing wiring for the newest system by TadiBrothers.
Get the benefits of using your existing wiring but with new modern technology
Dimensions of the Camera
This AHD RV camera has been designed from the ground up to give you the perfect image day or night. the lens has a viewable angle of 120° which will allow you to see 3 lanes behind you. This camera features our AHD lens which is the highest possible resolution available for this type of wired camera.
It also features incredible color and military grade night vision that can be left on continuously while your driving down the road or pop on automatically when you go in reverse. Many of our customer have mounted this camera over their RV entrance door to be used as a sort of door bell camera.
The automatic night vision is the best industry because its progressive nature, this means that the darker it gets outside the more the night vision is active. The durable construction of this RV camera is meant to operate in all weather condition, it is 100% water and weather proof and is relied on for commercial fleets around the country.
Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.
- 1080P AHD Hi-Definition
- Stays on while driving
- Full Color
- Progressive Night Vision
- IP69 Weatherproof
Sleek Design
The AHD monitor included is 7-inch diagonal and can accept 2 cameras. You can toggle between the 2 with a tap of a button. It includes a butterfly mount so that you can mount it on your dash or hang it from your ceiling.
This Monitor features our AHD panel which is the highest possible resolution available for this type of wired screen.
This screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
If you intend to use this screen while you're driving down the road or changing lanes you can also use this backup monitor as an observation monitor and some have used it as a security screen to view their backup cameras while they're parked. As for the brightness, this rear-view monitor will deliver a perfect image even in direct sunlight but will auto dim at night for a softer more comfortable view.
Analog High Definition (AHD), commonly abbreviated as AHD, refers to a video surveillance standard that allows analog closed-circuit television cameras to transmit high definition 1080P video signals over standard coaxial or RCA cables.
- 1080P Resolution
- 2 Channels (Multiple Inputs)
- Full AHD Color LCD
- Thin and Flat Design
- Can be left active 24/7
Easy access to the harness
This AHD screen also includes an elegant looking trim for those who want it integrated into the dash to replace their older generation camera system. For those that don't want to use the included mount or use the trim we have made sure to make the screen extra thin so that you can even Velcro it to any flat surface in your vehicle.
The trim is designed to make the screen look stock in your vehicle and give you easy access to the harness if even needed. discreet and easy buttons on the trim make it easy to pop out the screen when needed.
The instruction included give you a step by step guide on how install and use all the features of this screen.
- Black trim
- Give easy access to harness
- Professional look
- Commercial grade material
- 1pcs Voyager to RCA Camera Adapter
- 1pcs Voyager Adapter for the monitor
- 1pcs of 1080P Wired Birds Eye View Camera
- 1pcs 15ft Video Cable
- 1pcs 2.1mm DC Power Cables
- 7-inch 2 Channel Monitor (1080P)
- Harness for Power & Video
- Trim for flush dash mount
- Butterfly Mount
- Double sided adhesive for mount
Specs
| Voyager Replacement RV Backup Camera with Rear View Monitor (1080P AHD) - SKU34464V | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Cameras Included in the Package | 1 Camera |
| Dimensions | |
| Transport | RV, 5th Wheel, Campers, and Trailers |
| Voyager Backup Camera Adapter - SKU445798 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Old System Upgrade | Voyager |
| Type Of Upgrade | Old System Adaptor |
| Dimensions | |
| Voyager Backup Monitor Adapter - SKU445801 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Old System Upgrade | Voyager |
| Type Of Upgrade | Old System Adaptor |
| Dimensions | |
| RV Backup Camera 1080P Hi-Def AHD - SKU24274 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Anodized black finish | Yes |
| Backup camera connectivity | Wired 1080P (AHD) |
| Backup camera style | Roof Angle (Birds eye view) |
| Camera Housing Color | Black |
| Camera Resolution | 1080 TV Lines |
| Camera Water Resistant | Yes |
| Cameras Viewable Angle | 120° |
| Dimensions | |
| Length of Cable Included | 15ft |
| Mirrored Image | Yes |
| Rugged die cast aluminum housing | Yes |
| Type of lense | AHD |
| Weather Proof | Yes |
| 7-Inch 1080P Hi-Def Rear View Monitor for AHD Backup Cameras Only - SKU24522 | |
|---|---|
| More Info | |
| Weight (Lbs) | |
| Backup Monitor connectivity | Wired 1080P (AHD) |
| Bluetooth | No Bluetooth |
| Built-In Speakers | Yes |
| Camera Resolution | 1080 TV Lines |
| Contrast Ratio | 250:1 |
| Dimensions | 7.1"(W) X 0.5"(D) X 4.8" (H) |
| Dual Backup camera compatible | Yes |
| Installation Cables Included | Yes |
| Length of Cable Included | 15ft |
| Material | LCD |
| Monitor Type | LCD Monitor |
| Operating temperature | -40C to + 133C |
| Performance sensors | High sensitivity |
| Power Supply | 12 Volt DC |
| Quad Compatibility | Yes |
| Remote control Included | Yes |
| Resolution | 1024X768 |
| Screen Size | 7-Inch Screen |
| Split Screen | No |
| Storage temperature | -20C+65C |
| Type of Connection | RCA |
| Type of lense | AHD |
| Type of screen | LCD |
| Video game system Compatible | Yes |
