Horse Trailer Backup System with 4 Wireless Cameras and Rear View Monitor

  (4.6) Based on 50 reviews
SKU121176
Wireless horse Surveillance Trailer Backup Camera System | SKU121176
Wireless horse Surveillance Trailer Backup Camera System | SKU121176
Wireless horse Surveillance Trailer Backup Camera System | SKU121176
7-Inch Split Screen Monitor for up to 4 Backup Cameras | SKU34288
120° Degree RV Backup Wireless Camera (Birds Eye View) with adjustable sun shield | SKU93100
Wireless Side RV Backup Camera | SKU15151
For 4 Cameras

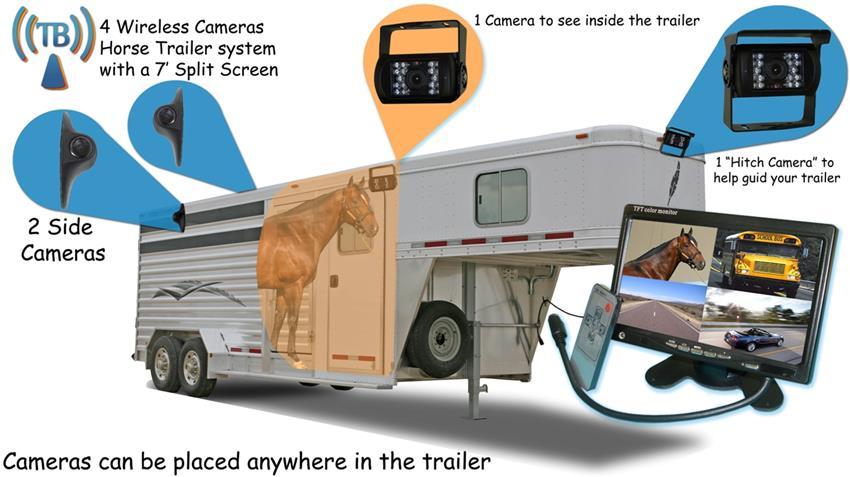

Wireless horse Trailer Backup Camera System Diagram.
You can split the screen into an array of different views.
Furrion Mount
Wireless Side RV Backup Camera easy installation
Buttons for all 4 channels of the 7 inch split screen
Wireless RV Back up camera 18 LED light give you military grade night vision.
The RV aftermarket backup camera come for the driver and passenger side for your vehicle
Includes a frame for flush clean look
Wireless RV Back up camera 18 LED light give you military grade night vision.
side rearview camera
7 Inch split screen monitor upgrade options
This Wireless RV Back up camera includes a sun shiled that protects from glare and pebbles.
Side RV wireless rear view camera can be placed anywhere up to 65 feet away from the monitor
7 Inch split screen monitor dimensions
Wireless RV backup camera dimensions
Wireless Side view Backup Camera dimensions
Dash mount for rear view monitor
Back of the 7 inch split screen monitor
Rear view of 9 inch split screen with rubber coating.

Features

Horse Trailer Backup System with 4 Wireless Cameras and Rear View Monitor - SKU121176
  • Checkmark Color
  • Checkmark Military Grade Night Vision
  • Checkmark On while driving or in reverse
  • Checkmark Mounts at top of RV
  • Checkmark 100% Weatherproof
  • Checkmark Reverse image (Mirrored Image)
  • Checkmark Watch 1 camera or 4


About this Observation Monitor



See all the backup cameras on this screen

Some people are cat people. Others are dog people. At Tadi Brothers, we're horse people. We have nothing against the smaller pets, of course. We just know that taking care of a bigger animal requires more effort, attention, and time than most people realize.

What makes our 7-inch Horse Trailer Backup System so special? If you're planning on pulling a horse trailer behind your vehicle, we can customize a Backup Camera Surveillance System to meet your needs.

Because this system is wireless the installation is easy and with our technology you wouldn’t be able to see the difference between wired horse trailer camera system to the wireless.

Some of the included features in this system are:

• Connect up to 4 backup cameras
• Easy to change between backup cameras
• Video input :4 video input
• Video system: NTSC/PAL
• Works with all our backup cameras and monitors

The Split monitor included in this horse trailer observation system is built to operate continuously while you’re driving down the road. You can watch all 4 cameras at the same time but also chose to see just the ones inside the trailer. The LED Screens we use are meant to show full color even in direct sunlight but will have a softer brightness that is very easy on the eyes while viewing at night.

Though this system comes pre-configured with a 7-inch monitor you have the option of upgrading up to a 12-inch screen, make it a split screen or even add a mobile DVR. These options can be found at the “customize and upgrade” section at the top right of the page

For more information about our monitors, please read our MONITOR GUIDE

About the Backup Observation Cameras




exclamation point iconPick Your backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 3-5 cameras however, we have different styles for all kinds of uses. Choose which configuration best fits your budget.



Horse trailer backup camera kit

Two backup cameras on the sides and one in the back and one in the trailer to watch your horse

This multi camera horse trailer observation system includes 4 observation backup cameras (2 Birds eye view cameras, 2 Side cameras) The birds eye view cameras in this system can be placed for inside the horse trailer or outside, they feature120 Degree viewable angle (upgradable to 180 degrees), their waterproof and have auto night vision. This type of camera is one of the most durable we have, with incredible adjustability and night vision clarity. These Horse trailer observation cameras include a removable metal sun shield visor to protect you from glare and pebbles, if you decide to install them inside your horse trailer you can remove them.

Most people mount at least one camera inside the trailer so you can observe your horses cautiously while you’re driving down the road day or night. Please note; we have C Clamp for the camera instead of bolting it, you can also use our 18-hour battery packs and magnets to make truly cordless and portable.

The 2 Side cameras are very small but pack a punch, they come so that you can mount one on the passenger side and the other on the driver side. The cameras come in commercial grade rubber casing that make them indestructible and sleek, they have auto night vision and like the bird's eye view cameras they are wireless up to 70ft.

These cameras have differentupgrades like high definition and wider field of view to name a couple. For more detailed information about our camera


Click here to see our BACKUP CAMERA GUIDE

If you have a pre-installed Furrion housing on your Trailer or RV, we have a bracket adapter to make our camera plug and play.



About the wireless
This horse trailer observation system comes with 4 of our standard 70ft wireless transmitters, they work very well in all types of vehicles from Sedans, trucks to RV and motors homes. They are 100% water proof and are very easy to install. The basic idea of installation is that you connect the camera side to 12 volts then the monitor side to volts, fire it up and you’re up and running. We also give very easy to follow installation guide explaining to you how to install a horse trailer camera.

For those who want a longer range or if you prefer the reliability of digital transition we suggest you upgrade the transmitters at the top right of the page, if you have an aluminum trailer we find that the digital upgrades always deliverers a better image.

All our transmitters are compatible with our magnets and battery packs, with can help you make it truly a portable wireless trailer camera.

For more information about the different types of transmitters, we have please read our Transmitter guide



What's in the box

Top

Horse Trailer Backup Systems

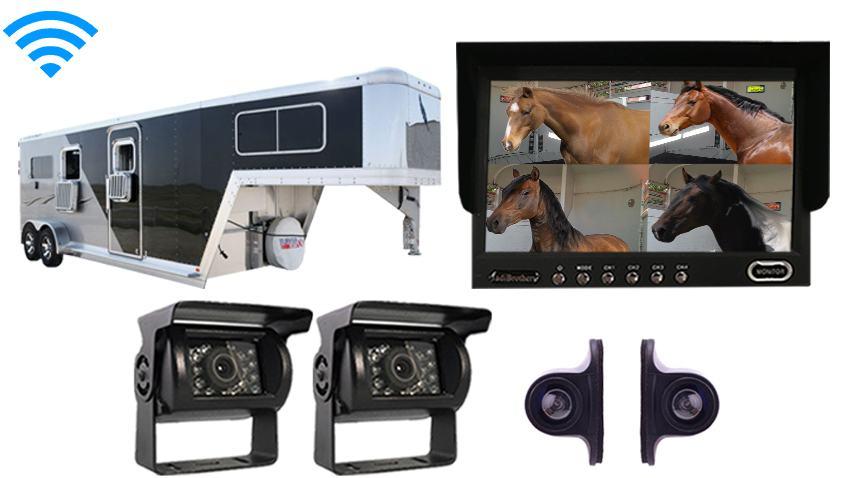

You get everything seen here

1. 7-inch Split screen
2. 2 x Standard quality RV Box backup camera
3. 2 x Side backup cameras
4. Wireless Transmitter/ Receiver (Simple install)
5. All cables needed are included in the package
6. Instruction Manual


The TadiBrothers promise:

30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.

All of our products come with a Standard 1 year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.
We know how difficult it can be to bring your horse with you on the road. Make it easier on yourself by adding a 7'' Ultimate Wireless Horse Trailer Backup Camera Surveillance System to your horse trailer today.

Specs

Horse Trailer Backup System with 4 Wireless Cameras and Rear View Monitor - SKU121176
More Info
Weight (Lbs)
Cameras Included in the Package 4
Dimensions
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Bluetooth No Bluetooth
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7''
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
Wireless RV Backup Camera (Birds Eye View) - SKU93100
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Camera Resolution 380 TV Lines
Contrast Ratio 250:1
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wireless
Backup camera style Roof Angle (Birds eye view)
Cable Video Quality HD
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 2.6"(W) X 1"(D) X 3"(H)
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Performance sensors High sensitivity
Power Supply 12 Volt DC
Resolution 800X600
Storage temperature -20C+65C
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Side RV Backup Camera - SKU15151
More Info
Weight (Lbs)
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 9
Backup camera connectivity Wireless
Backup camera style Side View
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Type of Connection RCA
Type of lense Cmos
Weather Proof Yes
Wireless Range 70ft
Wireless Transmitters for Backup Camera (4 Pack) - SKU19411
More Info
Weight (Lbs)
Backup camera connectivity Wireless
Dimensions
Installation Cables Included Yes
Material Hard Plastic
Type Of Upgrade Wireless Options
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft
Power 12V Power & Ground
Transmitter Included
