![]() | Fire Truck Rear View System 3 Wireless Backup Cameras and Monitor SKU156476 - In Stock | $799.99 + FREE SHIPPING | Add To Cart |
- Features
- Specs
- Questions
- Reviews
Features

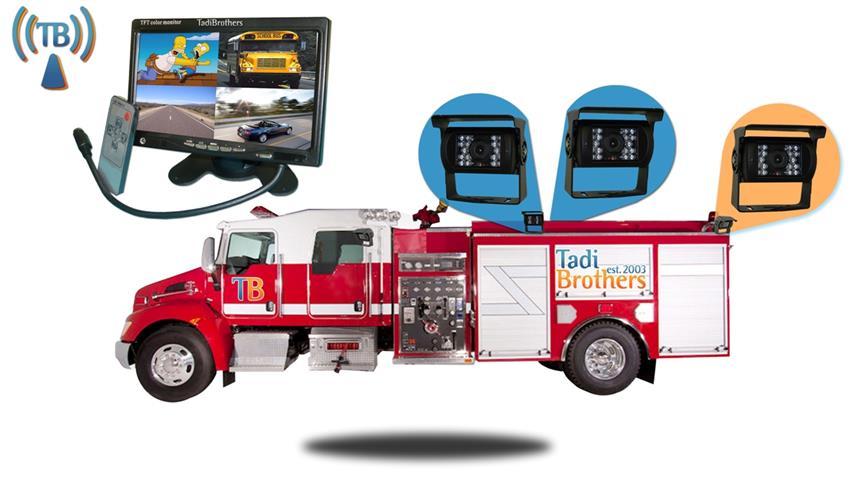

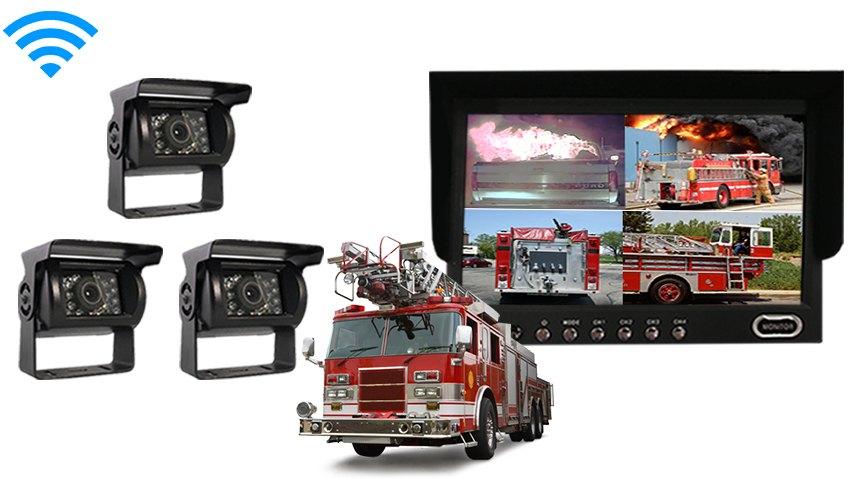

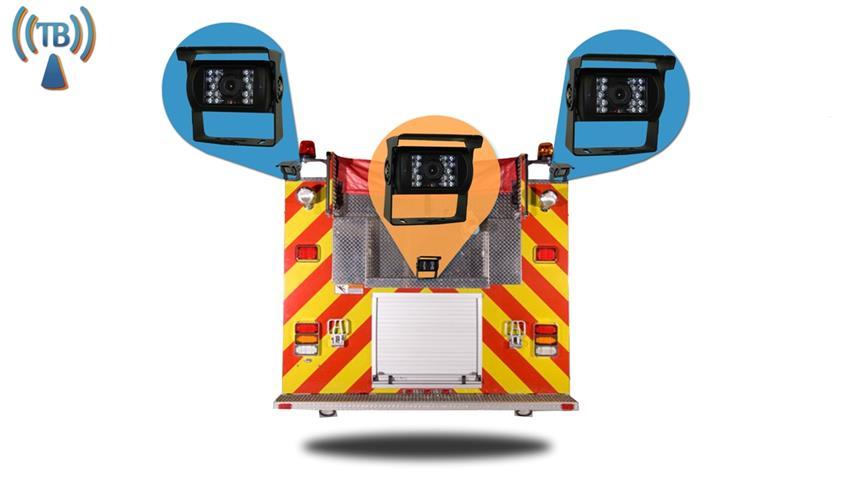

This wireless 3 camera Fire Truck system comes with a 7-inch split screen monitor that allows you to see everything behind and around you continuously while you driving or when parked. The 7-inch split screen monitor has different viewing modes and is compatible with our TadiBrothers cameras wired or wireless. This bundle includes the screen and 3 RV style cameras that all have a 70ft wireless range. This RV system includes everything you need for for a clean installation, featuring easy to follow instructions and diagrams.

Many viewing modes included
The 7-inch Split screen observation monitor is the perfect monitor if you want a multi camera backup system for your vehicle. This monitor is full color and is compatible with the TadiBrothers industry leading night vision technology. Whether you want a wired or wireless camera system this split screen is fully compatible with every camera we sell.
The monitor comes with a remote and a dash mount that can be screwed or velcroed to your dash. Some resourceful customers have even hung the screen from the ceiling to give it a more intuitive backup mirror feel.
The software in the monitor allows for many different viewing configurations, you can see 1 camera at a time up to 4 cameras and even when viewing multiple cameras at once it has different configurations for that.
If you intend to use this screen while you’re driving down the road or changing lanes you can also use this split screen monitor as an observation screen or connect it to the trigger wires and see the specific camera you want to see, when you need to see it.
As for the brightness, this monitor will deliver a perfect image even in direct sunlight and auto dim at night for a softer more comfortable view.
This monitor includes everything you need for installation including a dash mount that can be screwed or velcroed to the dash as well as a wiring harness that end with 2 pigtails for 12-24 volts, for those who want to simplify their installation we do offer to a cigarette adapter and a suction cup for your convenience.
- Full Color LCD Screen
- Stays on while driving
- Can be triggered by the blinkers
- Accepts up to 4 cameras
- Auto brightness for nighttime viewing

Tiny design can be tucked away anywhere

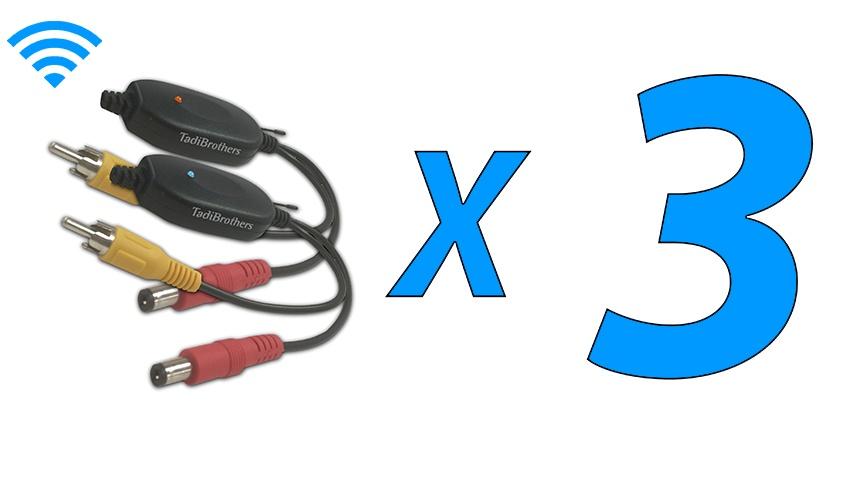

This 3 pack of wireless Transmitter have a flawless range of 70ft. In the bundle you get 3 complete sets, enough for 3 separate cameras that have RCA plugs (This can be added to any Wired TadiBrothers cameras).
They are 100% water/weatherproof and this updated version will also power the camera, which means you only need 1 power source for each camera. If you don't want the transmitter on the outside many of our customer hide the transmitter in a closet or behind the back wall.
When designing these transmitters we assumed they will stay operational continuously 24/7 for those customers that want to use them as a live security system when they are parked.
For those that want to use the same trailer for different pickup trucks, this system will allow that as well, you would just need to purchase a extra receivers..
- 3 Sets of Transmitters (for 3 Cameras)
- Wireless range of 70ft+
- 100% Water and Weather proof
- Can stay active 24/7
- Easy Setup and installation

Dimensions of the Camera
This 3 Pack of RV cameras has been designed from the ground up to give you the perfect image day or night. the lens has a viewable angle of 120° which will allow you to see 3 lanes behind you.
It also features incredible color and military grade night vision that can be left on continuously while your driving down the road or pop on automatically when you go in reverse. Many of our customer have mounted this camera over their RV entrance door to be used as a sort of door bell camera.
The automatic night vision is the best industry because its progressive nature, this means that the darker it gets outside the more the night vision is active. The durable construction of this RV camera is meant to operate in all weather condition, it is 100% water and weather proof and is relied on for commercial fleets around the country.
- Stays on while driving
- 3 Full Color Cameras
- Progressive Night Vision
- IP69 Weatherproof
- 7-Inch Split Screen Monitor (4 Channels)
- 1pcs Harness for Power & Video
- 1pcs Butterfly Mount
- 1pcs Double sided adhesive for mount
- 3 Sets of Transmitters (for 3 Cameras)
- 3pcs 2.1mm DC Barrel connectors
- 3pcs Velcro for Transmitter
- 3pcs of Wired Birds Eye View Camera
- 3pcs 15ft Video Cable
- 3pcs 2.1mm DC Power Cables
- 3pcs Metal U-Brackets (for Cameras)
Specs
Fire Truck Rear View System 3 Wireless Backup Cameras and Monitor - SKU156476 | |
---|---|
More Info | |
Weight (Lbs) | |
Backup camera connectivity | Analog Wireless |
Cameras Included in the Package | 3 Cameras |
Dimensions | |
Transport | Truck and Van |
Type Of Vehicle | Firetruck |
7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Backup camera connectivity | |
Backup Monitor connectivity | Wired CMOS |
Bluetooth | No Bluetooth |
Contrast Ratio | 250:1 |
Dimensions | 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H) |
Dual Backup camera compatible | Yes |
Installation Cables Included | Yes |
Integrated sun shield | Yes |
Length of Cable Included | 15ft |
Material | Hard Plastic |
Mirrored Image | Yes |
Monitor Type | LCD Monitor |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Remote control Included | Yes |
Resolution | 1024X768 |
Screen Size | 7-Inch Screen |
Split Screen | Yes |
Storage temperature | -20C+65C |
Type of Connection | RCA |
Type of Vehicle | RV,Bus,Truck, Boat |
Video game system Compatible | Yes |
Wireless Transmitters for Backup Camera (3 Pack) - SKU20405 | |
---|---|
More Info | |
Weight (Lbs) | |
Backup camera connectivity | Analog Wireless |
Dimensions | |
Installation Cables Included | Yes |
Material | Hard Plastic |
Type Of Upgrade | Wireless Options |
Type of Vehicle | RV, Bus,Truck, Boat, Sedan, Minivan, SUV |
Weather Proof | Yes |
Wireless Range | 70ft |
Power | 12V Power & Ground |
Transmitter | Included |
RV Backup Camera 3 Pack (Birds Eye View) - SKU45909 | |
---|---|
More Info | |
Weight (Lbs) | |
Backup camera connectivity | Wired CMOS |
Backup camera style | Roof Angle (Birds eye view) |
Cameras Viewable Angle | 120° |
Dimensions |
