![]() | Chevrolet Express Van 3rd Brake Light Backup Mirror Camera System SKU896877 - In Stock | $299.99 + FREE SHIPPING | Add To Cart |
- Features
- Specs
- Questions
- Reviews
Features

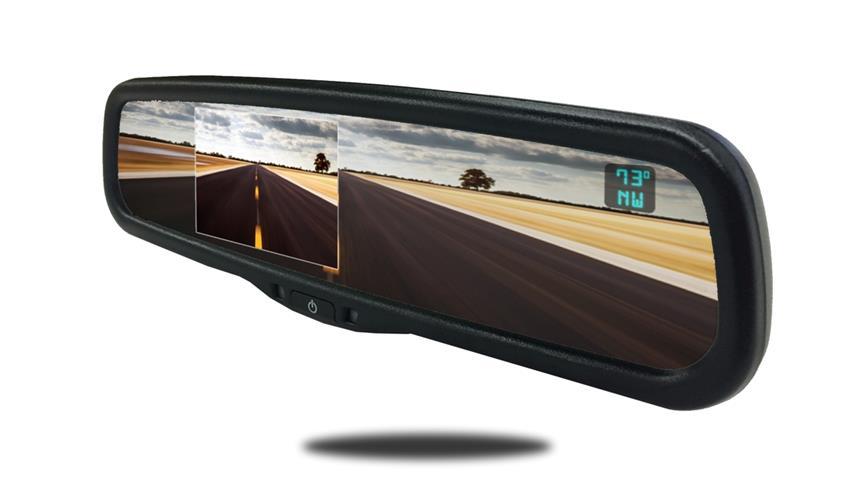

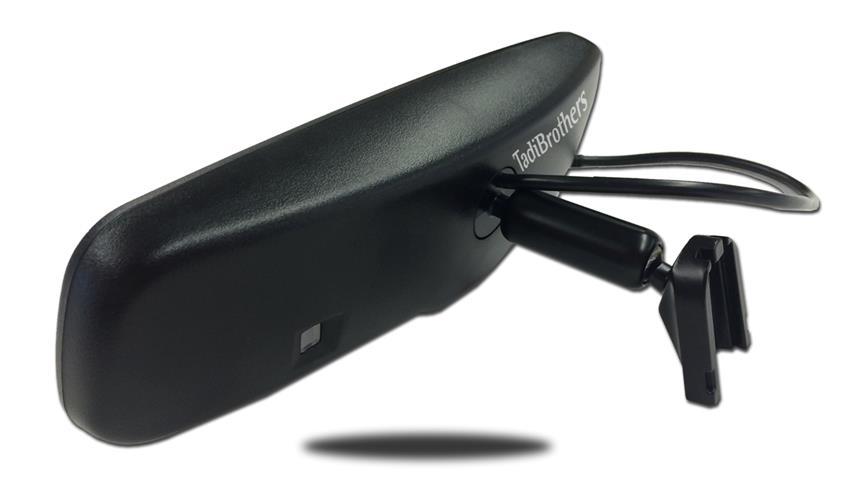

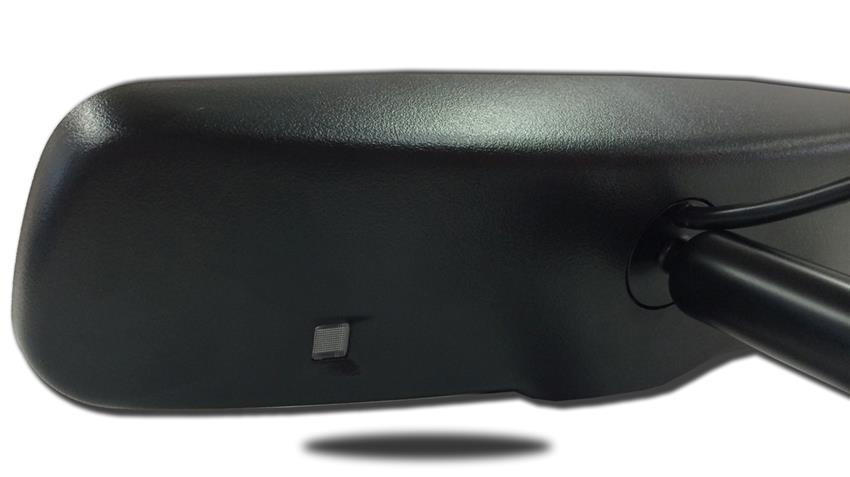

About this Monitor

Comes with a dash mount

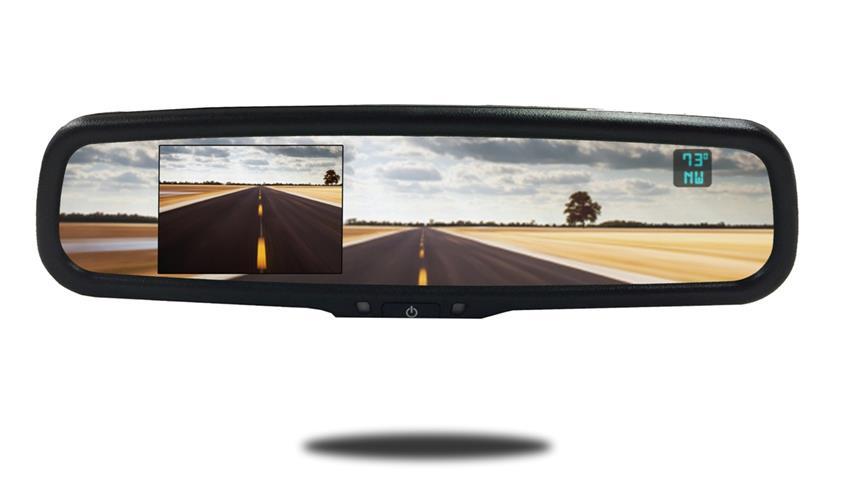

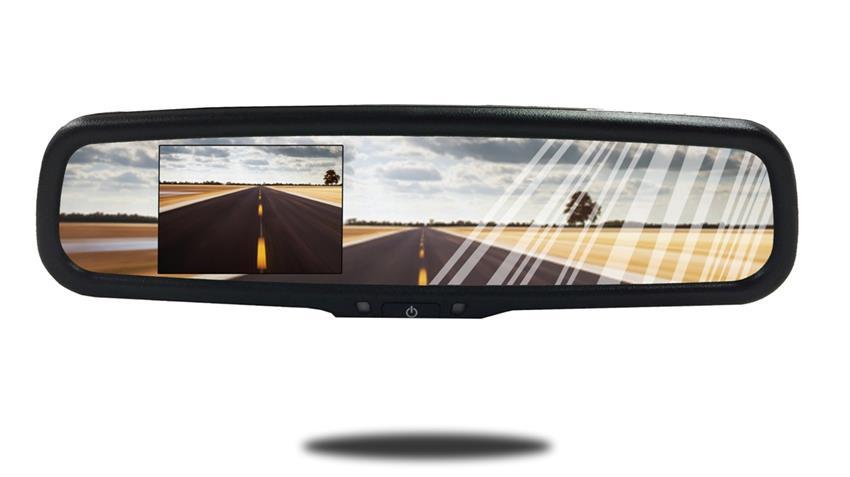

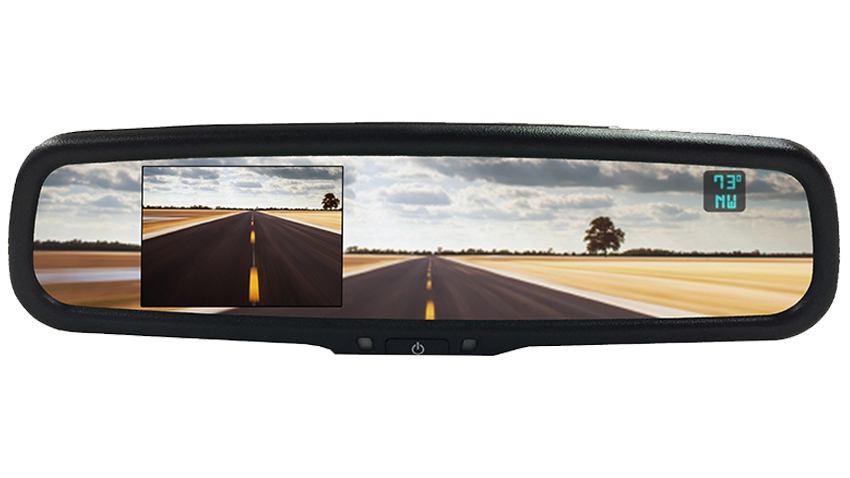

The crystal clear Full Mirror Monitor is a perfect addition to any driver that needs assistance backing up. See the whole world behind you in rich colors. The Mirror doubles as a regular mirror, when the camera is off and on, and a monitor (4.3” viewable) when the camera is on. Remember, even when the camera is on you can still use the parts of the mirror section that remain a mirror. The Mirror also has auto dimming as well as Temperature display inside the vehicle and the temperature outside as well. You also have a Compass directional display (N,S,E,W).
In addition, it has two video inputs so you can connect a camera and a game system or DVD player. This mirror monitor is compatible with all our cameras and any car; it connects to any power source or a cigarette lighter. This mirror takes the place of the original mirror rather than clamping on like our other mirrors. The mirror also has an auto dimming feature. When installing the mirror it fits right onto the spot your current mirrors rests.

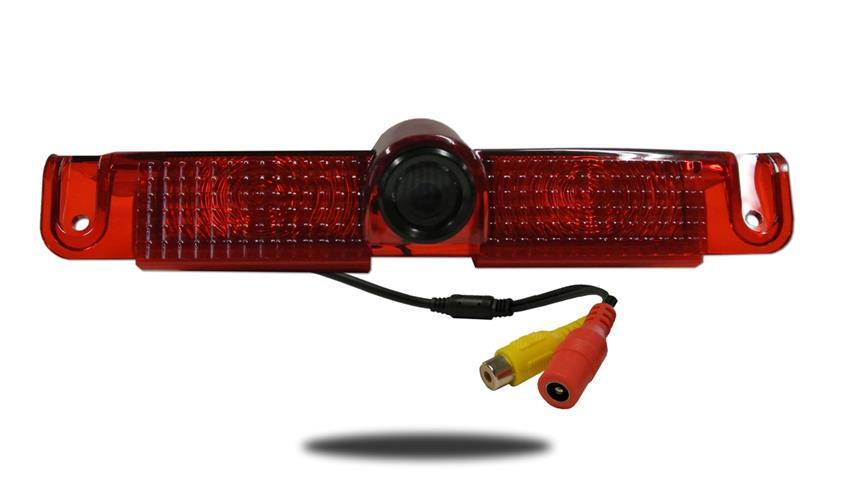

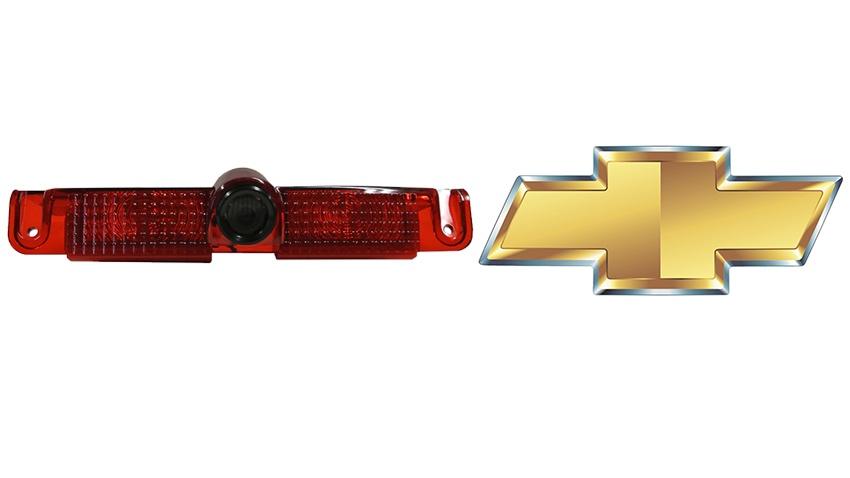

About this backup camera

Simple design makes it easy to install

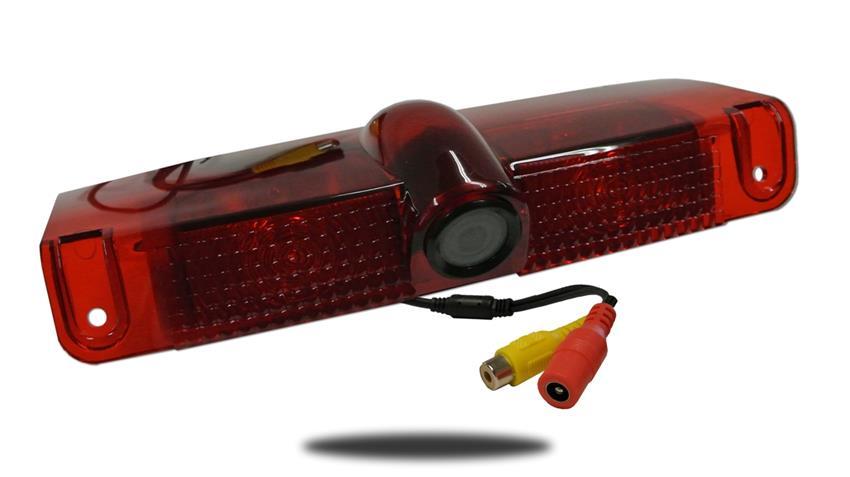

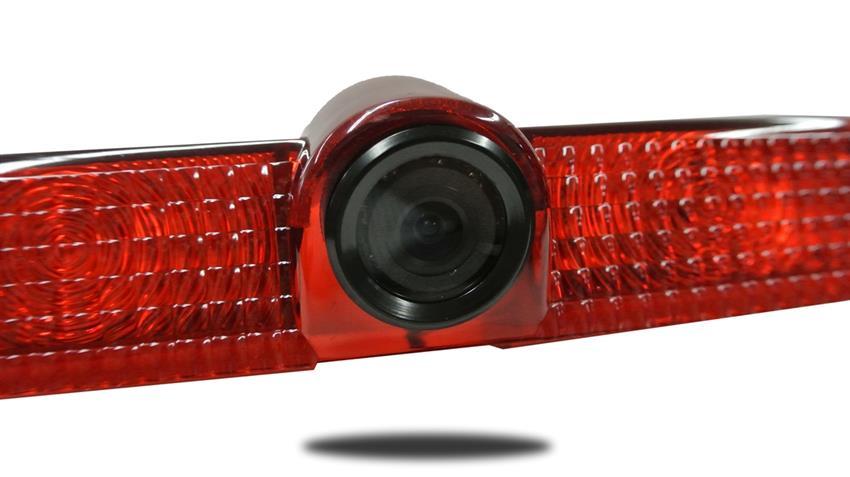

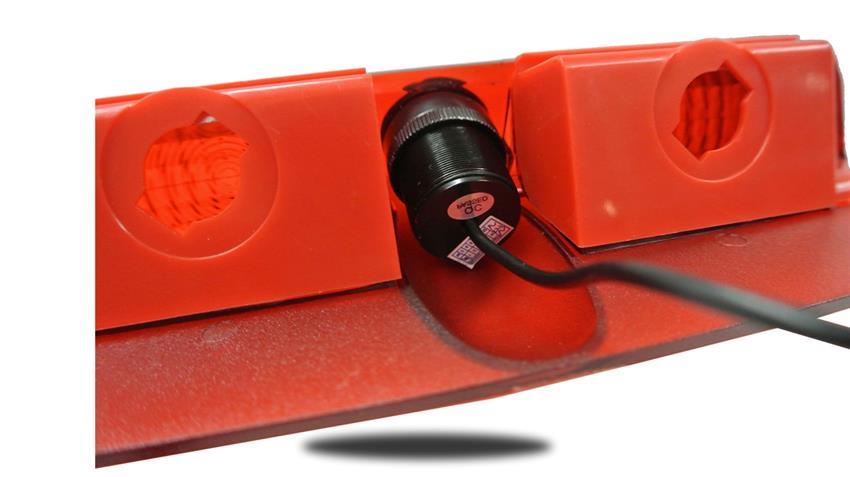

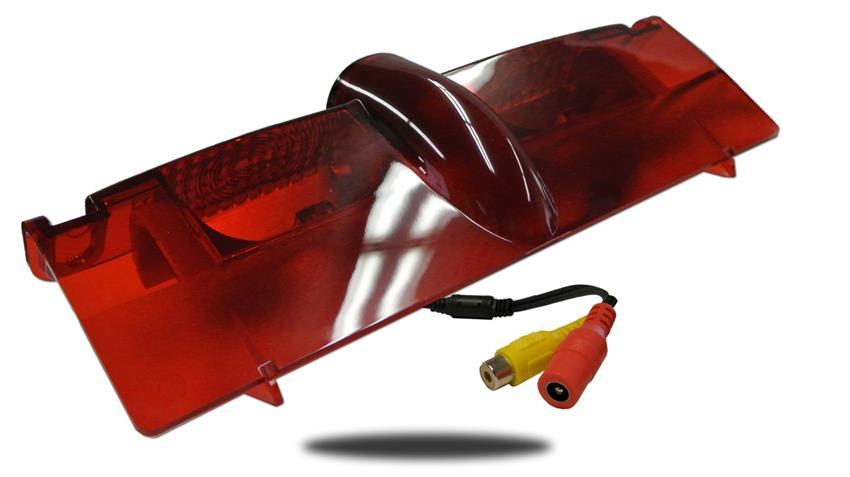

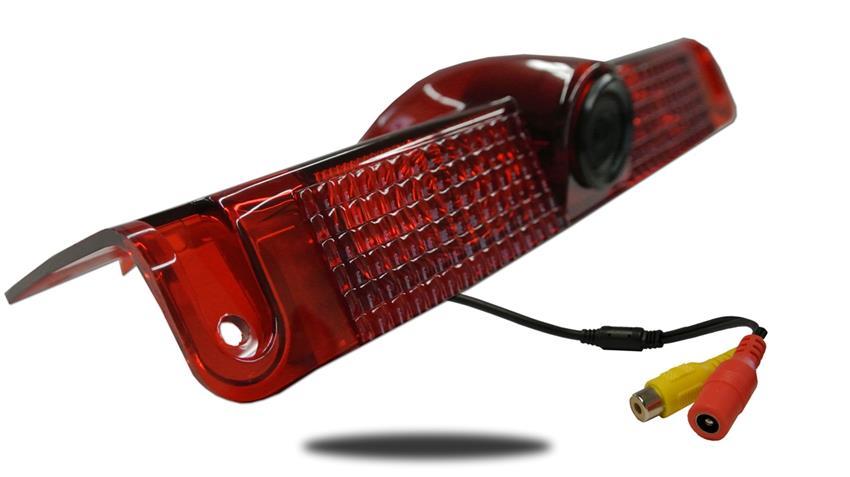

The Chevrolet Express Van Backup Camera has a 120° Degree viewable angle, its waterproof and has auto night vision. The camera is one and has excellent night vision clarity. The Chevrolet backup camera simplly replaces your middle brake light. This allows the camera to be hidden in plain sight, it looks completely stock and is a great option for anyone with a Chevrolet Van.
This camera can take a direct hit from a rock and it will still work like new. Its has also been very poplular with Sprinter Vans, because its housing allows you to install the cameras on multiple sides of your van.
The CCD lens is the clearest and highest quality camera TadiBrothers sells, also called the HD Backup Camera. You can select that as an option as well.
This system comes with a 35ft Premium cable which should cover the length of any Spinter van. If you need a longer cable we have many different lengths.
You can also make this camera wireless and then you will not have to run any cables. Battery packs are available as well so you do not even need a power source.
More you should know

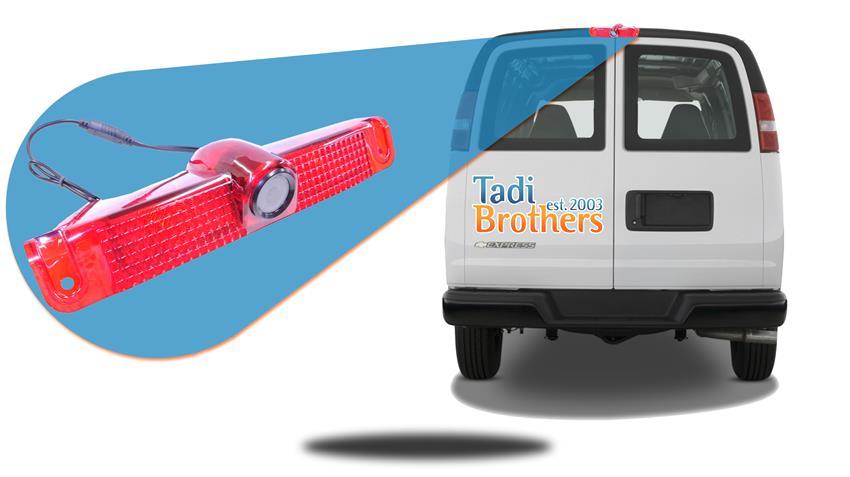

Above the back doors is a great location for the camera
This item includes a 35 Foot cable, that is plenty for any sprinter van.
This system, like most of our vehicular products that have an LCD screen, can be used for video gaming, Considering that a perk or bonus for purchasing our back up system (others block that feature).
Put any compatibility issues aside. With the TadiBrothers promise you have our 30 day guarantee to return the item for an exchange or a full refund. In addition, all our cameras monitor, and car DVD players purchased from TadiBrothers are always compatible with each other. So feel free to mix and match to create your own ultimate vehicular system. (Ask us about our 4-8 cameras split screen options for security, buses, or RVs)
What's in the box
Top

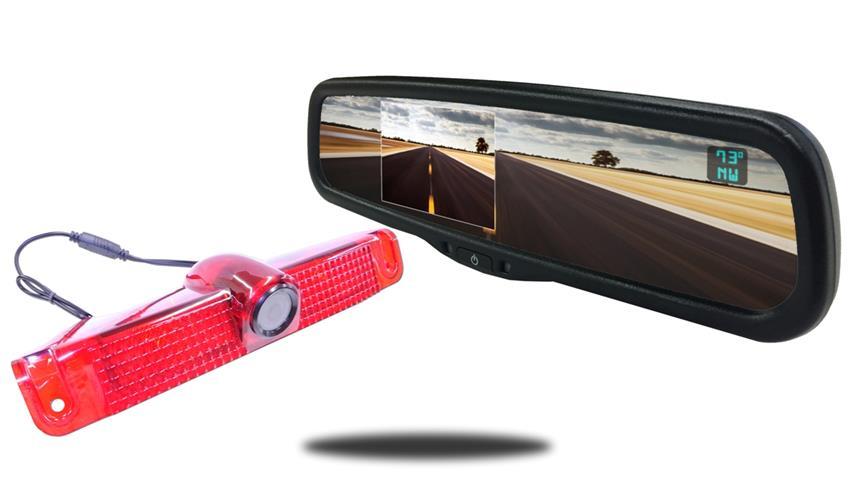

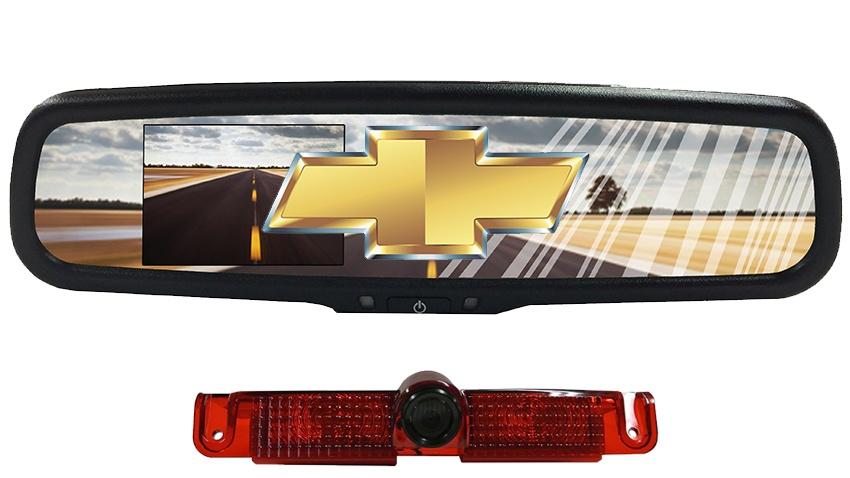

You get both items seen here
1. Full Mirror Monitor with 4.3" monitor
2. Temperature inside and outside and Compass
3. Chevrolet Express Van Backup Camera (Third Brake Light)
4. 120 degree Hi-Res view (Simple install)
5. 35ft Cable
6. All cables needed are included in the package
7. Instruction Manual
The TadiBrothers promise:
30 Days 100% money back guarantee. We know our products are world class and we stand by them 100%. We even have a 24/7 tech team ready for any questions you have. Buy with confidence the TadiBrothers team won’t let you down.
All of our products come with a Standard 1-year warranty.
At TadiBrothers we also offer an Extended Protection Plan. With the extended protection if anything goes wrong, including you damaging your system, we will replace it with a brand new system at no cost. This protection covers anything and everything.
Product Licensed under U.S Patent No. 7,609,961
Specs
Chevrolet Express Van 3rd Brake Light Backup Mirror Camera System - SKU896877 | |
---|---|
More Info | |
Weight (Lbs) | |
3rd Brake Light | Chevrolet |
Brand | Chevrolet |
Camera+Monitor+ Cables Included | Yes |
Cameras Included in the Package | 1 Camera |
Dimensions | |
Transport | Truck and Van |
Type Of Vehicle | Chevrolet Express Van |
4.3-Inch Full Mirror with Camera Screen - SKU23335 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Bluetooth | No Bluetooth |
Built-In Speakers | Yes |
Camera White Balance | Automatic |
Contrast Ratio | 250:1 |
Designated Installation | Replacement Mirror |

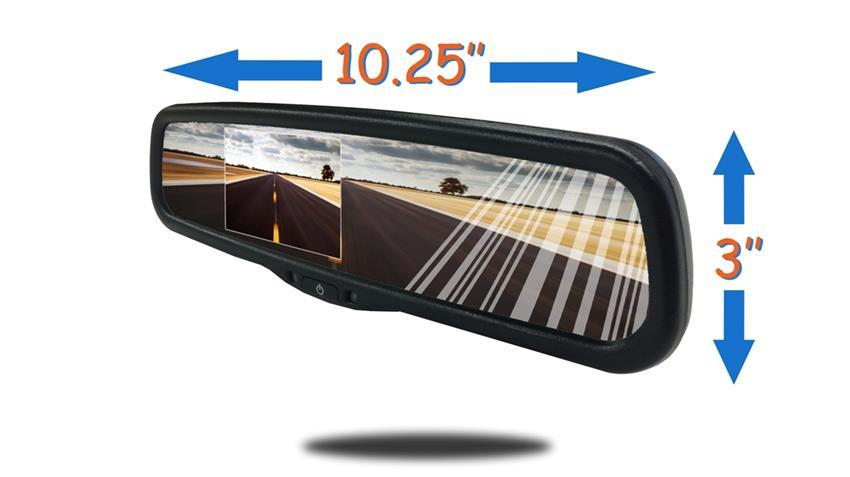

Dimensions | 9.4"(W) X 0.5"(D) X 4.3"(H) |
Dual Backup camera compatible | Yes |
Electronic Shutter | 1/60 ~ 1/10,000 Second |
Installation Cables Included | Yes |
Internal Microphone | Yes |
Ipod connection | Yes |
Material | Hard Plastic |
Mirrored Image | Yes |
Monitor Type | LCD Mirror |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Remote control Included | Yes |
Screen Size | 4.3-Inch Screen |
Split Screen | No |
Storage temperature | -20C+65C |
Touch screen | Yes |
Type of Connection | RCA |
Type of screen | LCD |
Video game system Compatible | Yes |
Chevrolet Van 3rd Brake Light Backup Camera (Birds Eye View) - SKU24395 | |
---|---|
More Info | |
Weight (Lbs) | |
AGC | Automatic |
Anodized black finish | Yes |
Backup camera connectivity | Wired CMOS |
Backup camera style | 3rd Brake Light |
Brand | Chevrolet |
Camera Housing Color | Black |
Camera Resolution | 420 TV Lines |
Camera Water Resistant | Yes |
Camera White Balance | Automatic |
Cameras Viewable Angle | 120° |
Circumference Camera | 1.5'' |
Contrast Ratio | 250:1 |
Dimensions | 6"(W) X 1"(D) X 3"(H) |
Dual Backup camera compatible | Yes |
Electronic Shutter | 1/60 ~ 1/10,000 Second |
Installation Cables Included | Yes |
Integrated sun shield | Yes |
Minimum Illumination (LUX) | 0.2 |
Mirrored Image | Yes |
Night Vision | Yes |
Night Vision Viewable Distance | 60ft |
Operating temperature | -40C to + 133C |
Power Supply | 12 Volt DC |
Quad Compatibility | Yes |
Quantity of Infrared LED's for Night vision | 18 |
Rugged die cast aluminum housing | Yes |
Storage temperature | -20C+65C |
Type of Connection | RCA |
Type of lense | CCD |
Vertical Adjustability | 180° |
Questions
Reviews
"Took a little doing, but ran the all in one camera and power from the 3rd brake light through the vent hole under the side door exterior molding. Through interior panels and under plastic step molding. Initial connection to a tapped power outlet in the dash didn't work. Tadi CS helped tremendously. Ran power to the fuse box under drive seat using a fuse tap. Was able to tuck the wire to the mirror under the roof liner. Used auto molding tools to do this. I have the camera on all the time. Although, connected it so it can be switched off using the dash headlight knob. So far. Very happy with this system."
Reviewed By:
Thomas Maturski - 12/11/2019
