Wireless RV Backup System with a Dual Rear Camera 2 side cameras and Monitor

SKU12331 - In Stock

$719.99

+ FREE SHIPPING
Add To Cart
  • Features
  • Specs
  • Questions
  • Reviews
Back To Top

Wireless RV Backup System with a Dual Rear Camera 2 side cameras and Monitor

  4.5 Based on 29 reviews
SKU12331

Features

Wireless RV Backup System with a Dual Rear Camera 2 side cameras and Monitor - SKU12331
Click on icons for more info
    7 inch Monitor Size The 7-inch screen includes a dash mount. Use the customize section on this page to change the size
    Monitor Mounts on Dash The monitor can mount on the dash. You can also mount it using a suction cup on the windshield or mount it overhead
    Split screen Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    Watch 1 camera or 4 Connect up to 4 cameras and split the screen many different ways. So you can choose which camera you want to see
    4 Cameras This system comes with 4 cameras
    Color See the whole world in full color when reversing or driving down the road. Great for all weather conditions
    Wireless up to 70ft Excellent wireless signal for up to 70ft. The signal will transmit without issues and does not need line of sight
    Mounts at top of RV Mount up top and point it down at the road. This is a great camera for that bird eye view that will show you everything you need to see
    Military Grade Night Vision Driving at night? No problem! See everything behind you in full nightvision
    On while driving or in reverse Works for driving down the road and reverse only. So you can use this as an observation camera to change lanes
    Reverse image (Mirrored Image) The video image on the screen will reversed. Just like the mirror in your car. Great for backing up or looking at the road behind you
    100% Weatherproof 100% Weatherproof. Works in all weather conditions. Rain or Snow or Sun you will be just fine using this system. Its meant to be out in the weather
    Heavy Duty For those who want the strongest parts you can get. Great for all conditions including harsh vibrations and industrial equipment


About this Monitor



See all the cameras on this screen

The Tadi Brothers 7" Wireless Ultimate RV Backup Camera System with Double CCD RV Camera lets you to enjoy one of our most popular setups without the hassle of running wires through your car or RV. Installation is a breeze! Just connect it to any power source or cigarette lighter. Mounting hardware (included) lets you choose between windshield or dashboard mount.

The lightweight, 7” LCD monitor provides crystal clear, panoramic views in rich color. It includes four video inputs to connect to multiple cameras, providing the choice to view one screen or all four in a single monitor. You can also hook up to a game system or DVD player, a feature offered in most of our products, and something you won’t find in most others. As with all our monitors, the 7” wireless LCD is compatible with the full line of Tadi Brothers cameras.

System Features

• Connect up to 4 cameras
• Easy to change between cameras
• Video input :4 video input
• Video system: NTSC/PAL
• Works with all our cameras and monitors

More you should know




exclamation point iconPick Your backup Camera
By using the CUSTOMIZE AND UPGRADE section at the top right of the page, you can choose which style of backup camera fits your needs and budget. This system comes preconfigured with 3-5 cameras however, we have different styles for all kinds of uses. Choose which configuration best fits your budget.


Click here to see our BACKUP CAMERA GUIDE

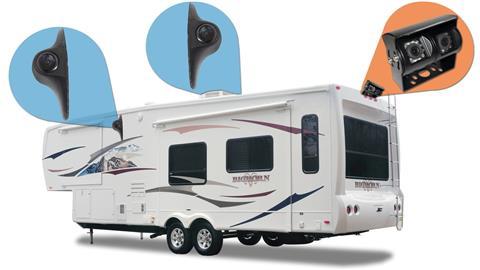

Two cameras on the sides and one in the back

Three Cameras Provide Ultimate Safety

Two side cameras and one rear provide an expansive 120° viewing angle. The side cameras are ideal for any long RV or bus, and can be mounted facing the back or front, offering the highest-quality views you need for parking or lane changes. Our specially designed compact size means you won’t knock them off in those tight, tricky spots! All cameras are waterproof and automatically adjust for night vision. The 65 foot wireless range will work in any vehicle.

Double Box Camera Offers Top-Notch Features and Durability

The Double RV Box camera offers incredible adjustability and night vision clarity. This model is very popular with RVs, because its housing allows you to install the cameras on multiple sides of your RV. With the CCD lens – the clearest and highest quality camera offered in the TadiBrothers line – you’ll be able to view the hitch and rear traffic at the same time, or set it to any custom adjustment you desire!

The RV Box camera has a metal sun shield visor to guard against sun glare and road debris. It is without question our toughest built-camera, built to withstand impact from rocks or pebbles without getting damaged.

For those who want more, the optional addition of a frontal camera converts this to a four camera system.

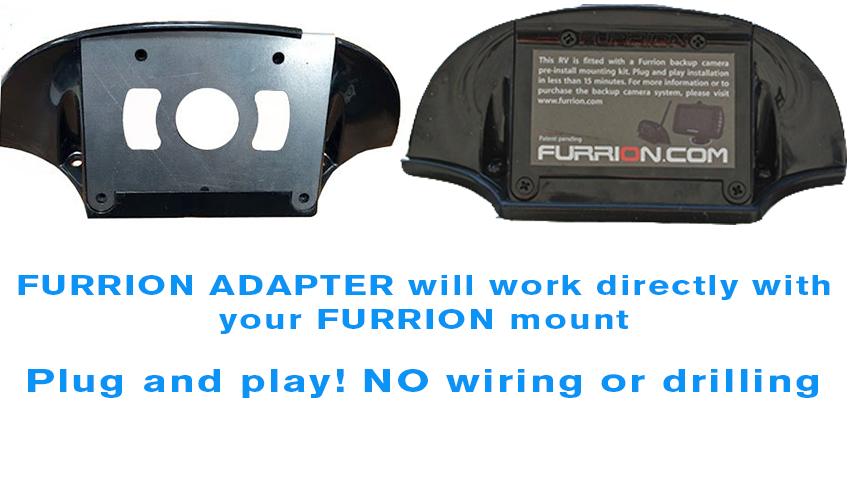

If you have a pre-installed Furrion housing on your Trailer or RV, we have a bracket adapter to make our camera plug and play.

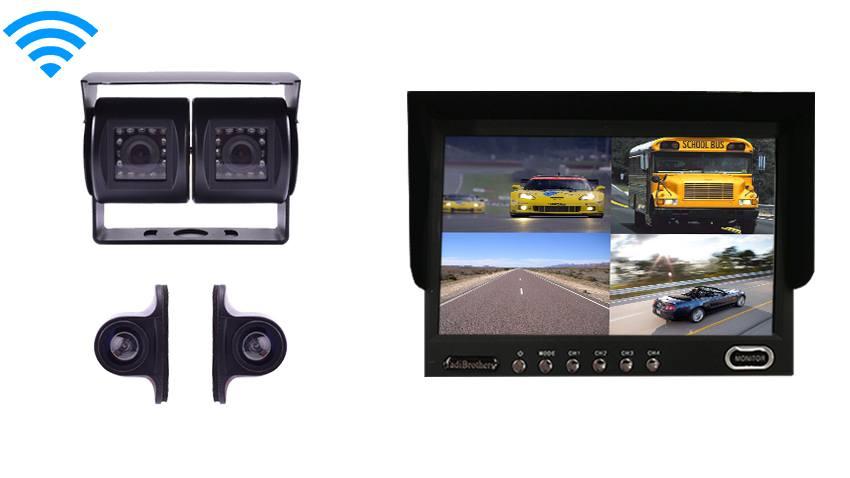

What's in the box

Top


You get everything seen here

1. 7'' Split screen with internal Quad Box
2. Standard quality Double RV Box Camera
3. 2 x Side cameras
4. Wireless Transmitter/ Receiver (Simple install)
5. All cables needed are included in the package
6. Instruction Manual


Our Guarantee

Tadi Brothers products are world class and we stand by them 100%. Our tech team is available 24/7 to answer your questions. You always have our 30 day guarantee to return the item for an exchange or a full refund.

Order your 7" Wireless Ultimate RV Backup Camera System with Double CCD RV Camera today.

Specs

Wireless RV Backup System with a Dual Rear Camera 2 side cameras and Monitor - SKU12331
More Info
Weight (Lbs)
Backup camera connectivity Wireless
Cameras Included in the Package 4 Cameras
Dimensions
Operating temperature -40C to + 133C
Transport RV,5th Wheel,Campers and Trailers

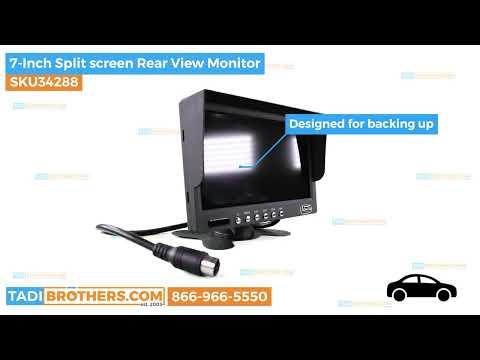

7-Inch Split Screen Monitor for up to 4 Backup Cameras - SKU34288
More Info
Weight (Lbs)
AGC Automatic
Anodized black finish Yes
Bluetooth No Bluetooth
Contrast Ratio 250:1
Designated Installation Dash and Window Mountable
Dimensions 6.7"(W) X 0.5"(D) X 5.5"(4.5"+1.0")(H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Integrated sun shield Yes
Length of Cable Included 15ft
Material Hard Plastic
Mirrored Image Yes
Monitor Type LCD Monitor
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Remote control Included Yes
Resolution 1024X768
Screen Size 7-Inch Screen
Split Screen Yes
Storage temperature -20C+65C
Type of Connection RCA
Type of Vehicle RV,Bus,Truck, Boat
Video game system Compatible Yes
RV Backup Camera with dual Adjustable Lenses (Birds Eye View) - SKU52316
More Info
Weight (Lbs)
Anodized black finish Yes
Camera Resolution 420 TV Lines
Contrast Ratio 250:1
Electronic Shutter 1/60 ~ 1/10,000 Second
Integrated sun shield Yes
Minimum Illumination (LUX) 0.2
Quantity of Infrared LED's for Night vision 18
Rugged die cast aluminum housing Yes
Backup camera connectivity Wired
Backup camera style Roof Angle (Birds eye view)
Camera Housing Color Black
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Dimensions 4" (L) X 2" (W) X 3.25" (H)
Dual Backup camera compatible Yes
Installation Cables Included Yes
Mirrored Image Yes
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Type of Connection RCA
Type of lense Cmos
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Vertical Adjustability 180°
Weather Proof Yes
Weather Proof Insulated Cable Yes

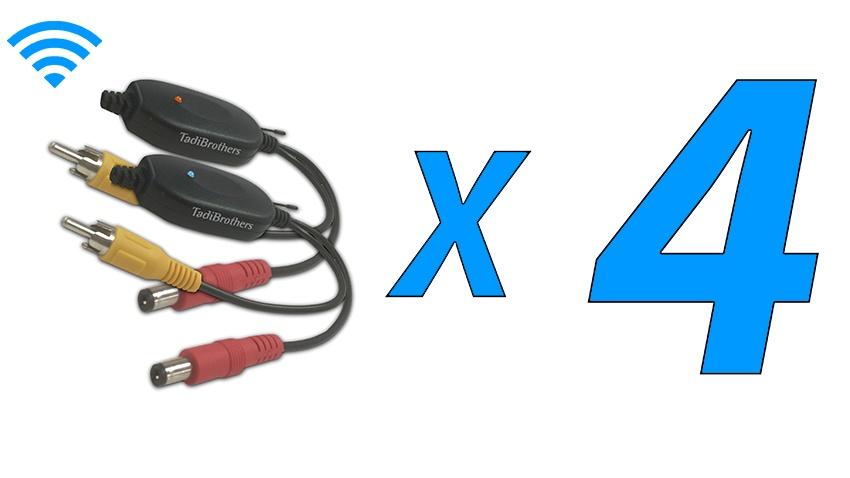

Wireless Transmitters for Backup Camera (4 Pack) - SKU19411
More Info
Weight (Lbs)
Backup camera connectivity Wireless
Dimensions
Installation Cables Included Yes
Material Hard Plastic
Type Of Upgrade Wireless Options
Type of Vehicle RV, Bus,Truck, Boat, Sedan, Minivan, SUV
Weather Proof Yes
Wireless Range 70ft
Power 12V Power & Ground
Transmitter Included
Wireless 2 Side RV Cameras (Passenger and Driver Side Bundle) - SKU87951
More Info
Weight (Lbs)
Anodized black finish Yes
Backup camera connectivity Wireless
Backup camera style Side View
Camera Housing Color Black
Camera Resolution 420 TV Lines
Camera Water Resistant Yes
Camera White Balance Automatic
Cameras Viewable Angle 120°
Circumference Camera 1.5''
Contrast Ratio 250:1
Dimensions 3.1" (L) X 1.5" (W) X 1.6" (H)
Dual Backup camera compatible Yes
Electronic Shutter 1/60 ~ 1/10,000 Second
Length of Cable Included 15ft
Minimum Illumination (LUX) 0.2
Night Vision Yes
Night Vision Viewable Distance 60ft
Operating temperature -40C to + 133C
Power Supply 12 Volt DC
Quad Compatibility Yes
Quantity of Infrared LED's for Night vision 9
Type of Connection RCA
Type of lense Cmos
Wireless Range 75ft
